Bosch PEB 500 E

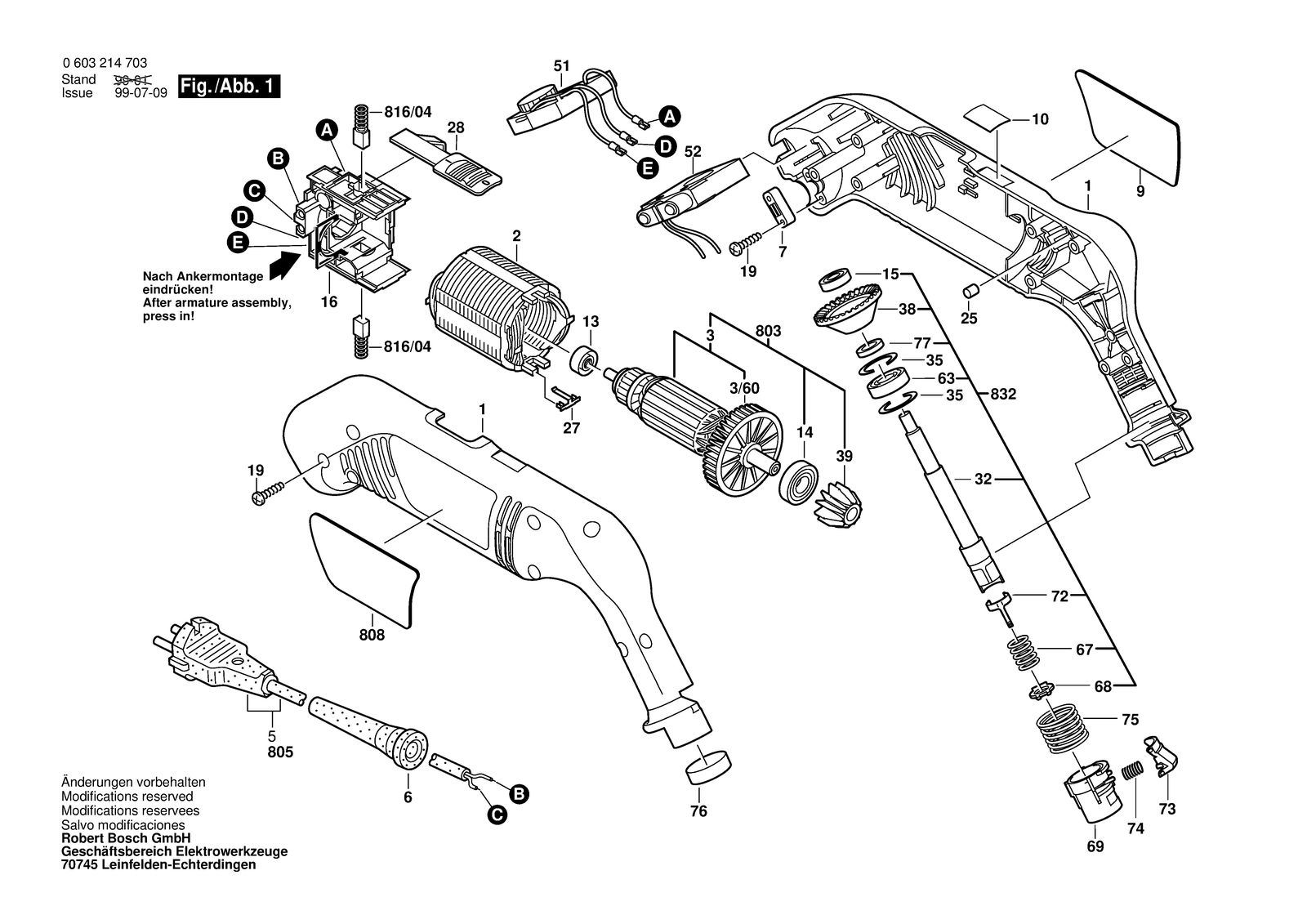

Bosch PEB 500 E electro-brush: exploded parts diagram, 1 sheet, 103 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PEB 500 E: 103 positions on 1 sheet
Bosch PEB 500 E parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104627 | Housing Section Green |
| 1 | 2605104735 | Housing Section |
| 10 | 1601118792 | Warning Plate |
| 10 | 1601118792 | Warning Plate |
| 13 | 2605805008 | Flanged Bearing |
| 13 | 2605805008 | Flanged Bearing |
| 14 | 1900905021 | Groove ball bearing 9X24X7 |
| 14 | 1900905021 | Groove ball bearing 9X24X7 |
| 15 | 1900905023 | Groove ball bearing DIN 625-607-2Z/C3 |
| 15 | 1900905023 | Groove ball bearing DIN 625-607-2Z/C3 |
| 16 | 2604337031 | Brush Plate |
| 16 | 2604337031 | Brush Plate |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220614 | Field 100V |
| 2 | 2604220615 | Field 115V |
| 2 | 2604220616 | Field 220-240V |
| 2 | 2604220616 | Field 220-240V |
| 25 | 2603100056 | Damping rubber |
| 25 | 2603100056 | Damping rubber |
| 27 | 2601329037 | Contact Spring |
| 27 | 2601329037 | Contact Spring |
| 28 | 2602319023 | Switch Slide |
| 28 | 2602319023 | Switch Slide |
| 3 | 2604011170 | Armature 100V |
| 3 | 2604011171 | Armature 115-120V |
| 3 | 2604011172 | Armature 220-240V |
| 3 | 2604011172 | Armature 220-240V |
| 3/60 | 2606610090 | Fan |
| 3/60 | 2606610090 | Fan |
| 32 | 2603020030 | Drive Shaft |
| 32 | 2603020030 | Drive Shaft |
| 35 | 2600101088 | Shim 0,2 MM |
| 35 | 2600101089 | Shim 0,3 MM |
| 35 | 2600101090 | Shim 0,4 MM |
| 35 | 2600101091 | Shim 0,5 MM |
| 35 | 2600101088 | Shim 0,2 MM |
| 35 | 2600101089 | Shim 0,3 MM |
| 35 | 2600101090 | Shim 0,4 MM |
| 35 | 2600101091 | Shim 0,5 MM |
| 38 | 2606100064 | Crown Gear Z=36 |
| 38 | 2606100064 | Crown Gear Z=36 |
| 39 | 2606333035 | Pinion |
| 39 | 2606333035 | Pinion |
| 5 | 2604460124 | Power supply cord GB 240V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460125 | Power supply cord CH 2,65M 2 X 1,0MM H05VV-F |
| 5 | 2604460126 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 5 | 2604460129 | Power supply cord Usa/cdn 2,15M 2 X 082MM SJ 18/2 |
| 5 | 2604460173 | Power supply cord J 5M 2 X 0,75MM Pvc |
| 5 | 2604460125 | Power supply cord CH 2,65M 2 X 1,0MM H05VV-F |
| 51 | 2607233036 | Speed governor 100V |
| 51 | 2607233037 | Speed governor 120V |
| 51 | 2607233038 | Speed governor 220-240V |
| 51 | 2607233038 | Speed governor 220-240V |
| 52 | 2604465109 | Suppression Filter |
| 52 | 2604465109 | Suppression Filter |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 6 | 2600703019 | Grommet Ø8,7-Ø9,6X76 MM |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 63 | 1900905121 | Groove ball bearing 12X28X8 |
| 63 | 1900905121 | Groove ball bearing 12X28X8 |
| 67 | 2604616009 | Compression Spring |
| 67 | 2604616009 | Compression Spring |
| 68 | 2600190089 | Conical Spring Washer |
| 68 | 2600190089 | Conical Spring Washer |
| 69 | 2600499053 | Actuating Element |
| 69 | 2600499053 | Actuating Element |
| 7 | 1611035005 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 72 | 2601290022 | Holding Spring |
| 72 | 2601290022 | Holding Spring |
| 73 | 2602319016 | Switch Slide Red |
| 73 | 2602319016 | Switch Slide Red |
| 74 | 2604611046 | Compression Spring |
| 74 | 2604611046 | Compression Spring |
| 75 | 2604615013 | Compression Spring |
| 75 | 2604615013 | Compression Spring |
| 76 | 2600290038 | Clamping Ring |
| 76 | 2600290038 | Clamping Ring |
| 77 | 2600108014 | Felt Washer |
| 77 | 2600108014 | Felt Washer |
| 803 | 2604010949 | Armature With Fan 115V |
| 803 | 2604010950 | Armature 220-240V |
| 803 | 2604010959 | Armature 100V |
| 803 | 2604010950 | Armature 220-240V |
| 805 | 1607000388 | Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F |
| 808 | 2601119915 | Marking Plate |
| 808 | 2601119916 | Nameplate |
| 808 | 2601119917 | Marking Plate |
| 808 | 2601119918 | Nameplate |
| 808 | 2601119919 | Nameplate |
| 808 | 2601119920 | Nameplate |
| 808 | 2601119922 | Nameplate |
| 808 | 2601119923 | Marking Plate |
| 808 | 2601117480 | Marking Plate |
| 816/04 | 2604321922 | Carbon-Brush Set |
| 816/04 | 2604321922 | Carbon-Brush Set |
| 832 | 2603020900 | Output Shaft |
| 832 | 2603020900 | Output Shaft |
| 9 | 2601119693 | Manufacturer's nameplate |
| 9 | 2601117479 | Manufacturer's nameplate |
