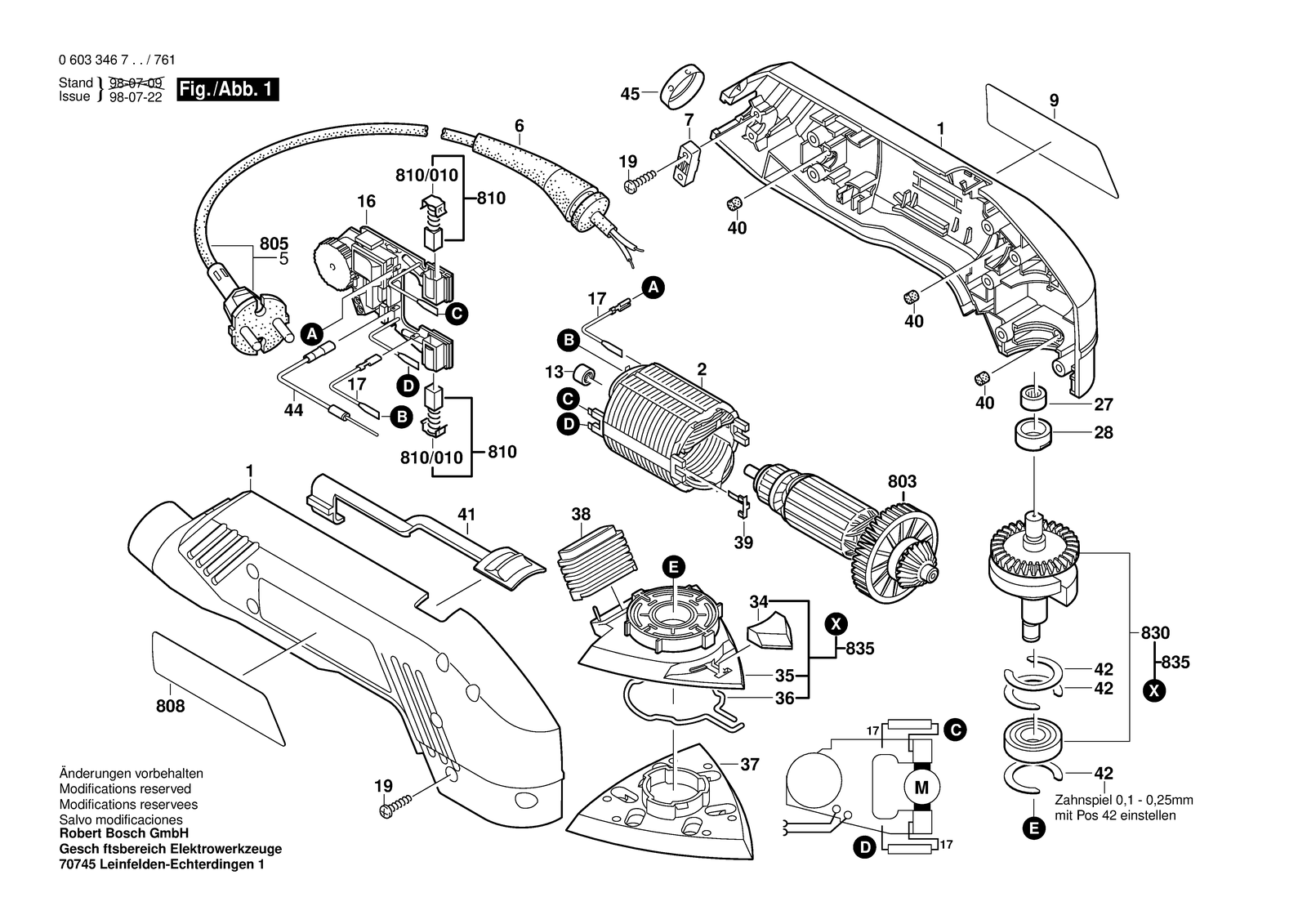

Bosch PDA 240 E delta sander: exploded parts diagram, 1 sheet, 121 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PDA 240 E: 121 positions on 1 sheet
Bosch PDA 240 E parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104544 | Housing Section Green |
| 1 | 2605104573 | Housing Section Blue |
| 1 | 2605104687 | Housing Section Gray |
| 13 | 2600917002 | Needle bearing |
| 13 | 2600917002 | Needle bearing |
| 13 | 2600917002 | Needle bearing |
| 16 | 2607233024 | Speed governor 120V |
| 16 | 2607233025 | Speed governor 230V |
| 16 | 2607233024 | Speed governor 120V |
| 16 | 2607233025 | Speed governor 230V |
| 17 | 2604448034 | Connecting Cable White L=88 MM |
| 17 | 2604448034 | Connecting Cable White L=88 MM |
| 17 | 2604448034 | Connecting Cable White L=88 MM |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220576 | Field 100V |
| 2 | 2604220577 | Field 110-115V |
| 2 | 2604220578 | Field 220-230V |
| 2 | 2604220577 | Field 110-115V |
| 2 | 2604220578 | Field 220-230V |
| 27 | 2600917003 | Needle-Roller Bearing Ø8X8 MM |
| 27 | 2600917003 | Needle-Roller Bearing Ø8X8 MM |
| 27 | 2600917003 | Needle-Roller Bearing Ø8X8 MM |
| 28 | 2600390026 | Bearing Carrier |
| 28 | 2600390026 | Bearing Carrier |
| 28 | 2600390026 | Bearing Carrier |
| 34 | 2608000173 | Catch Slide |
| 34 | 2608000173 | Catch Slide |
| 34 | 2608000173 | Catch Slide |
| 35 | 2601098044 | Tool Holding Fixture |
| 35 | 2601098044 | Tool Holding Fixture |
| 35 | 2601098044 | Tool Holding Fixture |
| 36 | 2604680000 | Clamping Spring |
| 36 | 2604680000 | Clamping Spring |
| 36 | 2604680000 | Clamping Spring |
| 37 | 2608000174 | Sander Plate |
| 37 | 2608000174 | Sander Plate |
| 37 | 2608000174 | Sander Plate |
| 38 | 2600712006 | Flexible Connection |
| 38 | 2600712006 | Flexible Connection |
| 38 | 2600712006 | Flexible Connection |
| 39 | 2601329037 | Contact Spring |
| 39 | 2601329037 | Contact Spring |
| 39 | 2601329037 | Contact Spring |
| 40 | 2603100056 | Damping rubber |
| 40 | 2603100056 | Damping rubber |
| 40 | 2603100056 | Damping rubber |
| 41 | 2602319010 | Switch Slide |
| 41 | 2602319010 | Switch Slide |
| 41 | 2602319010 | Switch Slide |
| 42 | 2600101088 | Shim 0,2 MM |
| 42 | 2600101089 | Shim 0,3 MM |
| 42 | 2600101090 | Shim 0,4 MM |
| 42 | 2600101091 | Shim 0,5 MM |
| 42 | 2600101088 | Shim 0,2 MM |
| 42 | 2600101089 | Shim 0,3 MM |
| 42 | 2600101090 | Shim 0,4 MM |
| 42 | 2600101091 | Shim 0,5 MM |
| 42 | 2600101088 | Shim 0,2 MM |
| 42 | 2600101089 | Shim 0,3 MM |
| 42 | 2600101090 | Shim 0,4 MM |
| 42 | 2600101091 | Shim 0,5 MM |
| 44 | 2604448200 | Earth Conductor |
| 44 | 2604448200 | Earth Conductor |
| 44 | 2604448200 | Earth Conductor |
| 45 | 2600290025 | Clamping Ring |
| 45 | 2600290025 | Clamping Ring |
| 45 | 2600290025 | Clamping Ring |
| 5 | 2604460124 | Power supply cord GB 240V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460125 | Power supply cord CH 2,65M 2 X 1,0MM H05VV-F |
| 5 | 2604460129 | Power supply cord Usa/cdn 2,15M 2 X 082MM SJ 18/2 |
| 5 | 2604460173 | Power supply cord J 5M 2 X 0,75MM Pvc |
| 5 | 2604460259 | Power supply cord EU 230V 2,7M 2 X 0,75MM H05 Vv-F |
| 5 | 2604460280 | Power supply cord I / BR 2,65M 2 X 1,0MM H05VV-F |
| 5 | 2604460291 | Power supply cord AUS 240V 2,6M 2 X 0,75MM H05 Vv-F |
| 5 | 2604460187 | Power supply cord Usa/cdn 2,68M 2 X 082MM SJ 18/2 |
| 5 | 2604460125 | Power supply cord CH 2,65M 2 X 1,0MM H05VV-F |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 6 | 2600703019 | Grommet Ø8,7-Ø9,6X76 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 7 | 1611035005 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 803 | 2604010938 | Armature 100V |
| 803 | 2604010939 | Armature 115V |
| 803 | 2604010940 | Armature 230V |
| 803 | 2604010939 | Armature 115V |
| 803 | 2604010940 | Armature 230V |
| 808 | 2601116711 | Marking Plate |
| 808 | 2601119298 | Marking Plate |
| 808 | 2601119299 | Marking Plate |
| 808 | 2601119300 | Marking Plate |
| 808 | 2601119301 | Marking Plate |
| 808 | 2601119303 | Marking Plate |
| 808 | 2601119304 | Marking Plate |
| 808 | 2601119305 | Marking Plate |
| 808 | 2601119306 | Marking Plate |
| 808 | 2601119482 | Marking Plate |
| 808 | 2601119302 | Marking Plate |
| 808 | 2601117135 | Nameplate |
| 810 | 2604321921 | Carbon-Brush Set |
| 810 | 2607014010 | Carbon-Brush Set |
| 810 | 2607014010 | Carbon-Brush Set |
| 810 | 2607014010 | Carbon-Brush Set |
| 810/010 | 2601322018 | Ratchet Cap |
| 810/010 | 2601322018 | Ratchet Cap |
| 810/010 | 2601322018 | Ratchet Cap |
| 830 | 2606100900 | Bevel Gear Shaft Z= 31 |
| 830 | 2606100900 | Bevel Gear Shaft Z= 31 |
| 830 | 2606100900 | Bevel Gear Shaft Z= 31 |
| 835 | 2601098900 | Tool Holding Fixture |
| 835 | 2601098900 | Tool Holding Fixture |
| 835 | 2601098900 | Tool Holding Fixture |
| 9 | 2601118942 | Manufacturer's nameplate |
| 9 | 2601119131 | Manufacturer's nameplate |
| 9 | 2601118942 | Manufacturer's nameplate |
| 9 | 2601117134 | Manufacturer's nameplate |
