Bosch PDA 180 E

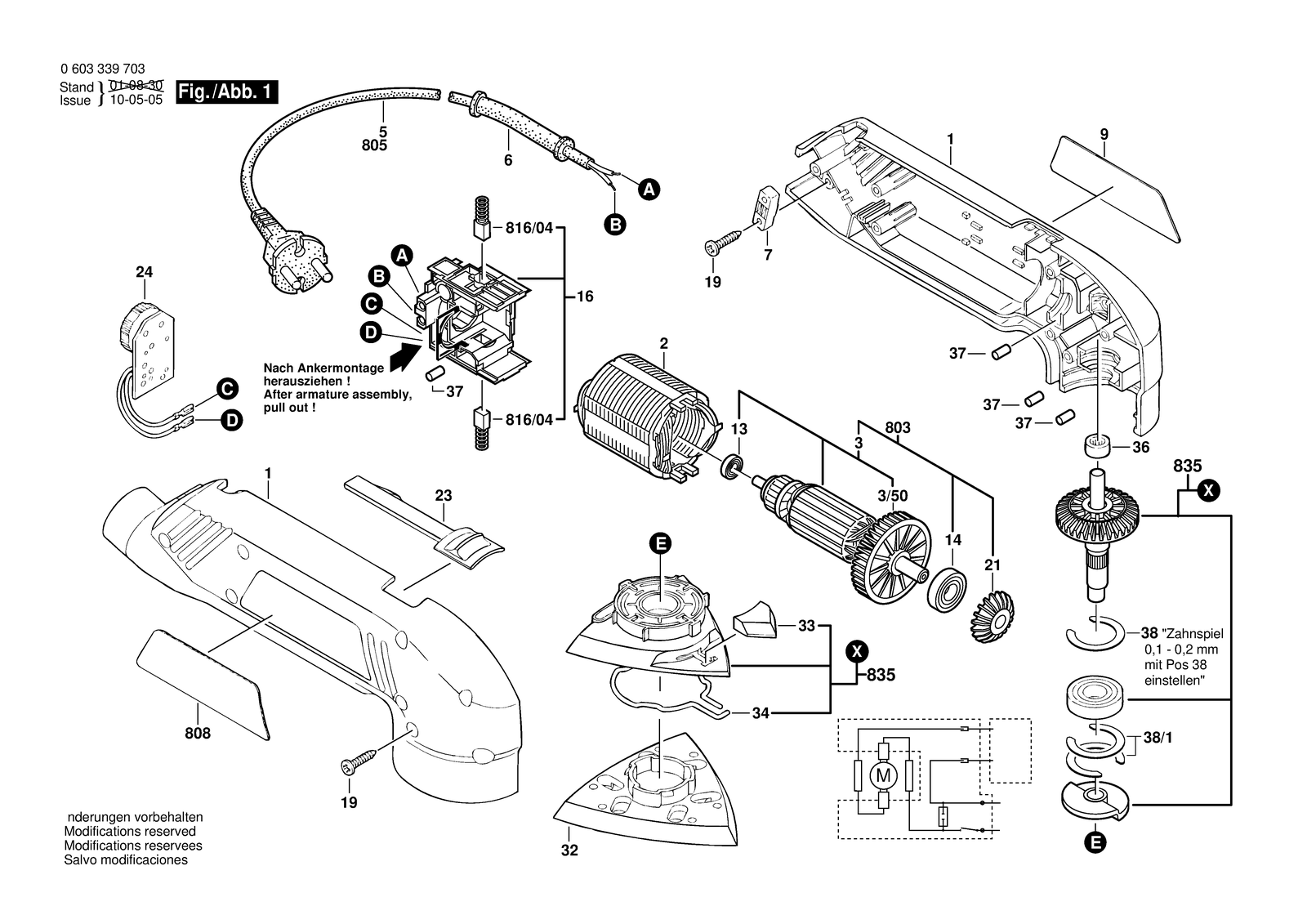

Bosch PDA 180 E delta sander: exploded parts diagram, 1 sheet, 100 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PDA 180 E: 100 positions on 1 sheet
Bosch PDA 180 E parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104651 | Housing Section Green |
| 1 | 2605104651 | Housing Section Green |
| 13 | 2600905046 | Groove ball bearing 8X19X6 |
| 13 | 2600905046 | Groove ball bearing 8X19X6 |
| 14 | 2600905080 | Groove ball bearing |
| 14 | 2600905080 | Groove ball bearing |
| 16 | 2604337079 | Brush Plate |
| 16 | 2604337079 | Brush Plate |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220637 | Field 100V |
| 2 | 2604220638 | Field 115V |
| 2 | 2604220639 | Field 220-240V |
| 2 | 2604220637 | Field 100V |
| 2 | 2604220638 | Field 115V |
| 2 | 2604220639 | Field 220-240V |
| 21 | 2606333040 | Pinion |
| 21 | 2606333040 | Pinion |
| 23 | 2602319021 | Switch Slide |
| 23 | 2602319021 | Switch Slide |
| 24 | 2607233053 | Rpm Actuator 220-240V |
| 24 | 2607233054 | Rpm Actuator 100-115V |
| 24 | 2607233053 | Rpm Actuator 220-240V |
| 24 | 2607233054 | Rpm Actuator 100-115V |
| 3 | 2604010963 | Armature 100V |
| 3 | 2604010964 | Armature 115V |
| 3 | 2604010965 | Armature 220-240V |
| 3 | 2604010963 | Armature 100V |
| 3 | 2604010964 | Armature 115V |
| 3 | 2604010965 | Armature 220-240V |
| 3/50 | 2606610083 | Fan |
| 3/50 | 2606610083 | Fan |
| 32 | 2608000232 | Closing Plate |
| 32 | 2608000232 | Closing Plate |
| 33 | 2608000173 | Catch Slide |
| 33 | 2608000173 | Catch Slide |
| 34 | 2604680000 | Clamping Spring |
| 34 | 2604680000 | Clamping Spring |
| 36 | 2600917002 | Needle bearing |
| 36 | 2600917002 | Needle bearing |
| 37 | 2603100056 | Damping rubber |
| 37 | 2603100056 | Damping rubber |
| 38 | 2600101088 | Shim 0,2 MM |
| 38 | 2600101088 | Shim 0,2 MM |
| 38 | 2600101089 | Shim 0,3 MM |
| 38 | 2600101090 | Shim 0,4 MM |
| 38/1 | 2600101091 | Shim 0,5 MM |
| 38/1 | 2600101091 | Shim 0,5 MM |
| 5 | 1604460124 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460431 | Power supply cord |
| 5 | 2604460116 | Power supply cord |
| 5 | 2604460122 | Power supply cord Usa/cdn 2,15M 2 X 0,82MM SJ 18/2 |
| 5 | 2604460192 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 5 | 2604460193 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 5 | 1604460124 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460417 | Power supply cord CH 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460116 | Power supply cord |
| 5 | 2604460122 | Power supply cord Usa/cdn 2,15M 2 X 0,82MM SJ 18/2 |
| 5 | 2604460192 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 5 | 2604460293 | Power supply cord AUS 240V 2,6M 2 X 0,75MM H05 Vv-F |
| 6 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 6 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 6 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 6 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 7 | 1611035005 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 7 | 1611035005 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 803 | 2604010960 | Armature 100V |
| 803 | 2604010961 | Armature 115V |
| 803 | 2604010962 | Armature 220-240V |
| 803 | 2604010960 | Armature 100V |
| 803 | 2604010961 | Armature 115V |
| 803 | 2604010962 | Armature 220-240V |
| 805 | 1607000387 | Power supply cord CN 2,65M 2 X 0,75MM H05 W-f |
| 805 | 1607000387 | Power supply cord CN 2,65M 2 X 0,75MM H05 W-f |
| 808 | 2601119958 | Marking Plate |
| 808 | 2601119959 | Manufacturer's nameplate |
| 808 | 2601119960 | Marking Plate |
| 808 | 2601119961 | Manufacturer's nameplate |
| 808 | 2601119962 | Manufacturer's nameplate |
| 808 | 2601119963 | Manufacturer's nameplate |
| 808 | 2601119964 | Marking Plate |
| 808 | 2601119965 | Nameplate |
| 808 | 160111A2XG | Nameplate |
| 808 | 2601116332 | Nameplate |
| 808 | 2601116333 | Nameplate |
| 808 | 2601116334 | Nameplate |
| 808 | 2601116335 | Nameplate |
| 808 | 2601116336 | Nameplate |
| 808 | 2601116337 | Nameplate |
| 816/04 | 2607014010 | Carbon-Brush Set |
| 816/04 | 2607014010 | Carbon-Brush Set |
| 835 | 2601098902 | Tool Holding Fixture |
| 835 | 2601098902 | Tool Holding Fixture |
| 9 | 2601117724 | Manufacturer's nameplate |
| 9 | 2601119880 | Manufacturer's nameplate |
| 9 | 2601119880 | Manufacturer's nameplate |
