Bosch PDA 120 E

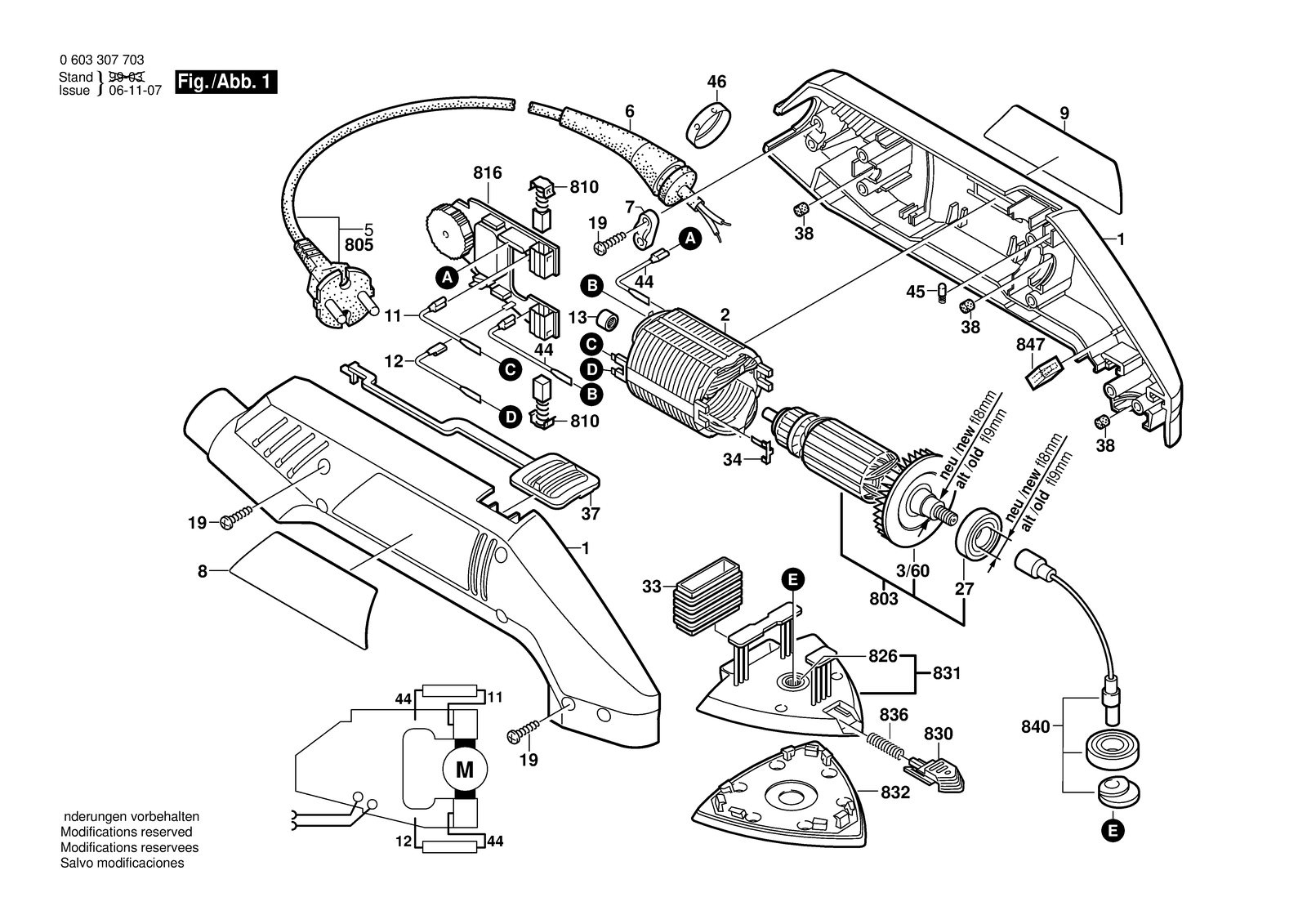

Bosch PDA 120 E delta sander: exploded parts diagram, 1 sheet, 52 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PDA 120 E: 52 positions on 1 sheet
Bosch PDA 120 E parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104408 | Housing Section Green |
| 11 | 2604448178 | Connecting Cable White L = 37 MM |
| 12 | 2604448016 | Connecting Cable White L=52MM |
| 13 | 2600917002 | Needle bearing |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220516 | Field 100V |
| 2 | 2604220517 | Field 115V |
| 2 | 2604220518 | Field 230-240V |
| 27 | 2600905060 | Groove ball bearing 8X24X7 |
| 3/60 | 2606610083 | Fan |
| 33 | 2600712003 | Flexible Connection |
| 34 | 2601329037 | Contact Spring |
| 37 | 2602319008 | Switch Slide |
| 38 | 2603100056 | Damping rubber |
| 44 | 2604448034 | Connecting Cable White L=88 MM |
| 45 | 2600590010 | Thrust Member |
| 46 | 2600290025 | Clamping Ring |
| 5 | 2604460124 | Power supply cord GB 240V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460125 | Power supply cord CH 2,65M 2 X 1,0MM H05VV-F |
| 5 | 2604460126 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 5 | 2604460127 | Power supply cord J 2,50M 2 X 0,75MM Pvc |
| 5 | 2604460129 | Power supply cord Usa/cdn 2,15M 2 X 082MM SJ 18/2 |
| 5 | 2604460280 | Power supply cord I / BR 2,65M 2 X 1,0MM H05VV-F |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 6 | 2600703019 | Grommet Ø8,7-Ø9,6X76 MM |
| 7 | 1611035005 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 8 | 2601118789 | Nameplate |
| 8 | 2601118790 | Nameplate |
| 8 | 2601118791 | Marking Plate |
| 8 | 2601118792 | Marking Plate |
| 8 | 2601118793 | Marking Plate |
| 8 | 2601118794 | Marking Plate |
| 8 | 2601118795 | Marking Plate |
| 8 | 2601119458 | Marking Plate |
| 8 | 2601119490 | Marking Plate |
| 803 | 2604010929 | Armature 100V |
| 803 | 2604010930 | Armature 115V |
| 803 | 2604010931 | Armature 230-240V |
| 805 | 1607000388 | Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F |
| 810 | 2607014010 | Carbon-Brush Set |
| 816 | 2607233016 | Rpm Actuator 100-120V |
| 816 | 2607233017 | Rpm Actuator 220-240V |
| 826 | 2600917007 | Needle-Roller Bearing |
| 830 | 2608000144 | Button |
| 831 | 2601098901 | Tool Holding Fixture |
| 832 | 2608000143 | Sander Plate Black |
| 836 | 2604610034 | Compression Spring |
| 840 | 2603010002 | Flexible Shaft |
| 847 | 2608005068 | Guide Piece |
| 9 | 2601118788 | Manufacturer's nameplate Sunny Side |
