Bosch PCM 8 ST
Bosch PCM 8 ST compound mitre saw: exploded parts diagram, 5 sheets, 71 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

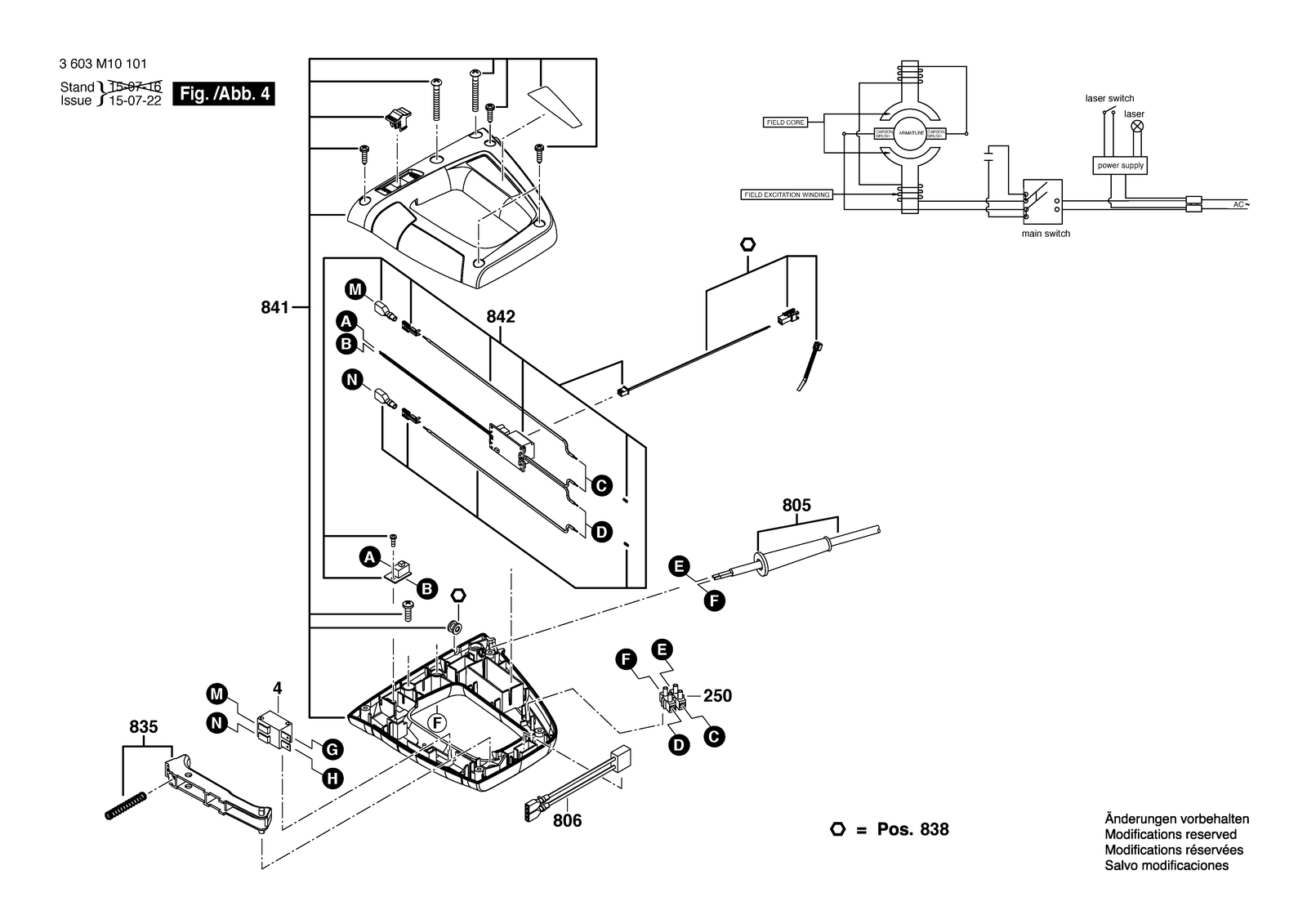

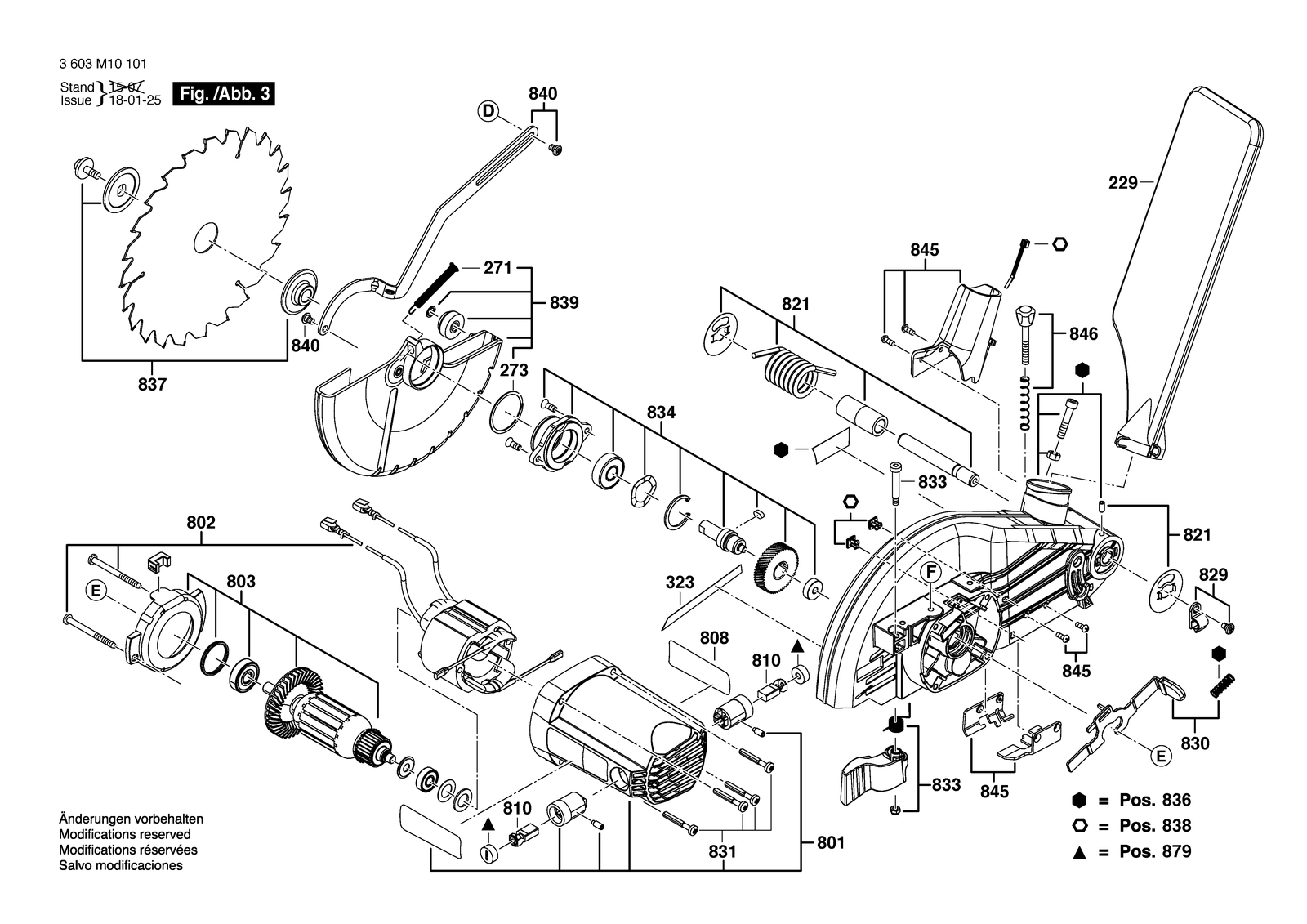

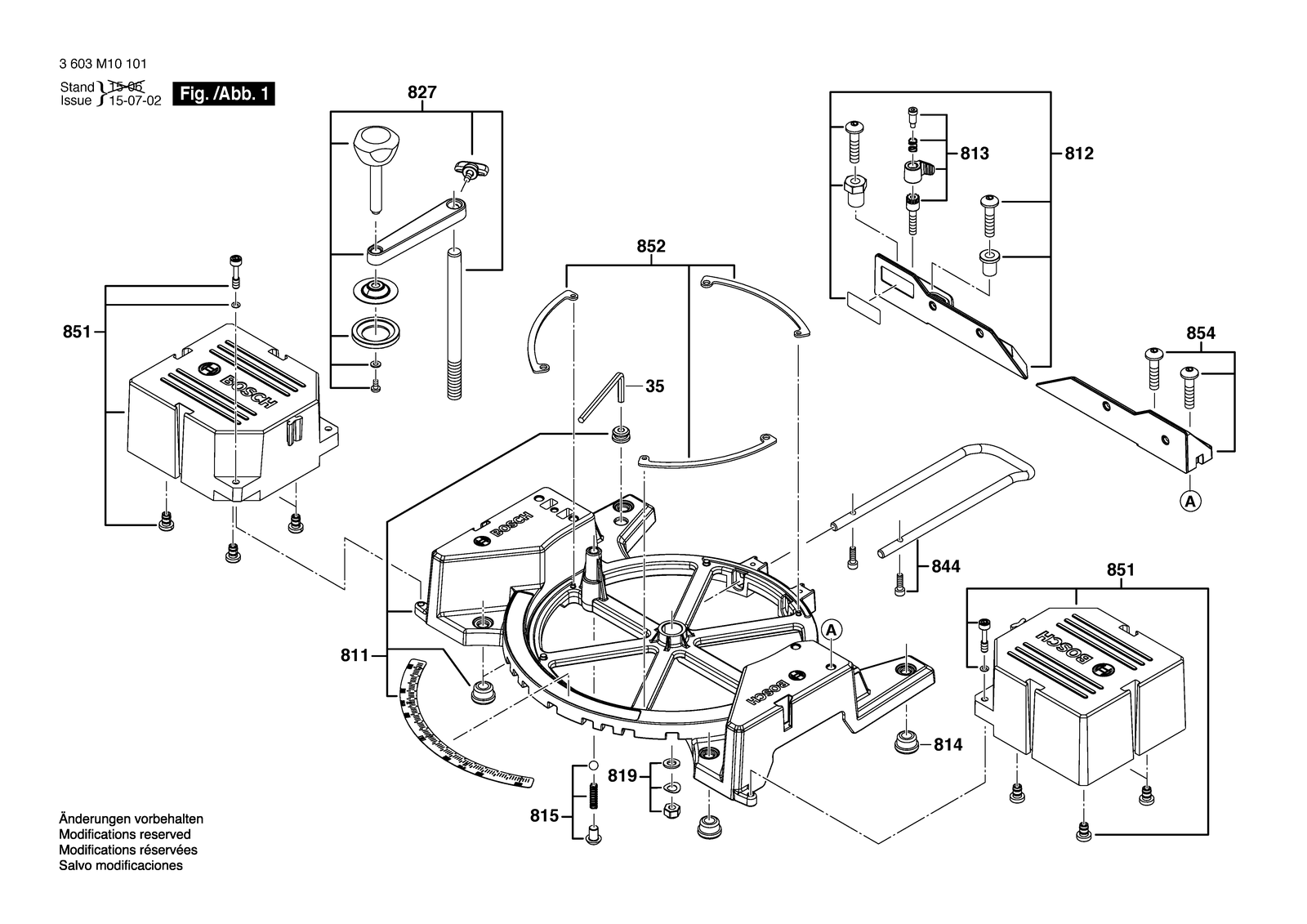

All parts of Bosch PCM 8 ST: 71 positions on 5 sheets
Bosch PCM 8 ST parts list (5 sheets)
| No. | Part number | Part name |
|---|---|---|
| 106 | 1609B01840 | Knob |
| 148 | 1609BP7351 | Wear Plate |
| 229 | 1609BP7021 | Dust Bag |
| 250 | 1609BP7059 | Connection Block |
| 271 | 1609B02674 | Contact strap |
| 273 | 1609BP7049 | Spring retaining ring |
| 323 | 1609B02677 | Label |
| 35 | 1609BP7026 | Hexagon Socket Screw Key |
| 4 | 2609007299 | Switch |
| 650 | 1609B02606 | Table Stand |
| 801 | 1609B02531 | Motor Housing |
| 802 | 1609BP7171 | Stator 230V |
| 803 | 1609B02194 | Armature |
| 805 | 1609BP7173 | Power supply cord |
| 806 | 1609B02703 | Suppression Capacitor |
| 808 | 1609BN0149 | Nameplate |
| 809 | 1609B02735 | Table |
| 810 | 1609BP7209 | Carbon-Brush Set |
| 811 | 1609B02734 | Base Unit |
| 812 | 1609B02705 | Mitre Fence |
| 813 | 1609B02706 | Knob |
| 814 | 1609B02707 | Rubber Bushing |
| 815 | 1609B02708 | Ball |
| 817 | 1609B02737 | Pointer |
| 818 | 1609B02764 | Insert |
| 819 | 1609B02738 | Fastening parts kit |
| 820 | 1609B02745 | Pointer |
| 821 | 1609B02714 | Torsion Spring |
| 822 | 1609B02715 | Knob |
| 823 | 1609B02739 | Support Element |
| 824 | 1609B02251 | Laser module |
| 825 | 1609BP7383 | Shaft |
| 826 | 1609B02618 | Knob |
| 827 | 1609B02603 | Clamp |
| 828 | 1609B02661 | Locking Lever |
| 829 | 1609BP7192 | Clamping Piece |
| 830 | 1609BP7193 | Locking Device |
| 831 | 1609BP7211 | Tapping Screw |
| 833 | 1609BP7194 | Locking Device |
| 834 | 1609BP7197 | Gear |
| 835 | 1609BP7200 | Trigger |
| 836 | 1609B02740 | Housing |
| 837 | 1609B02726 | Flange |
| 838 | 1609B02727 | Cable |
| 839 | 1609B02728 | Protective Cover |
| 840 | 1609B02763 | Linkage |
| 841 | 1609B02730 | Set Of Handles |
| 842 | 1609B02678 | Power Supply |
| 843 | 1609B02731 | Leaf Spring |
| 844 | 1609B02732 | Bar |
| 845 | 1609B02733 | Chute |
| 846 | 1609B02743 | Knob |
| 847 | 1609B02744 | Yoke |
| 848 | 1609B02746 | Plate |
| 849 | 1609B02748 | Bearing |
| 850 | 1609B02749 | Carrying Handle |
| 851 | 1609B02750 | Extension Stand |
| 852 | 1609B02736 | Sliding Plate |
| 853 | 1609BP7393 | Support |
| 854 | 1609B02617 | Mitre Fence |
| 861 | 1609B02762 | Profile Strut |
| 862 | 1609B02761 | Profile Strut |
| 863 | 1609B02760 | Profile Strut |
| 864 | 1609B02759 | Profile Strut |
| 865 | 1609B02758 | Profile Strut |
| 866 | 1609B02757 | Profile Strut |
| 867 | 1609B02756 | Profile Strut |
| 868 | 1609B02755 | Fastening parts kit |
| 869 | 1609B01843 | Supporting foot |
| 870 | 1609B02645 | Plate |
| 879 | 1609BP7212 | Cover |
