Bosch PCM 8

Bosch PCM 8 compound mitre saw: exploded parts diagram, 4 sheets, 55 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PCM 8: 55 positions on 4 sheets

Bosch PCM 8 parts list (4 sheets)

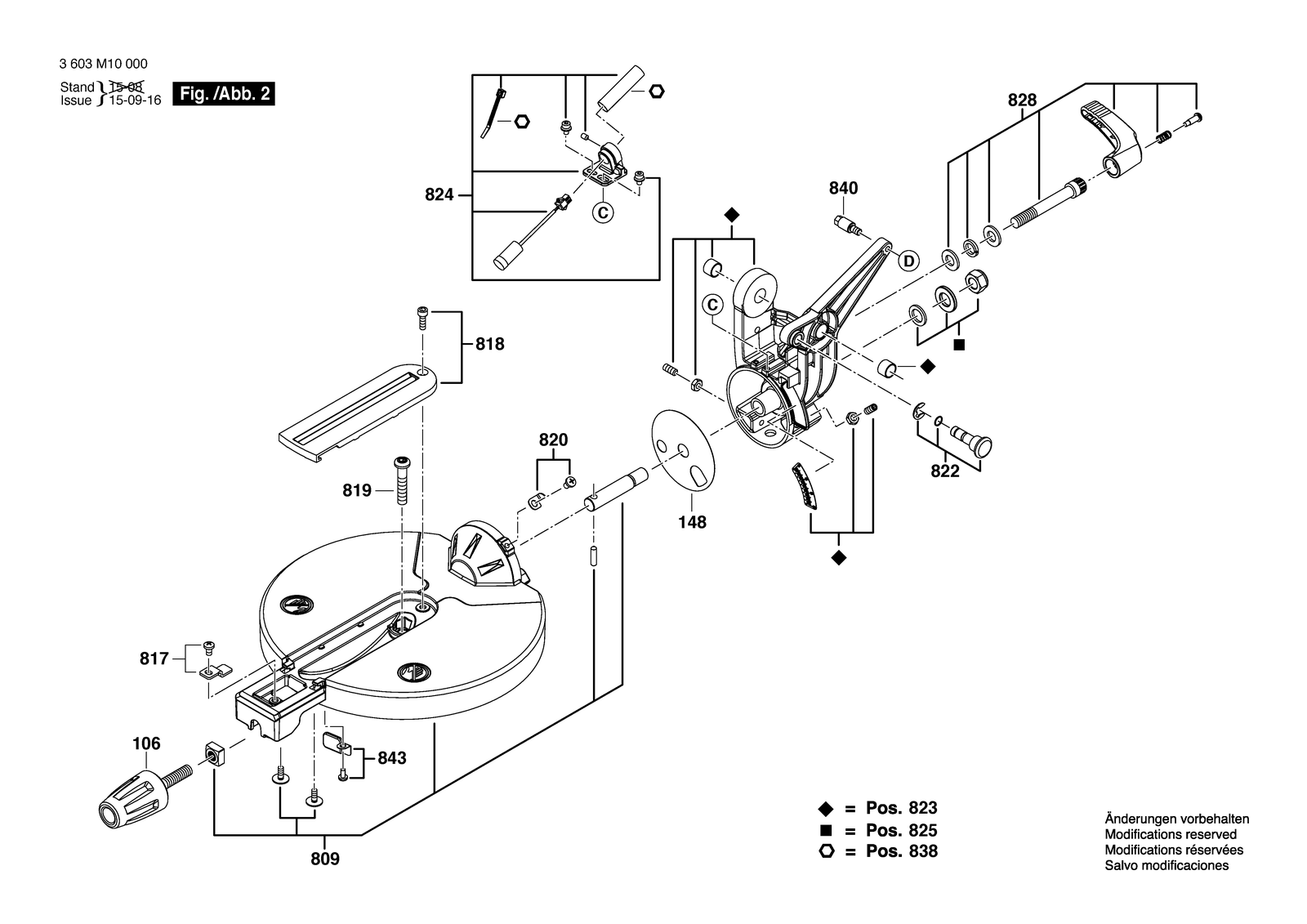

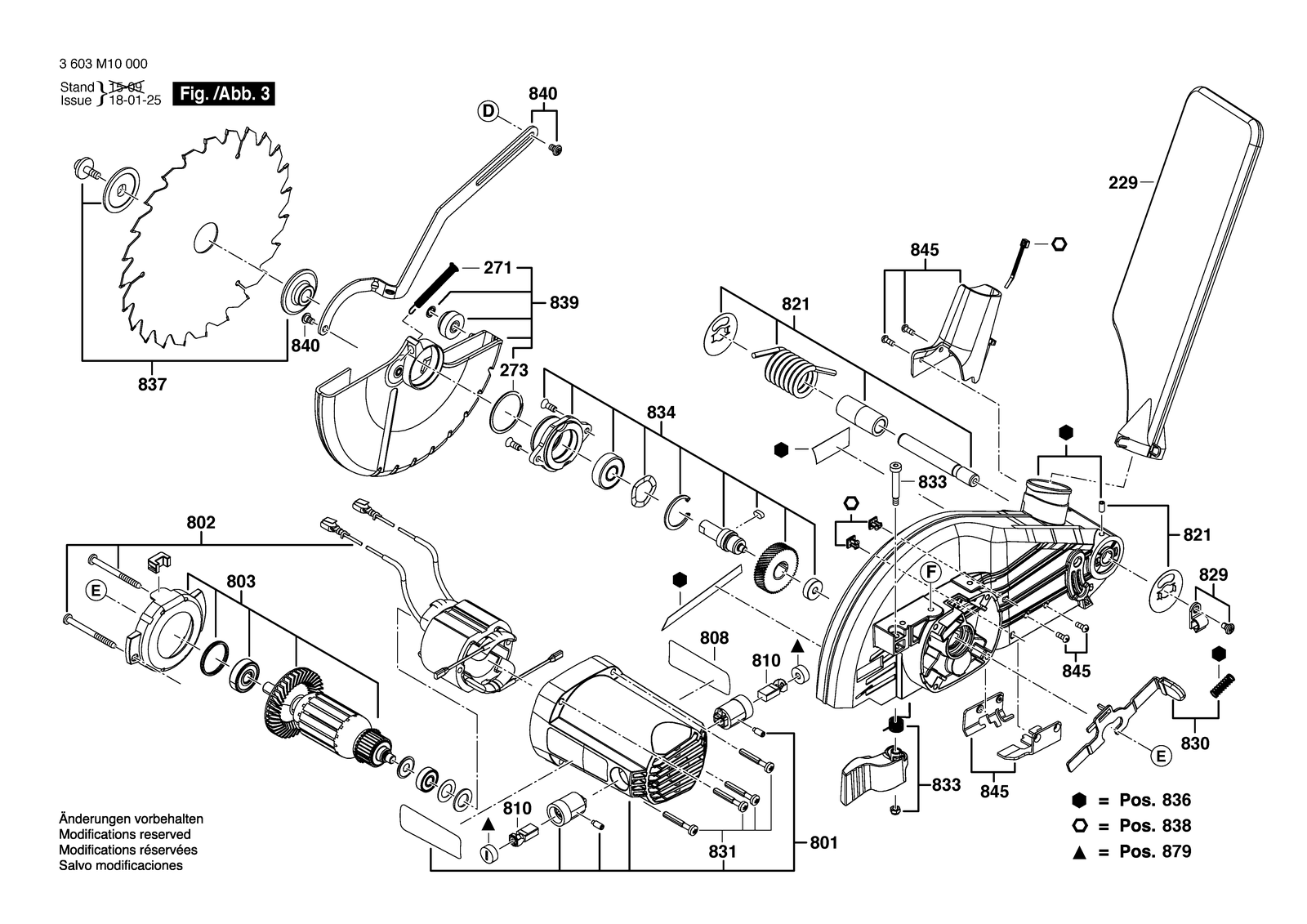

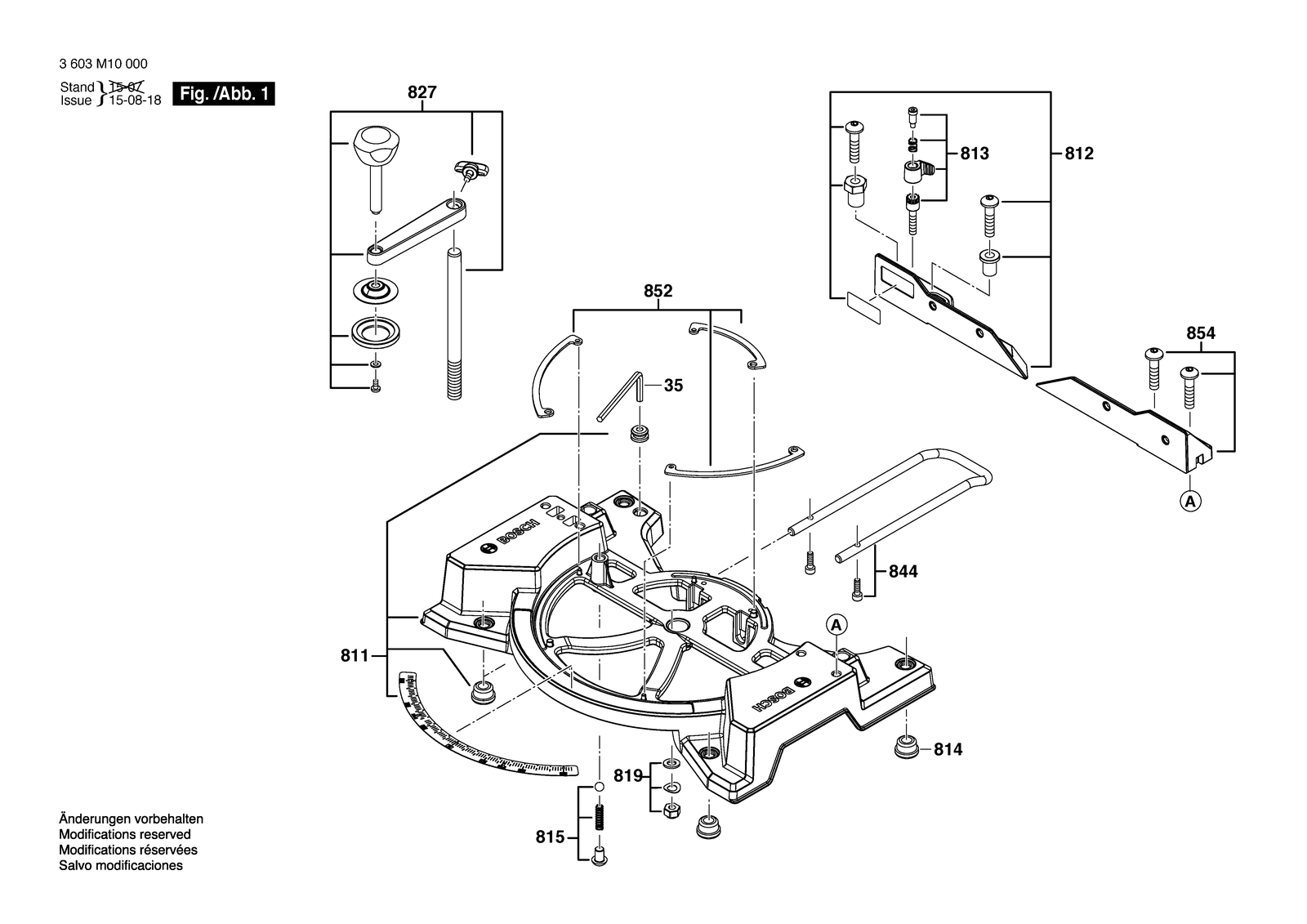

Bosch PCM 8 parts diagram, sheet 1Bosch PCM 8 parts diagram, sheet 2Bosch PCM 8 parts diagram, sheet 3Bosch PCM 8 parts diagram, sheet 4
No.Part numberPart name
1061609B01839Knob
1481609B02246Wear Plate
2291609BP7021Dust Bag
2501609BP7059Connection Block
2711609B02674Contact strap
2731609BP7049Spring retaining ring
351609BP7026Hexagon Socket Screw Key
42609007299Switch
8011609B02531Motor Housing
8021609BP7171Stator 230V
8031609B02194Armature
8051609BP7173Power supply cord
8051609BP7206Power supply cord
8051609BP7208Power supply cord
8061609B02703Suppression Capacitor
8081609BN0145Nameplate
8081609BN0146Nameplate
8081609BN0147Nameplate
8091609B02702Table
8101609BP7209Carbon-Brush Set
8111609B02704Base Unit
8121609B02705Mitre Fence
8131609B02706Knob
8141609B02707Rubber Bushing
8151609B02708Ball
8171609B02710Pointer
8181609B02711Insert
8191609B02712Fastening parts kit
8201609B02713Pointer
8211609B02714Torsion Spring
8221609B02715Knob
8231609B02716Support Element
8241609B02250Laser module
8251609BP7185Shaft
8271609B02603Clamp
8281609B02661Locking Lever
8291609BP7192Clamping Piece
8301609BP7193Locking Device
8311609BP7211Tapping Screw
8331609BP7194Locking Device
8341609BP7197Gear
8351609BP7200Trigger
8361609B02725Housing
8371609B02726Flange
8381609B02727Cable
8391609B02728Protective Cover
8401609B02729Linkage
8411609B02730Set Of Handles
8421609B02678Power Supply
8431609B02731Leaf Spring
8441609B02732Bar
8451609B02733Chute
8521609B02709Sliding Plate
8541609B02617Mitre Fence
8791609BP7212Cover
