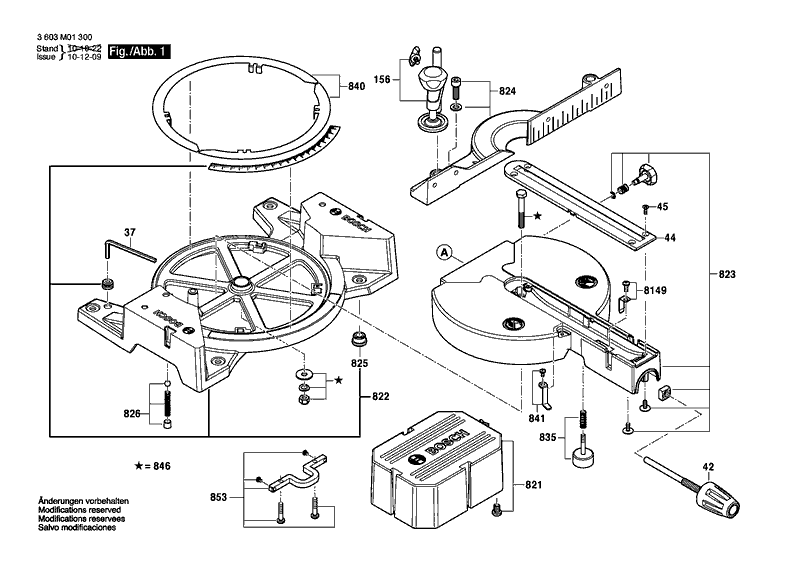

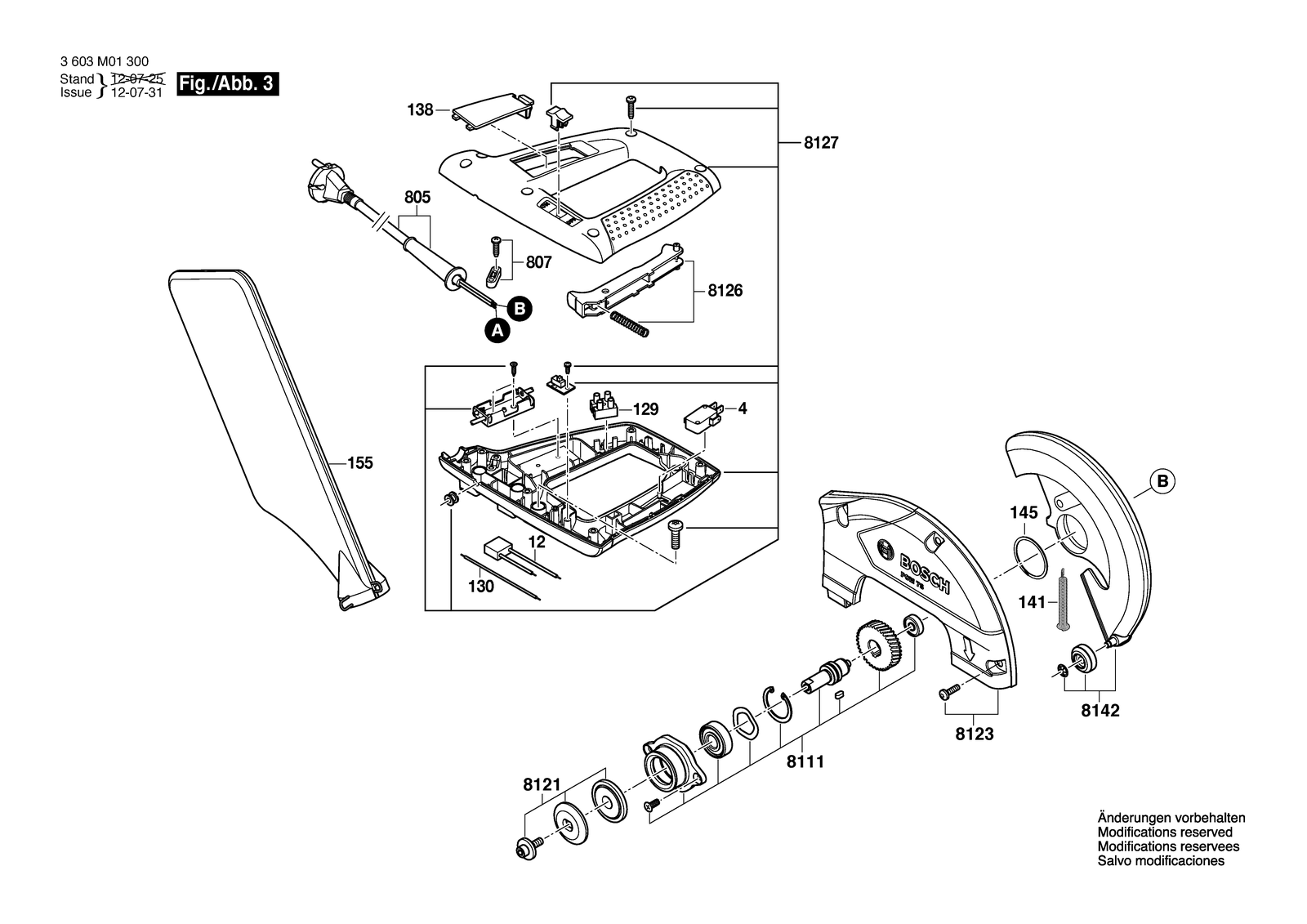

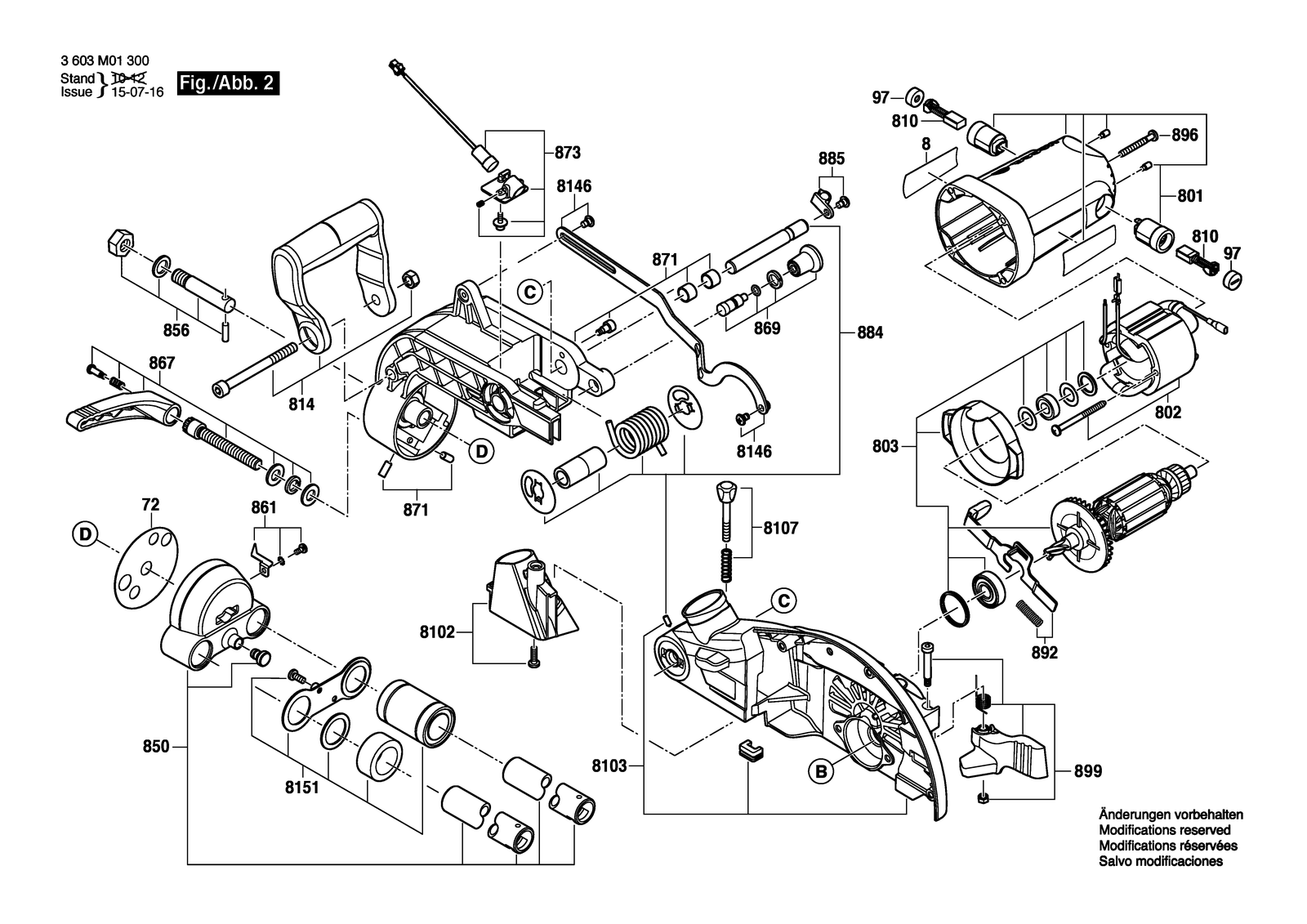

Bosch PCM 7 S compound mitre saw: exploded parts diagram, 3 sheets, 59 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PCM 7 S: 59 positions on 3 sheets
Bosch PCM 7 S parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 12 | 1609BP7165 | Motor Capacitor |
| 129 | 1609BP7059 | Connection Block |
| 130 | 1609BP7064 | Cable |
| 138 | 1609BP7109 | Cover |
| 141 | 1609BP7063 | Contact strap |
| 145 | 1609BP7049 | Spring retaining ring |
| 155 | 1609BP7021 | Dust Bag |
| 156 | 1609BP7164 | Clamp |
| 37 | 1609BP7026 | Hexagon Socket Screw Key |
| 4 | 1609BP7225 | Main Switch |
| 42 | 1609BP7313 | Handle |
| 44 | 1609BP7312 | Insert |
| 45 | 1609B00634 | Screw |
| 72 | 1609BP7351 | Wear Plate |
| 801 | 1609BP7370 | Motor Housing |
| 802 | 1609BP7171 | Stator 230V |
| 803 | 1609BP7172 | Armature 230V |
| 805 | 1609BP7173 | Power supply cord |
| 805 | 1609BP7206 | Power supply cord |
| 805 | 1609BP7208 | Power supply cord |
| 807 | 1609BP7174 | Strain-Relief Clamp |
| 810 | 1609BP7209 | Carbon-Brush Set |
| 8102 | 1609BP7387 | Baffle |
| 8103 | 1609BP7388 | Housing |
| 8107 | 1609BP7394 | Knob |
| 8111 | 1609BP7197 | Gear |
| 8121 | 1609BP7198 | Flange |
| 8123 | 1609BP7389 | Safety Cover |
| 8126 | 1609BP7200 | Trigger |
| 8127 | 1609BP7219 | Set Of Handles |
| 814 | 1609BP7386 | Handle |
| 8142 | 1609BP7390 | Protective Cover |
| 8146 | 1609BP7391 | Linkage |
| 8149 | 1609BP7382 | Leaf Spring |
| 8151 | 1609BP7374 | Bearing |
| 821 | 1609BP7392 | Extension Stand |
| 822 | 1609BP7371 | Base |
| 823 | 1609BP7372 | Saw Table |
| 824 | 1609BP7377 | Mitre Fence |
| 825 | 1609BP7210 | Rubber Bushing |
| 826 | 1609BP7178 | Ball |
| 835 | 1609BP7393 | Support |
| 840 | 1609BP7378 | Wear Plate |
| 841 | 1609BP7379 | Pointer |
| 846 | 1609BP7381 | Bolt |
| 850 | 1609BP7375 | Support |
| 853 | 1609BP7376 | Stop Plate |
| 856 | 1609BP7383 | Shaft |
| 861 | 1609BP7384 | Pointer |
| 867 | 1609BP7373 | Lever |
| 869 | 1609BP7188 | Detent Pin |
| 871 | 1609BP7385 | Support Element |
| 873 | 1609BP7380 | Laser |
| 884 | 1609BP7191 | Torsion Spring |
| 885 | 1609BP7192 | Clamping Piece |
| 892 | 1609BP7193 | Locking Device |
| 896 | 1609BP7211 | Tapping Screw |
| 899 | 1609BP7194 | Locking Device |
| 97 | 1609BP7072 | Cover |
