Bosch PCM 1800 SD slide mitre saw: exploded parts diagram, 3 sheets, 66 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

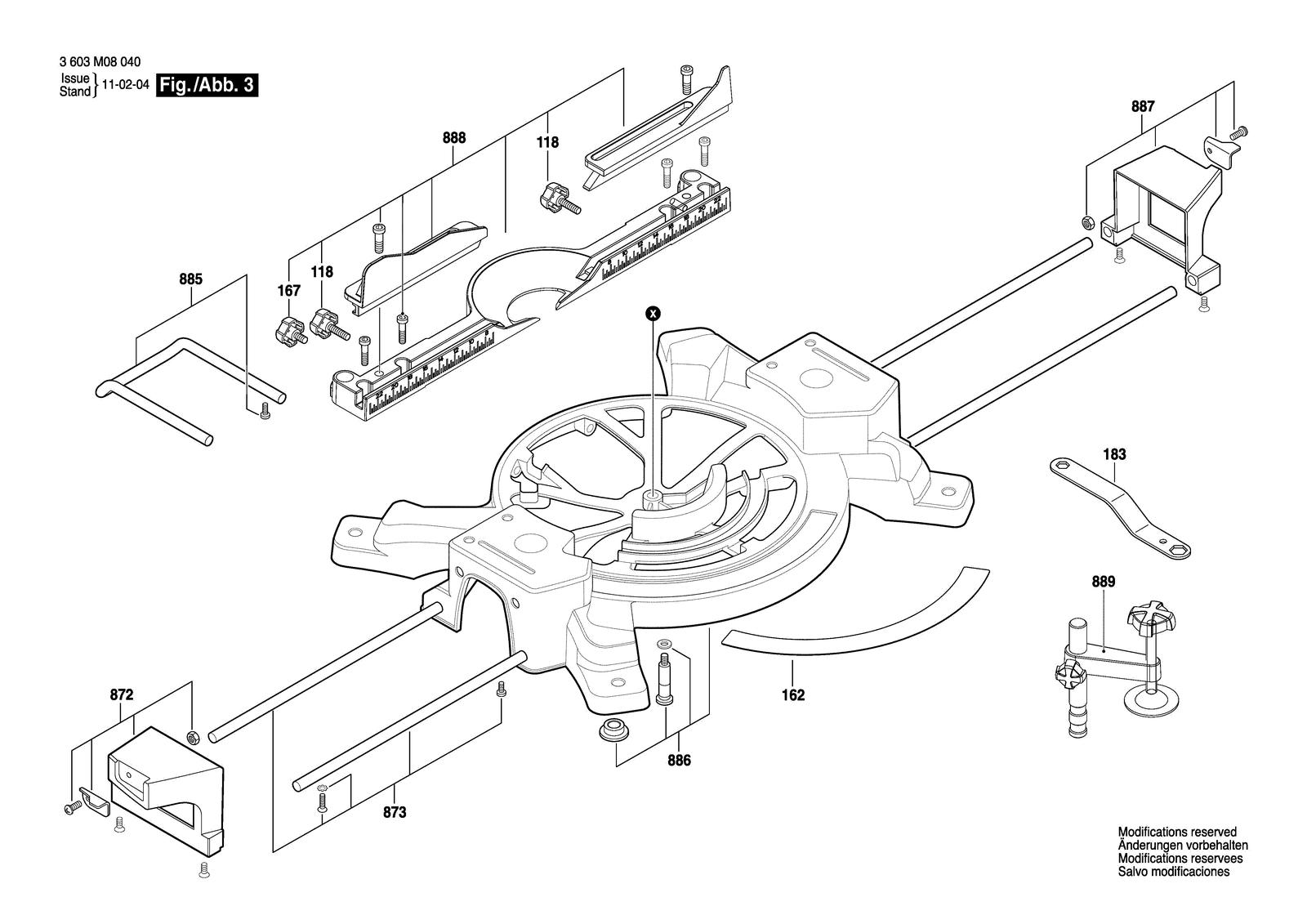

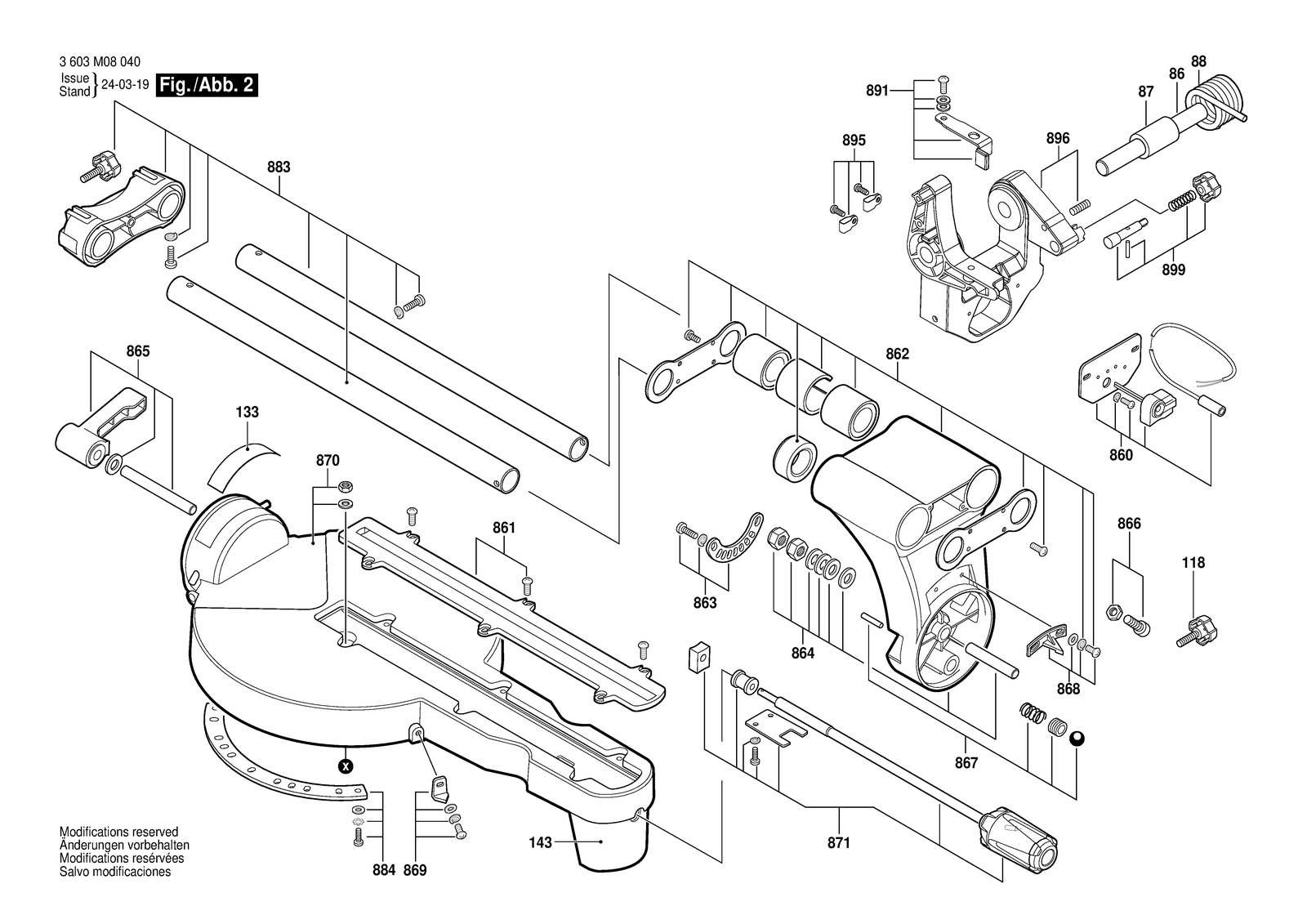

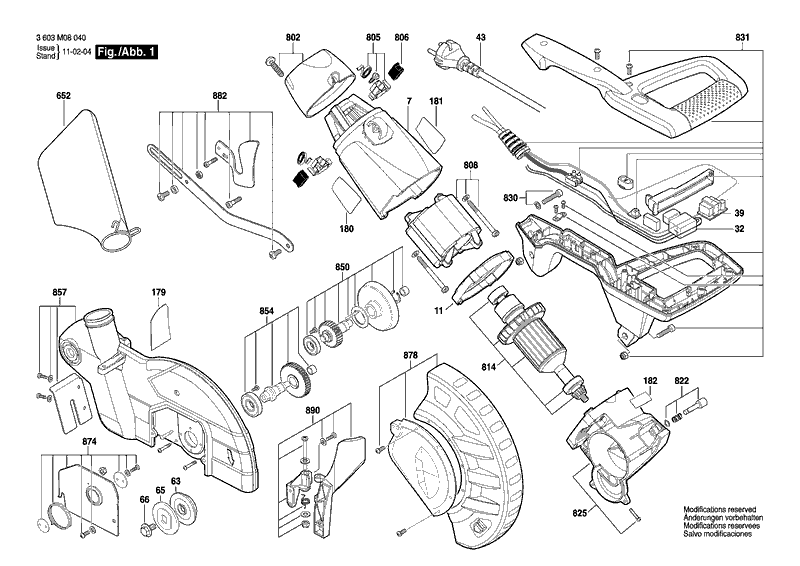

All parts of Bosch PCM 1800 SD: 66 positions on 3 sheets
Bosch PCM 1800 SD parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 11 | 1619PA1343 | Baffle |
| 118 | 1619PA1348 | Knob |
| 133 | 1619PA1349 | Scale |
| 143 | 1619PA1350 | Support |
| 162 | 1619PA1351 | Scale |
| 167 | 1619PA1397 | Knob |
| 179 | 1619PA1352 | Manufacturer's nameplate |
| 180 | 1619PA1353 | Warning Plate |
| 181 | 1619PA1354 | Nameplate PCM 1800 Sd |
| 181 | 1619PA8353 | Nameplate PCM 1800 Sd |
| 182 | 1619PA1355 | Warning Plate |
| 183 | 1619PA0488 | Adjusting Wrench |
| 32 | 1619PA5025 | On-Off Switch |
| 39 | 1619PA0555 | Transformer |
| 43 | 1619PA0511 | Power supply cord |
| 43 | 1619PA8351 | Power supply cord |
| 63 | 1619PA0261 | Locking Flange |
| 63 | 1619PA8350 | Locking Flange |
| 65 | 1619PA0263 | Locking Flange |
| 652 | 1619PA1414 | Dust Bag |
| 66 | 1619PA1344 | Screw |
| 7 | 1619PA1342 | Motor Housing |
| 802 | 1619PA1356 | Housing Cover |
| 805 | 1619PA1357 | Brush Holder |
| 806 | 1619PA1358 | Carbon-Brush Set |
| 808 | 1619PA1359 | Field 240V |
| 814 | 1619PA1360 | Armature 240V |
| 822 | 1619PA1361 | Locking Pin |
| 825 | 1619PA1362 | Gear Box |
| 830 | 1619PA1363 | Screw |
| 831 | 1619PA1364 | Handle |
| 850 | 1619PA1365 | Shaft |
| 854 | 1619PA1366 | Drive Shaft |
| 857 | 1619PA1367 | Upper guard |
| 86 | 1619PA1345 | Pivot Shaft |
| 860 | 1619PA1375 | Laser |
| 861 | 1619PA1376 | Cutting insert |
| 862 | 1619PA1377 | Shaft Pivot |
| 863 | 1619PA1378 | Plate |
| 864 | 1619PA1379 | Bolt |
| 865 | 1619PA1380 | Locking Lever |
| 866 | 1619PA1381 | Screw |
| 867 | 1619PA1382 | Steel ball |
| 868 | 1619PA1383 | Indicator |
| 869 | 1619PA1384 | Indicator |
| 87 | 1619PA1346 | Bushing |
| 870 | 1619PA1385 | Turntable |
| 871 | 1619PA1386 | Handle |
| 872 | 1619PA1387 | Extension Stand |
| 873 | 1619PA1388 | Supporting Bar |
| 874 | 1619PA1368 | Plate |
| 878 | 1619PA1369 | Lower guard |
| 88 | 1619PA1347 | Torsion Spring |
| 882 | 1619PA1370 | Linkage |
| 883 | 1619PA1389 | Sliding Guide |
| 884 | 1619PA1390 | Plate |
| 885 | 1619PA1391 | Support |
| 886 | 1619PA1392 | Base |
| 887 | 1619PA1393 | Extension Stand |
| 888 | 1619PA1394 | Stop Plate |
| 889 | 1619PA1395 | Clamp |
| 890 | 1619PA1396 | Locking Lever |
| 891 | 1619PA1371 | Adjusting Plate |
| 895 | 1619PA1372 | Cable Clip |
| 896 | 1619PA1373 | Trunnion |
| 899 | 1619PA1374 | Locking Pin |
