Bosch PCM 1800
Bosch PCM 1800 table mitre saw: exploded parts diagram, 3 sheets, 60 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

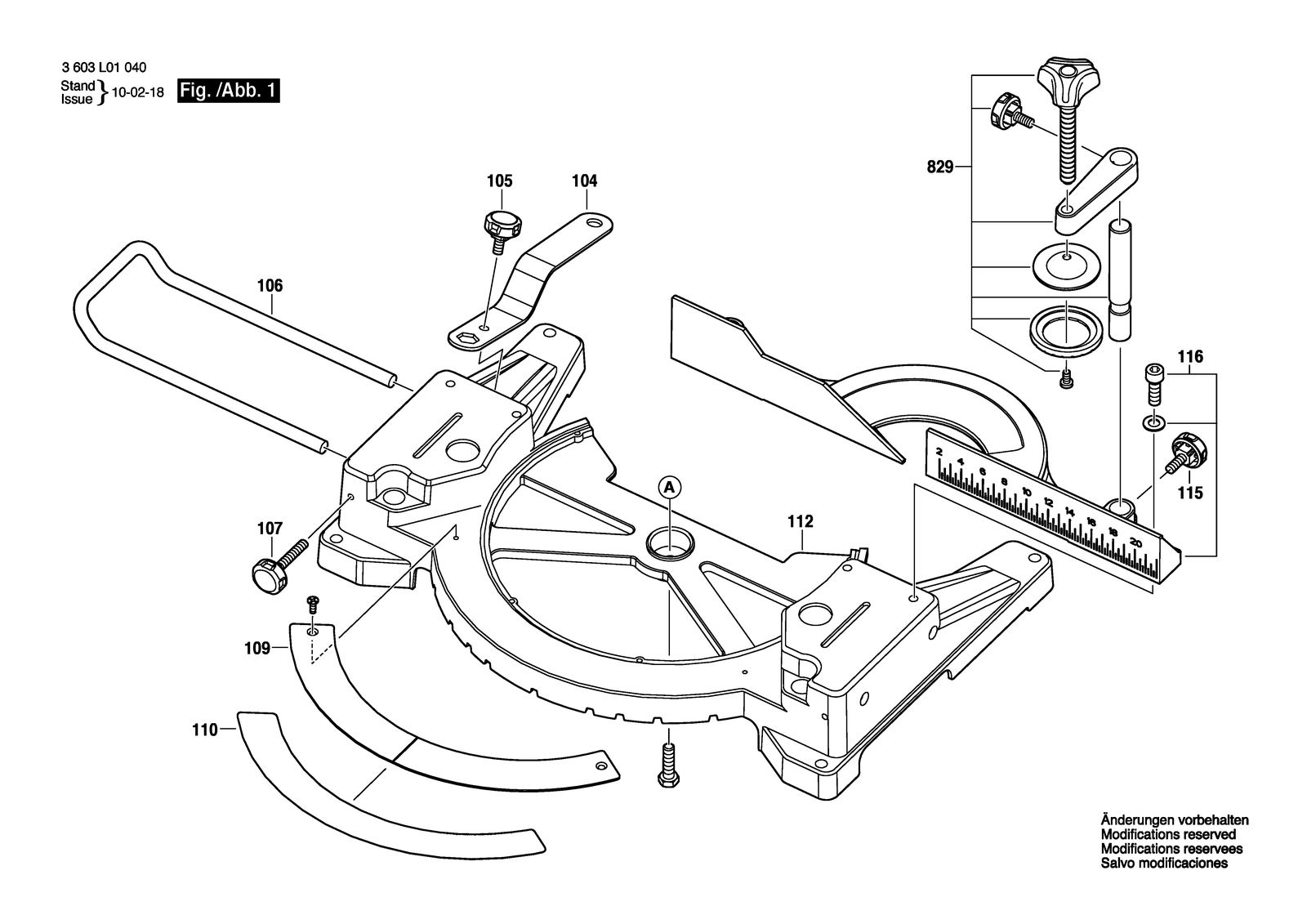

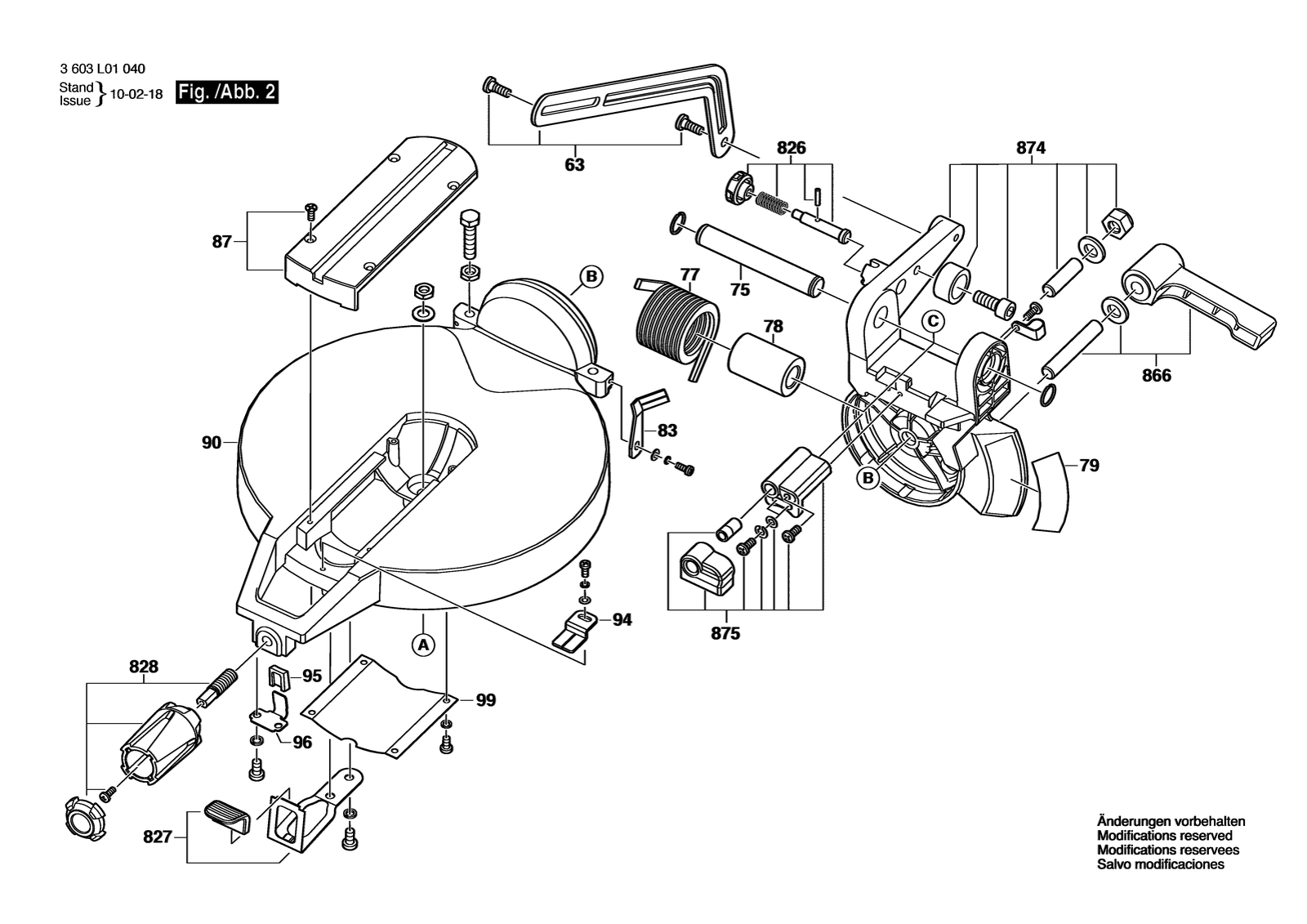

All parts of Bosch PCM 1800: 60 positions on 3 sheets
Bosch PCM 1800 parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619PA0479 | Housing Cover |
| 104 | 1619PA0488 | Adjusting Wrench |
| 105 | 1619PA0489 | Knob |
| 106 | 1619PA0325 | Supporting Bar |
| 107 | 1619PA0490 | Knob |
| 109 | 1619PA0328 | Board |
| 110 | 1619PA0329 | Scale Plate |
| 112 | 1619PA0491 | Base |
| 115 | 1619PA0492 | Knob |
| 116 | 1619PA0493 | Clamp |
| 119 | 1619PA0480 | Suppression Capacitor |
| 120 | 1619PA0554 | Warning Label |
| 121 | 1619PA0483 | Switch |
| 122 | 1619PA0484 | Cover |
| 123 | 1619PA0555 | Transformer |
| 22 | 1619PA0481 | Housing Cover |
| 28 | 1619PA0226 | Axial flow fan |
| 32 | 1619PA0482 | Gear Box |
| 33 | 1619PA0235 | Chute |
| 38 | 1619PA0240 | Clamp |
| 4 | 1619PA0253 | On-Off Switch |
| 5 | 1619PA0511 | Power supply cord |
| 54 | 1619PA0261 | Locking Flange |
| 55 | 1619PA0263 | Locking Flange |
| 56 | 1619PA1344 | Screw |
| 60 | 1619PA0272 | Special Screw |
| 61 | 1619PA0271 | Torsion Spring |
| 63 | 1619PA0486 | Linkage |
| 652 | 1619PA0552 | Dust Bag |
| 75 | 1619PA0292 | Pivot Shaft |
| 77 | 1619PA0294 | Torsion Spring |
| 78 | 1619PA0295 | Bushing |
| 79 | 1619PA0296 | Scale |
| 8 | 1601118S19 | Nameplate |
| 802 | 1619PA0222 | Stator 220V |
| 803 | 1619PA0221 | Armature 220V |
| 810 | 1619PA0212 | Brush |
| 816 | 1619PA0213 | Brush Holder |
| 822 | 1619PA0494 | Locking Pin |
| 823 | 1619PA0495 | Gear |
| 824 | 1619PA0496 | Lower guard |
| 825 | 1619PA0273 | Plate |
| 826 | 1619PA0291 | Locking Pin |
| 827 | 1619PA0321 | Detent |
| 828 | 1619PA0497 | Handle |
| 829 | 1619PA0334 | Clamp |
| 83 | 1619PA0300 | Pointer |
| 830 | 1619PA0498 | Shield |
| 848 | 1619PA0500 | Handle |
| 851 | 1619PA0499 | Upper guard |
| 866 | 1619PA0501 | Handle |
| 87 | 1619PA0304 | Cutting insert |
| 874 | 1619PA0502 | Trunnion |
| 875 | 1619PA0503 | Laser |
| 9 | 1619PA0553 | Manufacturer's nameplate PCM 1800 |
| 90 | 1619PA0487 | Turntable |
| 94 | 1619PA0311 | Pointer |
| 95 | 1619PA0312 | Clamp block |
| 96 | 1619PA0313 | Clamp |
| 99 | 1619PA0316 | Safety Plate |
