Bosch PCM 10

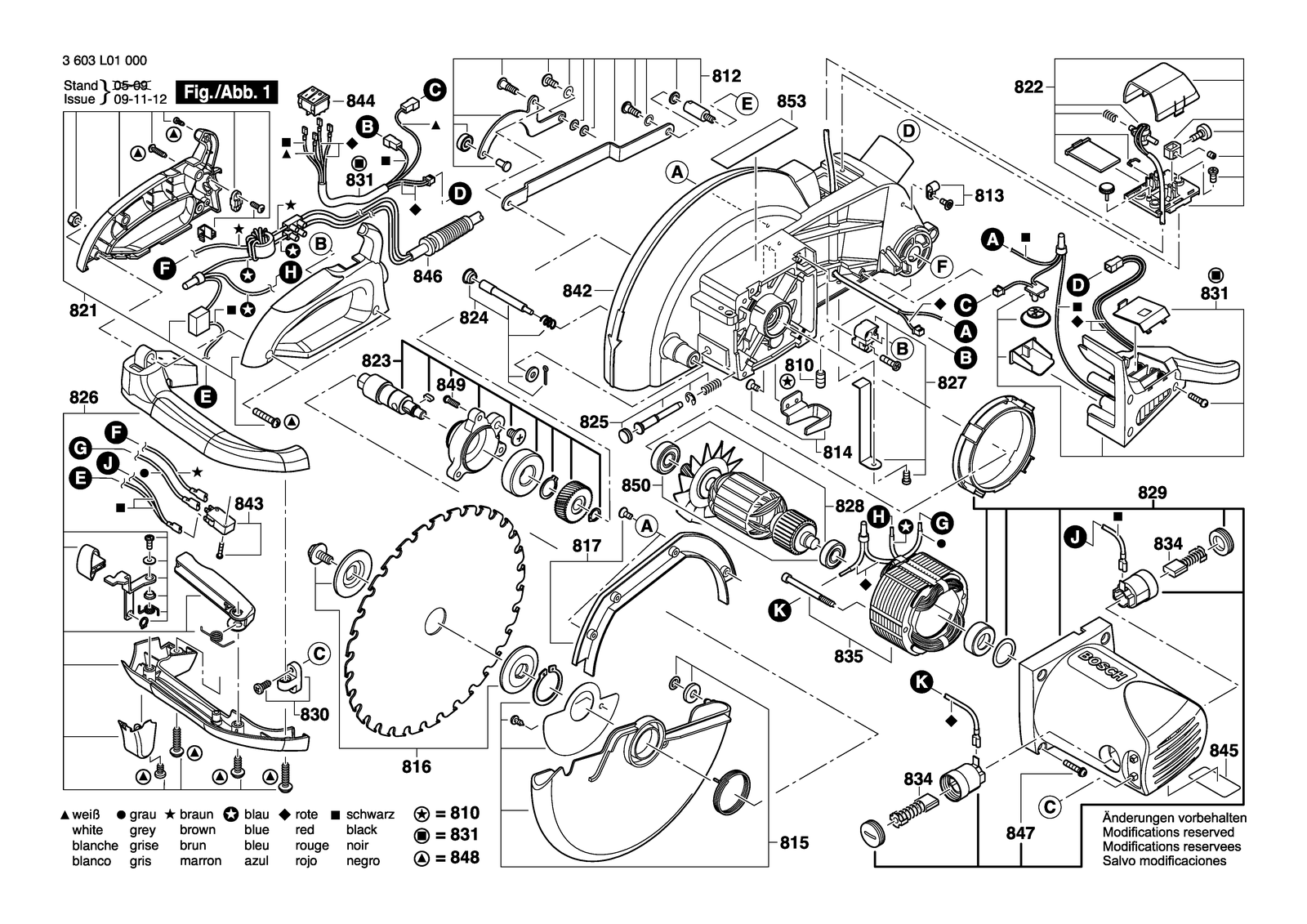

Bosch PCM 10 compound mitre saw: exploded parts diagram, 4 sheets, 70 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PCM 10: 70 positions on 4 sheets
Bosch PCM 10 parts list (4 sheets)
| No. | Part number | Part name |
|---|---|---|
| 650 | 1609203P96 | Base |
| 650/861 | 1609203T47 | Rubber Base |
| 650/862 | 1609203T48 | Profile Strut |
| 650/863 | 1609203T49 | Profile Strut |
| 650/864 | 1609203T50 | Profile Strut |
| 650/865 | 1609203T51 | Profile Strut |
| 650/866 | 1609203T52 | Profile Strut |
| 650/867 | 1609203T53 | Profile Strut |
| 650/868 | 1609203T54 | Fastening parts kit |
| 800 | 1609203T03 | Table |
| 801 | 1609203T04 | Rubber Base |
| 802 | 1609203T05 | Turntable |
| 803 | 1600A000R1 | Clamping Lever |
| 804 | 1609203T07 | Pointer |
| 805 | 1609203T08 | Sliding Guide |
| 806 | 1609203T09 | Pointer |
| 807 | 1609203T10 | End stop |
| 808 | 1609203P95 | Quick-Clamping Device |
| 809 | 1609203P97 | Cover Plate |
| 810 | 1609203T13 | Torsion Spring |
| 811 | 1609203T14 | End stop |
| 812 | 1609203T15 | Holding Bracket |
| 813 | 1609203T16 | Cable Cleat |
| 814 | 1609203T17 | Safety Cover |
| 815 | 1609203T18 | Protective Cover |
| 816 | 1609203T19 | Fastening Part |
| 817 | 1609203T20 | Holding Bracket |
| 818 | 1609203T21 | Profile Rail |
| 819 | 1609203T22 | Locking Lever |
| 820 | 1609203T23 | Fastening parts kit |
| 821 | 1609203T24 | Handle |
| 822 | 1609203T25 | Laser |
| 823 | 1609203T26 | Gear Cover |
| 824 | 1609203T27 | Bolt |
| 825 | 1609203T28 | Brake |
| 826 | 1609203T29 | Handle |
| 827 | 1609203T30 | Fastening parts kit |
| 828 | 1609203T31 | Armature |
| 829 | 1609203T32 | Motor Housing |
| 830 | 1609203T33 | Support |
| 831 | 1609203T34 | Battery Case |
| 832 | 1609203T35 | Swivelling Axis |
| 833 | 1609203T36 | Clamp Screw |
| 834 | 1609203T37 | Carbon-Brush Set |
| 835 | 1609203T38 | Stator |
| 836 | 1609203T01 | Key |
| 837 | 1609203T00 | Key Holder |
| 838 | 1609203T39 | Edge Guide |
| 839 | 1609203T40 | Supporting Block |
| 840 | 1609203T41 | Chips Bag |
| 841 | 1609203T42 | Rotary Knob |
| 842 | 1609203T43 | Housing |
| 843 | 1609203T44 | Switch |
| 844 | 1609203T45 | On-Off Switch |
| 845 | 1601118H34 | Nameplate |
| 845 | 1601118H35 | Nameplate |
| 845 | 1601118H36 | Nameplate |
| 845 | 1601118H37 | Nameplate |
| 845 | 1619PA2933 | Nameplate |
| 846 | 1609203T57 | Power supply cord |
| 846 | 1619PA2930 | Power supply cord |
| 846 | 1619PA4942 | Power supply cord |
| 846 | 1619PA5587 | Power supply cord |
| 847 | 1609203R71 | Parts Set |
| 848 | 1609203R72 | Handle |
| 849 | 1609203R73 | Parts Set |
| 850 | 1609203R74 | Parts Set |
| 853 | 1601118T07 | Reference Plate |
| 854 | 1609203R60 | Reference Plate |
| 898 | 1615430005 | Grease Tube 45 Ml |
