Makita PC5001C
Makita PC5001C: exploded parts diagram, 1 sheet, 80 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita PC5001C: 80 positions on 1 sheet

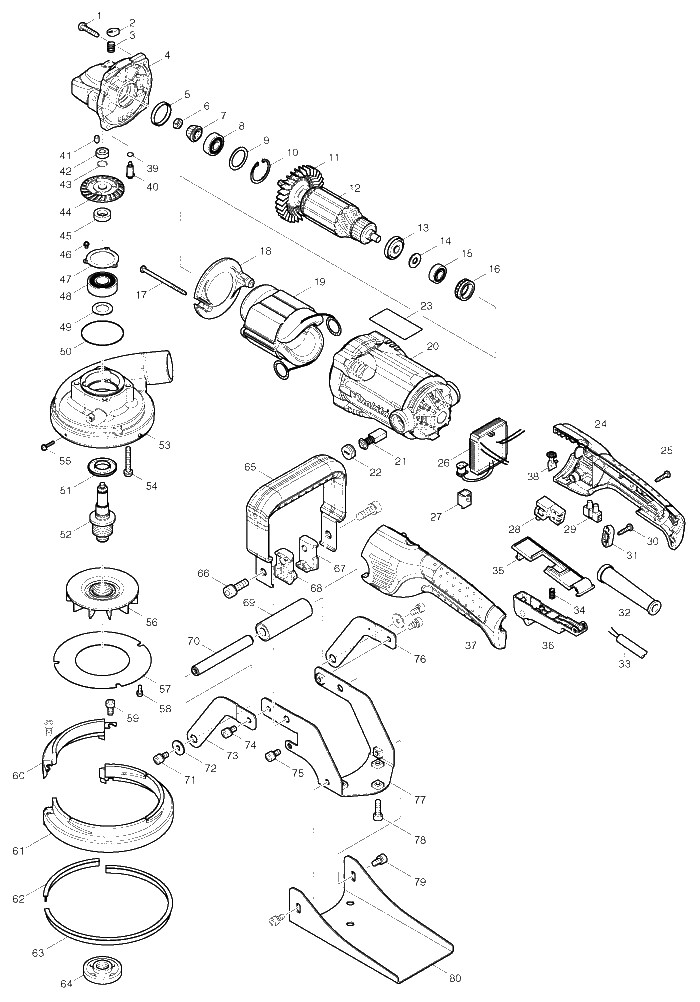

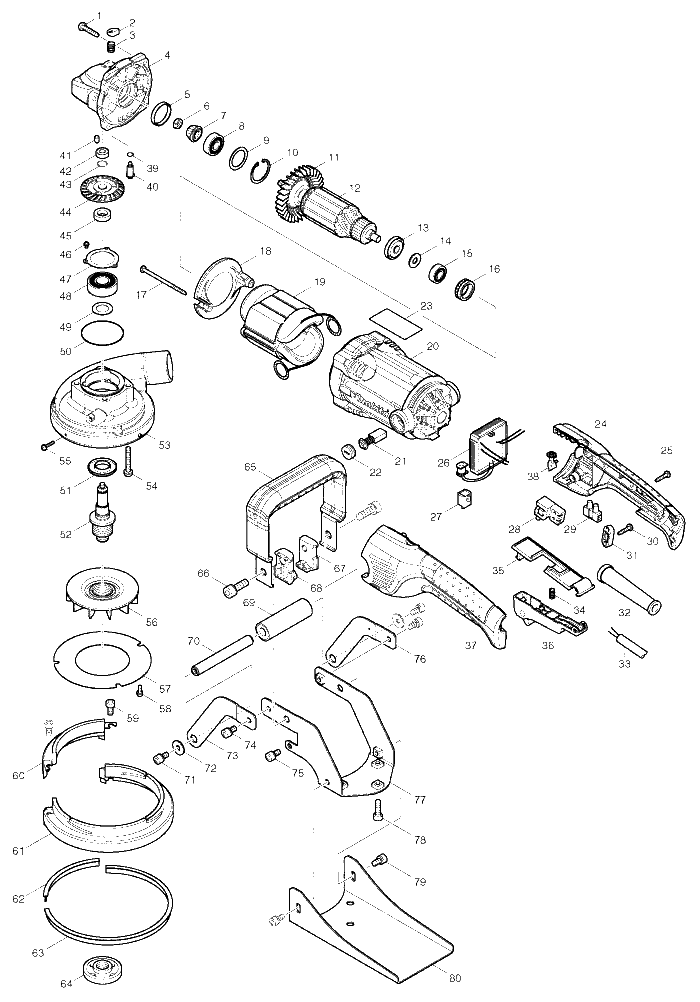

Sheet 1: Makita PC5001C parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266459-3 | Makita 266459-3 TAPPING SCREW 5*25, 5477NB |
| 2 | 417771-6 | Makita 417771-6 Pin Cap for GA5030 9555NB 9558NB BPJ140 |
| 3 | 234057-1 | Makita 234057-1 COMPRESSION SPRING 8, GA5030 |
| 4 | 318158-4 | Makita 318158-4 GEAR HOUSING, GA5010 |
| 5 | 424051-3 | Makita 424051-3 RUBBER RING 26, GA5020C |
| 6 | 264010-3 | Makita 264010-3 HEX NUT M7, GA5010 |
| 7 | 227520-1 | Makita 227520-1 SPIRAL BEVEL GEAR 11, GA5010 |
| 8 | 210059-1 | Makita 210059-1 Ball Bearing for 6000DDW 9069 |
| 9 | 267352-4 | Makita 267352-4 FLAT WASHER 22, GA5010 |
| 10 | 962107-9 | Makita 962107-9 RETAINING RING(INT)R-30, GA5020 |
| 12 | 518685-3 | Makita 518685-3 Armature Ass'y PC5001С |
| 13 | 681660-3 | Makita 681660-3 INSULATION WASHER, SA7000C |
| 14 | 267281-1 | Makita 267281-1 FLAT WASHER 15, GA9010C |
| 15 | 210005-4 | Makita 210005-4 BALL BEARING 608DDW, UB1100 |
| 16 | 421720-7 | Makita 421720-7 Rubber Ring for GA5021C GA6021C GA7010C GA9010C |
| 17 | 266325-4 | Makita 266325-4 TAPPING SCREW PT 4X70, MT951 |
| 18 | 419961-7 | Makita 419961-7 BAFFLE PLATE, GA5010 |
| 19 | 528819-0 | Makita 528819-0 FIELD ASSY PC5001C |
| 20 | 140019-8 | Makita 140019-8 MOTOR HOUSING COMPLETE, PC5001C |
| 21 | 194547-5 | Makita 194547-5 Carbon Brushes CB-253 for 8406C JR3020 |
| 22 | 643750-0 | Makita 643750-0 BRUSH HOLDER CAP, 4100NH |
| 23 | 866331-5 | |
| 24 | 188630-8 | Makita 188630-8 HANDLE SET, PC5001C |
| 25 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 26 | 631799-2 | Makita 631799-2 Controller for GA5021C GA6021C PC5000C 631799C2 |
| 27 | 418518-1 | Makita 418518-1 SLEEVE, GA9010C |
| 28 | 651922-3 | Makita 651922-3 Switch TG71B for 2414B PC5001C HR4000C GA7011C |
| 29 | 654575-7 | Makita 654575-7 TERMINAL BLOCK, 5704R |
| 30 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 31 | 687124-5 | Makita 687124-5 CORD CLAMP, MT951 |
| 32 | 682574-9 | Makita 682574-9 CORD GUARD, MT240 |
| 33 | 665883-1 | Makita 665883-1 POWER S.CORD CEE(H07RN-F), PC5000C |
| 34 | 233117-6 | Makita 233117-6 COMPRESSION SPRING 6, CS550D |
| 35 | 418519-9 | Makita 418519-9 SWITCH BASE, GA9010C |
| 36 | 158401-7 | Makita 158401-7 SWITCH LEVER A COMPLETE, GA5021C |
| 37 | 188630-8 | Makita 188630-8 HANDLE SET, PC5001C |
| 38 | 450184-8 | Makita 450184-8 LENS, GA5020C |
| 39 | 213977-2 | Makita 213977-2 O-RING 7, GA5010 |
| 40 | 256505-0 | Makita 256505-0 SHOULDER PIN 5, GA5010 |
| 41 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 42 | 210033-9 | Makita 210033-9 Ball Bearing 696ZZ, 9535NB |
| 43 | 233950-6 | Makita 233950-6 RING SPRING, GA5010 |
| 44 | 227521-9 | Makita 227521-9 SPIRAL BEVEL GEAR 35A, GA5010 |
| 45 | 257171-6 | Makita 257171-6 RING 12, PC5001C |
| 46 | 911003-8 | Makita 911003-8 PAN HEAD SCREW M3X6, 6226D |
| 47 | 285728-3 | Makita 285728-3 BEARING RETAINER 39, GA5010 |
| 48 | 211241-5 | Makita 211241-5 BALL BEARING 6202DDW, MT811 |
| 49 | 253853-8 | Makita 253853-8 FLAT WASHER 15, LS1040 |
| 50 | 213624-5 | Makita 213624-5 O-RING 48, GA5010 |
| 51 | 345464-4 | Makita 345464-4 LABYRINTH RING, 9536NB |
| 52 | 325625-2 | Makita 325625-2 SPINDLE, PC5001C |
| 53 | 141021-4 | Makita 141021-4 SKIRT B COMPLETE, PC5000C |
| 54 | 911256-9 | Makita 911256-9 PAN HEAD SCREW M5*35, LS1440 |
| 55 | 911024-0 | Makita 911024-0 PAN HEAD SCREW M3*14 WG, PC5001 |
| 56 | 240114-5 | Makita 240114-5 FAN 85, PC5001C |
| 57 | 346045-7 | Makita 346045-7 SEPARATOR, PC5001C |
| 58 | 911115-7 | Makita 911115-7 PAN HEAD SCREW M4X10 |
| 59 | 922312-0 | Makita 922312-0 Hex Socket Head Bolt M6X12 for 2414NB |
| 60 | 424526-2 | Makita 424526-2 DUST COVER CAP |
| 61 | 424525-4 | Makita 424525-4 DUST COVER |
| 62 | 743341-8 | Makita 743341-8 BRUSH B NPC5000C SHORT |
| 63 | 743340-0 | Makita 743340-0 BRUSH A NPC5000C LONG |
| 64 | 224554-5 | Makita 224554-5 Outer Blade Locking Flange M14 for 9069 9554 9015 |
| 65 | 273529-1 | |
| 66 | 922441-9 | Makita 922441-9 H.S.H BOLT M8*25, PC5001C |
| 67 | 450190-3 | Makita 450190-3 SPACER B, GA5021C |
| 68 | 450190-3 | Makita 450190-3 SPACER B, GA5021C |
| 69 | 152179-4 | Makita 152179-4 FRONT ROLLER COMPLETE |
| 70 | 321436-3 | Makita 321436-3 FRONT ROLLER SHAFT |
| 71 | 922311-2 | Makita 922311-2 HEX. SOCKET HEAD BOLT M6X |
| 72 | 253011-6 | Makita 253011-6 FLAT WASHER 6, 3500 |
| 73 | 346042-3 | |
| 74 | 922311-2 | Makita 922311-2 HEX. SOCKET HEAD BOLT M6X |
| 75 | 922311-2 | Makita 922311-2 HEX. SOCKET HEAD BOLT M6X |
| 76 | 346043-1 | |
| 77 | 346044-9 | Makita 346044-9 BASE HOLDER |
| 78 | 265498-0 | Makita 265498-0 HEX.SOCKET FEAD BOLT M6*20, PC5001C |
| 79 | 922311-2 | Makita 922311-2 HEX. SOCKET HEAD BOLT M6X |
| 80 | 341840-0 | Makita 341840-0 BASE |
| 11 | 240094-5 | Makita 240094-5 FAN 70, GA5010 |
