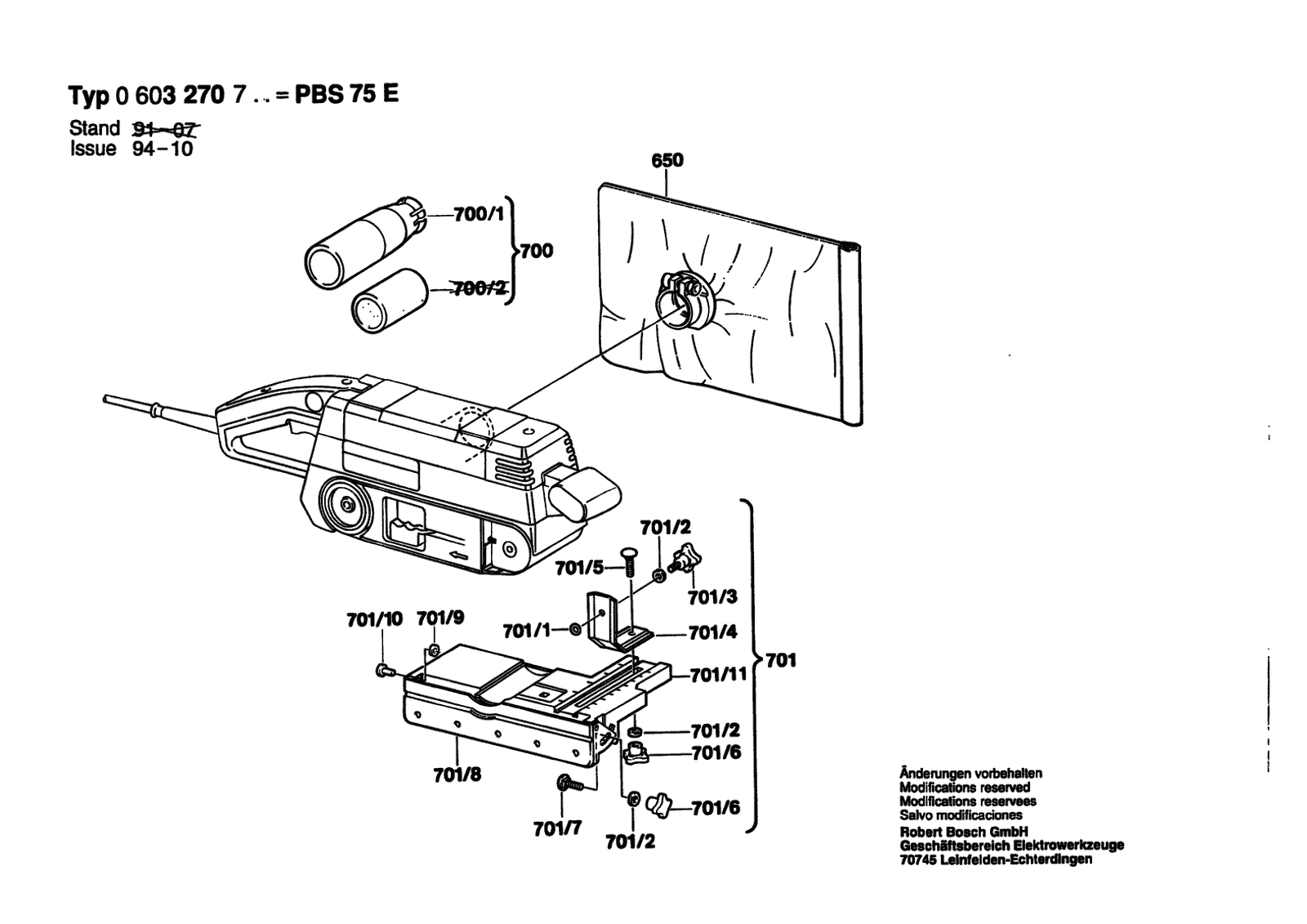

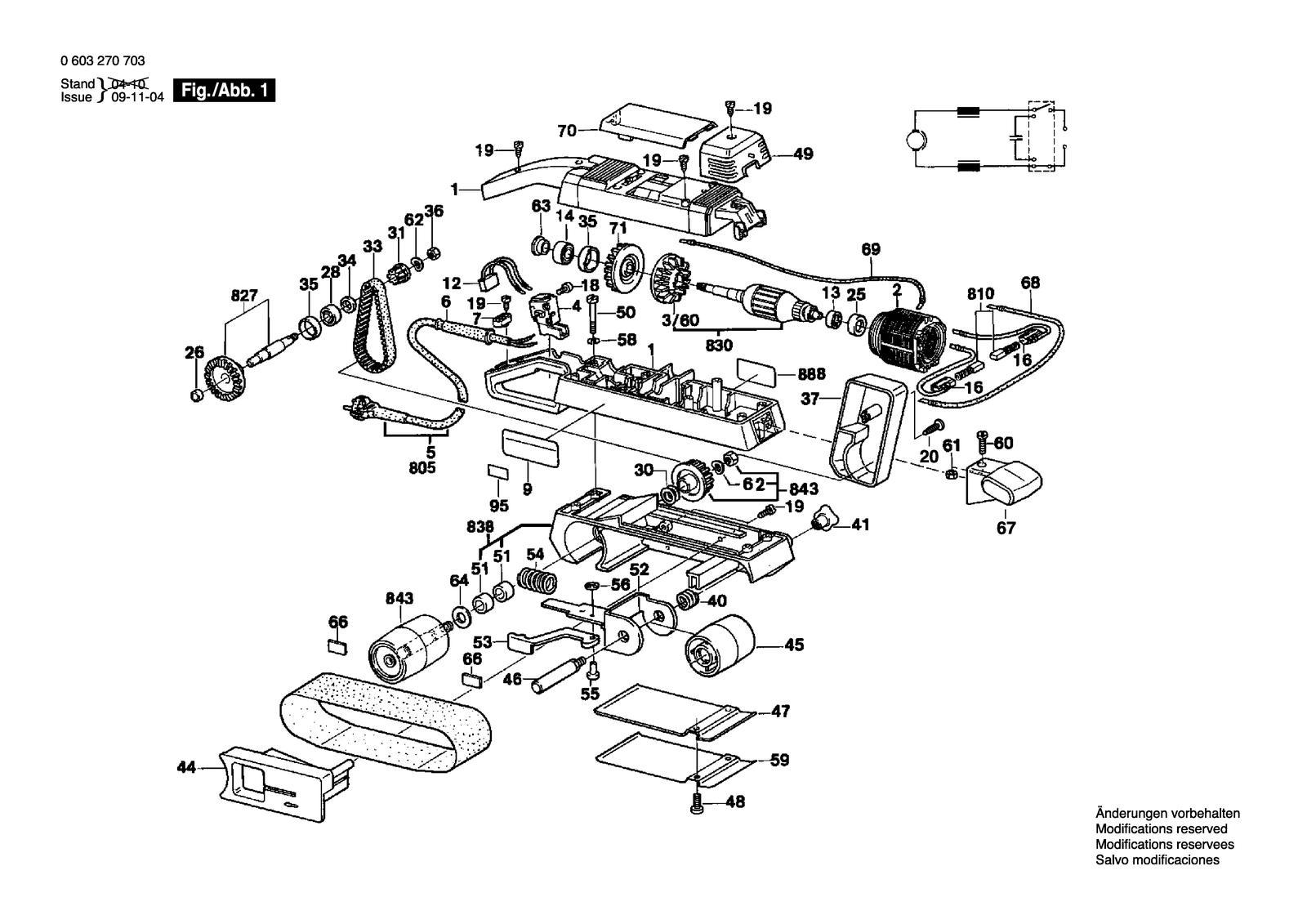

Bosch PBS 75 E belt sander: exploded parts diagram, 2 sheets, 82 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PBS 75 E: 82 positions on 2 sheets
Bosch PBS 75 E parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104548 | Motor Housing Green |
| 1 | 2605104549 | Motor Housing Blue |
| 12 | 1607328028 | Suppression Filter |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 14 | 1610905011 | Groove ball bearing 9X24X7 |
| 16 | 2604449026 | Brush Holder |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220445 | Field 220-230V |
| 2 | 2604220447 | Field 230-240V |
| 20 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 25 | 1600502011 | Intermediate Ring |
| 26 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 28 | 1900905041 | Groove ball bearing 8X22X7 |
| 3/60 | 2606610049 | Fan |
| 30 | 2600100099 | Shim |
| 31 | 1606625026 | Toothed Belt Wheel Z=19 |
| 33 | 1604736005 | Toothed Belt Z=75 |
| 34 | 2916021013 | Plain Washer 8-ST |
| 35 | 1600206024 | Intermediate Ring |
| 36 | 2603342010 | Nut M 8 |
| 36 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 37 | 1605510150 | Covering hood Black |
| 4 | 2607200358 | On-Off Switch |
| 40 | 2604630002 | Compression Spring |
| 41 | 2603339005 | Wing Nut |
| 44 | 1608005003 | Base Green |
| 44 | 1608005004 | Base Blue |
| 45 | 2606625908 | Roller |
| 46 | 1603521027 | Axle |
| 47 | 1601098005 | Base Plate |
| 48 | 2603410045 | Socket head cap screw DIN 84-M5X10-4.8 |
| 49 | 1605500122 | Brush-Cover Black |
| 5 | 1604460403 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604420008 | Power supply cord |
| 5 | 2604460102 | Power supply cord I 4,15M 2 X 1,0MM H05VV-F |
| 50 | 2910011170 | Socket head cap screw DIN 84-BM5X40-5.8 |
| 51 | 1900301018 | Sintered-Metal Bushing DIN 1850-J12X18X12 |
| 52 | 1605807013 | Bearing Bracket |
| 53 | 1602098006 | Tensioning Lever Black |
| 54 | 1604619017 | Compression Spring |
| 55 | 2917030110 | Button-Head Rivet |
| 56 | 1600146001 | Locking washer |
| 58 | 2916060006 | Spring Washer DIN 137-A5-FST |
| 59 | 1601098006 | Slide Plate |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 60 | 2910021126 | Socket head cap screw DIN 84-AM4X16-8.8 |
| 61 | 2915011005 | Hex Nut DIN 934 -M4-M-8 |
| 62 | 2916060007 | Spring Washer DIN 137-A 6-ST |
| 63 | 1600322034 | Seal Ring |
| 64 | 1600101618 | Shim Thick 0,3 MM |
| 650 | 1605411025 | Dust Bag |
| 66 | 1601010007 | Ceramic Plate |
| 67 | 1605133036 | Handle Black |
| 68 | 1604438018 | Connecting Cable White L=410 MM |
| 69 | 1604448000 | Connecting Cable White L=373 MM |
| 7 | 2601035001 | Cable Clip |
| 70 | 1605500120 | Housing Cover Black |
| 701/1 | 1610210043 | O-Ring 4,0X1,5 MM |
| 701/10 | 2917190492 | Tubular rivet B 4X0,5X15 DIN 734 |
| 701/11 | 1608000093 | Stop Bracket |
| 701/2 | 2916011014 | Plain Washer DIN 125-A 6,4-ST |
| 701/3 | 2603480003 | Wing Screw M 6X16 MM |
| 701/4 | 1601332018 | Stop Bracket |
| 701/5 | 2910281203 | Round-Head Bolt DIN 603-M6X25 |
| 701/6 | 1603339006 | Wing Nut M6 |
| 701/7 | 2910281196 | Round-Head Bolt M6X15 DIN 603 |
| 701/8 | 1608000092 | Stop Plate |
| 701/9 | 2916011010 | Plain Washer DIN 125-A4,3-ST |
| 71 | 1606610120 | Fan |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 805 | 1607000391 | Power supply cord |
| 810 | 1617014117 | Carbon-Brush Set |
| 827 | 2606333900 | Crown Gear Z=45 |
| 830 | 1604010252 | Armature 220V |
| 830 | 1604010254 | Armature 240V |
| 838 | 2605190900 | Housing |
| 843 | 2606625906 | Roller |
| 888 | 160111A3H3 | Nameplate |
| 9 | 2601110608 | Sticker Sunny Side |
| 95 | 1601110265 | Reference Plate |
