Bosch PBS 75 A

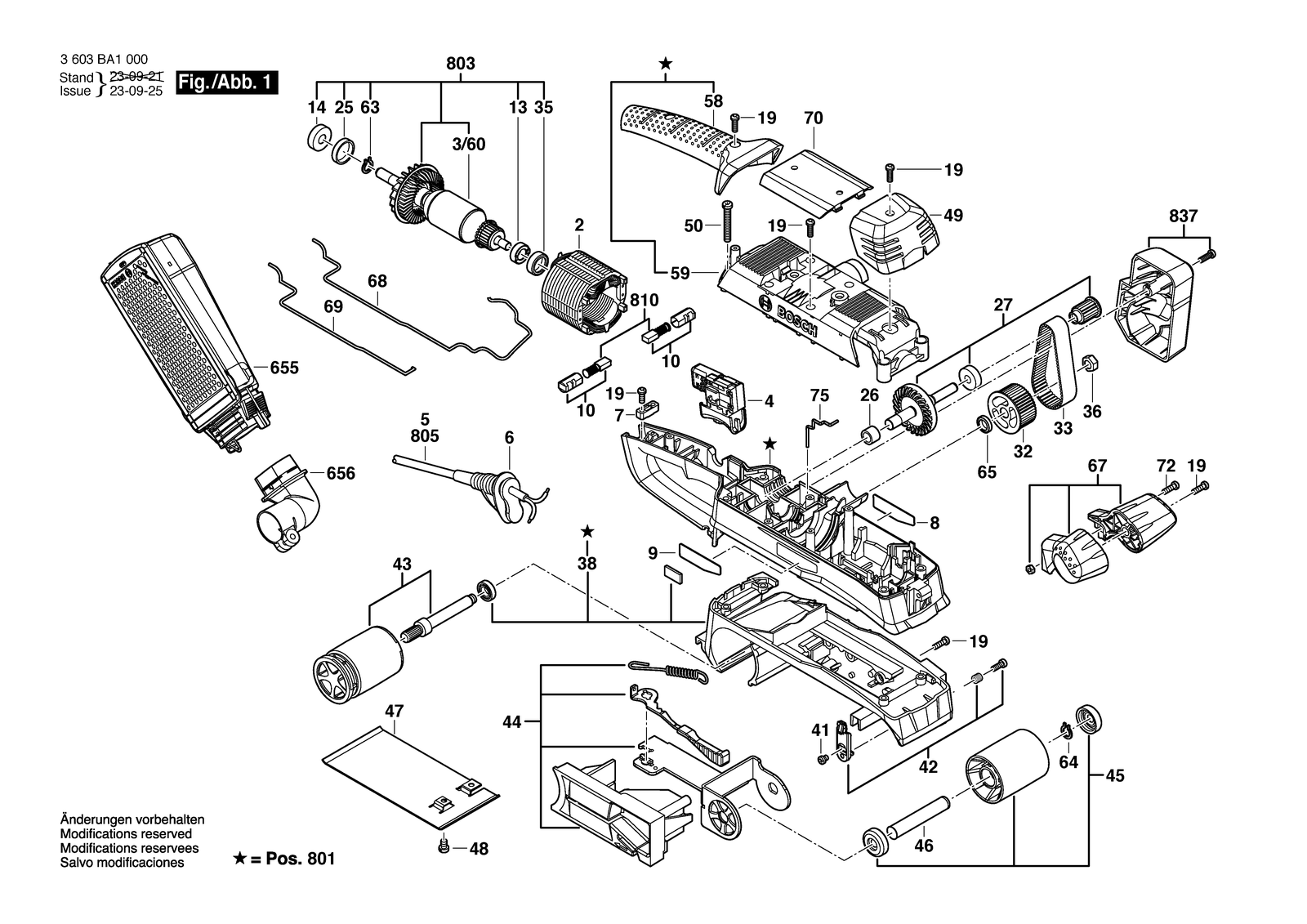

Bosch PBS 75 A belt sander: exploded parts diagram, 1 sheet, 104 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PBS 75 A: 104 positions on 1 sheet
Bosch PBS 75 A parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 10 | 1619X06663 | Carbon Brush Holder |
| 10 | 1619X06663 | Carbon Brush Holder |
| 13 | 1619X06535 | Groove ball bearing |
| 13 | 1619X06535 | Groove ball bearing |
| 14 | 1619X07386 | Groove ball bearing 9X24X7 |
| 14 | 1619X07386 | Groove ball bearing 9X24X7 |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 1619P08315 | Field 230-240V |
| 2 | 1619P08315 | Field 230-240V |
| 25 | 1619X06345 | Intermediate Ring |
| 25 | 1619X06345 | Intermediate Ring |
| 26 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 26 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 27 | 1619X06662 | Gear Shaft |
| 27 | 1619X06662 | Gear Shaft |
| 3/60 | 1619P08441 | Fan |
| 3/60 | 1619P08441 | Fan |
| 32 | 1619X06349 | Toothed Belt Wheel |
| 32 | 1619X06349 | Toothed Belt Wheel |
| 33 | 2604736010 | Toothed Belt Z=75 |
| 33 | 2604736010 | Toothed Belt Z=75 |
| 35 | 1619X06351 | Intermediate Ring |
| 35 | 1619X06351 | Intermediate Ring |
| 36 | 1619X06352 | Hex Nut |
| 36 | 1619X06352 | Hex Nut |
| 38 | 1619X06665 | Housing Base |
| 38 | 1619X06665 | Housing Base |
| 4 | 1619X06336 | On-Off Switch |
| 4 | 1619X07149 | Switch |
| 41 | 1619X06903 | Bolt |
| 41 | 1619X06903 | Bolt |
| 42 | 1619X06673 | Lever Arm |
| 42 | 1619X06673 | Lever Arm |
| 43 | 1619X06660 | Drive Roller |
| 43 | 1619X06660 | Drive Roller |
| 44 | 1619X06963 | Adjusting Device |
| 44 | 1619X06669 | Adjusting Device |
| 45 | 1619X06671 | Roller |
| 45 | 1619X06671 | Roller |
| 46 | 1619X06360 | Axle |
| 46 | 1619X06360 | Axle |
| 47 | 1619X06361 | Base Plate |
| 47 | 1619X06361 | Base Plate |
| 48 | 1619X06538 | Socket head cap screw |
| 48 | 1619X06538 | Socket head cap screw |
| 49 | 1619X06898 | Brush-Cover |
| 49 | 1619X06362 | Brush-Cover |
| 5 | 1604460365 | Power supply cord AUS 240V 2,65M 2 X 0,75MM H05 Vv-F |
| 5 | 1604460427 | Power supply cord CH 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460168 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460365 | Power supply cord AUS 240V 2,65M 2 X 0,75MM H05 Vv-F |
| 5 | 1604460427 | Power supply cord CH 2,65M 2 X 1,0MM H05 Vv-F |
| 50 | 1619X06539 | Socket head cap screw |
| 50 | 1619X06539 | Socket head cap screw |
| 58 | 1619X06366 | Handle Cover |
| 58 | 1619X06366 | Handle Cover |
| 59 | 1619X06339 | Housing |
| 59 | 1619X06339 | Housing |
| 6 | 1619X06341 | Grommet |
| 6 | 1619X06341 | Grommet |
| 63 | 1619X06368 | Seal Ring |
| 63 | 1619X06368 | Seal Ring |
| 64 | 2610923854 | Clip |
| 64 | 2610923854 | Clip |
| 65 | 1619X06363 | Sintered-Metal Bushing |
| 65 | 1619X06363 | Sintered-Metal Bushing |
| 655 | 1619X06377 | Dust Chamber |
| 655 | 1619X06377 | Dust Chamber |
| 656 | 1619X08691 | Fitting |
| 656 | 1619X08691 | Fitting |
| 67 | 1619X06666 | Handle |
| 67 | 1619X06666 | Handle |
| 68 | 1619X06542 | Lead White |
| 68 | 1619X06542 | Lead White |
| 69 | 1619X06543 | Lead |
| 69 | 1619X06543 | Lead |
| 7 | 2601035001 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 70 | 1619X06372 | Housing Cover |
| 70 | 1619X06899 | Housing Cover |
| 72 | 1619X06374 | Socket head cap screw |
| 72 | 1619X06374 | Socket head cap screw |
| 75 | 1619X06375 | Wire bow |
| 75 | 1619X06375 | Wire bow |
| 8 | 1619P13001 | Nameplate |
| 8 | 1619X07351 | Nameplate |
| 8 | 1619X07353 | Nameplate |
| 8 | 1619X08004 | Nameplate |
| 8 | 1619P13002 | Nameplate |
| 8 | 1619X07352 | Nameplate |
| 8 | 1619X08005 | Nameplate |
| 801 | 1619X07525 | Housing Set |
| 801 | 1619X07525 | Housing Set |
| 803 | 1619P12322 | Armature set |
| 803 | 1619P12322 | Armature set |
| 805 | 1607000388 | Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F |
| 805 | 1607000388 | Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F |
| 810 | 1619X07528 | Carbon-Brush Set |
| 810 | 1619X07528 | Carbon-Brush Set |
| 837 | 1619X07529 | Covering hood |
| 837 | 1619X07529 | Covering hood |
| 9 | 1619X06962 | Manufacturer's nameplate PBS 75 A |
| 9 | 1619X06376 | Manufacturer's nameplate PBS 75 Ae |
