Bosch PBS 7 A/AE belt sander: exploded parts diagram, 2 sheets, 41 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PBS 7 A/AE: 41 positions on 2 sheets

Bosch PBS 7 A/AE parts list (2 sheets)

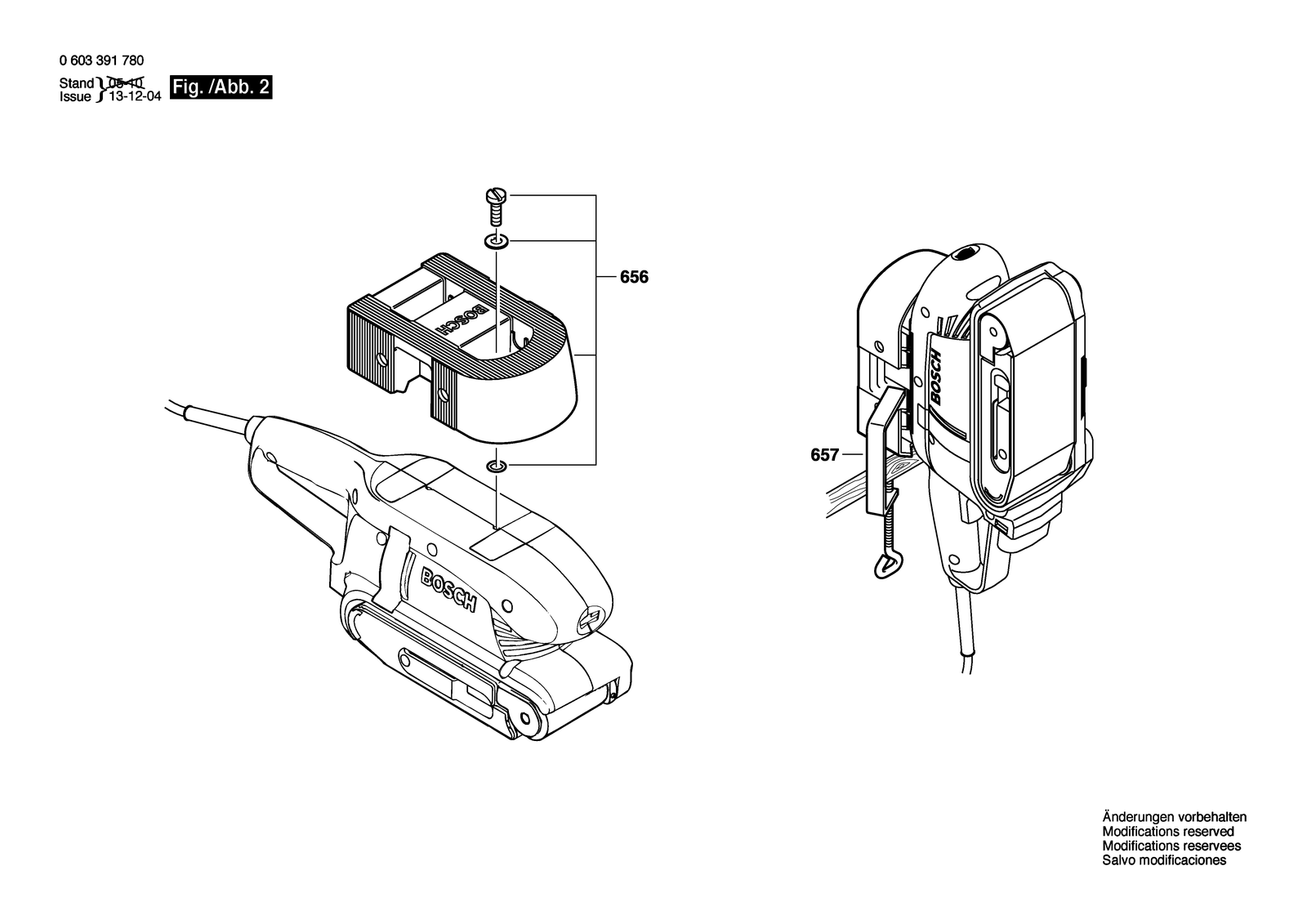

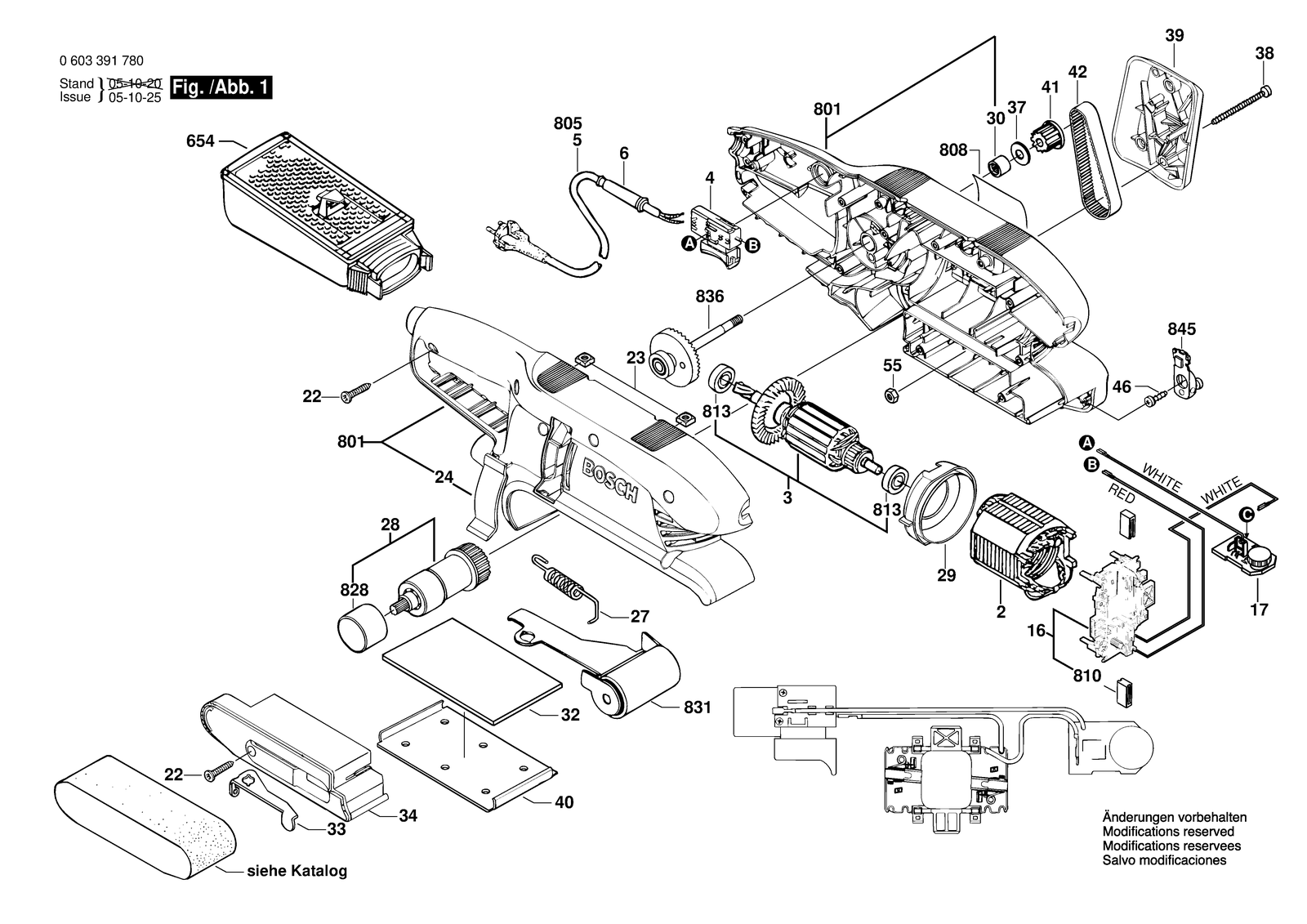

Bosch PBS 7 A/AE parts diagram, sheet 1Bosch PBS 7 A/AE parts diagram, sheet 2
No.Part numberPart name
162610391289Brush Holder
171607233169Rpm Actuator 230-240V
22610390992Field 230V
222610374919Torx Oval-Head Screw T20-8X19 MM
232610385585Square Nut
242610389694Cover Plate
272610392308Spring
282609000812Pulley
292610389927Air Guide Plate
32610391052Armature 230V
302610377223Needle bearing
322610389697Felt Sheet
332610390971Lever
342610387965Covering hood
372610391223Disc Spring
382610374994Torx Oval-Head Screw 8X60
392610389693Belt Cover
42610390848Switch
402610389698Support
412610387991Toothed Belt Wheel
422610387984Toothed Belt
462610374916Torx Oval-Head Screw 8X16
51604460423Power supply cord CH 2,75M 2 X 1,0MM H05 Vv-F
51607000388Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F
52610392607Power supply cord 2,65M 2 X 1,0MM H05VV-F
552610061550Nut M6
62600703012Grommet Ø6,5-Ø6,9X95 MM
6542605411129Dust Chamber
6562610389914Mounting Device
6572610391549Clamp
8012610391475Housing Set
8082609000447Nameplate
8082609000448Nameplate
8082609000449Nameplate
8082609000450Nameplate
8102610391290Carbon-Brush Set
8132610376473Ring Ball Bearing
8282610391336Rubber Ring
8312610376140Fork
8362610387990Spindle With Gear
8452610392590Lever Arm
