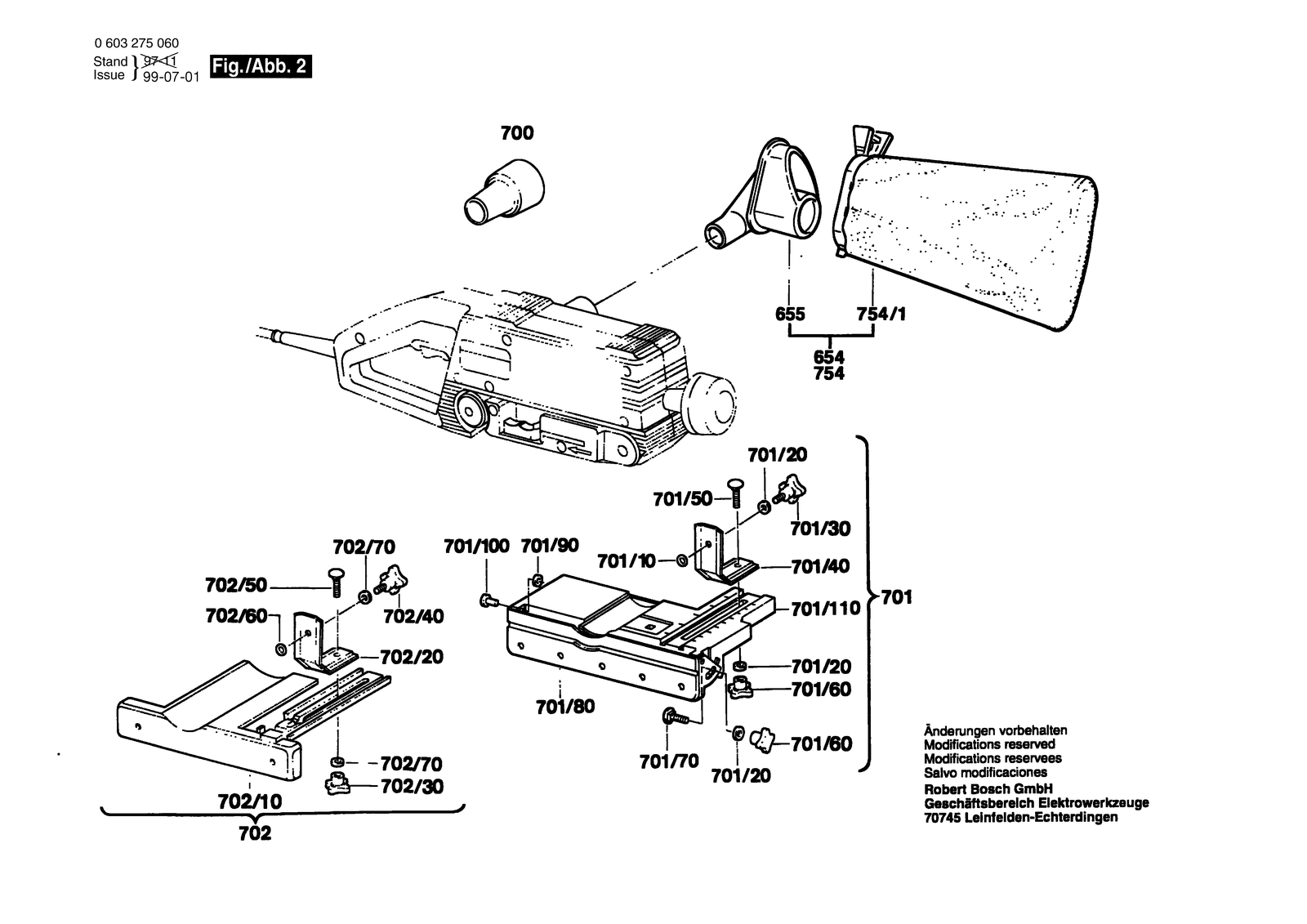

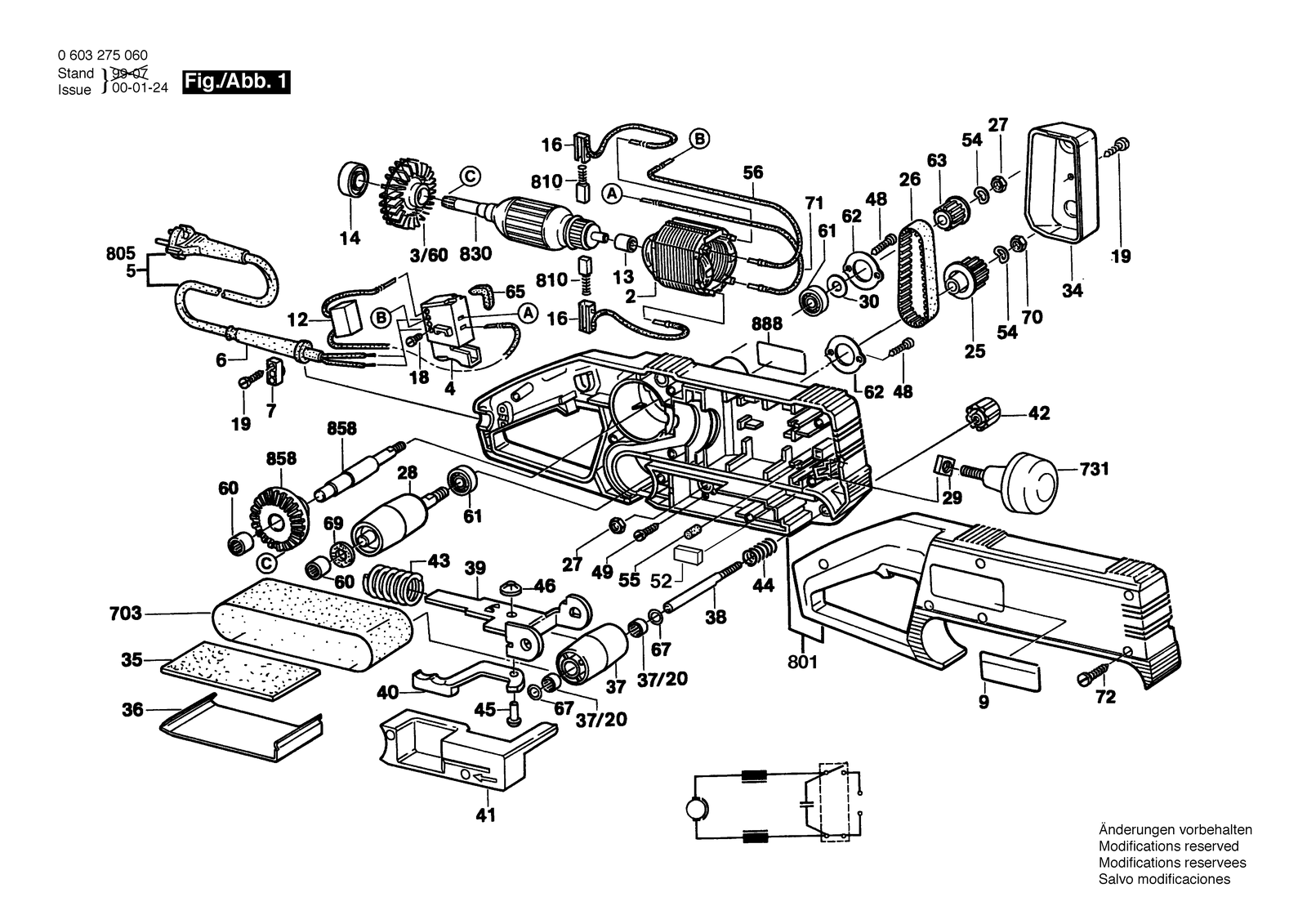

Bosch PBS 60 belt sander: exploded parts diagram, 2 sheets, 80 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PBS 60: 80 positions on 2 sheets
Bosch PBS 60 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 12 | 1607328028 | Suppression Filter |
| 13 | 2600910005 | Needle bearing |
| 14 | 1610905011 | Groove ball bearing 9X24X7 |
| 16 | 2604465085 | Suppressor Box |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220456 | Field 220-240V |
| 25 | 1606625030 | Toothed Belt Wheel Z=27 |
| 26 | 1604736006 | Toothed Belt Z=59 |
| 27 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 28 | 1606625032 | Roller |
| 29 | 2603320004 | Square Nut M6 |
| 3/60 | 2606610024 | Fan |
| 30 | 2916021013 | Plain Washer 8-ST |
| 34 | 1605510159 | Covering hood |
| 35 | 1601005005 | Felt Strip |
| 36 | 1601098007 | Slide Plate |
| 37 | 1606625031 | Roller |
| 37/20 | 2600917003 | Needle-Roller Bearing Ø8X8 MM |
| 38 | 1603521028 | Axle |
| 39 | 1605807014 | Bearing Bracket |
| 4 | 2607200260 | Switch |
| 40 | 1602098007 | Tensioning Lever |
| 41 | 2608005022 | Base Red |
| 42 | 2603339005 | Wing Nut |
| 43 | 1604619018 | Compression Spring |
| 44 | 1604612006 | Compression Spring |
| 45 | 2917030709 | Button-Head Rivet DIN 660-5X10-MS |
| 46 | 1600146001 | Locking washer |
| 48 | 2603490016 | Torx Oval-Head Screw 3X8 |
| 49 | 2910211017 | Tapping Screw DIN 7971-BZ3,9X9,5 |
| 5 | 1604460417 | Power supply cord CH 2,65M 2 X 1,0MM H05 Vv-F |
| 52 | 2601010059 | Ceramic Plate |
| 54 | 2916061007 | Spring Washer DIN 137-A6-FST |
| 55 | 1603100036 | Rubber Buffer |
| 56 | 2604448059 | Connecting Cable |
| 6 | 2600703007 | Grommet Ø7 MM |
| 60 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 61 | 1900905041 | Groove ball bearing 8X22X7 |
| 62 | 1600190016 | Tab Washer |
| 63 | 1606625026 | Toothed Belt Wheel Z=19 |
| 65 | 2601022000 | Damping Plate |
| 654 | 2605411046 | Dust Bag |
| 655 | 2605702012 | Fitting |
| 67 | 2600100621 | Shim 0,2 MM |
| 69 | 2600108008 | Felt Disc |
| 7 | 2601035001 | Cable Clip |
| 70 | 2603300003 | Hex Nut Lefthand Threads M 6 |
| 700 | 1600499005 | Fitting Ø 25X35 MM |
| 701 | 2607001079 | Width Stop 45° |
| 701/10 | 1610210043 | O-Ring 4,0X1,5 MM |
| 701/100 | 2917190492 | Tubular rivet B 4X0,5X15 DIN 734 |
| 701/110 | 1608000093 | Stop Bracket |
| 701/20 | 2916011014 | Plain Washer DIN 125-A 6,4-ST |
| 701/30 | 2603480003 | Wing Screw M 6X16 MM |
| 701/40 | 1601332018 | Stop Bracket |
| 701/50 | 2910281203 | Round-Head Bolt DIN 603-M6X25 |
| 701/60 | 1603339006 | Wing Nut M6 |
| 701/70 | 2910281196 | Round-Head Bolt M6X15 DIN 603 |
| 701/80 | 1608000092 | Stop Plate |
| 701/90 | 2916011010 | Plain Washer DIN 125-A4,3-ST |
| 702 | 2607000102 | Parallel-Guide |
| 702/10 | 2608005015 | Stop Bracket |
| 702/20 | 1601332018 | Stop Bracket |
| 702/30 | 1603339006 | Wing Nut M6 |
| 702/40 | 2603480003 | Wing Screw M 6X16 MM |
| 702/50 | 2910281196 | Round-Head Bolt M6X15 DIN 603 |
| 702/60 | 1610210043 | O-Ring 4,0X1,5 MM |
| 702/70 | 2916011014 | Plain Washer DIN 125-A 6,4-ST |
| 703 | 1608604198 | Abrasive Belt KORN 40 |
| 71 | 2604448150 | Connecting Cable |
| 731 | 2602026046 | Handle Black M6X15 MM |
| 754 | 1605411026 | Dust Bag |
| 754/1 | 2605411021 | Dust Bag |
| 801 | 2605104244 | Motor Housing Red |
| 810 | 1607014117 | Carbon Brush |
| 830 | 1604010306 | Armature 220-230V |
| 858 | 2606333900 | Crown Gear Z=45 |
| 888 | 160111A3HC | Nameplate |
| 9 | 2601110524 | Sticker |
