Bosch PBM 4,8 V

Bosch PBM 4,8 V cordless drill: exploded parts diagram, 1 sheet, 30 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PBM 4,8 V: 30 positions on 1 sheet

Bosch PBM 4,8 V parts list (1 sheet)

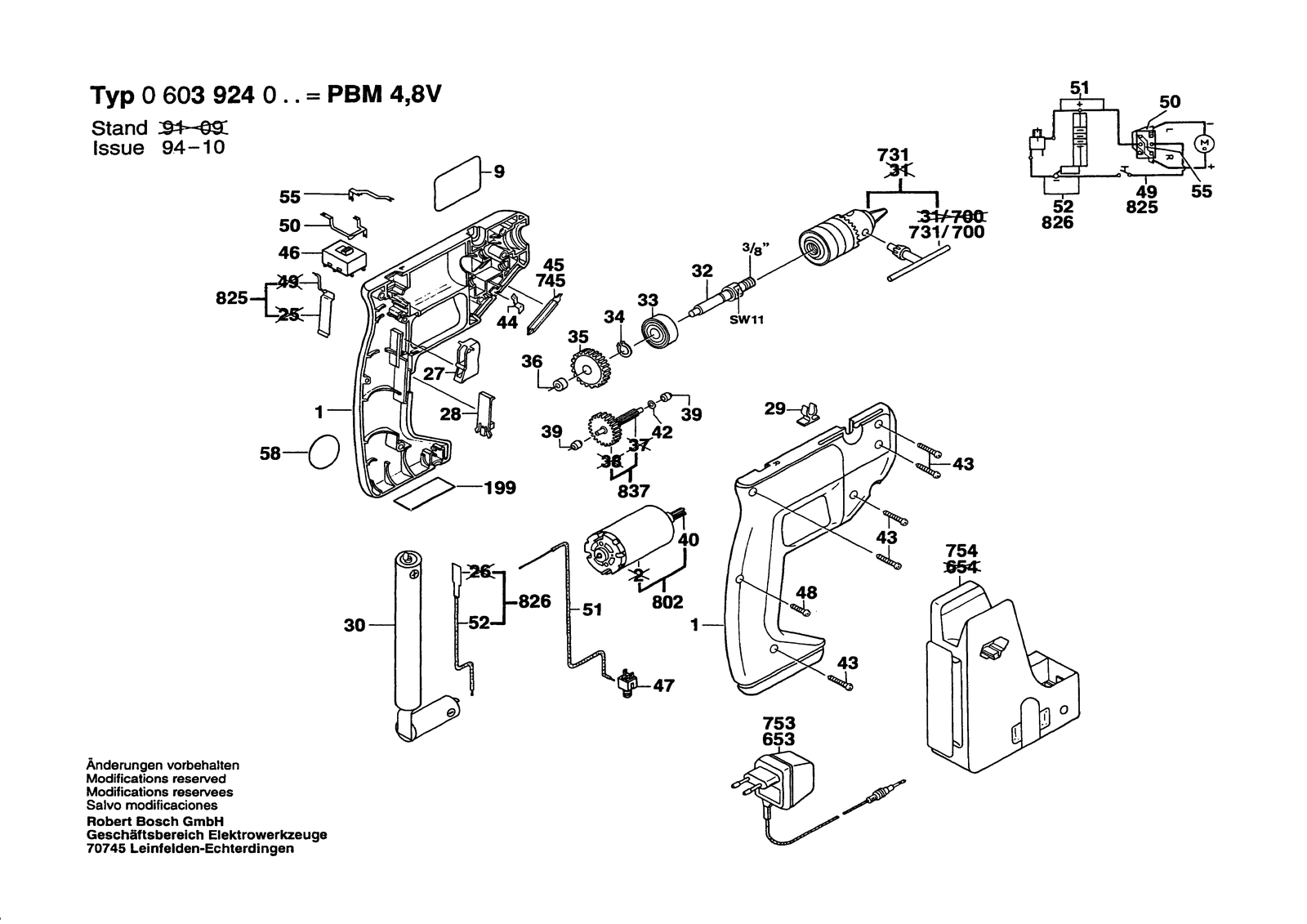

Bosch PBM 4,8 V parts diagram, sheet 1
No.Part numberPart name
12605104253Housing Section Green
1991601110265Reference Plate
272603231012Control Lever
282601099010Rejection Slide
292608040029Key Holder
302607335006Accumulator package 4,8V, 1,2AH, Nicd
322606135022Drilling Spindle 3/8", SW 11
331900905120Groove ball bearing 10X26X8
352606316114Cylindrical Gear Z=64
362600301011Sintered-Metal Bushing
392600302002Sintered-Metal Bushing
402606316112Pinion Z=11
422600100636Shim Thick 0,3 MM
432603435023Cross Recessed-Head Screw 3X17 MM
442601250002Holding Spring
462607200214Change-Over Switch
472604483001Socket
482912401006Tapping Screw DIN7981-ST2,9X13-C-Z
502601390000Bus Bar
512604413014Connecting Cable White L=173 MM
552601390001Bus Bar
582601110999Sticker
7311608571066Key Chuck Ø1-10 Mm, 3/8"
731/7001607950042Chuck Wrench SG 1, Ø4X60 MM
7542608005030Drive-Machine Holder
8022607022905DC motor 4,8V
8252604449037Connecting Cable
8262604449049Connecting Cable
8372606100913Toothed Shaft Z=58/11
92601118255Manufacturer's nameplate
