Bosch PBH 2000 RE
Bosch PBH 2000 RE rotary hammer: exploded parts diagram, 2 sheets, 101 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

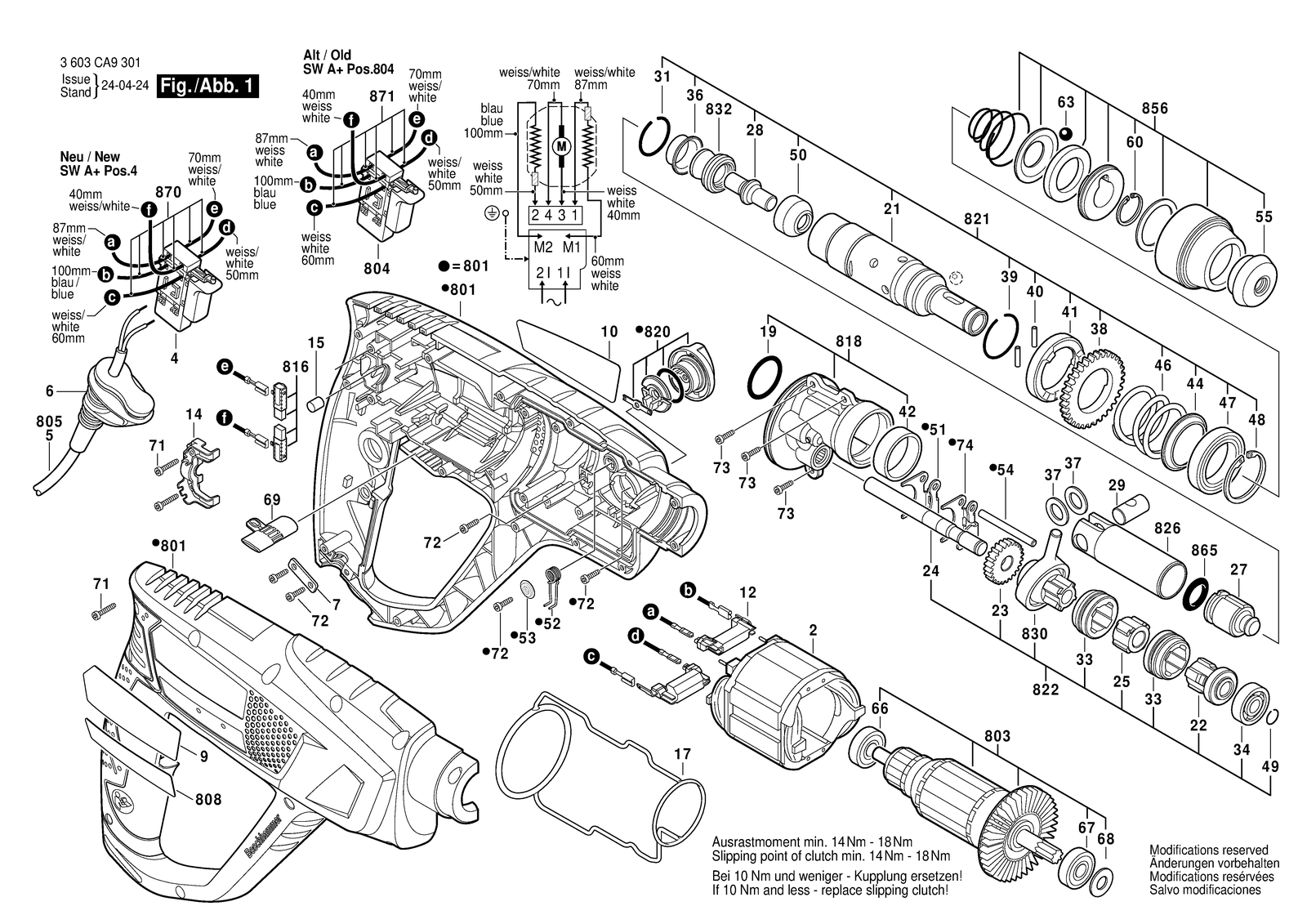

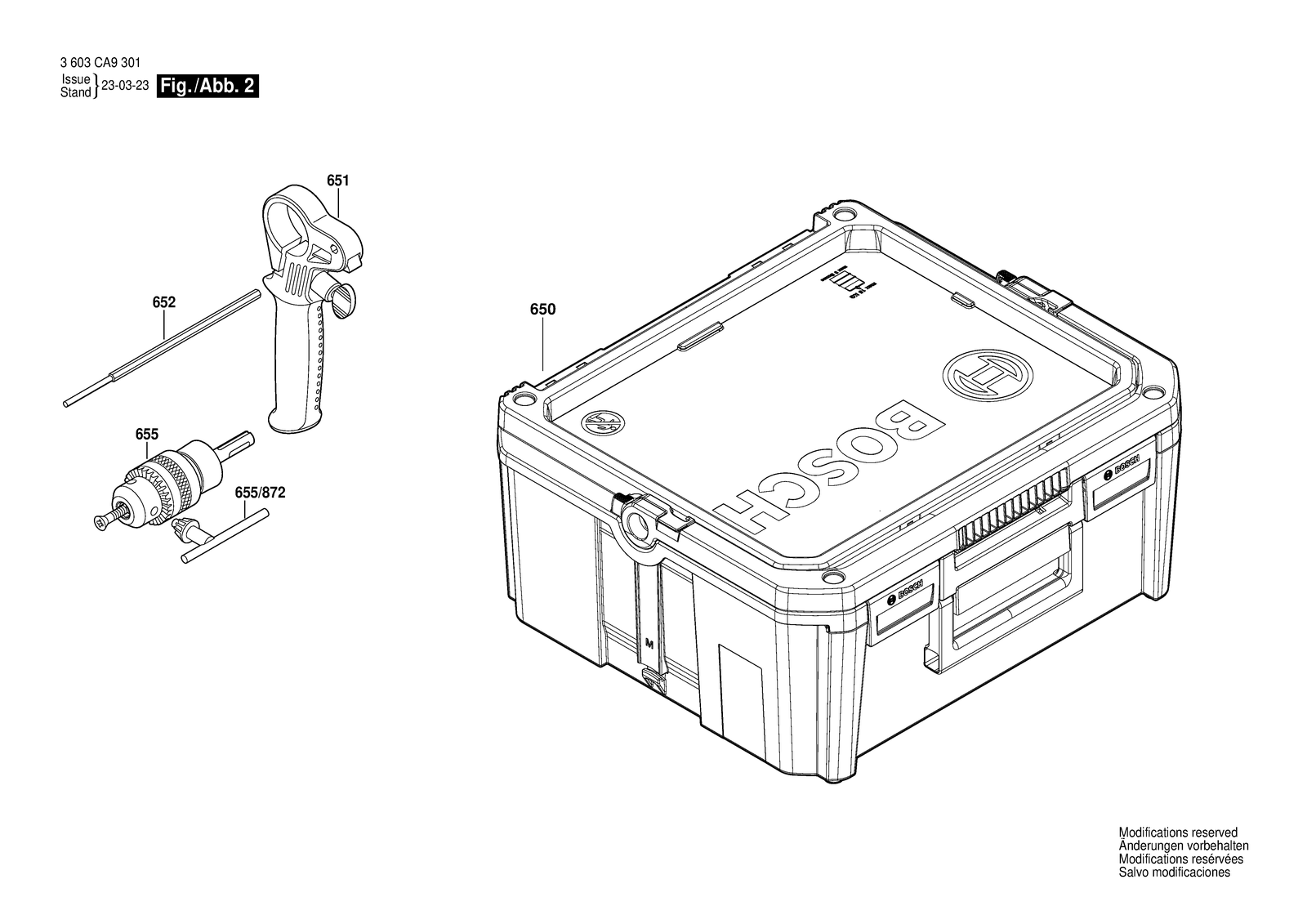

All parts of Bosch PBH 2000 RE: 101 positions on 2 sheets
Bosch PBH 2000 RE parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 10 | 1619P09692 | Manufacturer's nameplate PBH 2100 Re |
| 10 | 1619P09693 | Manufacturer's nameplate PBH 2100 Sre |
| 10 | 1619P13597 | Manufacturer's nameplate Pbh Universal |
| 10 | 1619P14449 | Manufacturer's nameplate |
| 12 | 1617328032 | Suppression Filter |
| 14 | 1615806187 | Bearing Bracket |
| 15 | 2603100056 | Damping rubber |
| 17 | 1611015054 | Sealing Frame |
| 19 | 1610210184 | O-Ring 22,0X2,5 MM |
| 2 | 1614220182 | Field 230V |
| 2 | 1614220183 | Field 100V |
| 2 | 1614220185 | Field 240V |
| 21 | 1615806188 | Hammer Pipe |
| 22 | 1619P01786 | Pinion |
| 23 | 1616317070 | Cylindrical Gear |
| 24 | 1613101010 | Transmission Shaft |
| 25 | 1619P01784 | Coupling hub |
| 27 | 1618710085 | Striker |
| 28 | 1613124084 | Striker Pin |
| 29 | 1613100034 | Piston Pin |
| 31 | 1614601053 | Retaining ring |
| 33 | 1619P01785 | Switching Element |
| 34 | 1610905034 | Ball Bearing 8X22X6 |
| 36 | 1610551008 | Holding Plate |
| 37 | 1610100016 | Guide Disc |
| 38 | 1619P13665 | Cylindrical Gear |
| 39 | 1614601055 | Retaining ring |
| 4 | 1617200515 | On-Off Switch |
| 4 | 1619P09754 | Switch |
| 4 | 1619P09755 | Switch |
| 4 | 1619PS0986 | Switch |
| 40 | 1613100032 | Straight Pin |
| 41 | 1610102072 | Ratchet Disc |
| 42 | 1610301004 | Plain bearing |
| 44 | 1619P14179 | Supporting Disc |
| 46 | 1614630002 | Compression Spring |
| 47 | 1610905035 | Ball Bearing |
| 48 | 1614601054 | Retaining ring |
| 49 | 1619P00829 | Retaining ring |
| 5 | 1604460125 | Power supply cord GB 230V 2,65M 2 X 1,0MM H07 Rn-F |
| 5 | 1604460448 | Power supply cord CH 2,65M 2 X 1,0MM H07 Rn-F |
| 5 | 1614460054 | Power supply cord AUS 2,7M 2 X 1,0MM Pvc |
| 5 | 1619P13271 | Power supply cord |
| 5 | 2604460135 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 50 | 1619P11562 | Guide Bushing |
| 51 | 1619P01787 | Shift Plate |
| 52 | 1619P01789 | Coiled Spring |
| 53 | 1619P00828 | Pressure Disc |
| 54 | 1613100033 | Guide Rod |
| 55 | 1610508052 | Protective Cap |
| 6 | 1619P09295 | Grommet |
| 60 | 1614601077 | Spring retaining ring |
| 60 | 3600224038 | Spring retaining ring |
| 63 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 650 | 16054381FV | Carrying Case M |
| 651 | 2602025125 | Auxiliary Handle Black |
| 652 | 2603001009 | Depth-Gauge |
| 655 | 1618571031 | Key Chuck |
| 655/872 | 2607950007 | Chuck Wrench SG2 |
| 66 | 1900905029 | Ball Bearing 8X22X7 |
| 67 | 1610905033 | Ball Bearing |
| 68 | 1614601052 | Plain Washer |
| 69 | 1619P09293 | Change-Over Switch |
| 7 | 1611035007 | Cable Clip |
| 7 | 1614477008 | Cable Clip |
| 71 | 1619P00219 | Tapping Screw |
| 72 | 1619P00220 | Torx Oval-Head Screw 3X10 |
| 73 | 2914201483 | Torx Oval-Head Screw |
| 74 | 1619P01788 | Shift Plate |
| 801 | 1619P09777 | Housing Set |
| 803 | 1619P01708 | Armature 100V |
| 803 | 1619P01771 | Armature 220-240V |
| 804 | 1617200515 | On-Off Switch |
| 805 | 3607030489 | Power supply cord |
| 808 | 1619P09673 | Nameplate |
| 808 | 1619P09679 | Nameplate |
| 808 | 1619P09681 | Nameplate |
| 808 | 1619P09685 | Nameplate |
| 808 | 1619P09687 | Nameplate |
| 808 | 1619P14448 | Nameplate |
| 808 | 1619P30158 | Nameplate |
| 808 | 1619P30494 | Nameplate |
| 808 | 1619P30499 | Nameplate |
| 808 | 1619P31488 | Nameplate |
| 808 | 1619P31668 | Nameplate |
| 808 | 1619P31814 | Nameplate |
| 816 | 1619P01777 | Carbon-Brush Set |
| 818 | 1619P01772 | Intermediate Flange |
| 820 | 1619P09778 | Switch Button |
| 821 | 1619P01773 | Hammer Pipe |
| 822 | 1619P01778 | Transmission Shaft |
| 826 | 1618700083 | Hammer Piston |
| 830 | 1619P01775 | Drive bearing |
| 832 | 1610508051 | Rubber Bushing |
| 832 | 1619PS1043 | Rubber Bushing |
| 856 | 1619P02182 | Protection Sleeve |
| 865 | 1610210186 | O-Ring 13,0X3,0 MM |
| 870 | 1619P01776 | Connecting Cable |
| 870 | 1619P21532 | Connecting Cable |
| 871 | 1619P01776 | Connecting Cable |
| 9 | 1619P09296 | Manufacturer's nameplate |
