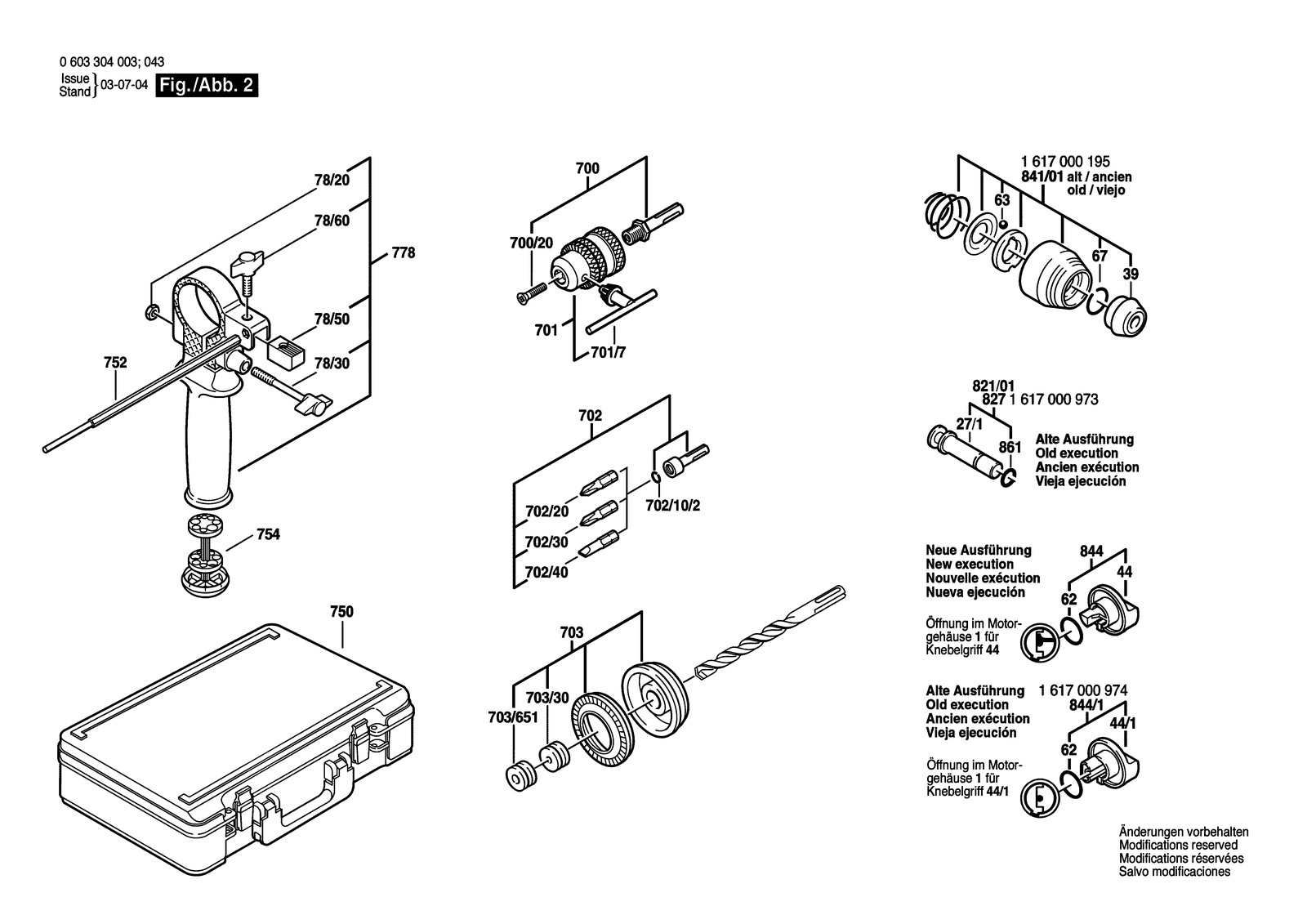

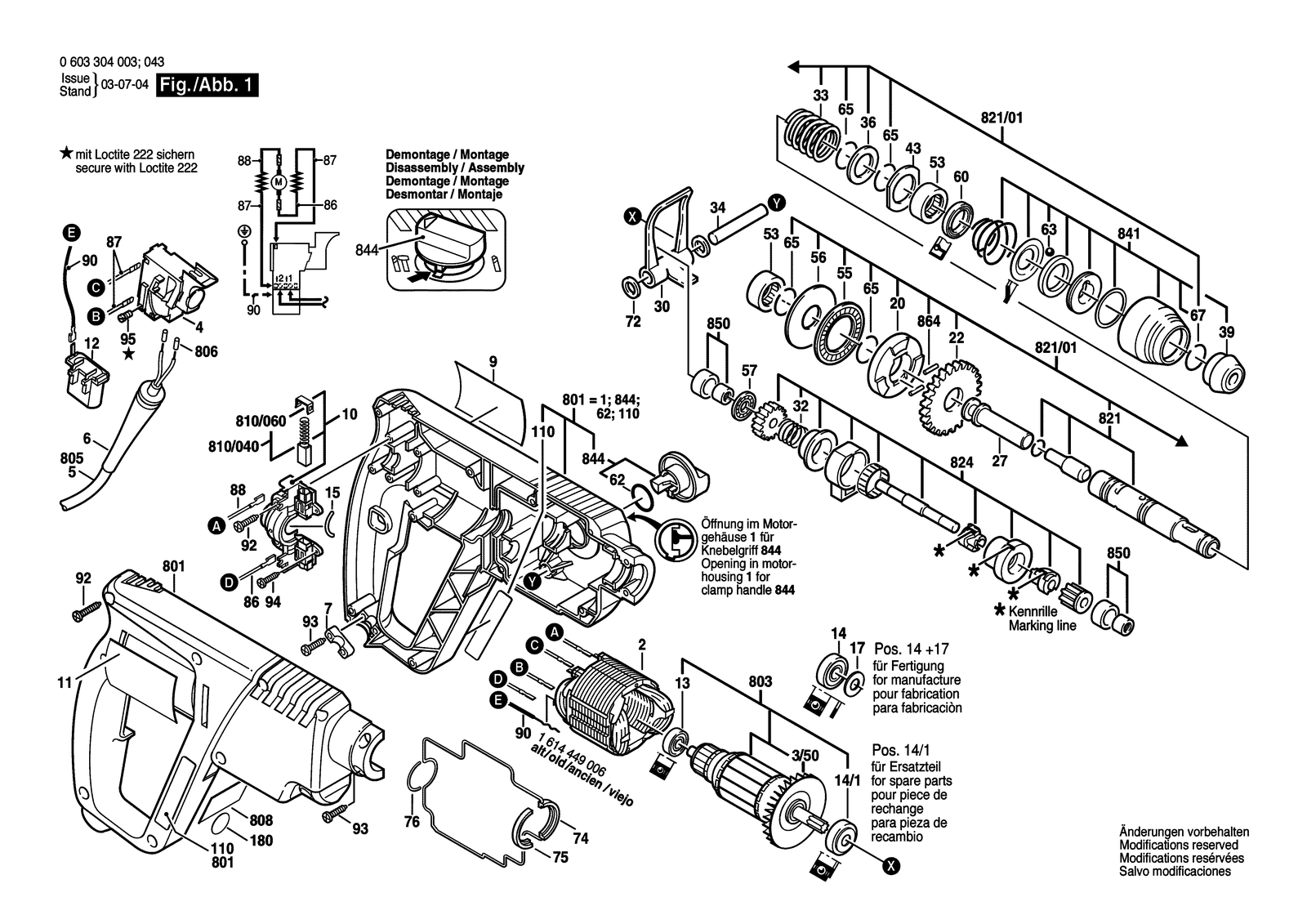

Bosch PBH 160 rotary hammer: exploded parts diagram, 2 sheets, 173 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PBH 160: 173 positions on 2 sheets
Bosch PBH 160 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 10 | 2605807060 | Brush Plate |
| 10 | 2605807060 | Brush Plate |
| 11 | 1611110688 | Reference Plate |
| 11 | 1611110688 | Reference Plate |
| 110 | 1601118B75 | Reference Plate |
| 110 | 1601118B75 | Reference Plate |
| 12 | 1607328040 | Suppression Filter |
| 12 | 1607328040 | Suppression Filter |
| 13 | 1610905025 | Groove ball bearing 7X19X6 |
| 13 | 1610905025 | Groove ball bearing 7X19X6 |
| 14/1 | 1610905048 | Groove ball bearing 9X24X7 |
| 14/1 | 1610905048 | Groove ball bearing 9X24X7 |
| 15 | 1610026001 | Damping rubber |
| 15 | 1610026001 | Damping rubber |
| 180 | 1611110855 | Sticker |
| 2 | 2604220515 | Field 220-240V |
| 2 | 2604220515 | Field 220-240V |
| 20 | 1616409012 | Catch Disk |
| 20 | 1616409012 | Catch Disk |
| 22 | 1616317608 | Cylindrical Gear Z=51 |
| 22 | 1616317608 | Cylindrical Gear Z=51 |
| 27 | 1618710068 | Striker |
| 27 | 1618710068 | Striker |
| 3/50 | 2606610022 | Fan |
| 3/50 | 2606610022 | Fan |
| 30 | 1611911000 | Drive Lever |
| 30 | 1611911000 | Drive Lever |
| 32 | 1614632001 | Compression Spring |
| 32 | 1614632001 | Compression Spring |
| 33 | 1614634008 | Compression Spring |
| 33 | 1614634008 | Compression Spring |
| 34 | 1613100021 | Bearing Pin |
| 34 | 1613100021 | Bearing Pin |
| 36 | 1610190021 | Supporting Disc |
| 36 | 1610190021 | Supporting Disc |
| 39 | 1610508021 | Protective Cap Sds-Plus |
| 39 | 1610508021 | Protective Cap Sds-Plus |
| 4 | 1617200047 | On-Off Switch |
| 4 | 1617200047 | On-Off Switch |
| 43 | 1610190020 | Supporting Disc |
| 43 | 1610190020 | Supporting Disc |
| 44 | 1612026075 | Clamp Handle Black |
| 44 | 1612026075 | Clamp Handle Black |
| 5 | 1614460076 | Power supply cord CN 2,65M 2 X 1,00MM H07 Rn-F |
| 53 | 1610910077 | Needle bearing |
| 53 | 1610910077 | Needle bearing |
| 55 | 1610920012 | Roller Thrust Bearing |
| 55 | 1610920012 | Roller Thrust Bearing |
| 56 | 1610102030 | Support Disc Thick 1,0 MM |
| 56 | 1610102030 | Support Disc Thick 1,0 MM |
| 57 | 1610920009 | Roller Thrust Bearing Black |
| 57 | 1610920009 | Roller Thrust Bearing Black |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 6 | 2600703019 | Grommet Ø8,7-Ø9,6X76 MM |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 6 | 2600703019 | Grommet Ø8,7-Ø9,6X76 MM |
| 60 | 1610280006 | Seal Ring |
| 60 | 1610280006 | Seal Ring |
| 62 | 1610210125 | O-Ring 18,0X2,5 MM |
| 62 | 1610210125 | O-Ring 18,0X2,5 MM |
| 63 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 63 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 65 | 1614601018 | Retaining ring |
| 65 | 1614601018 | Retaining ring |
| 67 | 1614601077 | Spring retaining ring |
| 67 | 1614601077 | Spring retaining ring |
| 7 | 1611035005 | Cable Clip |
| 7 | 1611035005 | Cable Clip |
| 700 | 1617000132 | Drill Chuck Shank Sds-Plus |
| 700 | 1617000132 | Drill Chuck Shank Sds-Plus |
| 700/20 | 2603421226 | Countersunk-Head Screw Lefthand Threads M6X27 |
| 700/20 | 2603421226 | Countersunk-Head Screw Lefthand Threads M6X27 |
| 701 | 1608571088 | Chuck |
| 701 | 1608571088 | Chuck |
| 701/7 | 2607950007 | Chuck Wrench SG2 |
| 701/7 | 2607950007 | Chuck Wrench SG2 |
| 702 | 1617000133 | Parts Set |
| 702 | 1617000133 | Parts Set |
| 702/10/2 | 2604601004 | Retaining ring |
| 702/10/2 | 2604601004 | Retaining ring |
| 702/20 | 1608521004 | Screwdriver Blade NR.2,1/4" |
| 702/20 | 1608521004 | Screwdriver Blade NR.2,1/4" |
| 702/30 | 2607000248 | Screwdriver Bit 3 Piece |
| 702/30 | 2607000248 | Screwdriver Bit 3 Piece |
| 702/40 | 1608511020 | Screwdriver Blade GR.1,0X6, 1/4" |
| 702/40 | 1608511020 | Screwdriver Blade GR.1,0X6, 1/4" |
| 703 | 1615439003 | Dust Tray |
| 703 | 1615439003 | Dust Tray |
| 703/30 | 1610312001 | Rubber Bushing Ø5-7 MM |
| 703/30 | 1610312001 | Rubber Bushing Ø5-7 MM |
| 703/651 | 1610312002 | Rubber Bushing Ø8-10 MM |
| 703/651 | 1610312002 | Rubber Bushing Ø8-10 MM |
| 72 | 1610100007 | Shim washer Thick 1,0 MM |
| 72 | 1610100007 | Shim washer Thick 1,0 MM |
| 74 | 1611015040 | Sealing Frame |
| 74 | 1611015040 | Sealing Frame |
| 75 | 1611015041 | Sealing Frame |
| 75 | 1611015041 | Sealing Frame |
| 750 | 2605438290 | Carrying Case |
| 750 | 2605438290 | Carrying Case |
| 752 | 1613001005 | Depth-Gauge SW 6X210 MM |
| 752 | 1613001005 | Depth-Gauge SW 6X210 MM |
| 754 | 2607000122 | Drill Holder |
| 754 | 2607018117 | Drill Holder |
| 754 | 2607000122 | Drill Holder |
| 754 | 2607018117 | Drill Holder |
| 76 | 1611015042 | Sealing Frame |
| 76 | 1611015042 | Sealing Frame |
| 778 | 1612025034 | Auxiliary Handle Ø 43 MM |
| 778 | 1619PB4323 | Auxiliary Handle |
| 778 | 1612025034 | Auxiliary Handle Ø 43 MM |
| 778 | 1619PB4323 | Auxiliary Handle |
| 78/20 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 78/20 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 78/30 | 1613480007 | Wing Screw M6X(15)55 |
| 78/30 | 1613480007 | Wing Screw M6X(15)55 |
| 78/50 | 2608040014 | Clamping Plate M6 |
| 78/50 | 2608040014 | Clamping Plate M6 |
| 78/60 | 1613480008 | Wing Screw M6X20 MM |
| 78/60 | 1613480008 | Wing Screw M6X20 MM |
| 801 | 1617000362 | Housing Section Green |
| 801 | 1617000362 | Housing Section Green |
| 803 | 1614010144 | Armature 220-230V |
| 803 | 1614010144 | Armature 220-230V |
| 805 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 806 | 1900452012 | End Splice DIN 46 228-A1-6 |
| 806 | 1900452012 | End Splice DIN 46 228-A1-6 |
| 808 | 160111A3H5 | Nameplate |
| 808 | 160111A3H5 | Nameplate |
| 810/040 | 1617014136 | Carbon-Brush Set |
| 810/040 | 1617014136 | Carbon-Brush Set |
| 810/060 | 2601322013 | Ratchet Cap |
| 810/060 | 2601322017 | Ratchet Cap |
| 810/060 | 2601322013 | Ratchet Cap |
| 810/060 | 2601322017 | Ratchet Cap |
| 821 | 1617000320 | Hammer Pipe Sds-Plus |
| 821 | 1617000320 | Hammer Pipe Sds-Plus |
| 821/01 | 1617000349 | Hammer Pipe Sds-Plus |
| 821/01 | 1617000349 | Hammer Pipe Sds-Plus |
| 824 | 1617000972 | Jack Shaft |
| 824 | 1617000972 | Jack Shaft |
| 827 | 1618710068 | Striker |
| 841 | 1617000303 | Protection Sleeve Sds-Plus |
| 841 | 1617000303 | Protection Sleeve Sds-Plus |
| 844 | 1617000322 | Clamp Handle Black |
| 844 | 1617000322 | Clamp Handle Black |
| 844/1 | 1617000974 | Clamp Handle Black |
| 844/1 | 1617000974 | Clamp Handle Black |
| 850 | 1617000975 | Bushing |
| 850 | 1617000975 | Bushing |
| 86 | 1614448019 | Connecting Cable White L=66 MM |
| 86 | 1614448019 | Connecting Cable White L=66 MM |
| 861 | 1610210124 | O-Ring 8,0X2,0 MM |
| 864 | 1613100019 | Straight Pin DIN6325-2,5X12-RIKO |
| 864 | 1613100019 | Straight Pin DIN6325-2,5X12-RIKO |
| 87 | 2604448060 | Cable White L=173 MM |
| 87 | 2604448060 | Cable White L=173 MM |
| 88 | 1614448020 | Connecting Cable Blue L=83 MM |
| 88 | 1614448020 | Connecting Cable Blue L=83 MM |
| 9 | 1611110687 | Manufacturer's nameplate |
| 9 | 1611110687 | Manufacturer's nameplate |
| 90 | 2604448170 | Earth Conductor |
| 90 | 2604448170 | Earth Conductor |
| 92 | 2912401021 | Tapping Screw DIN7981-ST3,9X22-C-Z |
| 92 | 2912401021 | Tapping Screw DIN7981-ST3,9X22-C-Z |
| 93 | 2912401019 | Tapping Screw DIN7981-ST3,9X16-C-Z |
| 93 | 2912401019 | Tapping Screw DIN7981-ST3,9X16-C-Z |
| 94 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 94 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 95 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 95 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
