Bosch PBG 150 bench grinder: exploded parts diagram, 1 sheet, 29 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PBG 150: 29 positions on 1 sheet

Bosch PBG 150 parts list (1 sheet)

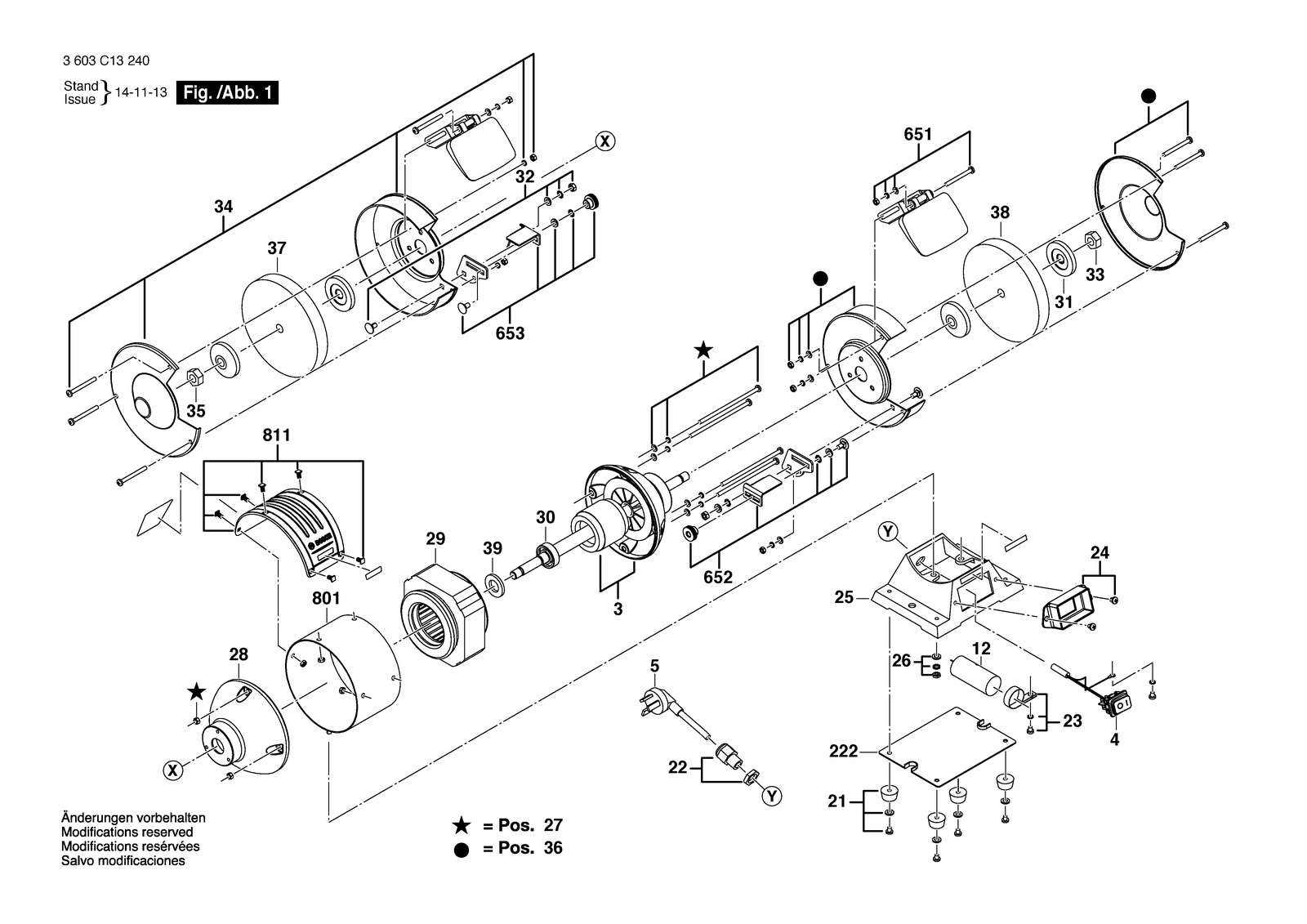

Bosch PBG 150 parts diagram, sheet 1
No.Part numberPart name
12F000608111Suppression Capacitor
21F000616130Grommet
22F000603068Grommet
222F000603067Cover Plate
23F000603066Holding Bracket
241619PA6448Front Panel
25F000603065Base Plate
26F000616129Hex Nut
271619PA6466Tapping Screw
281619PA6449Sealing cap
291619PA6450Stator
31619PA6452Rotor
30F000615060Groove ball bearing
311619PA1182Flange
321619PA6453Support
332610959246Hex Nut
341619PA6454Protective Cover
352610959335Hex Nut
361619PA6455Protective Cover
371619PA6457Grinding Wheel
381619PA6458Grinding Wheel
391619PA6451Spring Washer
41619PA1962Switch
51619PA6815Power supply cord
6511619PA6467Protective Shield
6521619PA6459Tool Rest
6531619PA6460Tool Rest
8011619PA6446Motor Housing
8111619PA6447Housing Cover
