Bosch PBD 40

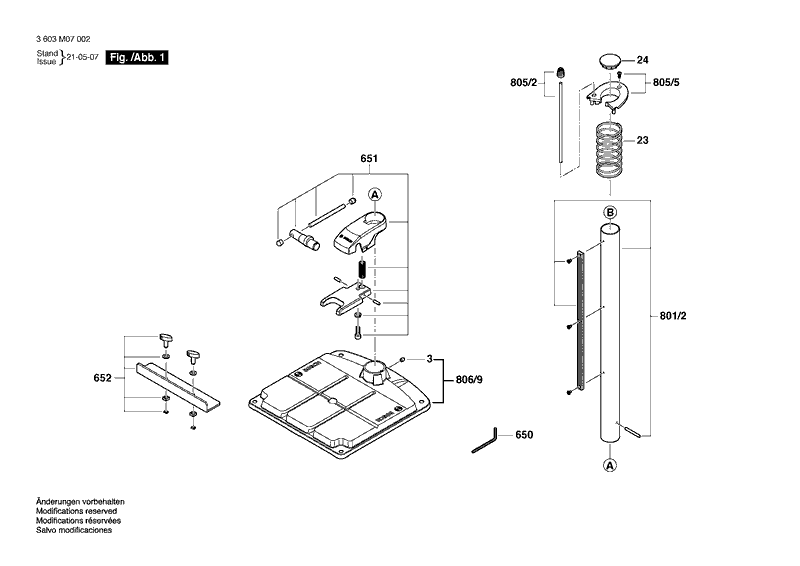

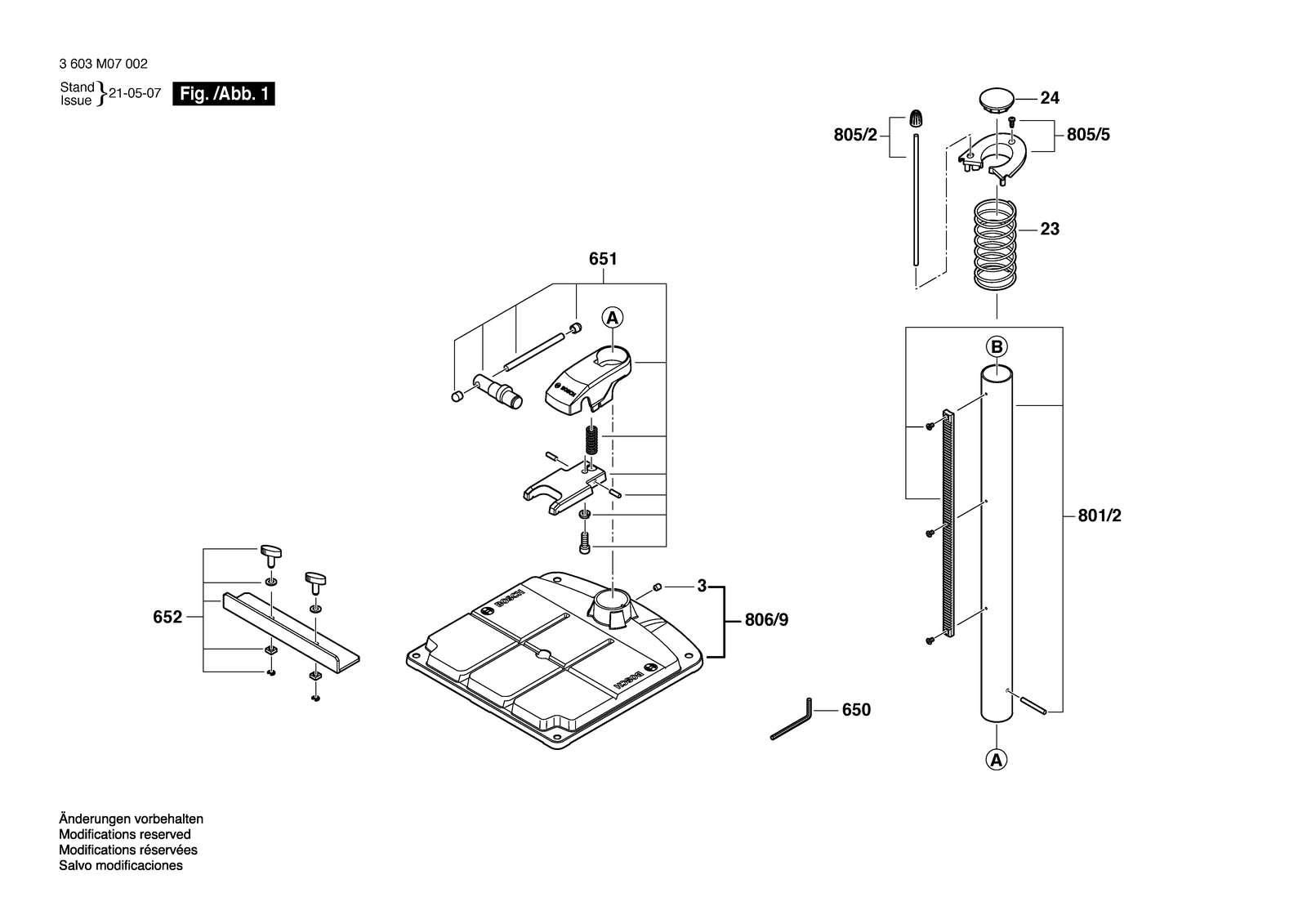

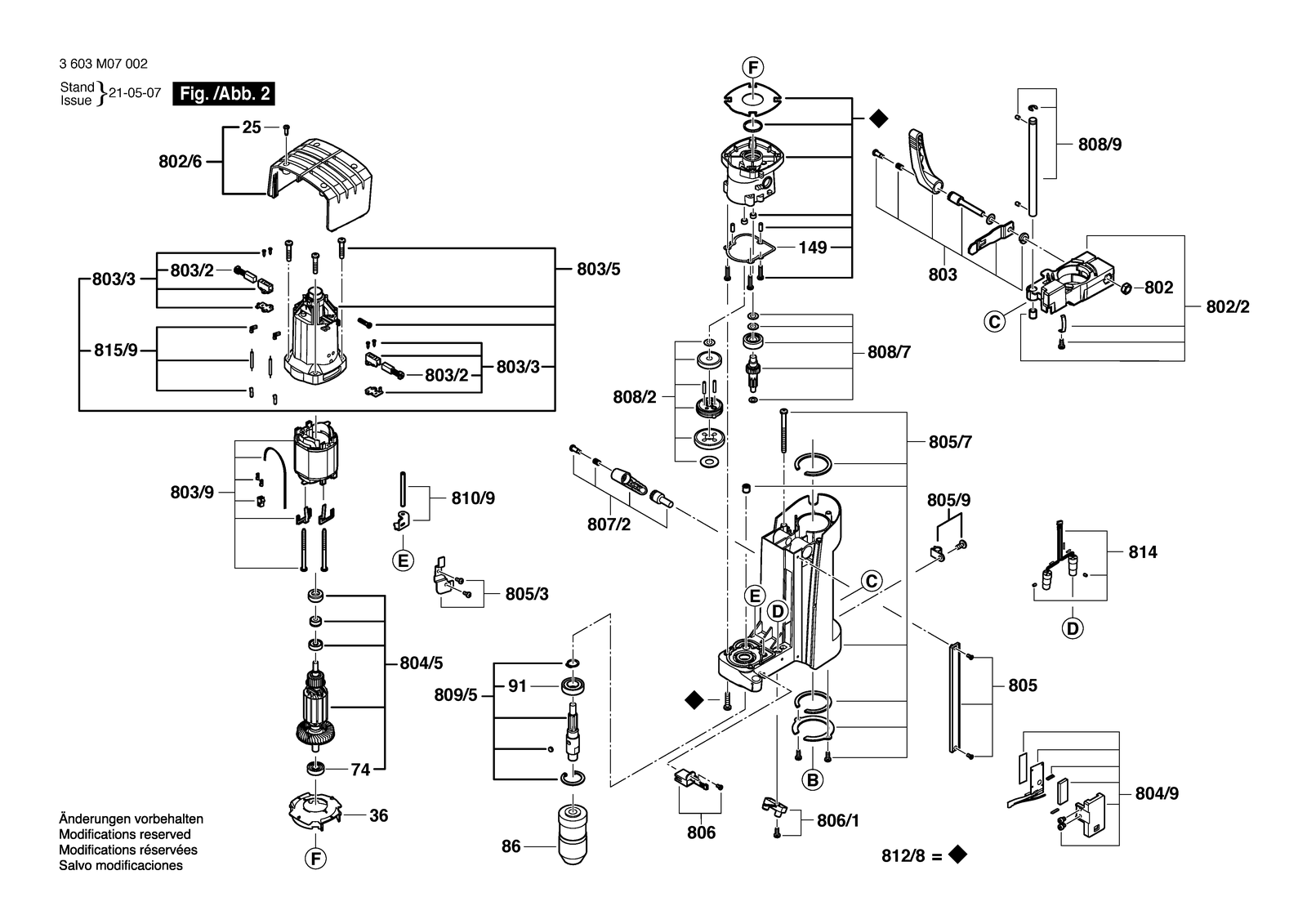

Bosch PBD 40 bench drill: exploded parts diagram, 3 sheets, 69 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PBD 40: 69 positions on 3 sheets
Bosch PBD 40 parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 10 | 1600A000SG | Tapping Screw |
| 131 | 160111A8UE | Nameplate |
| 131 | 160111A8UF | Nameplate |
| 131 | 160111A8UH | Nameplate |
| 149 | 1600A000SY | Sealing |
| 18 | 1600A000SK | Parallel Key |
| 23 | 1600A000SL | Spring |
| 24 | 1600A000SM | Cover |
| 25 | 1600A000SN | Tapping Screw |
| 3 | 1600A000SF | Hex Socket Head Cap Screw |
| 36 | 1600A000SP | Baffle |
| 43 | 1600A000SR | Toothed Gear |
| 650 | 1600A000VD | Hexagon Socket Screw Key |
| 651 | 1600A000TT | Quick-Clamping Device |
| 652 | 1600A000UA | End stop |
| 70 | 1600A000SS | Knob |
| 74 | 1600A000ST | Ball Bearing |
| 75 | 1600A000SU | Cord guard |
| 76 | 1600A000SV | Power supply cord |
| 76 | 1600A000SW | Power supply cord |
| 76 | 1600A000YR | Power supply cord |
| 800/1 | 1600A000T2 | Handwheel |
| 800/6 | 1600A000T3 | Lever |
| 801/1 | 1600A000T4 | Housing Section |
| 801/2 | 1619PB2945 | Column |
| 801/7 | 1600A0010P | Wheel Shaft |
| 801/9 | 1600A000T7 | Dial |
| 802 | 1619PB2946 | Brake |
| 802/2 | 1619PB2947 | Clamping Piece |
| 802/6 | 1600A000TA | Housing Cover |
| 803 | 1619PB2948 | Clamping Lever |
| 803/2 | 1600A000TC | Carbon Brush |
| 803/3 | 1600A000TD | Brush Holder |
| 803/5 | 1600A000TE | Motor Housing |
| 803/9 | 1600A026KC | Pole Shoe |
| 804/5 | 1600A000TG | Armature 230V |
| 804/9 | 1600A000TH | Printed Circuit Board |
| 805 | 1600A000TJ | Rule |
| 805/2 | 1600A000TK | Depth-Gauge |
| 805/3 | 1600A000TL | Clamp |
| 805/5 | 1600A000TM | Cover |
| 805/7 | 1600A000TN | Bracket |
| 805/9 | 1600A000TP | Clamping Piece |
| 806 | 1600A000TR | Hall Sensor |
| 806/1 | 1600A000TS | Light-Emitting-Diode |
| 806/9 | 1600A000TU | Base Plate |
| 807/2 | 1600A000TV | Clamping Lever |
| 808/2 | 1600A000TW | Drive Clutch |
| 808/7 | 1600A000TX | Gear Shaft |
| 808/9 | 1600A000TY | Guide Shaft |
| 809/5 | 1600A000TZ | Spindle assembly |
| 809/8 | 1600A000U0 | Housing Section |
| 809/9 | 1600A000U1 | Cable Cleat |
| 810 | 1600A000U2 | Strain-Relief Clamp |
| 810/2 | 1600A000U3 | Induction Coil |
| 810/8 | 1600A000U5 | Switch |
| 810/9 | 1600A000UF | Linkage |
| 811/1 | 1600A025R5 | Lcd-Display |
| 811/2 | 1600A023YZ | Printed Circuit Board |
| 811/3 | 1600A000T6 | Front panel |
| 811/4 | 1600A000U8 | Switch Button |
| 811/5 | 1600A000U9 | Control Knob |
| 812/8 | 1600A000UB | Gear Housing |
| 814 | 1600A000UC | Laser |
| 815/5 | 1600A026KD | Cable Set |
| 815/9 | 1600A000UE | Cable Set |
| 86 | 1600A000SZ | Chuck |
| 86 | 1600A033X7 | Chuck |
| 91 | 1600A000SX | Ball Bearing |
