Bosch PBD 40

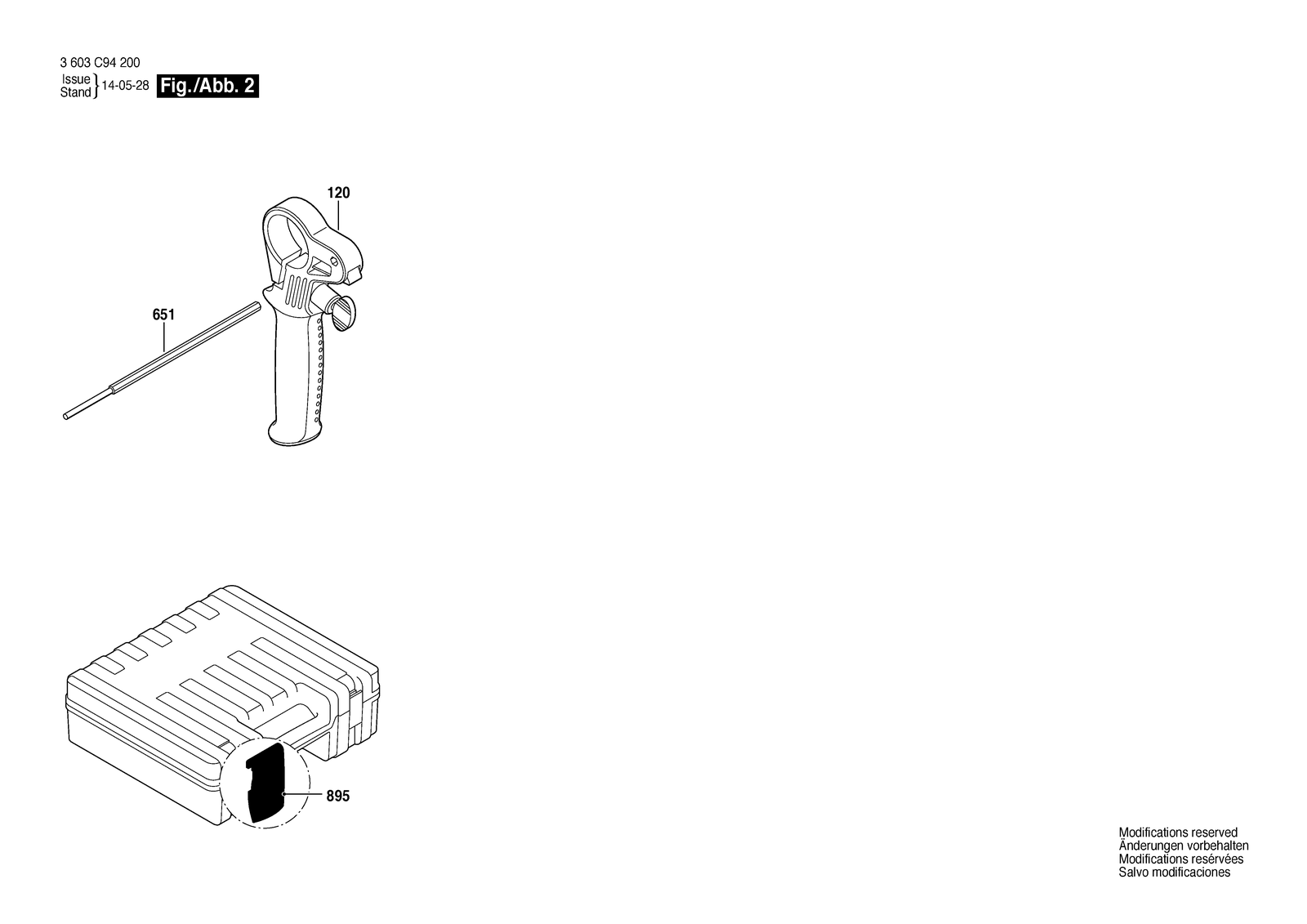

Bosch PBD 40 rotary hammer: exploded parts diagram, 2 sheets, 86 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PBD 40: 86 positions on 2 sheets
Bosch PBD 40 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 10 | 1611110Z12 | Manufacturer's nameplate PBH 3000-2 Fre |
| 108 | 1613435034 | Lens Head Screw 3X10 St |
| 109 | 1615820098 | Switching Element |
| 11 | 1611110Z13 | Reference Plate |
| 110 | 1616312008 | Cylindrical Gear |
| 113/113 | 1601021006 | Shift Plate |
| 113/118 | 1614651020 | Switch Spring |
| 115 | 1615820099 | Switching Element |
| 119/114 | 1601021007 | Shift Plate |
| 119/116 | 1614643021 | Compression Spring |
| 119/117 | 1601021008 | Shift Plate |
| 119/119 | 1613023002 | Guide Rod |
| 119/124 | 1614601063 | Retaining ring |
| 12 | 1617328032 | Suppression Filter |
| 120 | 2602025125 | Auxiliary Handle Black |
| 121 | 1610100613 | Shim |
| 15 | 1615808099 | Bearing Bracket |
| 17 | 2603100056 | Damping rubber |
| 18 | 1613231025 | Change-Over Switch |
| 2 | 1614220193 | Field 230V |
| 21/37 | 1903230007 | Ball DIN 5401-4 Mm-Iii-St |
| 21/39 | 1610102078 | Friction Washer |
| 21/42 | 1610290099 | Thrust Ring |
| 21/46 | 1610390066 | Guide Bushing |
| 21/50 | 1614643019 | Compression Spring |
| 21/58 | 1610210178 | O-Ring |
| 21/59 | 1600A009VC | Shaft Seal |
| 21/60 | 1610210176 | O-Ring 9,0X3,5 MM |
| 21/72 | 1604601027 | Retaining ring |
| 21/82 | 1614601057 | Retaining ring |
| 21/883 | 1604601028 | Retaining ring A22 DIN 7993 |
| 250 | 1617000663 | Quick-Change Collet Chuck |
| 250/34 | 1610508047 | Protective Cap |
| 26/26 | 1618700089 | Hammer Piston |
| 26/27 | 1610311018 | Striker |
| 26/29 | 1613105012 | Piston Pin |
| 26/56 | 1610210187 | O-Ring |
| 26/71 | 1610101011 | Shim washer Thick 1,2 MM |
| 28 | 1613124091 | Striker Pin |
| 3 | 1614010251 | Armature 230V |
| 3/13 | 1610905032 | Groove ball bearing 7X19X6 |
| 3/5 | 1616610094 | Fan |
| 30 | 1617000601 | Drive bearing |
| 32 | 1612026134 | Clamp Handle |
| 32/2 | 1612026035 | Switch Button Red |
| 32/3 | 1610210200 | O-Ring 12,5X2,5 MM |
| 32/4 | 1614611006 | Compression Spring |
| 32/5 | 1614690006 | Driver Pin |
| 34 | 1612026132 | Clamp Handle |
| 34/2 | 1612026138 | Switch Button |
| 34/3 | 1610210201 | O-Ring 17,0X2,0 MM |
| 34/4 | 1614643020 | Compression Spring |
| 34/5 | 1614690007 | Driver Pin |
| 35 | 1616328050 | Gear Sleeve |
| 36 | 1611016003 | Holding Plate |
| 4 | 1617200111 | Switch |
| 40 | 1617000603 | Gear Housing |
| 5 | 1604460450 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 1614460095 | Power supply cord BR 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 3604460084 | Power supply cord GB 230V 4,15M 2 X 1,0MM H07 Rn-F |
| 55 | 1610290108 | O-Ring |
| 57 | 1610210068 | O-Ring 24,0X2,5 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 61 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 63 | 1610202026 | Plain bearing |
| 651 | 2609005615 | Depth-Gauge |
| 656 | 1608572032 | Keyless Chuck |
| 68 | 1610283019 | Shaft Seal |
| 76 | 160343000A | Thread-forming tap. Screw |
| 77 | 1613435034 | Lens Head Screw 3X10 St |
| 78 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 79 | 1614601026 | Retaining ring |
| 801 | 1617000V97 | Motor Housing |
| 805 | 1607000392 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 808 | 160111A3H6 | Nameplate |
| 814 | 1610905048 | Groove ball bearing 9X24X7 |
| 816 | 1617014146 | Carbon-Brush Set |
| 820 | 1617000V98 | Intermediate Flange |
| 821 | 1617000607 | Hammer Pipe |
| 822 | 1617000A41 | Clutch Set |
| 833 | 1610590014 | Holding Jacket |
| 870 | 1619P01776 | Connecting Cable |
| 890 | 1617000609 | Hammer Pipe |
| 891 | 1617000602 | Guide Rod |
| 895 | 1615438457 | Locking Hook |
| 9 | 1611110Z11 | Manufacturer's nameplate PBH 3000-2 Fre |
