Makita PB76004

Makita PB76004: exploded parts diagram, 12 sheets, 176 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita PB76004: 176 positions on 12 sheets

Sheet 1: Makita PB76004 parts diagram

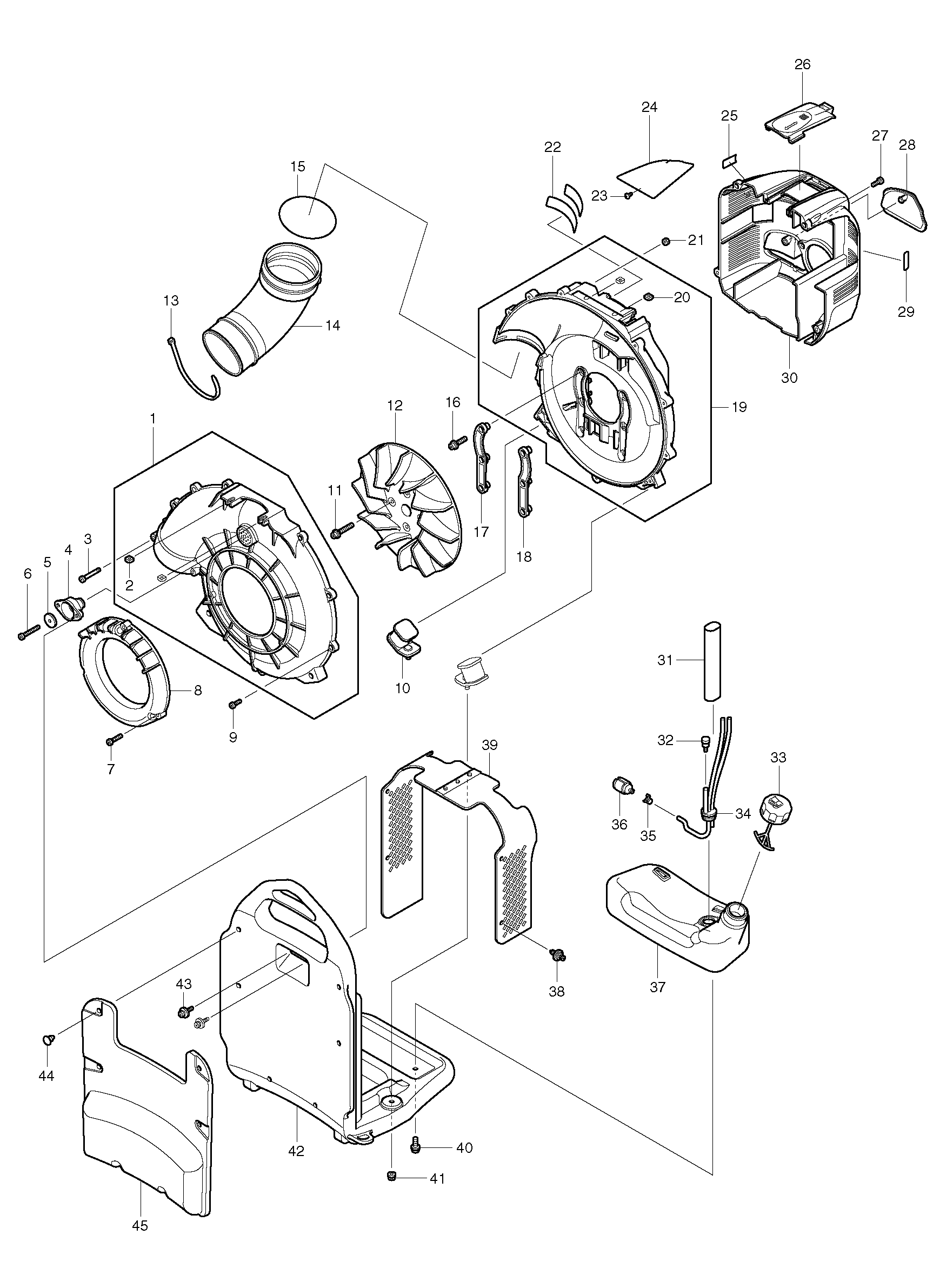

Makita PB76004 parts diagram, sheet 1
No.Part numberPart name
26671005010Makita 6671005010 SQUARE NUTPB-7600.4
30140059220Makita 0140059220 SCREW ASSY M5X65 (W.PB-7600.4
46671002000Makita 6671002000 DAMPER 1 COMPLPB-7600.4
50200059910Makita 0200059910 WASHER M5PB-7600.4
60043105400Makita 0043105400 PAN HEAD SCREW M5X40PB-7600.4
70150059730Makita 0150059730 TAPPING SCREW 5X25PB-7600.4
86671001000Makita 6671001000 INLET COVER COMPLPB-7600.4
90150059760Makita 0150059760 TAPPING SCREW 5X16BHX2500/PB-250.4
106671003000Makita 6671003000 DAMPER 2 COMPLPB-7600.4
110119069690Makita 0119069690 SOCKET HEAD BOLT M6XPB-7600.4
126671004000Makita 6671004000 IMPELLER COMPLPB-7600.4
130563379990Makita 0563379990 WIRE BANDPB-7600.4
146671500400Makita 6671500400 ELBOWPB-7600.4
150240989990Makita 0240989990 O RINGPB-7600.4
160119069680Makita 0119069680 SOCKET HEAD BOLT M6XPB-7600.4
176671500200Makita 6671500200 BASE 1PB-7600.4
186671500300Makita 6671500300 BASE 2PB-7600.4
206671005010Makita 6671005010 SQUARE NUTPB-7600.4
210170059950Makita 0170059950 NUT M5PB-7600.4
220736289980Makita 0736289980 CAUTION LABEL BHX2500 JA PB250.4
230150049820Makita 0150049820 TAPPING SCREW 4X6PB-7600.4
246676500700Makita 6676500700 MUFFLER GUARDPB-7600.4
250736309870Makita 0736309870 LABELPB-7600.4
266656500100Makita 6656500100 PLUG COVER BHX2500PB-250.4
270150059760Makita 0150059760 TAPPING SCREW 5X16BHX2500/PB-250.4
286676500100Makita 6676500100 OIL GUARDPB-7600.4
296419504300Makita 6419504300 CHOKE LABEL
306676500902Makita 6676500902 ENGINE COVERPB-7600.4
310851159861Makita 0851159861 TUBEPB-7600.4
325316503300Makita 5316503300 BREATHERPB-7600.4
335926017000Makita 5926017000 FUEL TANK CAP ASSY
340851339960Makita 0851339960 TUBEPB-7600.4
350561059990Makita 0561059990 HOSE CLAMPBHX2500/PB-250.4
365806502900Makita 5806502900 FILTERPB-7600.4
376673002001Makita 6673002001 FUEL TANK COMPLPB-7600.4
386672500300Makita 6672500300 ROCK RIVETPB-7600.4
396672002000Makita 6672002000 GUARD COMPLPB-7600.4
400043706120Makita 0043706120 SCREW ASSY M6X12 (W.PB-7600.4
410023706000Makita 0023706000 FLANGE NUT M6
426672001000Makita 6672001000 FRAME COMPLPB-7600.4
430140059210Makita 0140059210 SCREW ASSY M5X16 (W.PB-7600.4
446672500200Makita 6672500200 ROCK RIVETPB-7600.4
456672500000Makita 6672500000 CUSHIONPB-7600.4

Sheet 2: Makita PB76004 parts diagram

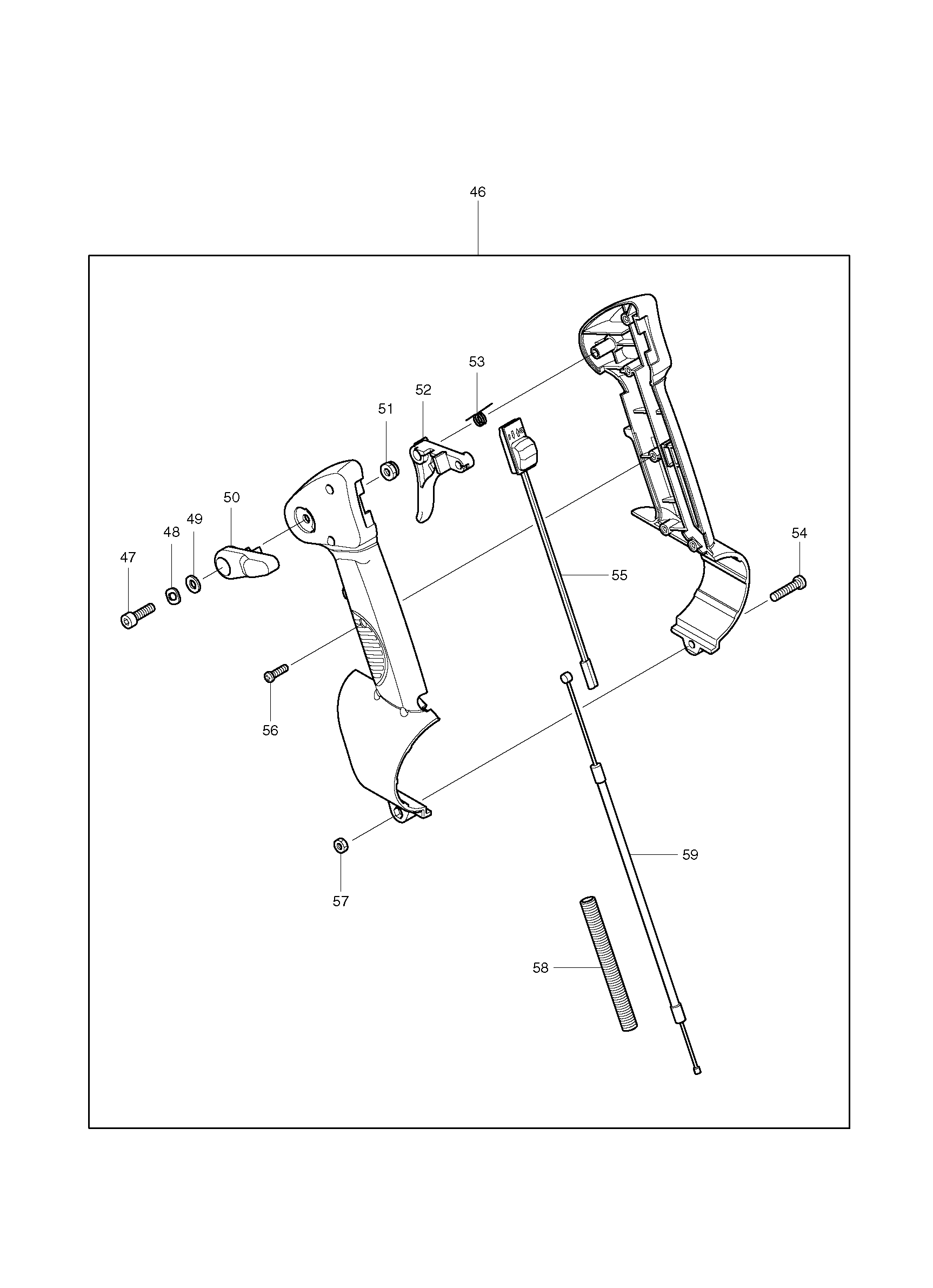

Makita PB76004 parts diagram, sheet 2
No.Part numberPart name
476675001010Makita 6675001010 SOCKET HEAD BOLT M6XPB-7600.4
480032206000Makita 0032206000 WAVE WASHER
490031106000Makita 0031106000 WASHER
506625500701Makita 6625500701 THROTTLE LEVER 2
510170069960Makita 0170069960 NUT
526625500601Makita 6625500601 THROTTLE LEVER 1
536625500901Makita 6625500901 TORSION SPRING
546675001030Makita 6675001030 SCREW M5X25PB-7600.4
556675004000Makita 6675004000 SWITCH COMPLPB-7600.4
566675001020Makita 6675001020 TAPPING SCREW 4X16PB-7600.4
570170059950Makita 0170059950 NUT M5PB-7600.4
586675500001Makita 6675500001 CABLE TUBEPB-7600.4
590630139820Makita 0630139820 CONTROL CABLEPB-7600.4

Sheet 3: Makita PB76004 parts diagram

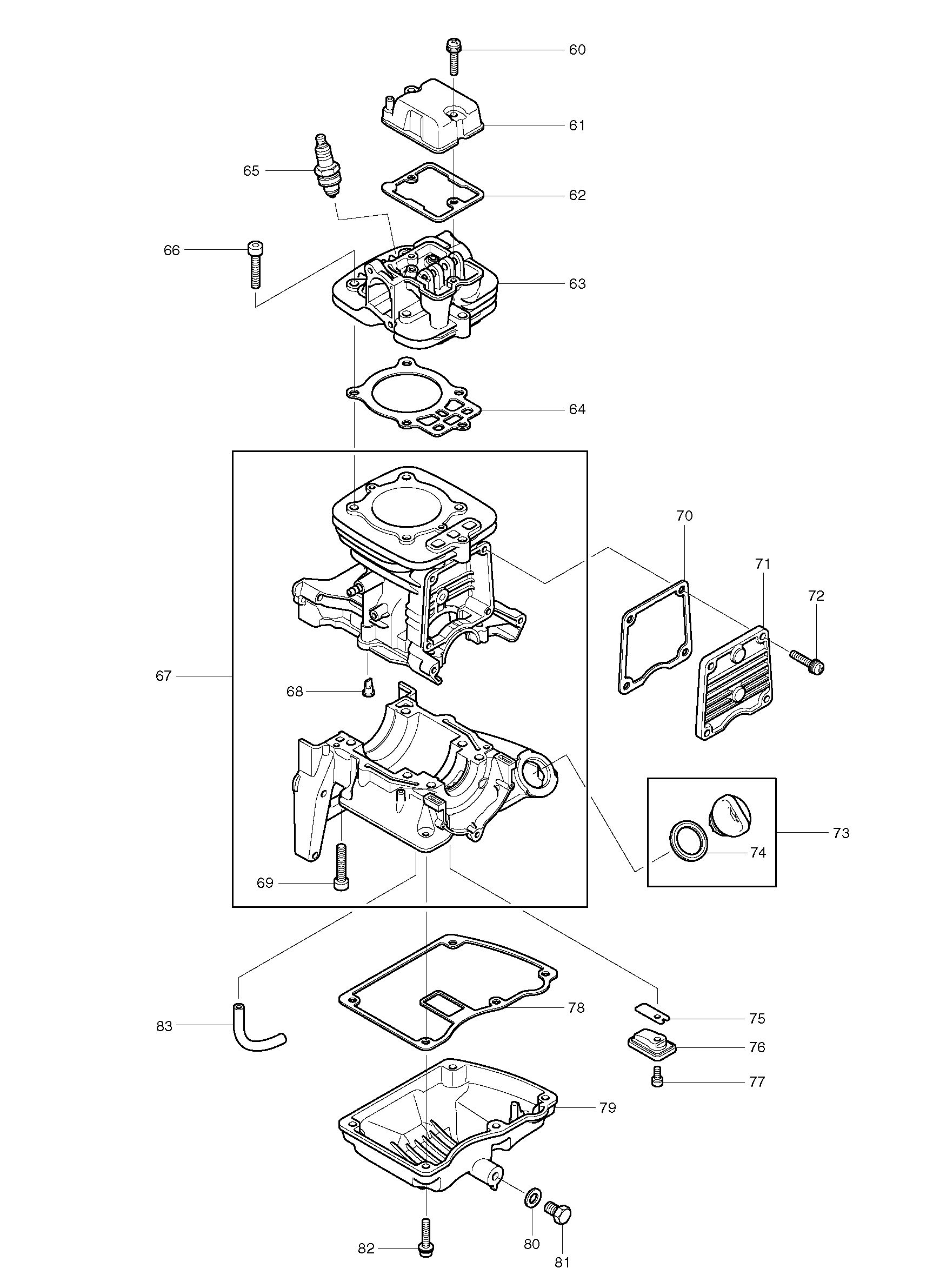

Makita PB76004 parts diagram, sheet 3
No.Part numberPart name
600043605300Makita 0043605300 SCREW ASS Y
615971500700Makita 5971500700 ROCKER COVER PB-7600.4
625971500900Makita 5971500900 ROCKER GASKET COVERPB-7600.4
635971003001Makita 5971003001 CYLINDER HEAD COMPLPB-7600.4
645971500502Makita 5971500502 CYLINDER GASKET HEADPB-7600.4
650650109950Makita 0650109950 SPARK PLUG CMR6ABHX2500/PB-250.4
660119069670Makita 0119069670 SOCKET HEAD BOLT M6XPB-7600.4
685921501800Makita 5921501800 CHECK VALVEBHX2500/PB-250.4
690119069930Makita 0119069930 HEX. SOCKET HEAD BOLT M6X30
705971500800Makita 5971500800 CAMGEAR GASKET COVERPB-7600.4
715971500600Makita 5971500600 CAMGEAR COVERPB-7600.4
720043605160Makita 0043605160 SCREW ASS'Y M5X16 (WBHX2500/PB-250.4
740213229980Makita 0213229980 GASKETPB-7600.4
755921501000Makita 5921501000 LEAD VALVEBHX2500/PB-250.4
765931501300Makita 5931501300 RETAINER PLATEPB-7600.4
770119049980Makita 0119049980 SOCKET HEAD BOLT M4XBHX2500/PB-250.4
785976500100Makita 5976500100 OIL CASE GASKETPB-7600.4
795976500000Makita 5976500000 OIL CASEPB-7600.4
800037008000Makita 0037008000 ALUMINUM GASKETPB-7600.4
810016608120Makita 0016608120 BOLT M8 �� 12PB-7600.4
820140059680Makita 0140059680 SCREW M5X25
830851109960Makita 0851109960 TUBEPB-7600.4

Sheet 4: Makita PB76004 parts diagram

Makita PB76004 parts diagram, sheet 4
No.Part numberPart name
845972003000Makita 5972003000 PISTON RING SETPB-7600.4
855972500001Makita 5972500001 PISTONPB-7600.4
860440179910Makita 0440179910 OIL SEAL (S)PB-7600.4
875802500701Makita 5802500701 PISTON PINPB-7600.4
880565119990Makita 0565119990 CLIP
890610129940Makita 0610129940 NEEDLE ROLLER BEARINPB-7600.4
900323049950Makita 0323049950 WOODRUFF KEY
915972500800Makita 5972500800 CLIPPB-7600.4
920440209890Makita 0440209890 OIL SEAL (L)PB-7600.4
935972002001Makita 5972002001 CRANKSHAFT COMPLPB-7600.4

Sheet 5: Makita PB76004 parts diagram

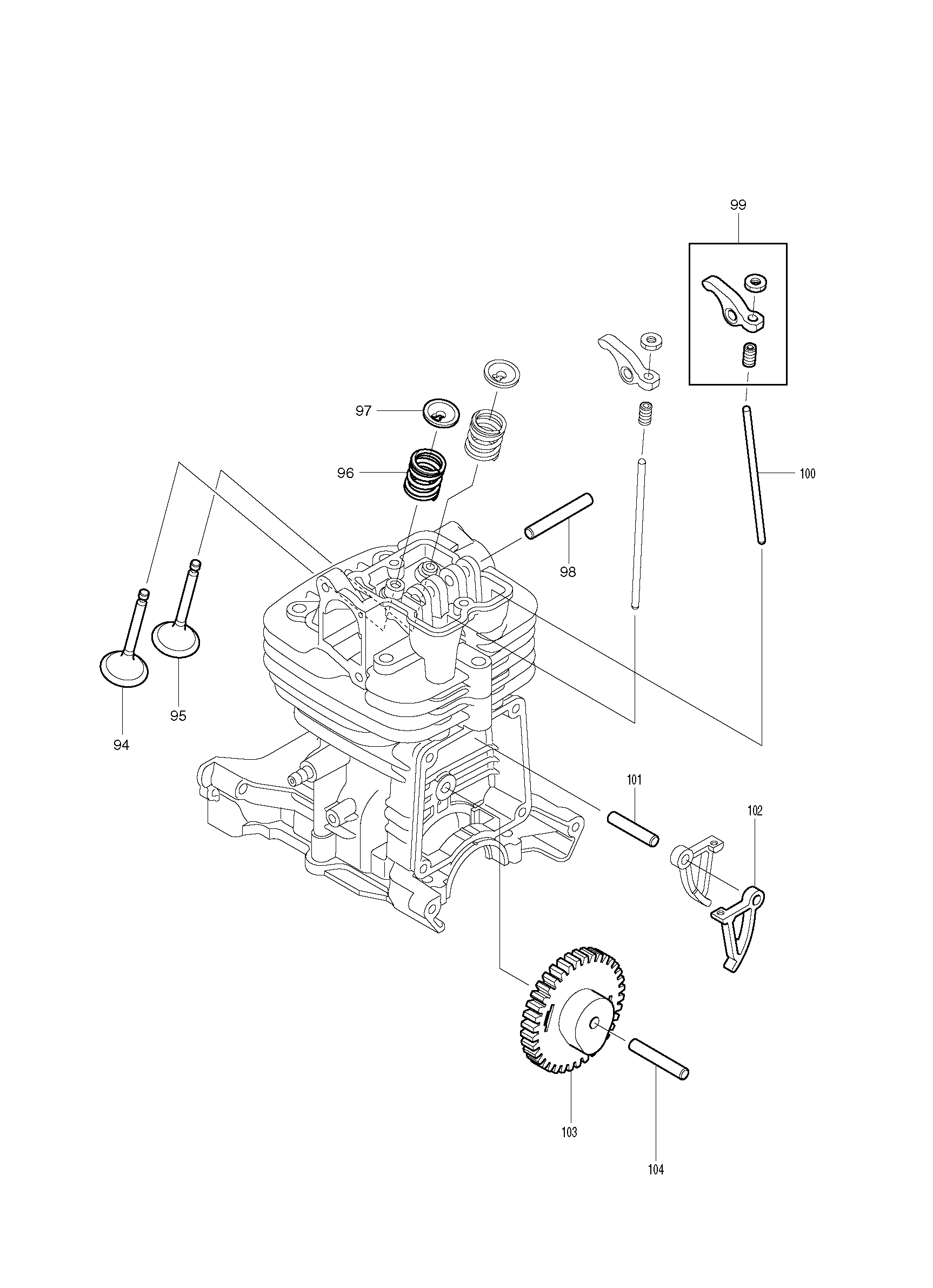

Makita PB76004 parts diagram, sheet 5
No.Part numberPart name
945973500100Makita 5973500100 INTAKE VALVEPB-7600.4
955973500200Makita 5973500200 EXHAUST VALVEPB-7600.4
965973500301Makita 5973500301 VALVE SPRINGPB-7600.4
975973500400Makita 5973500400 SPRING RETAINERPB-7600.4
985973500500Makita 5973500500 SHAFTPB-7600.4
995973004000Makita 5973004000 ROCKER ARM ASSYPB-7600.4
1005973500800Makita 5973500800 PUSH RODPB-7600.4
1015973500700Makita 5973500700 SHAFTPB-7600.4
1025973500601Makita 5973500601 CAM LIFTERPB-7600.4
1035973002001Makita 5973002001 CAMGEAR ASSYPB-7600.4
1045933500100Makita 5933500100 ROCKER SHAFTBHX2500/PB-250.4

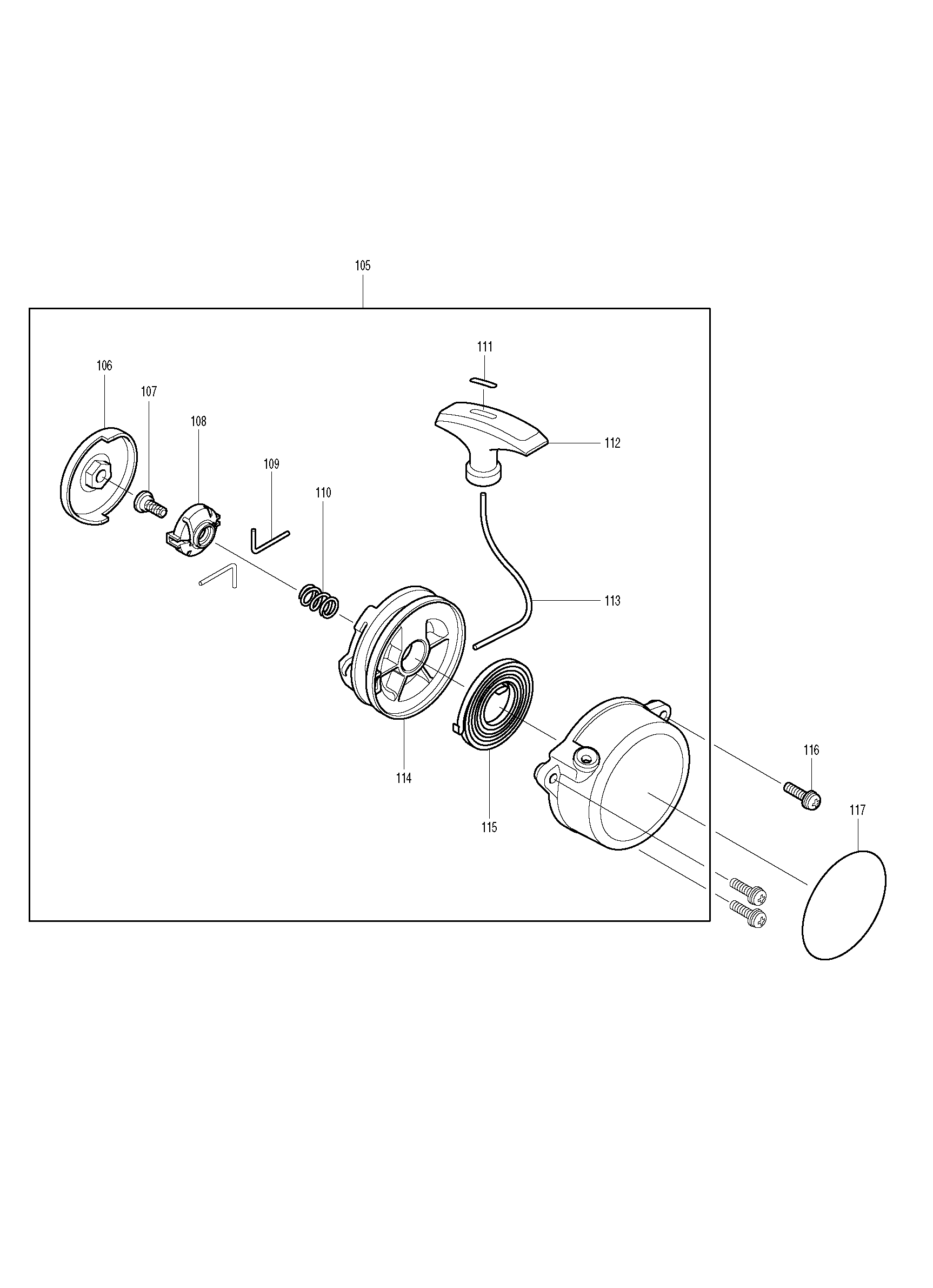

Sheet 6: Makita PB76004 parts diagram

Makita PB76004 parts diagram, sheet 6
No.Part numberPart name
1065975500000Makita 5975500000 PULLEYPB-7600.4
1075195002060Makita 5195002060 SET SCREWBHX2500/PB-250.4
1085975002040Makita 5975002040 COLLARPB-7600.4
1095975002050Makita 5975002050 SWING ARMPB-7600.4
1105975002030Makita 5975002030 FRICTION SPRINGPB-7600.4
1115315001030Makita 5315001030 STOPPER
1125315001020Makita 5315001020 STARTER KNOB
1135975002110Makita 5975002110 STARTER ROPEPB-7600.4
1145975002020Makita 5975002020 REELPB-7600.4
1155255040030Makita 5255040030 SPIRAL SPRINGPB-7600.4
1160140059360Makita 0140059360 SCREW & WASHER ASS'YMS26C
1176679501701

Sheet 7: Makita PB76004 parts diagram

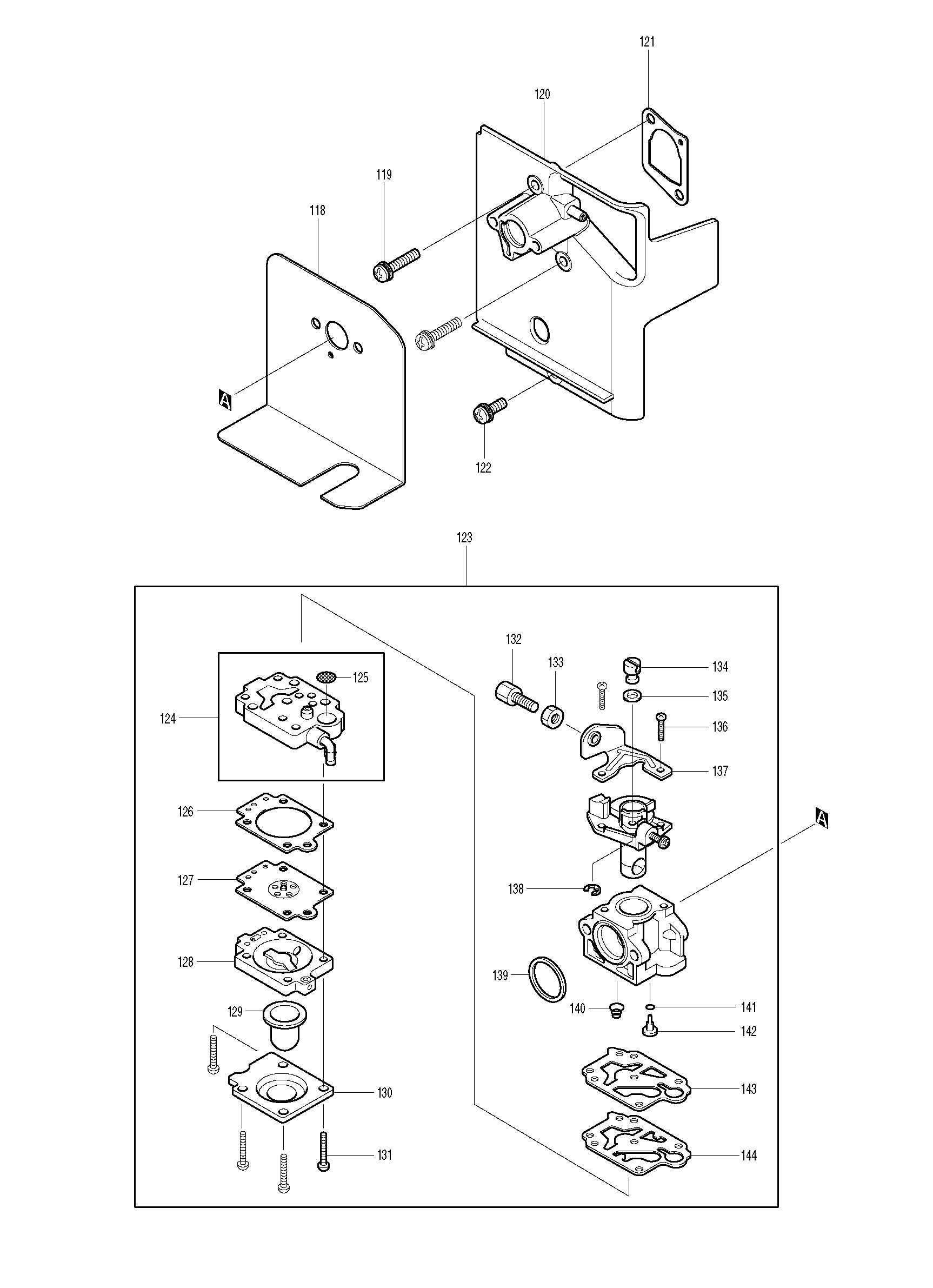

Makita PB76004 parts diagram, sheet 7
No.Part numberPart name
1185973501200Makita 5973501200 CARBURETOR GASKETPB-7600.4
1190140059680Makita 0140059680 SCREW M5X25
1205973009001Makita 5973009001 INSULATOR COMPLPB-7600.4
1215973501100Makita 5973501100 INSULATOR GASKEPB-7600.4
1220043605140Makita 0043605140 SCREW ASS'Y M5X14BHX2500/PB-250.4
1255016004010Makita 5016004010 INLET SCREENBHX2500/PB-250.4
1265236046040Makita 5236046040 METERING DIAPHRAGM GBHX2500/PB-250.4
1275926008010
1285236046140Makita 5236046140 AIR PURGE BODY ASS'YBHX2500/PB-250.4
1295246001150Makita 5246001150 PRIMER PUMPBHX2500/PB-250.4
1305236046050Makita 5236046050 PRIMER PUMP COVERBHX2500/PB-250.4
1315236046010Makita 5236046010 PUMP COVER SCREWBHX2500/PB-250.4
1325216008010Makita 5216008010 CABLE ADJUST SCREW
1335316005450Makita 5316005450 CABLE ADJUST NUT
1345236018040Makita 5236018040 SWIVELBHX2500/PB-250.4
1355426005030Makita 5426005030 WASHERBHX2500/PB-250.4
1365246001240Makita 5246001240 THROTTLE COLLAR SCREW
1375236052020Makita 5236052020 BRACKET CABLE
1385316005120Makita 5316005120 RINGBHX2500/PB-250.4
1395236018020Makita 5236018020 RING PACKING
1405926002020Makita 5926002020 PUMP SPRINGBHX2500/PB-250.4
1415246001010Makita 5246001010 O RINGBHX2500/PB-250.4
1425976001020Makita 5976001020 JET Ä60PB-7600.4
1435926002040Makita 5926002040 PUMP GASKETBHX2500/PB-250.4
1445246001040Makita 5246001040 PUMP DIAPHRAGMBHX2500/PB-250.4

Sheet 8: Makita PB76004 parts diagram

Makita PB76004 parts diagram, sheet 8
No.Part numberPart name
1456676501200Makita 6676501200 KNOB BOLTPB-7600.4
1466676002002Makita 6676002002 AIR COVER CLEANERPB-7600.4
1476676500201Makita 6676500201 AIR ELEMENT CLEANERPB-7600.4
1480043605160Makita 0043605160 SCREW ASS'Y M5X16 (WBHX2500/PB-250.4
1506676500600Makita 6676500600 SEPARATOR PLATEPB-7600.4
1515316500701Makita 5316500701 CHECK VALVEBHX2500/PB-250.4
1525923502400Makita 5923502400 CHECK VALVE (1)BHX2500/PB-250.4
1536676500500Makita 6676500500 CHECK PLATE VALVEPB-7600.4
1540851139920Makita 0851139920 TUBEPB-7600.4
1550561079990Makita 0561079990 HOSE CLAMPPB-7600.4
1560851029930Makita 0851029930 TUBEPB-7600.4
1575973502200Makita 5973502200 JOINT PIPEPB-7600.4
1580851199960Makita 0851199960 TUBEPB-7600.4
1605973501800Makita 5973501800 CHOKE LEVER PB-7600.4
1615973501700Makita 5973501700 CHOKE PLATEPB-7600.4
1625973006010Makita 5973006010 TAPPING SCREW 4X12PB-7600.4
1635973501900Makita 5973501900 INTAKE PLATEPB-7600.4
1640043605650Makita 0043605650 SCREW ASS Y M5X65
1650561679990Makita 0561679990 HOSE CLAMPPB-7600.4
1660561439990Makita 0561439990 HOSE CLAMPPB-7600.4
1676676500400Makita 6676500400 AIR DUCT CLEANERPB-7600.4

Sheet 9: Makita PB76004 parts diagram

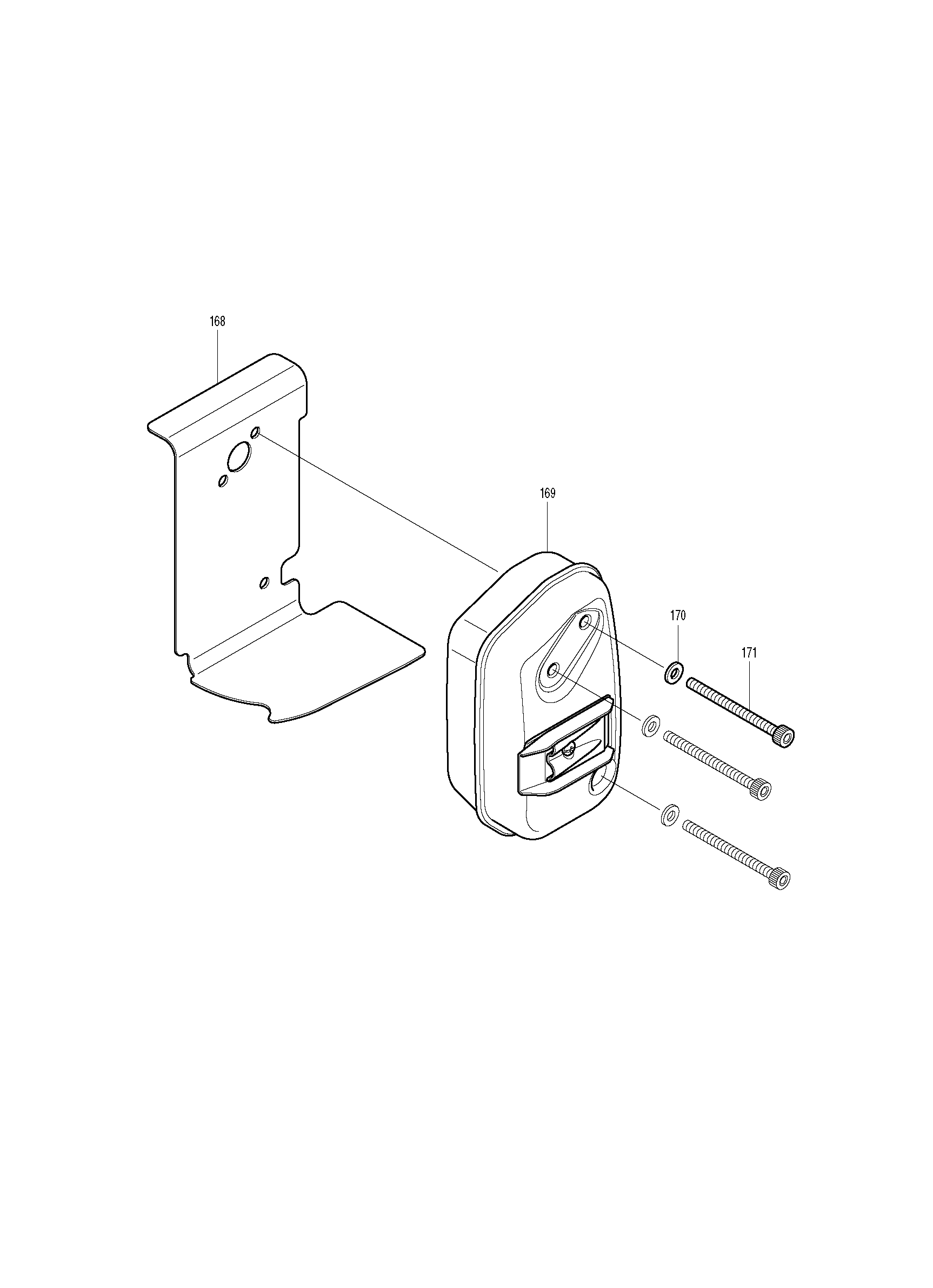

Makita PB76004 parts diagram, sheet 9
No.Part numberPart name
1685973501301Makita 5973501301 MUFFLER GASKETPB-7600.4
1695973001001Makita 5973001001 EXHAUST MUFFLERPB-7600.4
1700200069890Makita 0200069890 WASHERPB-7600.4
1710119069650Makita 0119069650 SOCKET HEAD BOLT M6XPB-7600.4

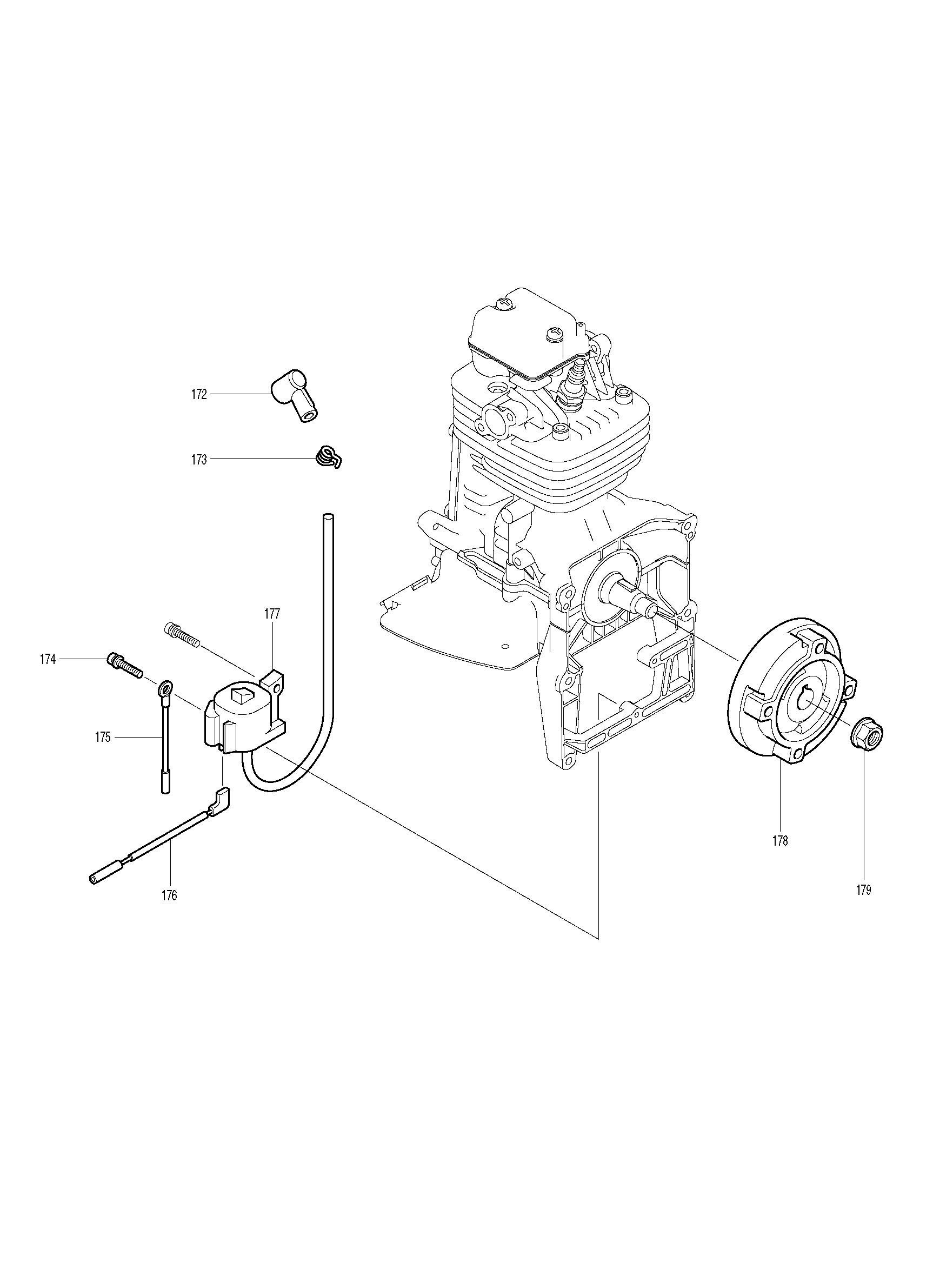

Sheet 10: Makita PB76004 parts diagram

Makita PB76004 parts diagram, sheet 10
No.Part numberPart name
1725927500100Makita 5927500100 PLUG CAPBHX2500/PB-250.4
1730654009931Makita 0654009931 PLUG CAP SPRINGBHX2500/PB-250.4
1740119049970Makita 0119049970 SOCKET HEAD BOLTMS26C
1756165500201Makita 6165500201 WIRE
1765927011000Makita 5927011000 WIRE 2BHX2500/PB-250.4
1775977001010Makita 5977001010 IGNITION COILPB-7600.4
1785977001020Makita 5977001020 FLYWHEEL COMPLPB-7600.4
1790023710000Makita 0023710000 FLANGE NUT M10PB-7600.4

Sheet 11: Makita PB76004 parts diagram

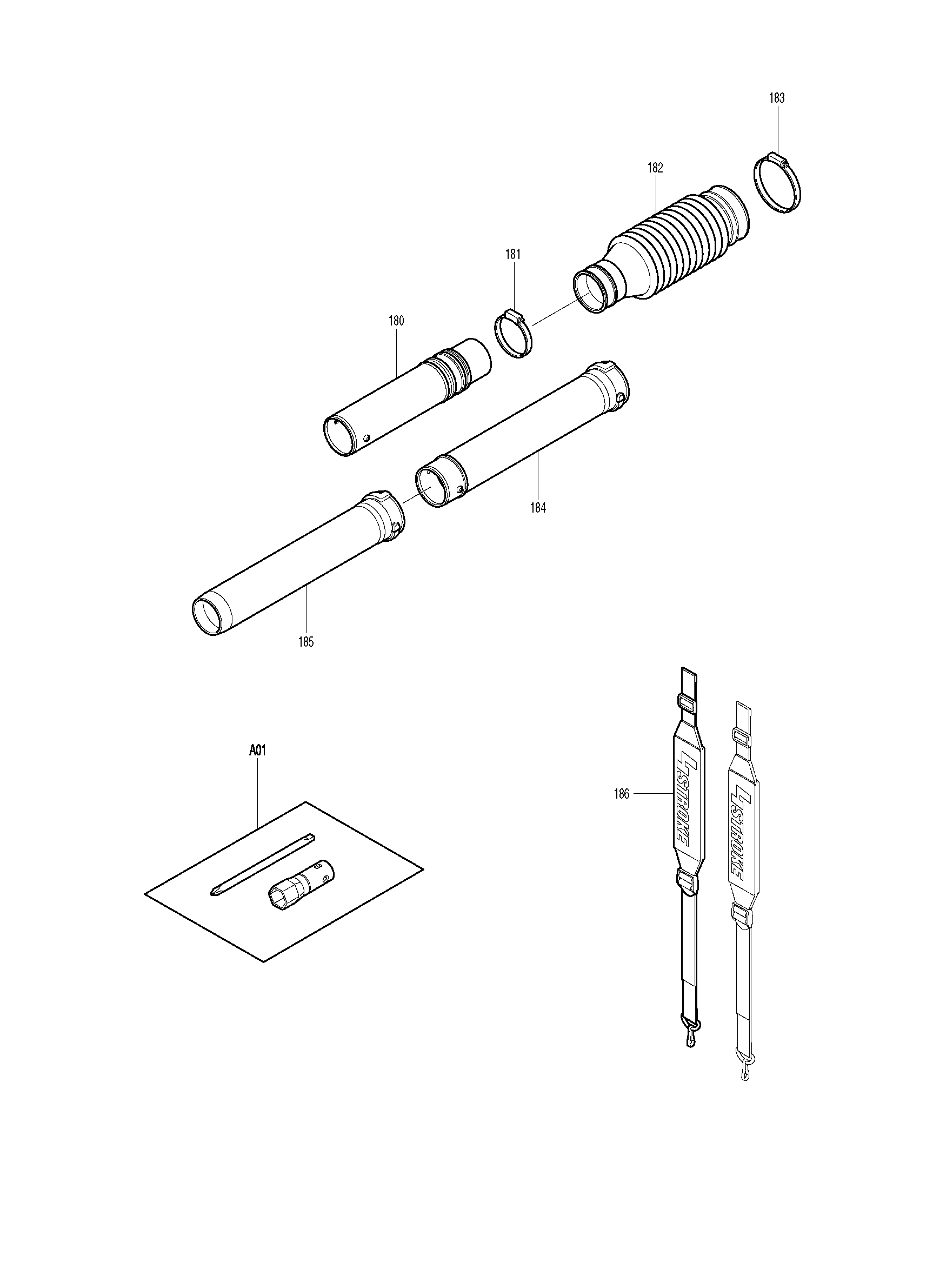

Makita PB76004 parts diagram, sheet 11
No.Part numberPart name
1806679002000Makita 6679002000 SWIVEL PIPE COMPLPB-7600.4
1810561769990Makita 0561769990 HOSE CLAMPPB-7600.4
1826679500000Makita 6679500000 FLEXIBLE PIPEPB-7600.4
1830561009990Makita 0561009990 HOSE CLAMPPB-7600.4
1846679501801Makita 6679501801 STRAIGHT PIPE PB-7600.4
1856679501900Makita 6679501900 END PIPEPB-7600.4
1866679001000Makita 6679001000 BAND COMPLPB-7600.4

Sheet 12: Makita PB76004 parts diagram

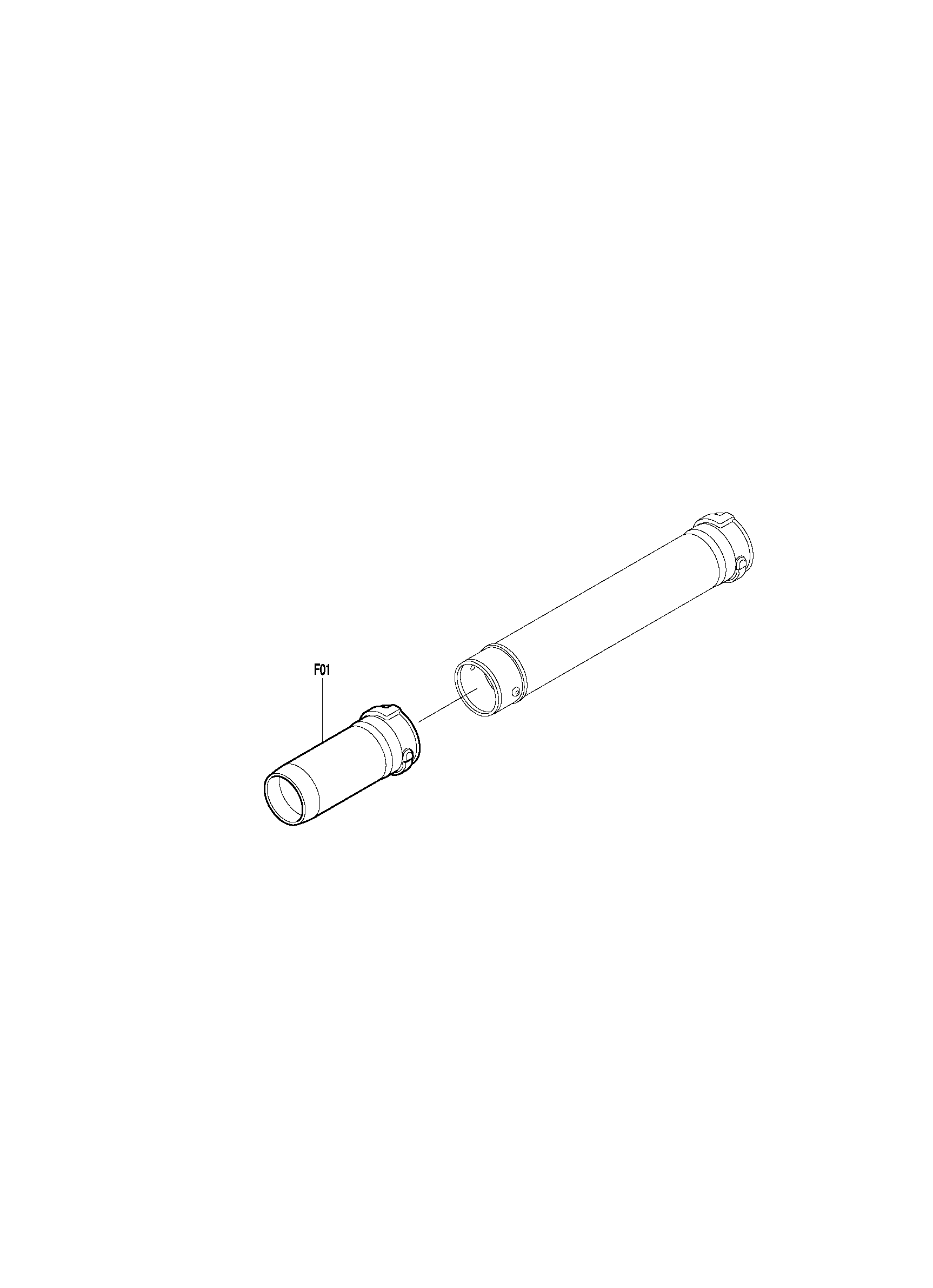

Makita PB76004 parts diagram, sheet 12
No.Part numberPart name
Selected parts0
