Makita PB2504

Makita PB2504: exploded parts diagram, 10 sheets, 148 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita PB2504: 148 positions on 10 sheets

Sheet 1: Makita PB2504 parts diagram

Makita PB2504 parts diagram, sheet 1
No.Part numberPart name
10736289980Makita 0736289980 CAUTION LABEL BHX2500 JA PB250.4
26659502400
36609513200Makita 6609513200 CAUTION LABEL BHX2500 JA PB250.4
46655500000Makita 6655500000 GRIP BHX2500 JA PB250.4
56655001000Makita 6655001000 SWITCH COMPL BHX2500PB-250.4
66651500500Makita 6651500500 FRICTION RUBBER BHXPB-250.4
76651014000Makita 6651014000 VOLUTE CASE 2 COMPLEPB-250.4 PICT 7
80630029730Makita 0630029730 CONTROL CABLEBHX2500PB-250.4
96655500300Makita 6655500300 THROTTLELEVE BHX2500PB-250.4
100043605300Makita 0043605300 SCREW ASS Y
116651003000Makita 6651003000 IMPELLER COMPLBHX250PB-250.4
120043606200Makita 0043606200 SCREW M6X20
146655500100Makita 6655500100 CRUISE LEVER BHX2500PB-250.4
156655500200Makita 6655500200 SPRING BHX2500PB-250.4
160150049840Makita 0150049840 TAPPING SCREW 4X16
170150059760Makita 0150059760 TAPPING SCREW 5X16BHX2500/PB-250.4
186601503400Makita 6601503400 OUTER SNAPRING
196601502702Makita 6601502702 PROTECTOR
206601503500Makita 6601503500 RUBBER WASHER
216601503201Makita 6601503201 SCREW
220150059760Makita 0150059760 TAPPING SCREW 5X16BHX2500/PB-250.4
230031205003Makita 0031205003 WASHER BHX2500/PB-25
246601503001Makita 6601503001 SPRING
256601503100Makita 6601503100 SHAFT
260150059760Makita 0150059760 TAPPING SCREW 5X16BHX2500/PB-250.4
276656500100Makita 6656500100 PLUG COVER BHX2500PB-250.4
285926501600Makita 5926501600 OIL GUARD
295926017000Makita 5926017000 FUEL TANK CAP ASSY
300140049770Makita 0140049770 SCREW ASSY M4X16(W,SBHX2500/PB-250.4
316249501501Makita 6249501501 STRAP
320851189950Makita 0851189950 TUBE BHX2500PB-250.4
330561059990Makita 0561059990 HOSE CLAMPBHX2500/PB-250.4
345236503900Makita 5236503900 FILTERBHX2500/PB-250.4
350150059760Makita 0150059760 TAPPING SCREW 5X16BHX2500/PB-250.4
360031005003Makita 0031005003 WASHERBHX2500/PB-250.4
376653500000Makita 6653500000 FUEL TANKBHX2500/PB-250.4
386656500400Makita 6656500400 ENGINE COVER RED PBBHX2500/PB-250.4

Sheet 2: Makita PB2504 parts diagram

Makita PB2504 parts diagram, sheet 2
No.Part numberPart name
390043605160Makita 0043605160 SCREW ASS'Y M5X16 (WBHX2500/PB-250.4
405921004001Makita 5921004001 ROCKER COVER COMPLETBHX2500/PB-250.4
410650109950Makita 0650109950 SPARK PLUG CMR6ABHX2500/PB-250.4
425921500800Makita 5921500800 ROCKER COVER GASKETBHX2500/PB-250.4
435921011000Makita 5921011000 CYLINDER BLOCK SETBHX2500/PB-250.4
445921501800Makita 5921501800 CHECK VALVEBHX2500/PB-250.4
455926500300Makita 5926500300 OIL WEIGHTBHX2500/PB-250.4
465926500200Makita 5926500200 OIL TUBEBHX2500/PB-250.4
470561059970Makita 0561059970 HOSE CLAMPBHX2500/PB-250.4
480119059510Makita 0119059510 SOCKET HEAD BOLT M5XBHX2500/PB-250.4
495921500700Makita 5921500700 CAMGEAR COVER GASKETBHX2500/PB-250.4
505921500502Makita 5921500502 CAMGEAR COVERBHX2500/PB-250.4
510043605140Makita 0043605140 SCREW ASS'Y M5X14BHX2500/PB-250.4
520240139950Makita 0240139950 O RINGBHX2500/PB-250.4
530043605120Makita 0043605120 SCREW ASS'Y M5X12BHX2500/PB-250.4
545926021000Makita 5926021000 OIL PIPE COMPLBHX2500/PB-250.4
555926501700Makita 5926501700 OIL GAUGEBHX2500/PB-250.4
560213229990Makita 0213229990 GASKETBHX2500/PB-250.4
575926501500Makita 5926501500 OIL CAPBHX2500/PB-250.4
585926500100Makita 5926500100 CASE GASKETBHX2500/PB-250.4
595921501000Makita 5921501000 LEAD VALVEBHX2500/PB-250.4
605921501100Makita 5921501100 RETAINER PLATEBHX2500/PB-250.4
610119049980Makita 0119049980 SOCKET HEAD BOLT M4XBHX2500/PB-250.4
625926500000Makita 5926500000 OIL CASEBHX2500/PB-250.4
630043605180Makita 0043605180 SCREW ASS'YBHX2500/PB-250.4

Sheet 3: Makita PB2504 parts diagram

Makita PB2504 parts diagram, sheet 3
No.Part numberPart name
645922004000Makita 5922004000 PISTON RING SETBHX2500/PB-250.4
650565089970Makita 0565089970 CLIPBHX2500/PB-250.4
665922500900Makita 5922500900 PISTONBHX2500/PB-250.4
675232502600Makita 5232502600 PISTON PINBHX2500/PB-250.4
680440129960Makita 0440129960 OIL SEAL (L)BHX2500/PB-250.4
695421500500Makita 5421500500 CLIPBHX2500/PB-250.4
700323039990Makita 0323039990 WOODRUFF KEYBHX2500/PB-250.4
715922003000Makita 5922003000 CRANK SHAFT ASS'YBHX2500/PB-250.4
720440109970Makita 0440109970 OIL SEAL (S)BHX2500/PB-250.4

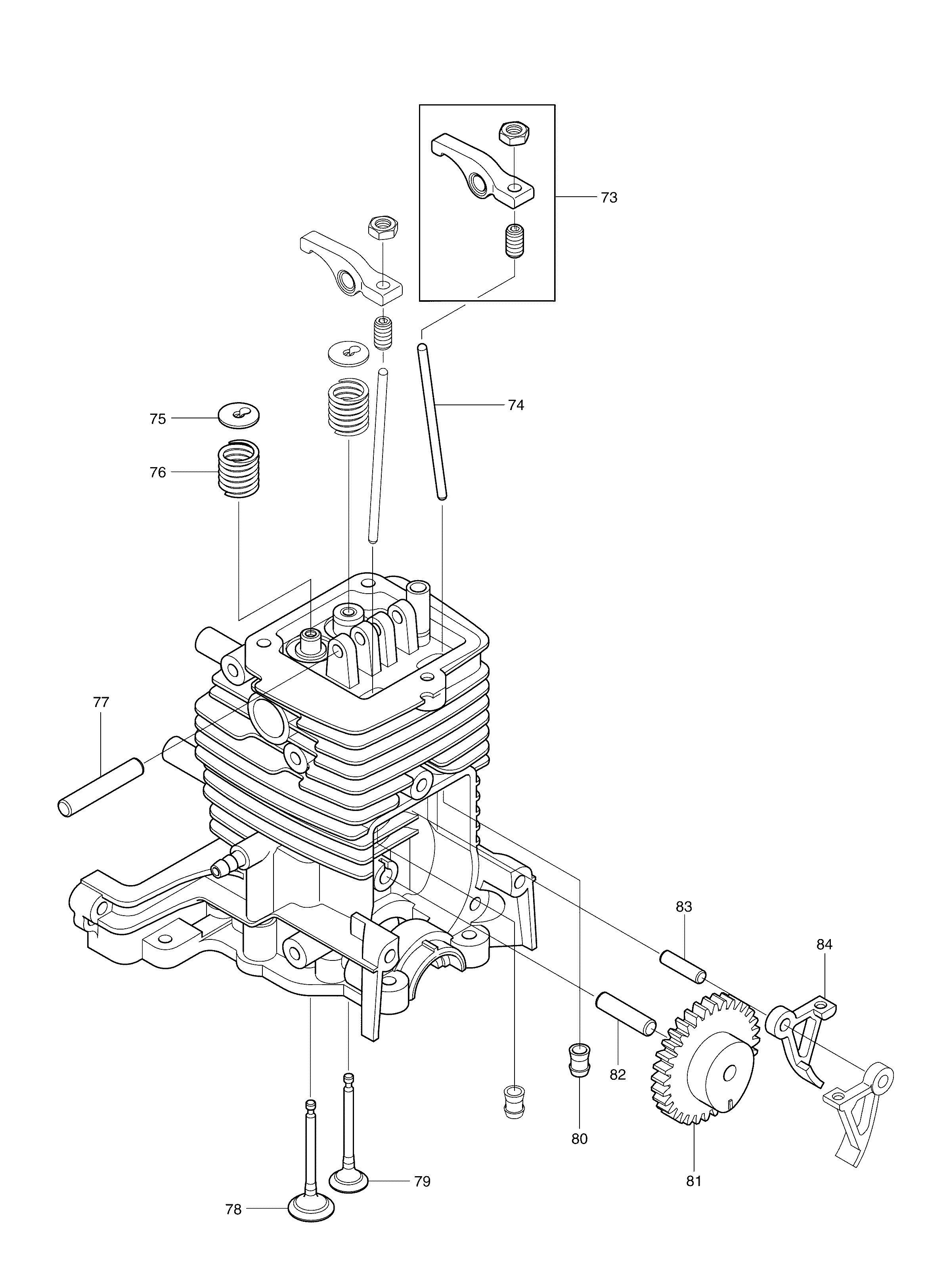

Sheet 4: Makita PB2504 parts diagram

Makita PB2504 parts diagram, sheet 4
No.Part numberPart name
735933002000Makita 5933002000 ROCKER ARM ASS'YBHX2500/PB-250.4
745923500700Makita 5923500700 PUSH RODBHX2500/PB-250.4
755923501300Makita 5923501300 SPRING RETAINERBHX2500/PB-250.4
765923501200Makita 5923501200 VALVE SPRINGBHX2500/PB-250.4
775933500100Makita 5933500100 ROCKER SHAFTBHX2500/PB-250.4
785923501500Makita 5923501500 INTAKE VALVEBHX2500/PB-250.4
795923501400Makita 5923501400 EXHAUST VALVEBHX2500/PB-250.4
805921501400Makita 5921501400 SPACERBHX2500/PB-250.4
815933003000Makita 5933003000 CAM GEAR ASS'YBHX2500/PB-250.4
825923500501Makita 5923500501 CAM GEAR SHAFTBHX2500/PB-250.4
835923500600Makita 5923500600 CAM LIFTER SHAFTBHX2500/PB-250.4
845923500001Makita 5923500001 CAM LIFTERBHX2500/PB-250.4

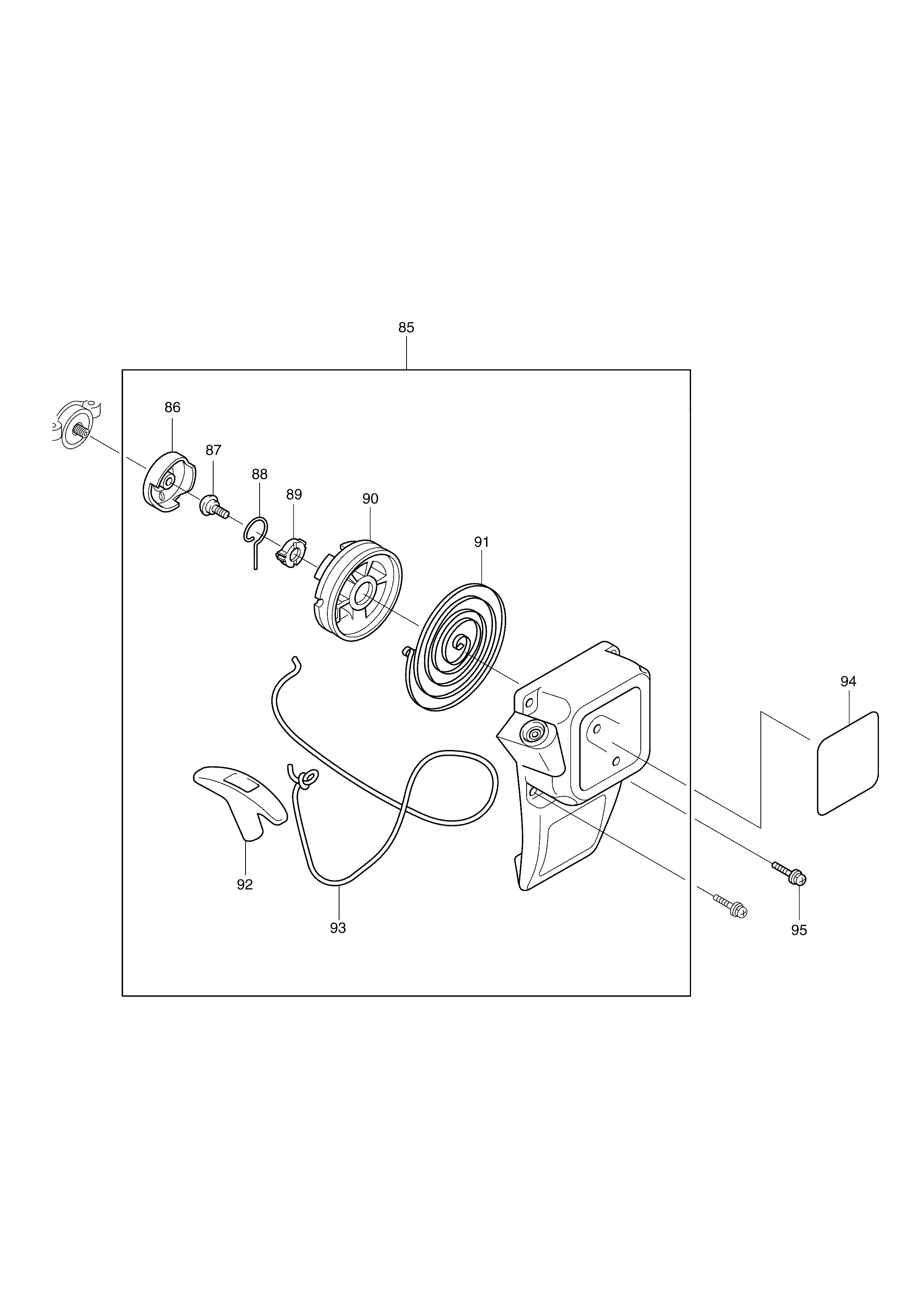

Sheet 5: Makita PB2504 parts diagram

Makita PB2504 parts diagram, sheet 5
No.Part numberPart name
865195500000Makita 5195500000 PULLEYBHX2500/PB-250.4
875195002060Makita 5195002060 SET SCREWBHX2500/PB-250.4
885195002100Makita 5195002100 SWING ARMBHX2500/PB-250.4
895195002110Makita 5195002110 COLLARBHX2500/PB-250.4
905925001030Makita 5925001030 REELBHX2500/PB-250.4
915215002030Makita 5215002030 SPIRAL SPRINGBHX2500/PB-250.4
925225004020Makita 5225004020 HANDLEBHX2500/PB-250.4
935925001050Makita 5925001050 STARTER ROPEBHX2500/PB-250.4
946659502900
950140049770Makita 0140049770 SCREW ASSY M4X16(W,SBHX2500/PB-250.4

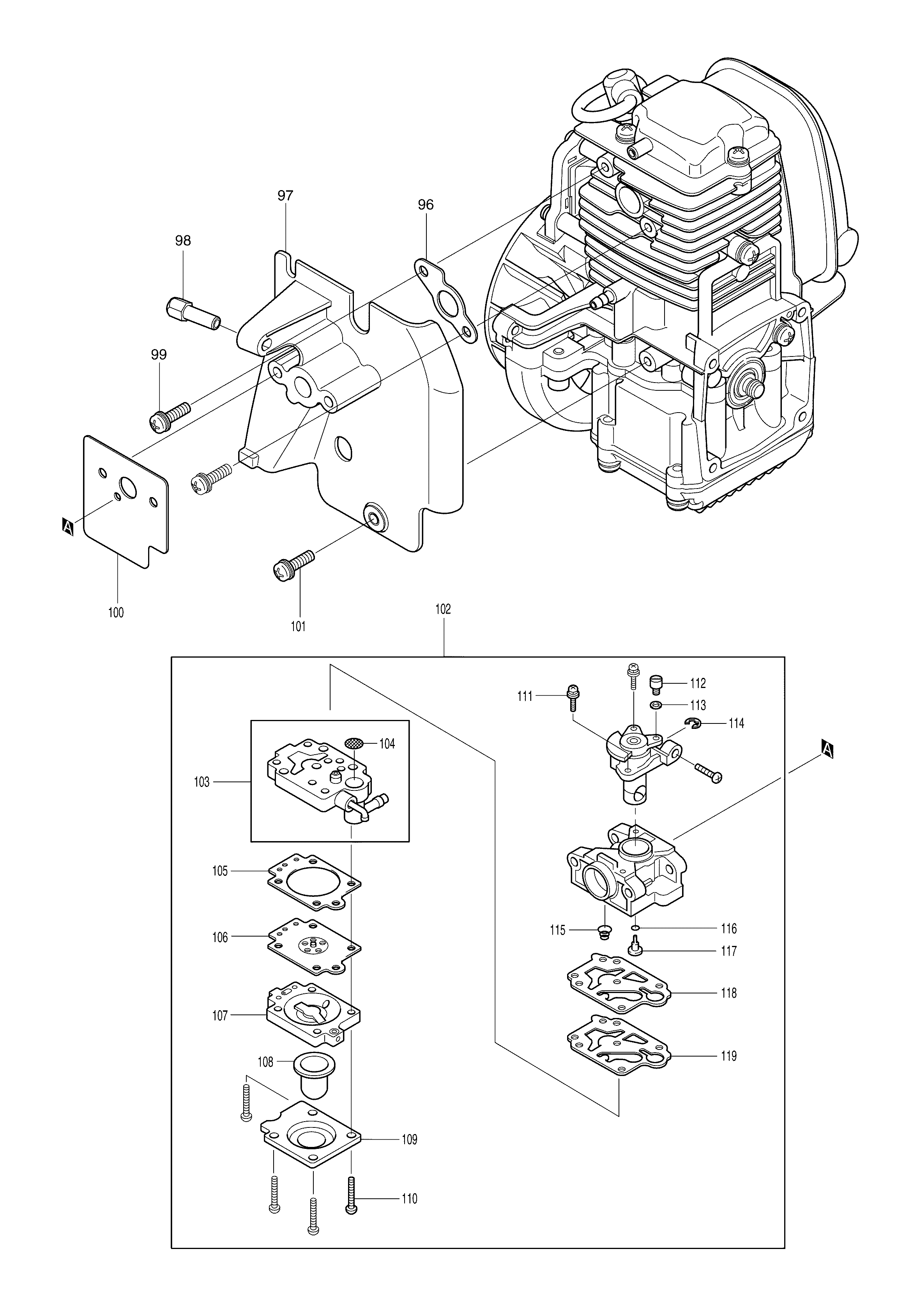

Sheet 6: Makita PB2504 parts diagram

Makita PB2504 parts diagram, sheet 6
No.Part numberPart name
965923501801Makita 5923501801 INSULATOR GASKETBHX2500/PB-250.4
975923013000Makita 5923013000 INSULATOR COMPLBHX2500/PB-250.4
980149069972Makita 0149069972 ADJUST SCREWBHX2500/PB-250.4
990043605180Makita 0043605180 SCREW ASS'YBHX2500/PB-250.4
1005923501900Makita 5923501900 CARBURETOR GASKETBHX2500/PB-250.4
1010043605140Makita 0043605140 SCREW ASS'Y M5X14BHX2500/PB-250.4
1045016004010Makita 5016004010 INLET SCREENBHX2500/PB-250.4
1055236046040Makita 5236046040 METERING DIAPHRAGM GBHX2500/PB-250.4
1065926008010
1075236046140Makita 5236046140 AIR PURGE BODY ASS'YBHX2500/PB-250.4
1085246001150Makita 5246001150 PRIMER PUMPBHX2500/PB-250.4
1095236046050Makita 5236046050 PRIMER PUMP COVERBHX2500/PB-250.4
1105236046010Makita 5236046010 PUMP COVER SCREWBHX2500/PB-250.4
1115206008030Makita 5206008030 PAN HEAD SCREWBHX2500/PB-250.4
1125236018040Makita 5236018040 SWIVELBHX2500/PB-250.4
1135426005030Makita 5426005030 WASHERBHX2500/PB-250.4
1145316005120Makita 5316005120 RINGBHX2500/PB-250.4
1155926002020Makita 5926002020 PUMP SPRINGBHX2500/PB-250.4
1165246001010Makita 5246001010 O RINGBHX2500/PB-250.4
1175196002020Makita 5196002020 JETBHX2500/PB-250.4
1185926002040Makita 5926002040 PUMP GASKETBHX2500/PB-250.4
1195246001040Makita 5246001040 PUMP DIAPHRAGMBHX2500/PB-250.4

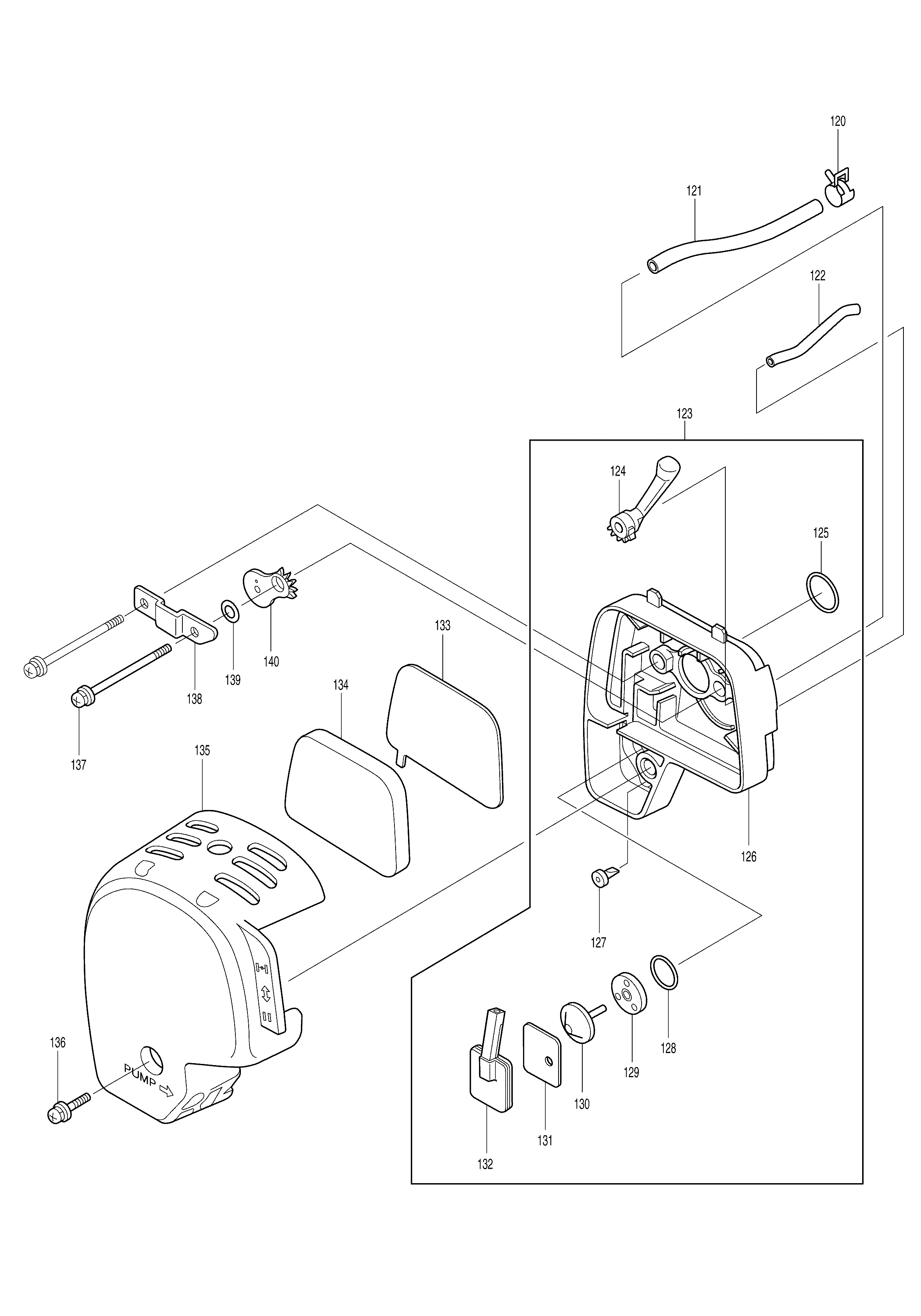

Sheet 7: Makita PB2504 parts diagram

Makita PB2504 parts diagram, sheet 7
No.Part numberPart name
1200561080010Makita 0561080010 HOSE CLAMPBHX2500/PB-250.4
1215921500900Makita 5921500900 BREATHER PIPEBHX2500/PB-250.4
1225933502100Makita 5933502100 PIPEBHX2500/PB-250.4
1245923502200Makita 5923502200 CHOKE LEVERBHX2500/PB-250.4
1250240159990Makita 0240159990 O RING P15BHX2500/PB-250.4
1265933005000Makita 5933005000 AIR CLEANER PLATE COBHX2500/PB-250.4
1275923502400Makita 5923502400 CHECK VALVE (1)BHX2500/PB-250.4
1280240139970Makita 0240139970 O RING P14BHX2500/PB-250.4
1295923502500Makita 5923502500 CHECK VALVE PLATEBHX2500/PB-250.4
1305316500701Makita 5316500701 CHECK VALVEBHX2500/PB-250.4
1315923503500Makita 5923503500 GASKET SEPARATORBHX2500/PB-250.4
1325933501600Makita 5933501600 SEPARATOR PLATEBHX2500/PB-250.4
1335933500900Makita 5933500900 AIR CLEANER ELEMENTBHX2500/PB-250.4
1345933501200Makita 5933501200 AIR CLEANER ELEMENTBHX2500/PB-250.4
1355933500800Makita 5933500800 AIR CLEANER COVERBHX2500/PB-250.4
1360140059480Makita 0140059480 SCREW ASS'Y M5X14BHX2500/PB-250.4
1375923503100Makita 5923503100 SCREW M5X68 (W,SW SUBHX2500/PB-250.4
1385923502600Makita 5923502600 PLATEBHX2500/PB-250.4
1390213069990Makita 0213069990 GASKETBHX2500/PB-250.4
1405923502301Makita 5923502301 CHOKE PLATEBHX2500/PB-250.4

Sheet 8: Makita PB2504 parts diagram

Makita PB2504 parts diagram, sheet 8
No.Part numberPart name
1410119059520Makita 0119059520 SOCKET HEAD BOLT M5XBHX2500/PB-250.4
1435923008010
1445923504300Makita 5923504300 MUFFLER GASKETBHX2500/PB-250.4

Sheet 9: Makita PB2504 parts diagram

Makita PB2504 parts diagram, sheet 9
No.Part numberPart name
1455927010000Makita 5927010000 WIRE 1BHX2500/PB-250.4
1465927011000Makita 5927011000 WIRE 2BHX2500/PB-250.4
1475927500100Makita 5927500100 PLUG CAPBHX2500/PB-250.4
1480654009931Makita 0654009931 PLUG CAP SPRINGBHX2500/PB-250.4
1495927012010Makita 5927012010 IGNITION COILBHX2500/PB-250.4
1500043704200Makita 0043704200 SCREW ASS'Y M4X20BHX2500/PB-250.4
1510130069940Makita 0130069940 BOLT ASSEMBLY M6X16BHX2500/PB-250.4
1525927500200Makita 5927500200 FLYWHEELBHX2500/PB-250.4

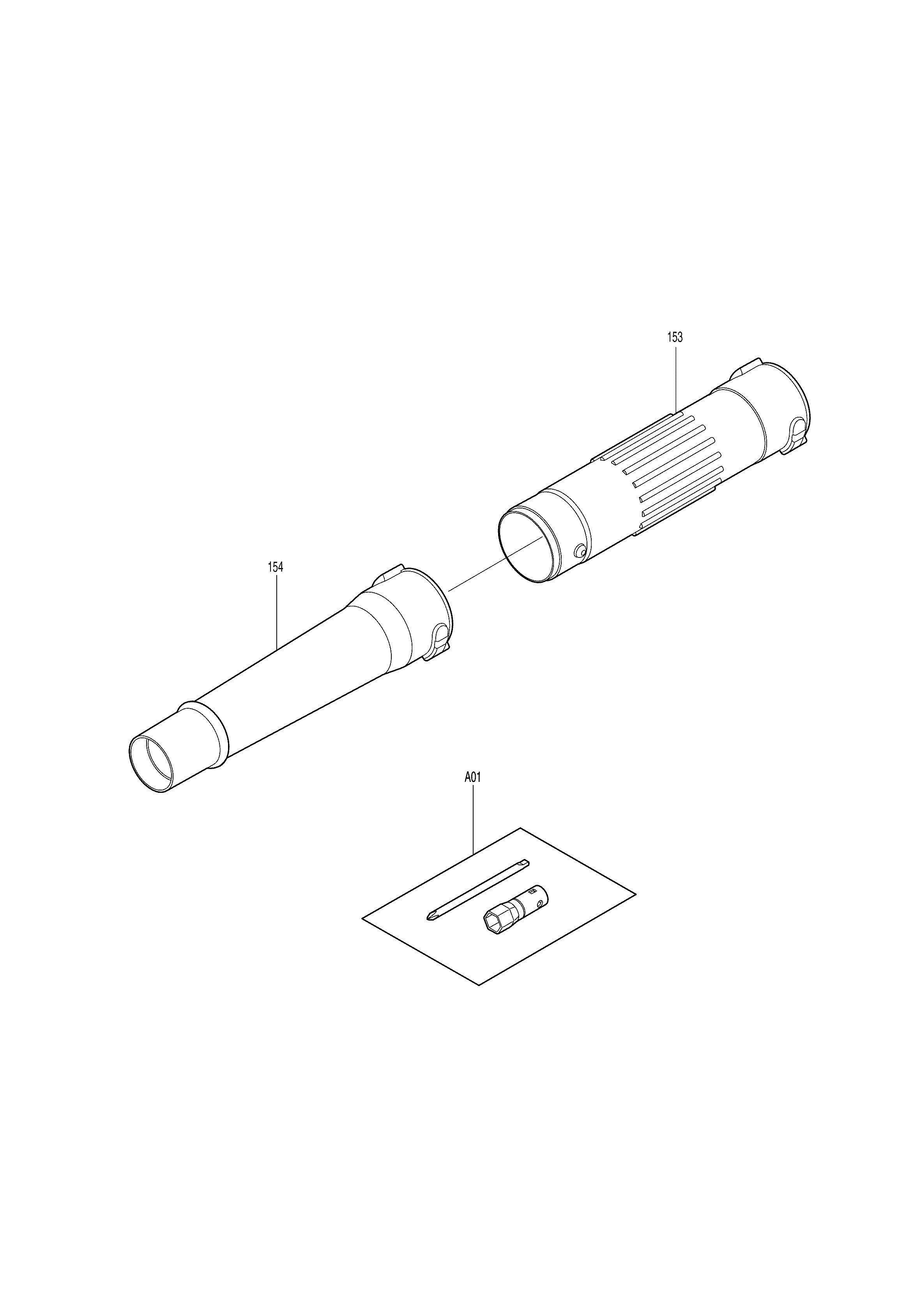

Sheet 10: Makita PB2504 parts diagram

Makita PB2504 parts diagram, sheet 10
No.Part numberPart name
1536659500900Makita 6659500900 PIPEBHX2500/PB-250.4
1546659501000Makita 6659501000 END PIPEBHX2500/PB-250.4
