Bosch PAS 850

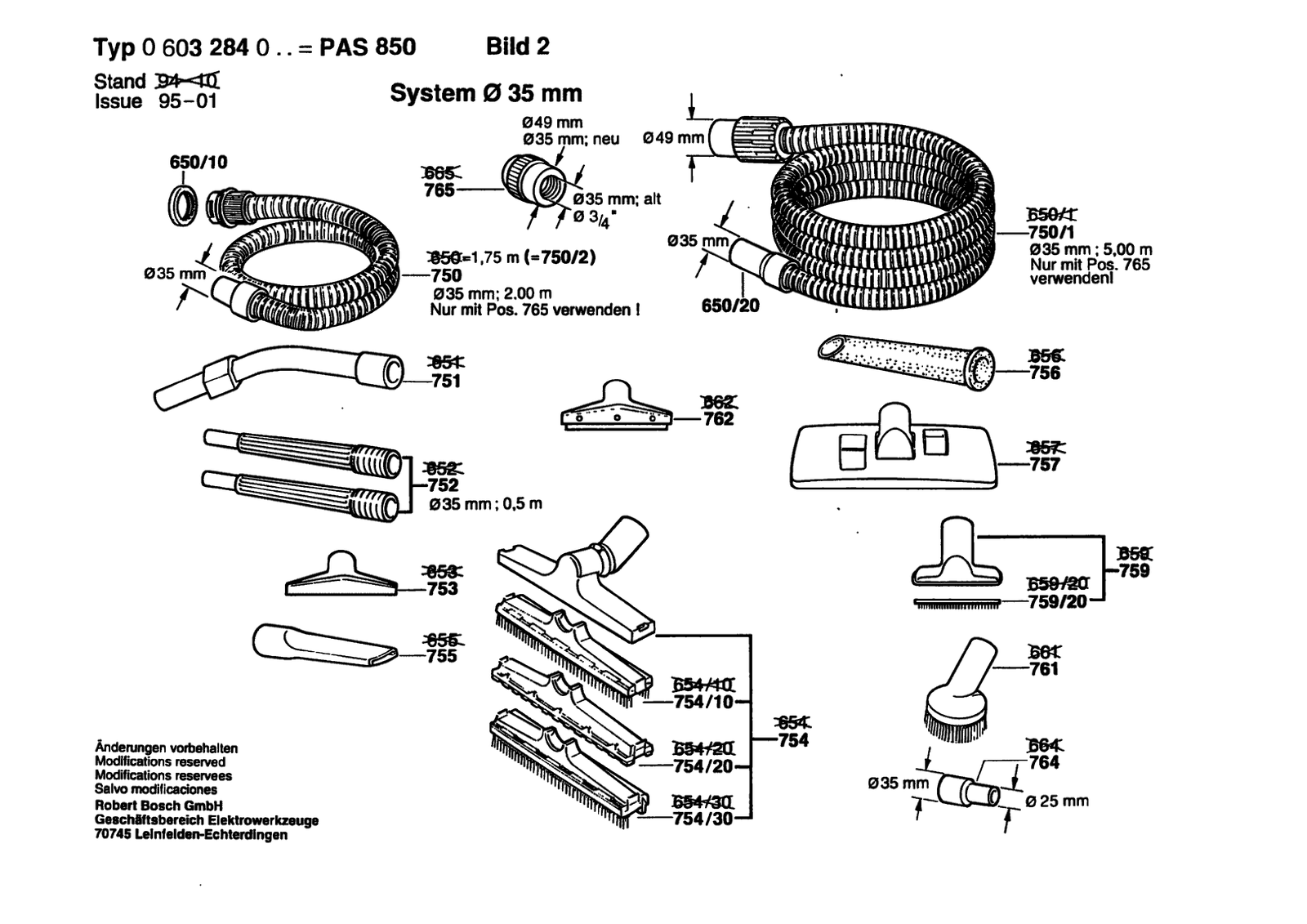

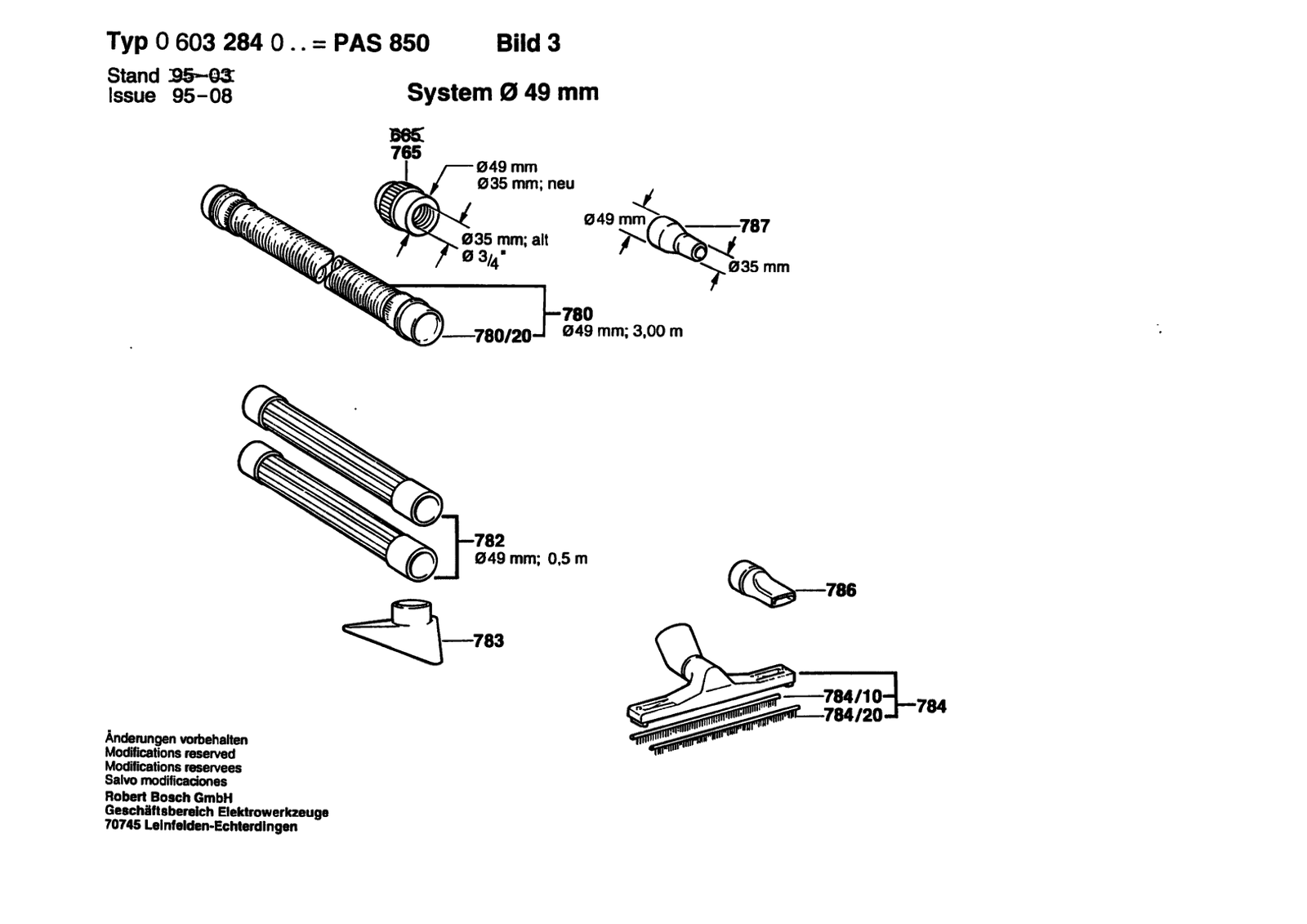

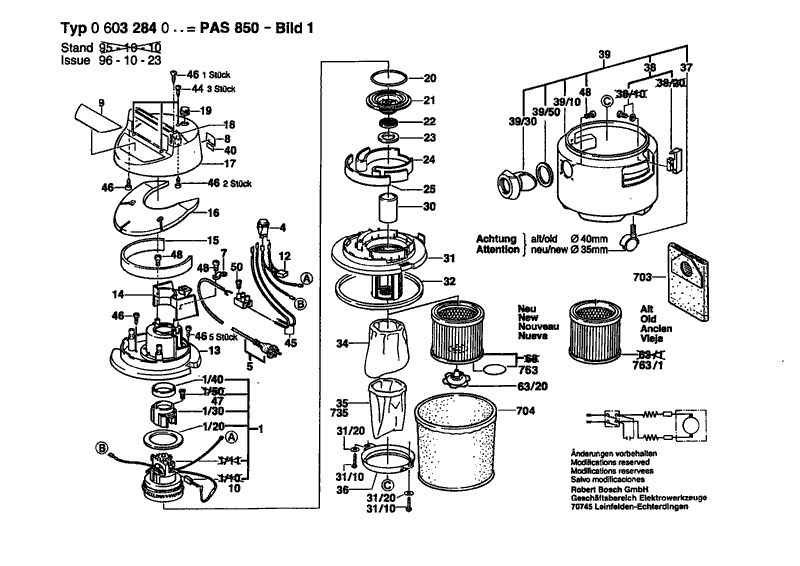

Bosch PAS 850 all purpose vacuum cleane: exploded parts diagram, 3 sheets, 100 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PAS 850: 100 positions on 3 sheets
Bosch PAS 850 parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1609390533 | Suction Blower 100V |
| 1 | 1609390534 | Suction Blower 240V |
| 1 | 1609390537 | Suction Blower 115V |
| 1 | 1609390575 | Suction Blower 220V |
| 1/20 | 1609390483 | Rubber Ring |
| 1/30 | 1609390484 | Protective Cap |
| 1/40 | 1609390487 | Seal Ring |
| 10 | 1609390489 | Carbon-Brush Set |
| 10 | 1609390539 | Carbon-Brush Set |
| 12 | 1609390490 | Suppression Filter |
| 13 | 1609390507 | Blower Cover |
| 14 | 1609390508 | Cover |
| 15 | 1609390509 | Damping Ring |
| 16 | 1609390510 | Damping Disc |
| 17 | 1609390511 | Sealing cap |
| 18 | 1609390512 | Carrying Handle |
| 19 | 1609390513 | Protective Flap |
| 20 | 1609390514 | Seal Ring |
| 21 | 1609390515 | Seal |
| 22 | 1609390516 | Filter Disc |
| 23 | 1609390517 | Seal Ring |
| 24 | 1609390518 | Insulating Strip |
| 25 | 1609390519 | Insulating Strip |
| 30 | 1609390521 | Float |
| 30 | 1609390584 | Float |
| 31 | 1609390557 | Float Chamber |
| 31 | 1609390585 | Float Chamber |
| 31/10 | 2910611006 | Tapping Screw DIN 7981-ST2,9X13-C-H |
| 31/20 | 2916011892 | Plain Washer DIN 9021-B 4,3-ST |
| 32 | 1609390523 | Seal Ring |
| 34 | 1609390524 | Air Filter |
| 36 | 1609390556 | Rim |
| 37 | 1609390527 | Impeller Ø 40 MM |
| 37 | 1609390593 | Impeller Ø 35 MM |
| 38 | 1609390528 | Bent-Lever Closure |
| 39 | 1609390594 | Dust container Ø 35 MM |
| 39/30 | 1609390558 | Fitting |
| 39/50 | 1609390553 | Sealing disk |
| 4 | 1609390485 | On-Off Switch |
| 4 | 1609390538 | On-Off Switch |
| 40 | 1601110265 | Reference Plate |
| 44 | 1609390560 | Tapping Screw 4,2X25 MM |
| 45 | 1609390530 | Connecting Cable |
| 46 | 2910611035 | Tapping Screw DIN 7981 ST4,8X22-C-H |
| 47 | 2910601304 | Tapping Screw DIN 7976-ST2,9X6,5-C-H |
| 48 | 2910611006 | Tapping Screw DIN 7981-ST2,9X13-C-H |
| 5 | 1609390486 | Power supply cord EU 5M 2 X 0,75MM H05VV-F |
| 5 | 1609390525 | Cable |
| 5 | 1609390531 | Power supply cord |
| 5 | 1609390532 | Power supply cord |
| 5 | 1609390535 | Power supply cord |
| 5 | 1609390536 | Power supply cord |
| 50 | 1609390591 | Connecting terminal 2-POLE |
| 63/20 | 1609202200 | Star Knob |
| 650/10 | 1609390555 | Rubber Ring |
| 650/20 | 1609203V36 | Fitting |
| 7 | 1609390488 | Fastening Clamp |
| 703 | 1609390472 | Dust Bag |
| 704 | 2607001129 | Dust Separator |
| 735 | 1609390471 | Paper Bag |
| 750 | 2607000163 | Air Hose Ø 35 Mm, 2 M,1 |
| 750/1 | 1609202230 | Air Hose Ø 35 Mm, L=5 M |
| 750/2 | 1609390491 | Air Hose Ø 35 Mm, 1,75 MM |
| 751 | 2607000164 | Setting Tube Ø 35 MM |
| 752 | 1609390492 | Suction Pipe Ø 35 Mm, 0,5 MM |
| 753 | 2607000170 | Suction Nozzle Ø 35 MM |
| 754 | 1609390478 | Suction Nozzle Ø 35 MM |
| 754/10 | 1609390493 | Flat Brush |
| 754/20 | 1609390494 | Flat Brush |
| 754/30 | 1609390495 | Strip brush |
| 755 | 2607000165 | Crevice Nozzle Ø 35 Mm, L= 250 MM |
| 756 | 1609201229 | Suction Nozzle Ø 35 MM |
| 757 | 1609201230 | Suction Nozzle Ø 35 MM |
| 759 | 2607000166 | Suction Nozzle Ø 35 MM |
| 759/20 | 1609202534 | Brush Insert |
| 761 | 1609390481 | Suction Brush Ø 35 MM |
| 762 | 2607000168 | Suction Nozzle Ø 35 MM |
| 763 | 2609390304 | Air Filter Ø147/Ø185 MM |
| 763/1 | 2609390304 | Air Filter Ø147/Ø185 MM |
| 764 | 1600499005 | Fitting Ø 25X35 MM |
| 765 | 1609390474 | Adapter Ø49/Ø35 MM+Ø3/4" |
| 780 | 2607000167 | Air Hose Ø 49 Mm, 3 M,1 |
| 780/20 | 1609390577 | Fitting Ø 49 MM |
| 782 | 1609200968 | Suction Pipe Ø 49 Mm, L=0,5 M |
| 783 | 2607000169 | Suction Nozzle Ø 49 MM |
| 784 | 1609200970 | Suction Nozzle Ø 49 Mm, 350 MM |
| 784/10 | 1609201109 | Flat Brush |
| 784/20 | 1609201110 | Flat Brush |
| 786 | 1609200971 | Crevice Nozzle Ø 49 MM |
| 787 | 1609200976 | Suction Pipe Ø 49/35 MM |
| 8 | 1601110625 | Nameplate |
| 8 | 1601110626 | Nameplate |
| 8 | 1601110627 | Nameplate |
| 8 | 1601110628 | Nameplate |
| 8 | 1601110629 | Nameplate |
| 8 | 1601110630 | Nameplate |
| 8 | 1601110632 | Nameplate |
| 8 | 1601118102 | Nameplate |
| 9 | 1601110634 | Manufacturer's nameplate |
| 9 | 1601110635 | Manufacturer's nameplate |
