Bosch PAS 18V-LI

Bosch PAS 18V-LI battery vacuum cleaner: exploded parts diagram, 1 sheet, 27 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PAS 18V-LI: 27 positions on 1 sheet

Bosch PAS 18V-LI parts list (1 sheet)

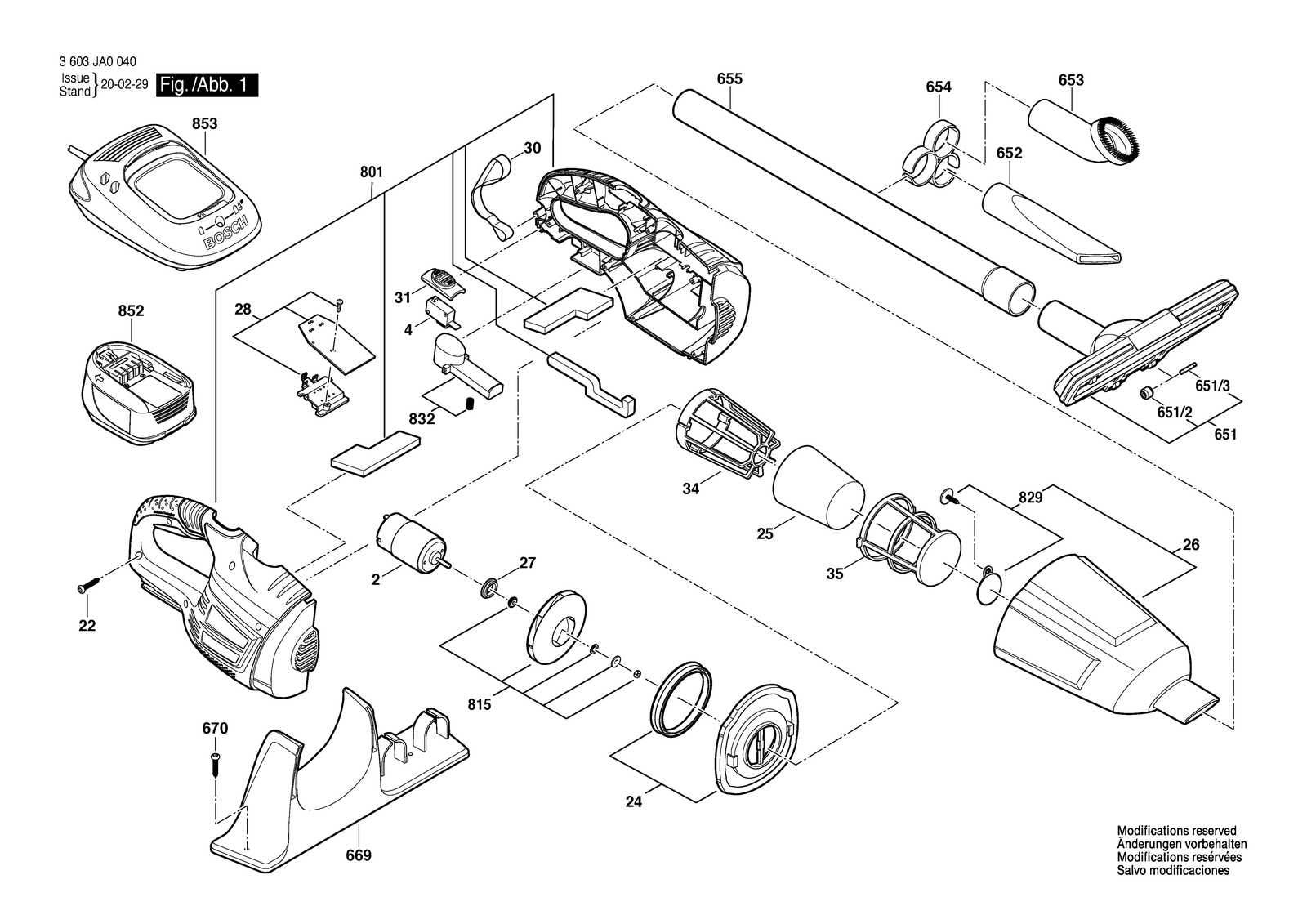

Bosch PAS 18V-LI parts diagram, sheet 1
No.Part numberPart name
21619PB1821DC motor
221619PA5249Tapping Screw
241619PA9470Housing Cover
251619PA5251Filter
261619PA5253Dust Chamber
271619PA5254Rubber Retaining Ring
281619PA5255Electronics Module
301619PA5256Carrying Loop
311619PA5257Switch Cover
341619PA5359Holder
351619PA5187Filter Cover
41619PA5246Switch
6511619PA5202Floor nozzle
651/21619PA7502Roller
651/31619PA7501Shaft
6521619PA5204Crevice Nozzle
6531619PA5261Brush
6541619PA5262Holder
6551619PA5205Suction Tube
6691619PA5263Hook
6701619PA5354Screw
8011619PA5258Housing Assembly
8151619PA5259Fan
8291619PA5200Rubber Disc
8321619PA5260Button
8521607A350JMBattery Pack PBA 18V/1,5 Ah W-a
8532607225475Charger Aus AL 2215 CV 240/14,4-18V, 1H
