Bosch PAS 18 LI

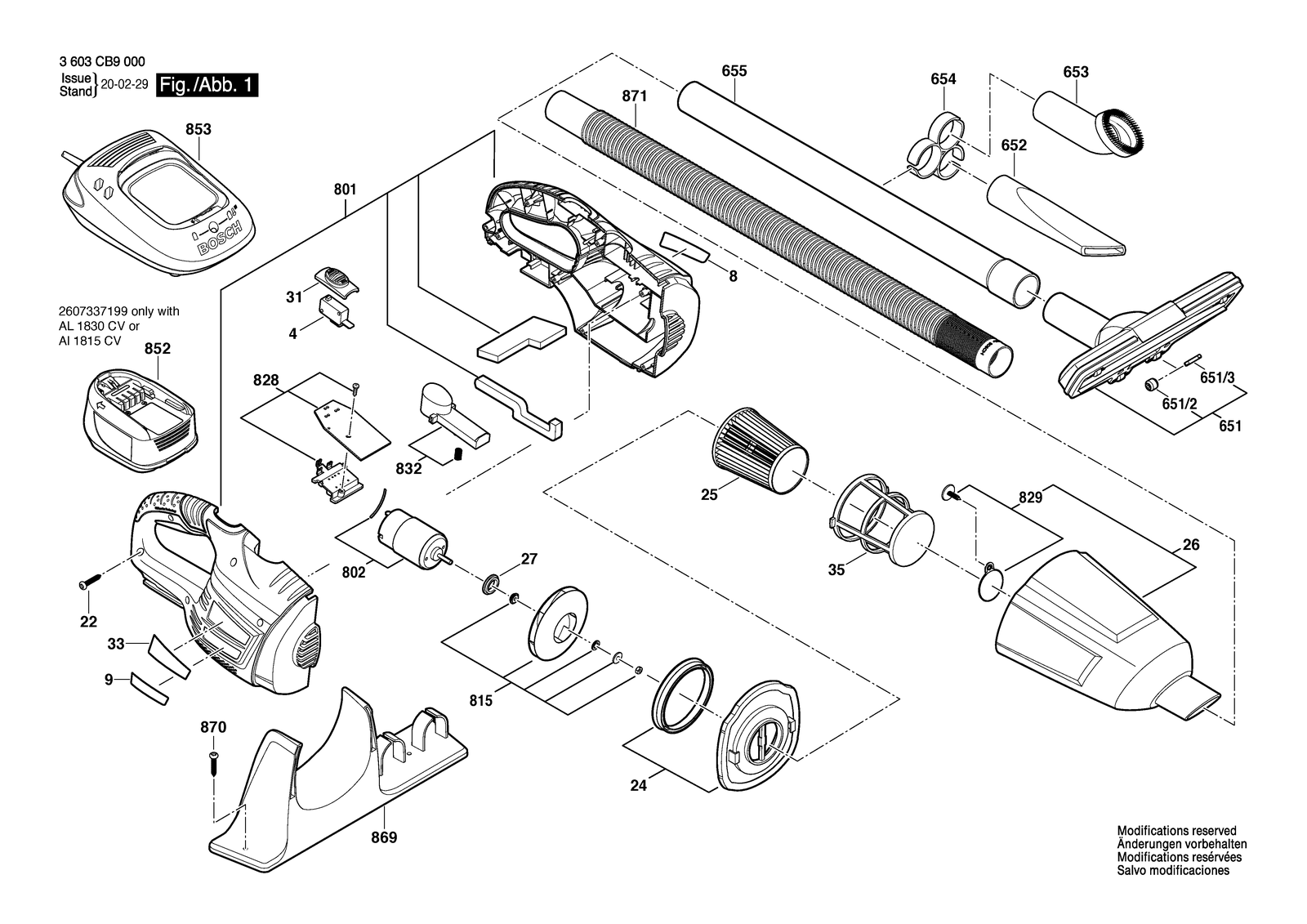

Bosch PAS 18 LI battery vacuum cleaner: exploded parts diagram, 1 sheet, 31 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PAS 18 LI: 31 positions on 1 sheet
Bosch PAS 18 LI parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 22 | 1619PA5249 | Tapping Screw |
| 24 | 1619PA9470 | Housing Cover |
| 25 | 1619PA5188 | Filter |
| 26 | 1619PA5253 | Dust Chamber |
| 27 | 1619PA5254 | Rubber Retaining Ring |
| 31 | 1619PA5257 | Switch Cover |
| 33 | 1619PA6833 | Bosch Label |
| 35 | 1619PA5187 | Filter Cover |
| 4 | 1619PA5246 | Switch |
| 651 | 1619PA5202 | Floor nozzle |
| 651/2 | 1619PA7502 | Roller |
| 651/3 | 1619PA7501 | Shaft |
| 652 | 1619PA6813 | Crevice Nozzle |
| 653 | 1619PA5261 | Brush |
| 654 | 1619PA5262 | Holder |
| 655 | 1619PA5205 | Suction Tube |
| 8 | 1619PA6831 | Nameplate |
| 801 | 1619PA5258 | Housing Assembly |
| 802 | 1619PB1821 | DC motor |
| 815 | 1619PA5259 | Fan |
| 828 | 1619PA5255 | Electronics Module |
| 829 | 1619PA5200 | Rubber Disc |
| 832 | 1619PA5260 | Button |
| 852 | 2607337199 | Battery Pack PBA 18V 2,5 Ah W-b |
| 852 | 2607337211 | Battery Pack PBA 18V 2,0 Ah W-b |
| 853 | 2607225471 | Fast Charger EU AL 2215 CV 230/14,4-18V, 1H |
| 853 | 2607225965 | Fast Charger EU AL 1830 CV 230/14,4-18V 1H |
| 869 | 1619PA5263 | Hook |
| 870 | 1619PA5354 | Screw |
| 871 | 1619PA9046 | Extension Tube |
| 9 | 1619PA6832 | Manufacturer's nameplate PAS 18 LI |
