Bosch PAS 11-25
Bosch PAS 11-25 all purpose vacuum cleane: exploded parts diagram, 3 sheets, 77 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

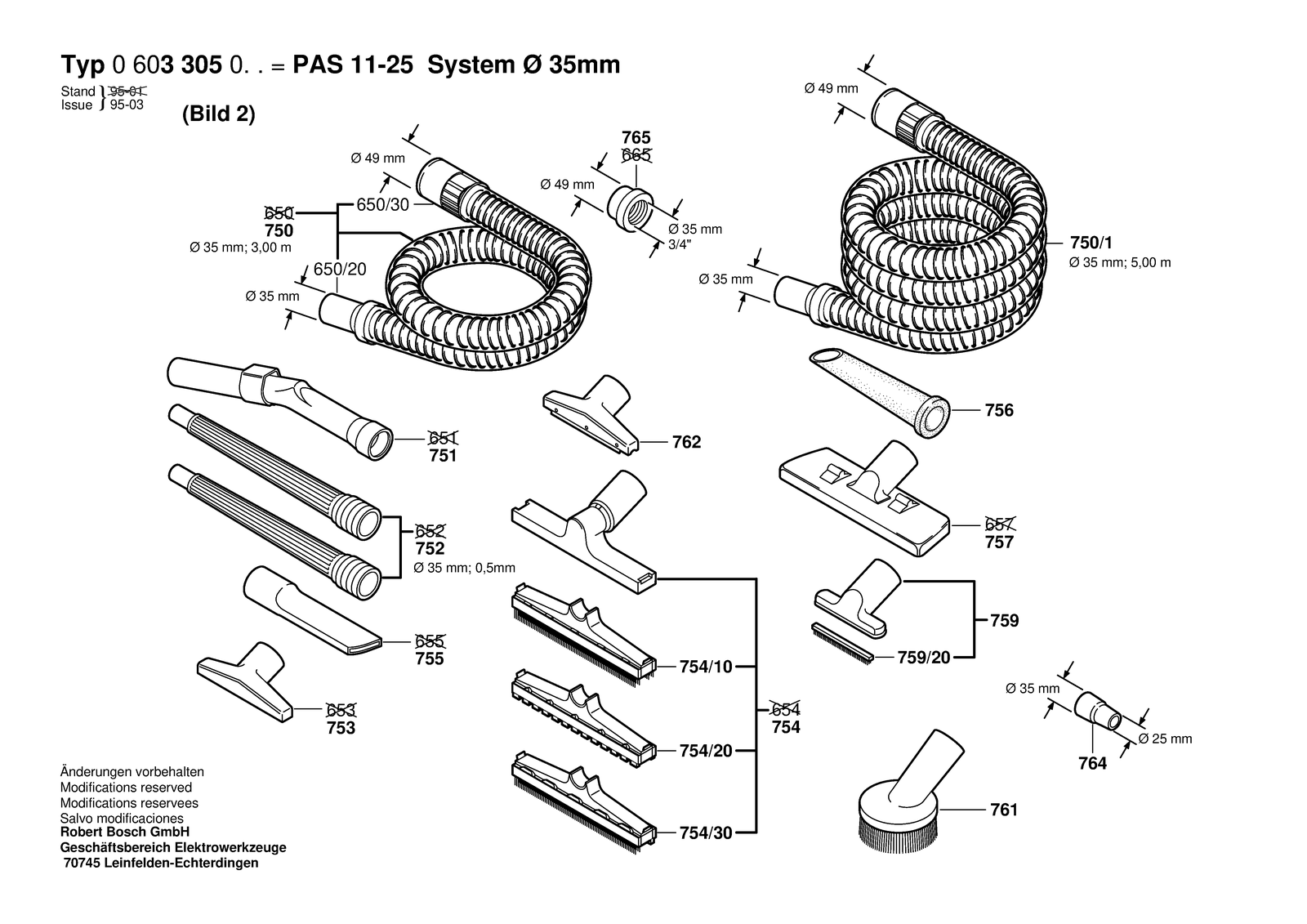

All parts of Bosch PAS 11-25: 77 positions on 3 sheets
Bosch PAS 11-25 parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 10 | 1609202693 | Cable Clip |
| 11 | 1601118180 | Nameplate |
| 11 | 1601118273 | Nameplate |
| 11 | 1601118274 | Nameplate |
| 11 | 1601118438 | Nameplate |
| 11 | 1601118448 | Nameplate |
| 11 | 1601118521 | Nameplate |
| 11 | 1601118522 | Nameplate |
| 11 | 1601118673 | Nameplate |
| 16 | 1609201718 | Connector Cable |
| 16 | 1609202196 | Power supply cord |
| 16 | 1609202332 | Connector Cable |
| 16 | 1609202700 | Power supply cord |
| 16 | 1609203579 | Power supply cord |
| 17 | 1609201666 | Air-Deflector Ring |
| 20 | 1609201669 | Seal Ring |
| 20/1 | 1609202374 | Seal Ring |
| 22 | 1609202371 | Suction Blower 240V |
| 22 | 1609202695 | Suction Blower 220V |
| 22 | 1609203327 | Suction Blower 100V |
| 23 | 1609203478 | Damping Plate |
| 24 | 1609202764 | Damping Plate |
| 25 | 1609203423 | Damping Plate |
| 26 | 1609202697 | Intermediate Flange |
| 28 | 1609201677 | Air Filter |
| 31 | 2910611015 | Tapping Screw DIN 7981-B3,5X25 |
| 32 | 1601118181 | Manufacturer's nameplate |
| 32 | 1601118382 | Manufacturer's nameplate |
| 37 | 1609202701 | Intermediate housing |
| 38 | 1609200952 | Float |
| 39 | 1609201684 | Suction Basket |
| 4 | 1609202649 | Covering hood |
| 43/20 | 1609202200 | Star Knob |
| 43/30 | 1601110830 | Reference Plate |
| 650/20 | 1609203V36 | Fitting |
| 650/30 | 1609390580 | Fitting Ø 49 MM |
| 690 | 1609203929 | Dust container Green |
| 690/10 | 1609202703 | Impeller Ø 50 MM |
| 690/20 | 1609202707 | Impeller Ø 100 MM |
| 690/30 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 690/40 | 1609202650 | Bent-Lever Closure |
| 690/50 | 2910611012 | Tapping Screw DIN 7981-ST3,5X16-C-H |
| 690/60 | 1609202726 | Plain Washer Ø4,2XØ11X1,2MM |
| 690/70 | 1609203179 | Locking Piece |
| 743 | 2607432001 | Air Filter |
| 750 | 2607000163 | Air Hose Ø 35 Mm, 2 M,1 |
| 750 | 2607000837 | Air Hose Ø35MM,3M,1 |
| 750/1 | 1609202230 | Air Hose Ø 35 Mm, L=5 M |
| 751 | 2607000164 | Setting Tube Ø 35 MM |
| 752 | 2607000162 | Suction Pipe Ø 35 Mm, 0,5 M |
| 753 | 2607000170 | Suction Nozzle Ø 35 MM |
| 754 | 1609390478 | Suction Nozzle Ø 35 MM |
| 754/10 | 1609390493 | Flat Brush |
| 754/20 | 1609390494 | Flat Brush |
| 754/30 | 1609390495 | Strip brush |
| 755 | 2607000165 | Crevice Nozzle Ø 35 Mm, L= 250 MM |
| 756 | 1609201229 | Suction Nozzle Ø 35 MM |
| 757 | 1609201230 | Suction Nozzle Ø 35 MM |
| 759 | 2607000166 | Suction Nozzle Ø 35 MM |
| 759/20 | 1609202534 | Brush Insert |
| 761 | 1609390481 | Suction Brush Ø 35 MM |
| 762 | 2607000168 | Suction Nozzle Ø 35 MM |
| 764 | 1600499005 | Fitting Ø 25X35 MM |
| 765 | 1609200933 | Reduction Sleeve Ø 49/35 MM+3/4" |
| 773 | 2605411061 | Dust Bag 5 Piece |
| 777 | 2607001248 | Deflector |
| 780 | 2607000167 | Air Hose Ø 49 Mm, 3 M,1 |
| 780/20 | 1609390577 | Fitting Ø 49 MM |
| 782 | 1609200968 | Suction Pipe Ø 49 Mm, L=0,5 M |
| 783 | 2607000169 | Suction Nozzle Ø 49 MM |
| 784 | 1609200970 | Suction Nozzle Ø 49 Mm, 350 MM |
| 784/10 | 1609201109 | Flat Brush |
| 784/20 | 1609201110 | Flat Brush |
| 786 | 1609200971 | Crevice Nozzle Ø 49 MM |
| 787 | 1609200976 | Suction Pipe Ø 49/35 MM |
| 8 | 1609202699 | On-Off Switch |
| 85 | 3601119137 | Warning Plate Caution |
