Bosch PAS 11-21
Bosch PAS 11-21 all purpose vacuum cleane: exploded parts diagram, 4 sheets, 99 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

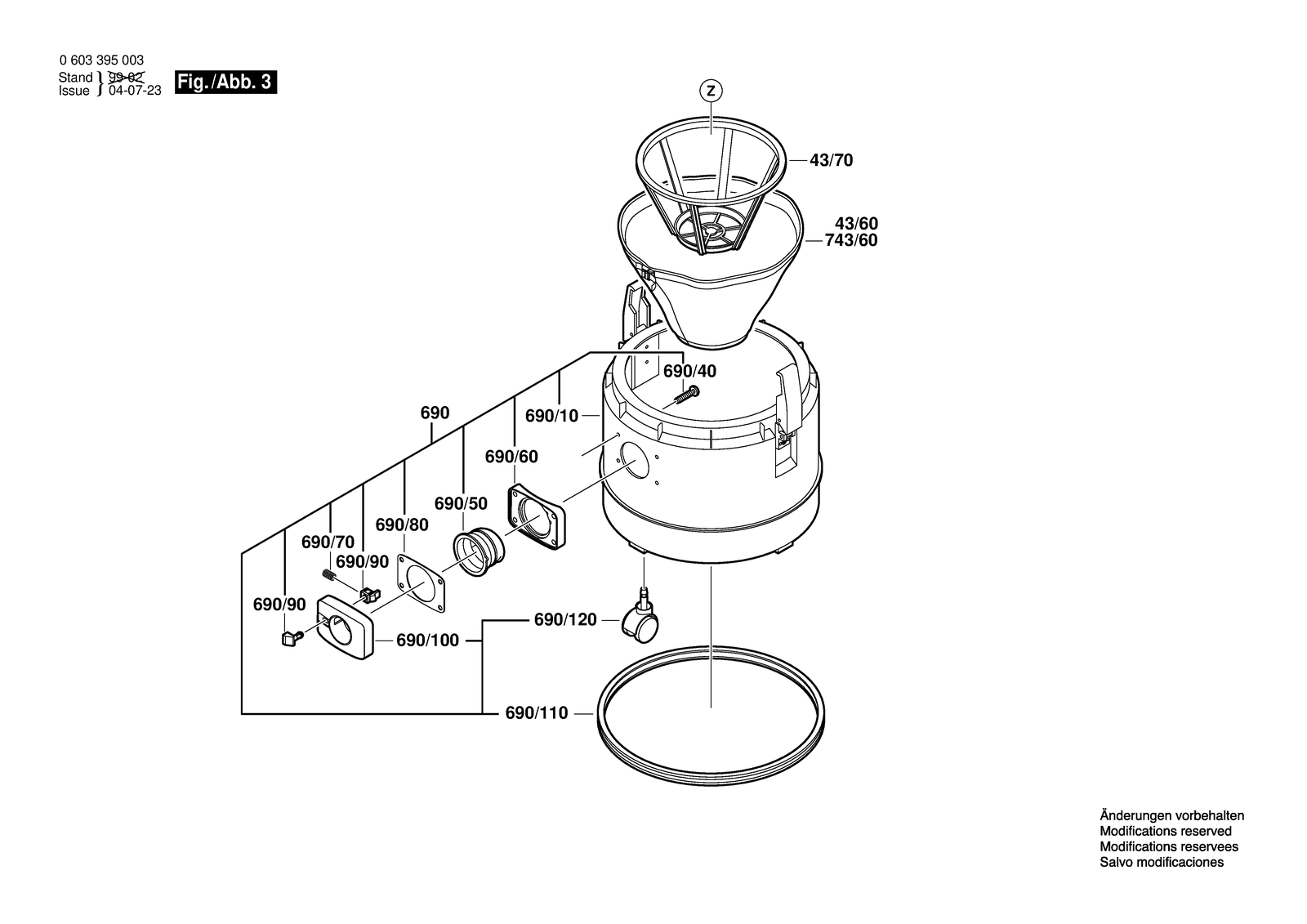

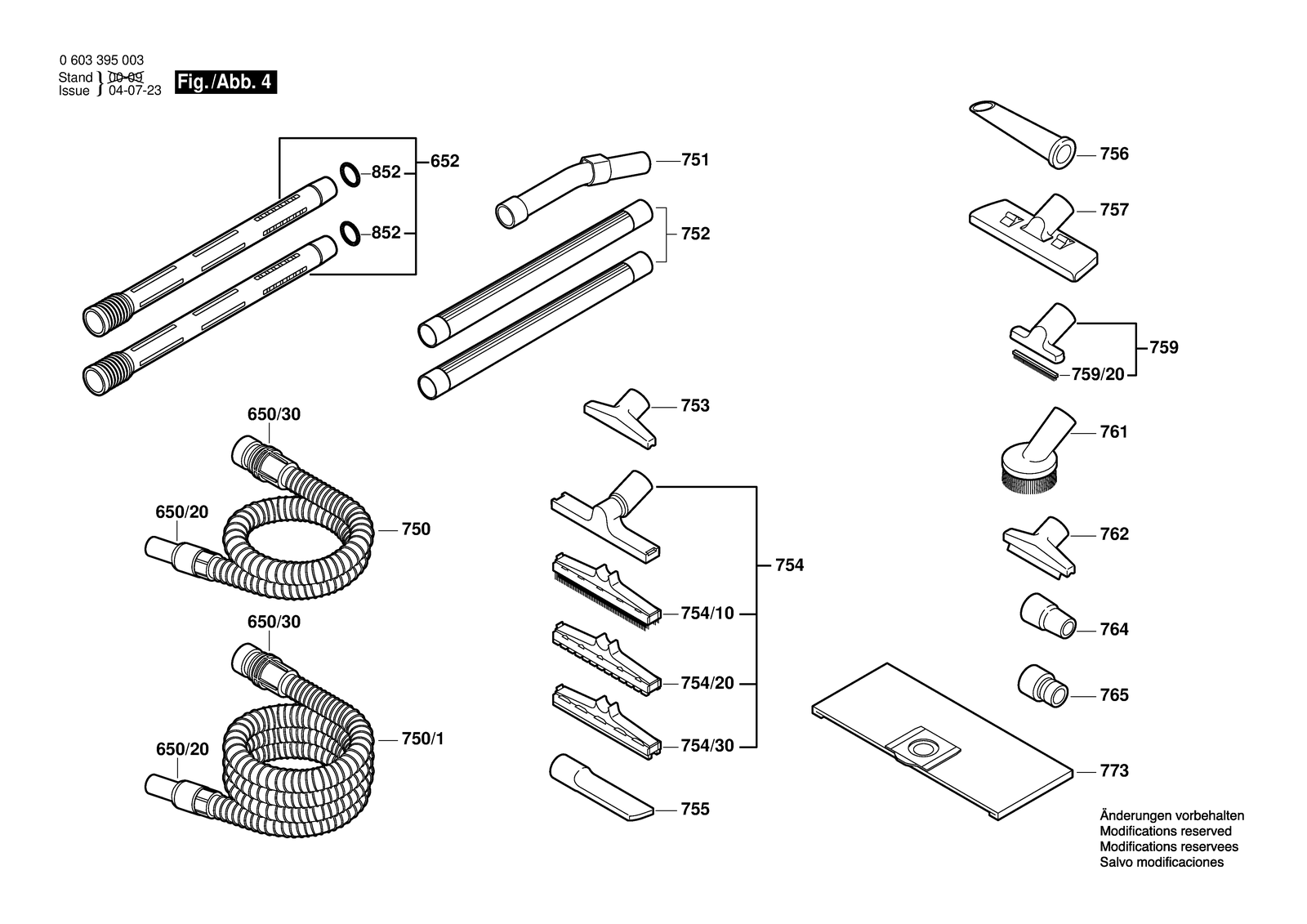

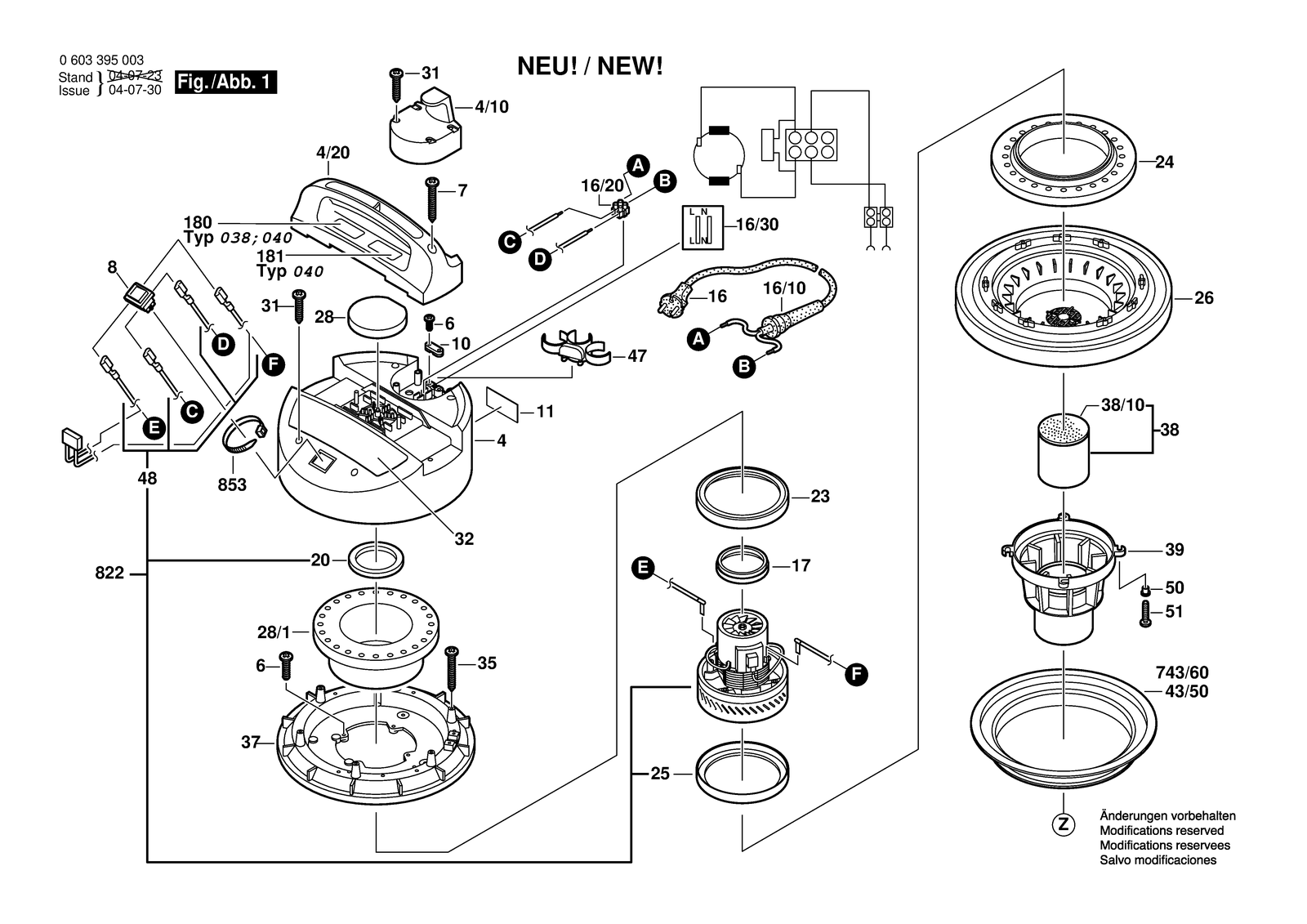

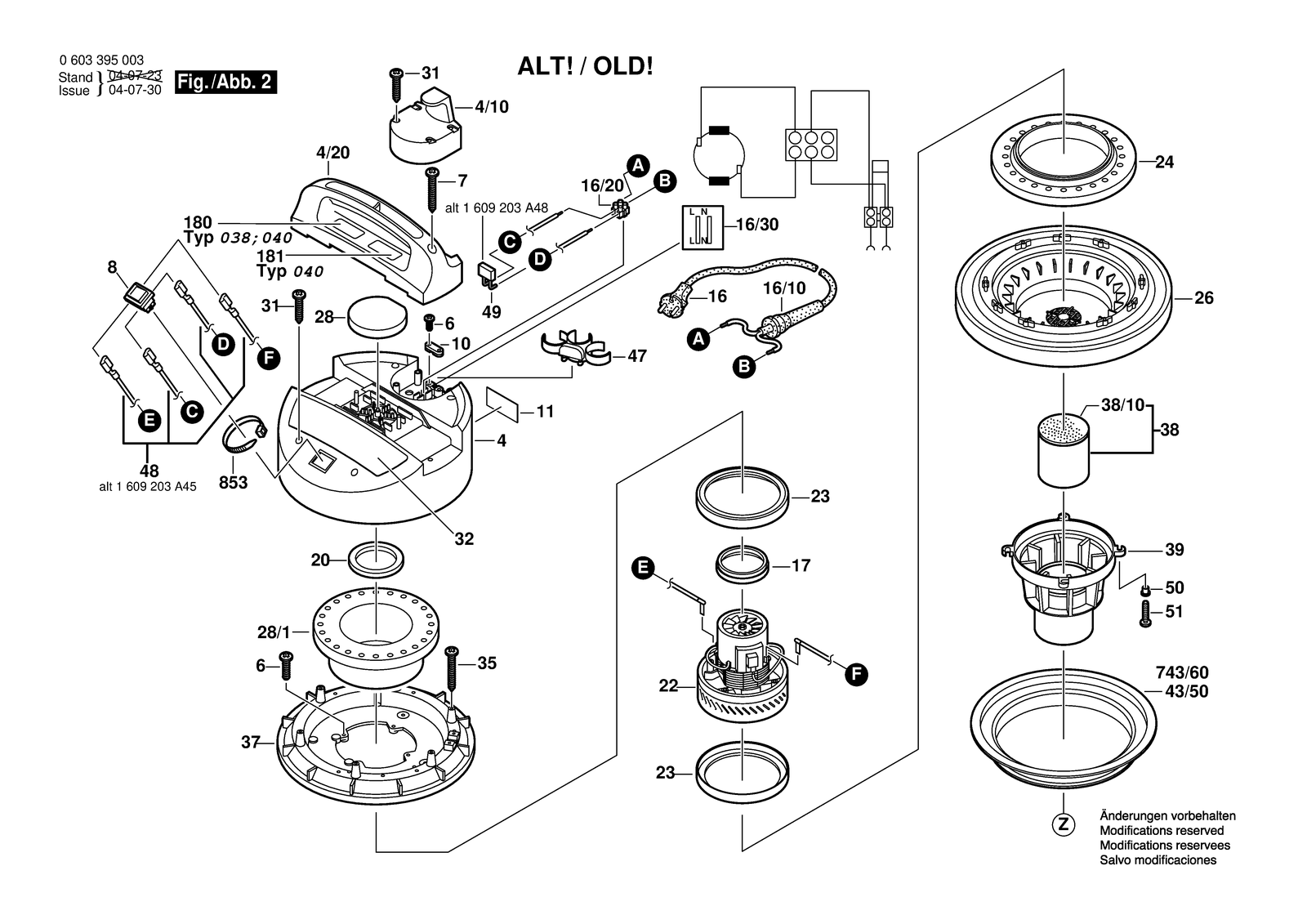

All parts of Bosch PAS 11-21: 99 positions on 4 sheets
Bosch PAS 11-21 parts list (4 sheets)
| No. | Part number | Part name |
|---|---|---|
| 10 | 1609203A26 | Cable Clip |
| 11 | 1601118B21 | Nameplate |
| 11 | 1601118B22 | Nameplate |
| 11 | 1601118B36 | Nameplate |
| 11 | 1601118B87 | Nameplate |
| 11 | 1601118B88 | Nameplate |
| 11 | 1601118B89 | Nameplate |
| 11 | 1601118B91 | Nameplate |
| 11 | 1601118B92 | Nameplate |
| 11 | 1601118C59 | Nameplate |
| 16 | 1609203A24 | Power supply cord |
| 16 | 1609203A94 | Power supply cord |
| 16 | 1609203A95 | Power supply cord |
| 16 | 1609203B48 | Power supply cord |
| 16 | 1609203B53 | Power supply cord |
| 16 | 1609203B72 | Power supply cord |
| 16 | 1609203C22 | Power supply cord |
| 16/10 | 1609203A25 | Grommet |
| 16/20 | 1609203A28 | Socket-Terminal Strip |
| 16/30 | 1609203B34 | Reference Plate |
| 17 | 1609203A36 | Air-Deflector Ring |
| 180 | 1611110F03 | Reference Plate |
| 180 | 3601119137 | Warning Plate Caution |
| 181 | 1611110880 | Warning Plate |
| 20 | 1609203A35 | Seal Ring |
| 22 | 1609203A40 | Suction Blower 220-240V |
| 23 | 1609203A41 | Seal Ring |
| 24 | 1609203A42 | Air-Deflector Ring |
| 25 | 1609203N44 | Seal Ring |
| 26 | 1609203A43 | Intermediate Flange |
| 28 | 1609203A32 | Filter Disc |
| 28/1 | 1609203A37 | Air Filter |
| 31 | 1609203A30 | Tapping Screw 5X30 MM |
| 32 | 1601118B18 | Manufacturer's nameplate |
| 32 | 1601118B19 | Manufacturer's nameplate |
| 32 | 1601118B51 | Nameplate |
| 35 | 1609203A38 | Tapping Screw 5X40 MM |
| 37 | 1609203A39 | Intermediate housing |
| 38 | 1609203A52 | Float |
| 38/10 | 1609203B33 | Seal |
| 39 | 1609203A51 | Suction Basket |
| 4 | 1609203A34 | Covering hood |
| 4/10 | 1609203A29 | Cover |
| 4/20 | 1609203A31 | Handle |
| 43/50 | 1609203A53 | Retaining snap ring |
| 43/60 | 1609203A54 | Filter |
| 43/70 | 1609203A55 | Support Frame |
| 47 | 1609203A44 | Support clamp |
| 48 | 1609203A45 | Cable Set |
| 48 | 1609203N58 | Cable Set |
| 50 | 1609203A49 | Sleeve |
| 51 | 1609203A50 | Tapping Screw 5X20 MM |
| 6 | 1609203A27 | Tapping Screw 5X20 MM |
| 650/20 | 1609203A77 | Fitting Ø 35 MM |
| 650/30 | 1609203A78 | Fitting Ø 45 MM |
| 652 | 1609203B92 | Suction Pipe |
| 690 | 1609203A56 | Dust container |
| 690 | 1609203A69 | Dust container |
| 690/10 | 1609203A67 | Container |
| 690/10 | 1609203A68 | Container |
| 690/100 | 1609203A64 | Cover Plate |
| 690/110 | 1609203A65 | Corner Protection |
| 690/120 | 1609203A66 | Impeller |
| 690/40 | 1609203A30 | Tapping Screw 5X30 MM |
| 690/50 | 1609203A59 | Deflector |
| 690/60 | 1609203A60 | Plate |
| 690/70 | 1609203A61 | Spring |
| 690/80 | 1609203A62 | Sealing Plate |
| 690/90 | 1609203A63 | Push-Button |
| 7 | 1609203A74 | Tapping Screw 5X55 MM |
| 743/60 | 2607432013 | Dust Bag |
| 750 | 2600793009 | Air Hose Ø 19 Mm, 3/4", L= 3 M |
| 750 | 2607002149 | Air Hose Ø35 MM L= 3 M |
| 750/1 | 1610793002 | Air Hose Black Ø19 Mm, L=5M, 3/4" |
| 750/1 | 2607002150 | Air Hose Ø35 MM L= 5 M |
| 751 | 1609390479 | Setting Tube Ø 35 MM |
| 752 | 2607000162 | Suction Pipe Ø 35 Mm, 0,5 M |
| 753 | 2607000170 | Suction Nozzle Ø 35 MM |
| 754 | 1609390478 | Suction Nozzle Ø 35 MM |
| 754/10 | 1609390493 | Flat Brush |
| 754/20 | 1609390494 | Flat Brush |
| 754/30 | 1609390495 | Strip brush |
| 755 | 2607000165 | Crevice Nozzle Ø 35 Mm, L= 250 MM |
| 756 | 1609201229 | Suction Nozzle Ø 35 MM |
| 757 | 1609201230 | Suction Nozzle Ø 35 MM |
| 759 | 2607000166 | Suction Nozzle Ø 35 MM |
| 759/20 | 1609202534 | Brush Insert |
| 761 | 1609390481 | Suction Brush Ø 35 MM |
| 762 | 2607000168 | Suction Nozzle Ø 35 MM |
| 764 | 1609499005 | Fitting |
| 765 | 2607000748 | Adapter Ø 35/Ø19 MM (3/4") |
| 773 | 2605411150 | Dust Bag 5 Piece |
| 8 | 1609203A33 | On-Off Switch |
| 822 | 1609203N48 | Suction Blower 100V |
| 822 | 1609203N49 | Suction Blower 115V |
| 822 | 1609203N53 | Suction Blower 230V |
| 822 | 1609203N54 | Suction Blower 230-240V |
| 852 | 1609203D20 | O-Ring |
| 853 | 1609203A46 | Cable tie |
