Bosch PAM 500

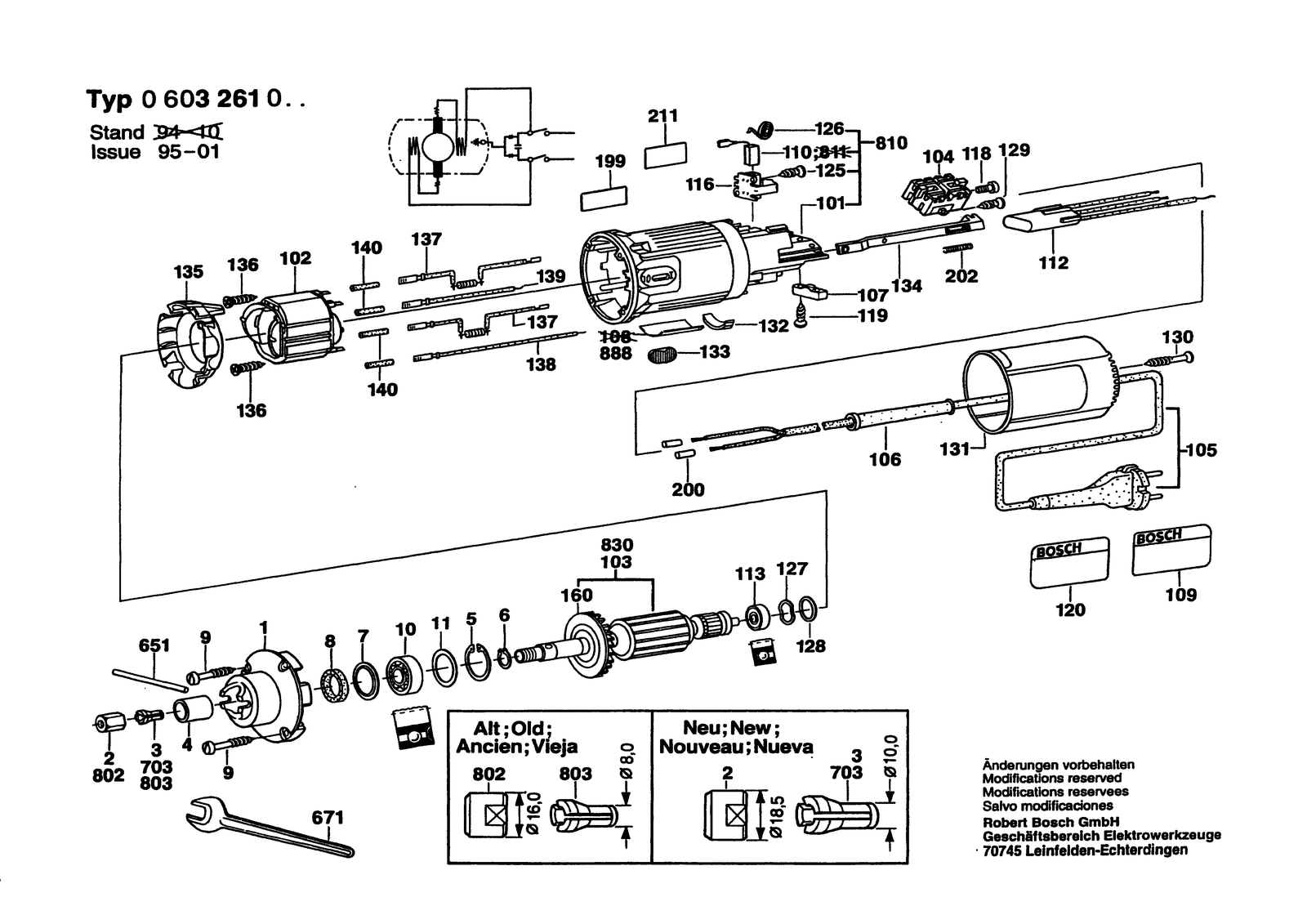

Bosch PAM 500 drive motor: exploded parts diagram, 1 sheet, 71 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PAM 500: 71 positions on 1 sheet
Bosch PAM 500 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605806376 | Spindle Housing Green |
| 10 | 2600905017 | Groove ball bearing 15X32X9 |
| 101 | 2605108905 | Motor Housing Green |
| 102 | 2604220440 | Field 115V |
| 102 | 2604220443 | Field 110-120V |
| 102 | 2604220445 | Field 220-230V |
| 102 | 2604220462 | Field 240V |
| 103 | 2604010692 | Armature 220-230V |
| 103 | 2604010693 | Armature 240V |
| 103 | 2604010696 | Armature 100V |
| 103 | 2604010697 | Armature 110-115V |
| 104 | 2607200674 | Switch |
| 105 | 1604460427 | Power supply cord CH 2,65M 2 X 1,0MM H05 Vv-F |
| 105 | 1607000388 | Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F |
| 105 | 2604460073 | Cable |
| 105 | 2604460095 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 105 | 2604460205 | Power supply cord GB 110V 2,65M 2 X 1,0MM H05 Vv-F |
| 105 | 2604460290 | Power supply cord AUS 240V 2,6M 2 X 0,75MM H05 Vv-F |
| 106 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 106 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 106 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 107 | 1611035005 | Cable Clip |
| 107 | 2601035001 | Cable Clip |
| 109 | 2601110640 | Sticker Sunny Side |
| 11 | 1600102626 | Shim Thick 0,1 MM |
| 110 | 2604320912 | Carbon-Brush Set |
| 112 | 2607329104 | Suppression Filter |
| 113 | 2600905018 | Groove ball bearing 7X22X7 |
| 116 | 1600A003G4 | Brush Holder |
| 116 | 2601323022 | Brush Holder |
| 118 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 119 | 2910611020 | Tapping Screw DIN 7981-ST3,9X19-C-H |
| 120 | 2601110695 | Reference Plate Sunny Side |
| 125 | 2910611006 | Tapping Screw DIN 7981-ST2,9X13-C-H |
| 126 | 1604652013 | Spiral Spring |
| 127 | 2600150004 | Shim |
| 128 | 2600101020 | Shim 0,5 MM |
| 128 | 2600101022 | Shim 0,2 MM |
| 128 | 2600101023 | Shim 0,3 MM |
| 129 | 2910211007 | Tapping Screw DIN 7971-BZ2,9X16 |
| 130 | 2910601421 | Tapping Screw DIN 7982-BZ3,9X22 |
| 131 | 2600508040 | Housing Cover Green |
| 132 | 2600026002 | Intermediate Piece Green |
| 133 | 2602026015 | Switch Handle Black |
| 133 | 2602206014 | Switch Handle |
| 134 | 2602319005 | Adjusting Slide Blue |
| 135 | 2601328045 | Cover Disc |
| 136 | 2603435086 | Tapping Screw |
| 137 | 2604448034 | Connecting Cable White L=88 MM |
| 137 | 2604465106 | Suppressor Box |
| 138 | 2604448040 | Connecting Cable White L=125MM |
| 139 | 2604448039 | Connecting Cable White L=68MM |
| 199 | 1601110265 | Reference Plate |
| 2 | 2603312001 | Union Nut SW 14 |
| 2 | 3603342009 | Round Nut |
| 3 | 2608570047 | Collet Ø 6 MM / Ø 10 MM |
| 3 | 2608570048 | Collet Ø 6,4MM=1/4" / Ø 10MM |
| 3 | 2608570049 | Collet Ø 8 MM / Ø 10 MM |
| 4 | 2600300073 | Seal Bushing |
| 5 | 2916660013 | Retaining clip DIN 472-32X1,2 MM |
| 6 | 2916650006 | Retaining clip DIN 471-15X1-FST |
| 651 | 2603101035 | Straight Pin 4X60 MM |
| 671 | 2607950511 | Single-Head Eng. Wrench SW17 |
| 7 | 2600500033 | Cupped Washer |
| 8 | 2600108033 | Felt Washer |
| 830 | 2604010913 | Armature 100V |
| 830 | 2604010914 | Armature 115V |
| 830 | 2604010915 | Armature 220-230V |
| 830 | 2604010916 | Armature 240V |
| 888 | 160111A3H3 | Nameplate |
| 9 | 2910211020 | Tapping Screw DIN 7971-BZ3,9X19 |
