Bosch PAG 12 V

Bosch PAG 12 V air pump: exploded parts diagram, 1 sheet, 33 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PAG 12 V: 33 positions on 1 sheet

Bosch PAG 12 V parts list (1 sheet)

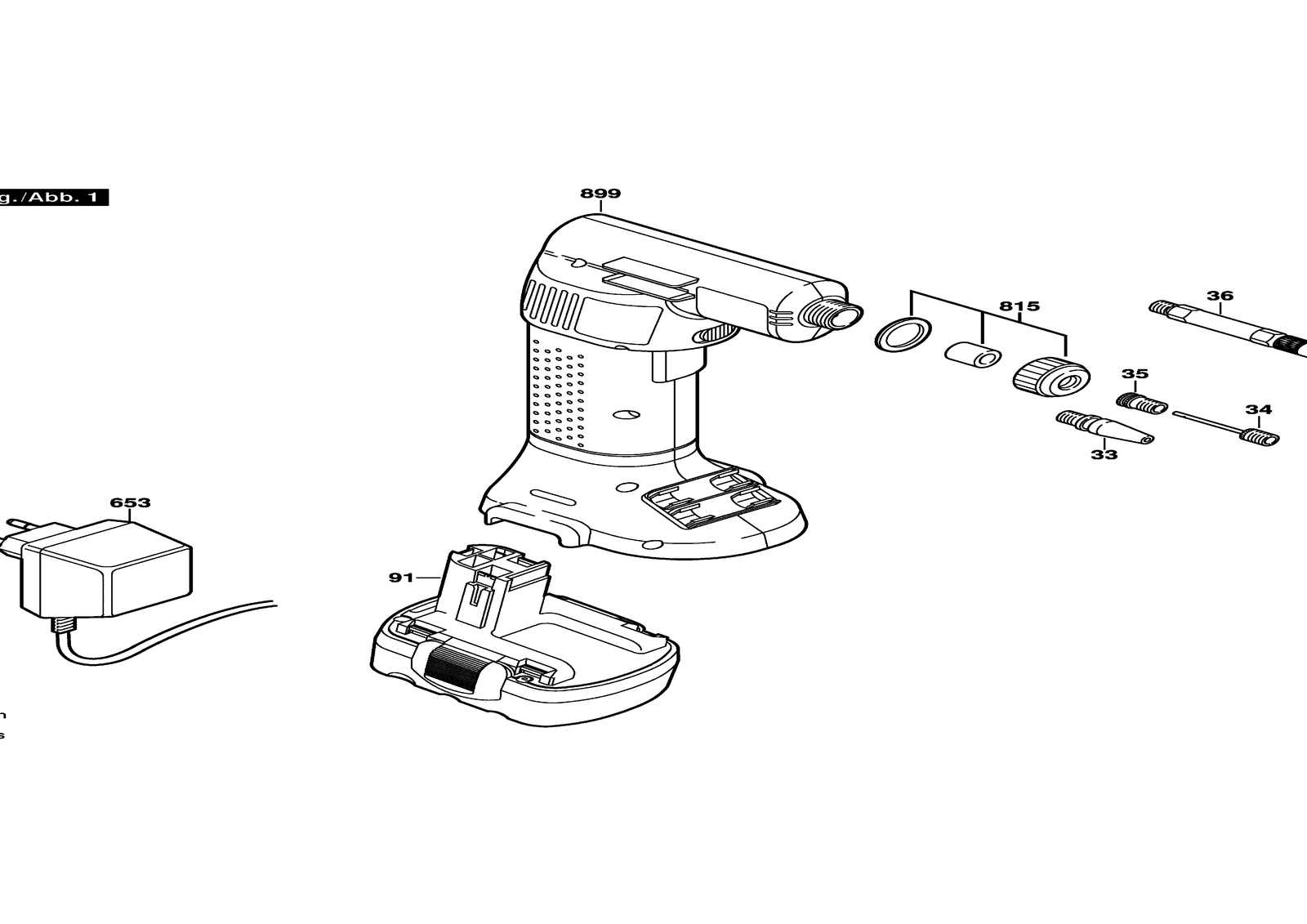

Bosch PAG 12 V parts diagram, sheet 1
No.Part numberPart name
332609390561Nozzle needle
332609390561Nozzle needle
332609390561Nozzle needle
342609390562Nozzle Insert
342609390562Nozzle Insert
342609390562Nozzle Insert
352609390563Nozzle Insert
352609390563Nozzle Insert
352609390563Nozzle Insert
362609390564Hose
362609390564Hose
362609390564Hose
6532607224435Fast Charger J 100/7,2-24V, 1H
6532607225011Fast Charger EU 230/14,4V, 3-5H
6532607225013Fast Charger GB 230/14,4V, 3-5H
6532607224435Fast Charger J 100/7,2-24V, 1H
6532607225011Fast Charger EU 230/14,4V, 3-5H
6532607225013Fast Charger GB 230/14,4V, 3-5H
6532607224319Fast Charger USA 115/9,6V, 3H
6532607224689Fast Charger AR 220/9,6V, 5H
6532607225011Fast Charger EU 230/14,4V, 3-5H
6532607225013Fast Charger GB 230/14,4V, 3-5H
8152601015083Sealing Unit
8152601015083Sealing Unit
8152601015083Sealing Unit
8992607004070Air Pump
8992607004050Air Pump
8992607004060Air Pump
912607335275Slide-In Accu Package 14,4V, 1,25AH, Nicd
912607335273Slide-In Accu Package 12V, 1,2AH, Nicd
912607335697Slide-In Accu Package 12V,2,0AH,NIMH
912607335271Slide-In Accu Package 9,6V, 1,2AH, Nicd
912607335553Slide-In Accu Package 9,6V,2,6AH,NIMH
