Bosch P 120 SB

Bosch P 120 SB percussion drill: exploded parts diagram, 1 sheet, 49 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch P 120 SB: 49 positions on 1 sheet

Bosch P 120 SB parts list (1 sheet)

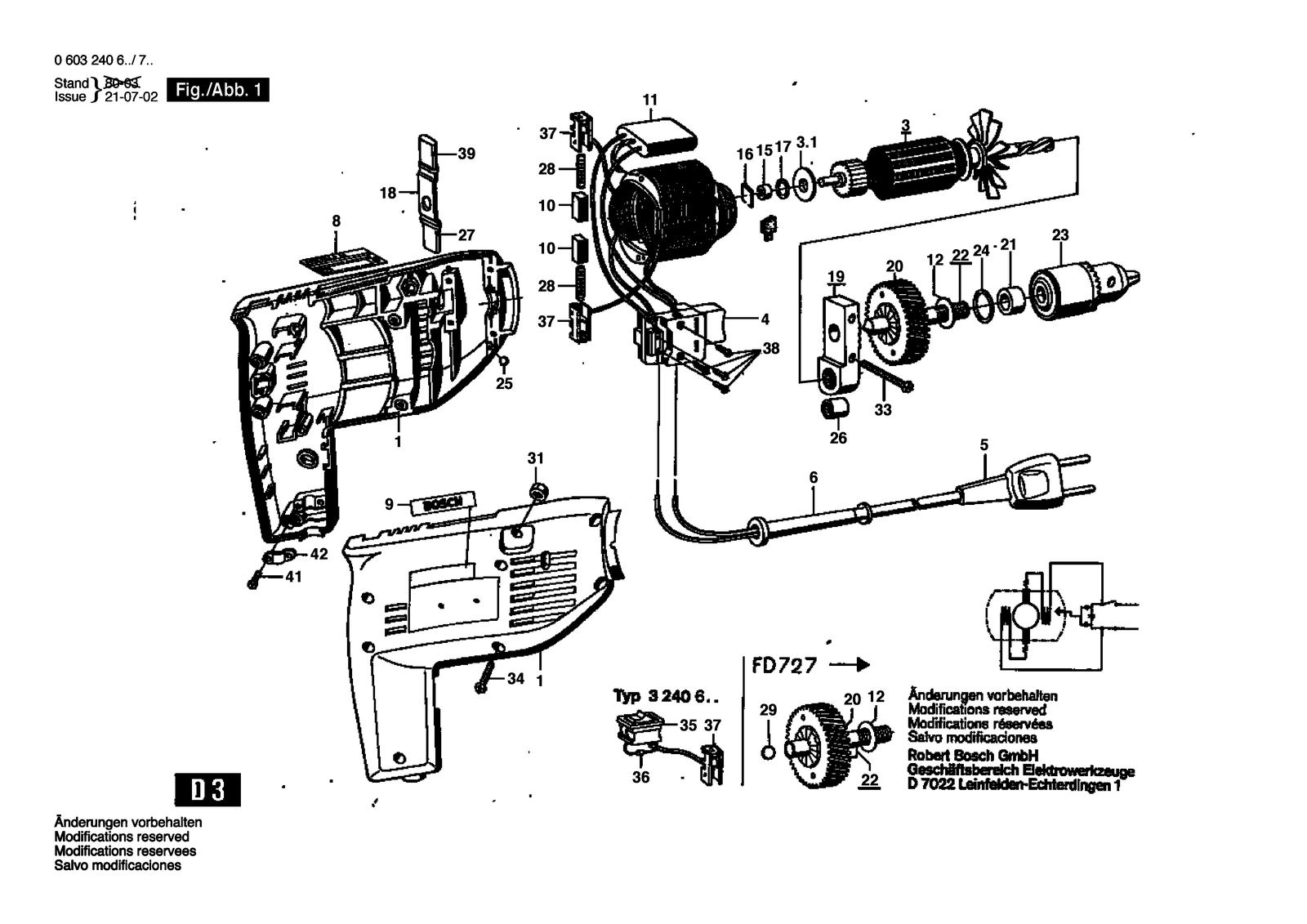

Bosch P 120 SB parts diagram, sheet 1
No.Part numberPart name
12605104933Housing Section
12605104935Housing Section
112607329088Suppression Capacitor
112607329089Suppression Capacitor
122600101616Shim 0,5 MM
122600101617Shim 0,3 MM
151900301004Sintered-Metal Bushing
161601000013Pressure Plate 1,5 MM
162601000018Intermediate Plate 0,3 MM
171610210014O-Ring 8,0X2,5 MM
182601322003Adjusting Slide
192605807901Bearing Bracket
202606320013Cylindrical Gear Z=46
211900301014Sintered-Metal Bushing
222603515003Drilling Spindle
222603524007Drilling Spindle
222606135900Drilling Spindle
222606135902Drilling Spindle
231608571033Chuck Ø 1-10 Mm, 3/8"
232607950007Chuck Wrench SG2
241900210113O-Ring 15X2,5 MM
251903230009Ball DIN 5401-5 G28
261610910057Needle bearing Ø8XØ12X10 MM
272600522002Protective Cap
282604610009Compression Spring
291903230013Ball DIN 5401-Ø7MM-III-ST
32604010487Armature With Fan 110V
32604010488Armature With Fan 115V
32604010489Armature 220V
32604010490Armature With Fan 220-240V
32604220356Pole Shoe 220V
312915011007Hex Nut DIN 934-M6-8-A
332603490026Lens Head Screw 4X32
342910211019Tapping Screw DIN 7971-ST3,9X16-F
352607200904On-Off Switch
362607320008Silicon Diode
372604337001Brush Holder
382603410001Socket head cap screw M3X6,5-4.8
392600522003Protective Cap
41607200060On-Off Switch
41609202464On-Off Switch
412910211004Tapping Screw DIN 7971-BZ2,9X6,5
421601034026Fastening Clamp
51607000388Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F
52604460075Power supply cord
61600703016Grommet Ø6,4-Ø7,5X75 MM
62600703006Grommet Ø9,5 MM
82601105051Nameplate
91601110013Manufacturer's nameplate
