Bosch P 10

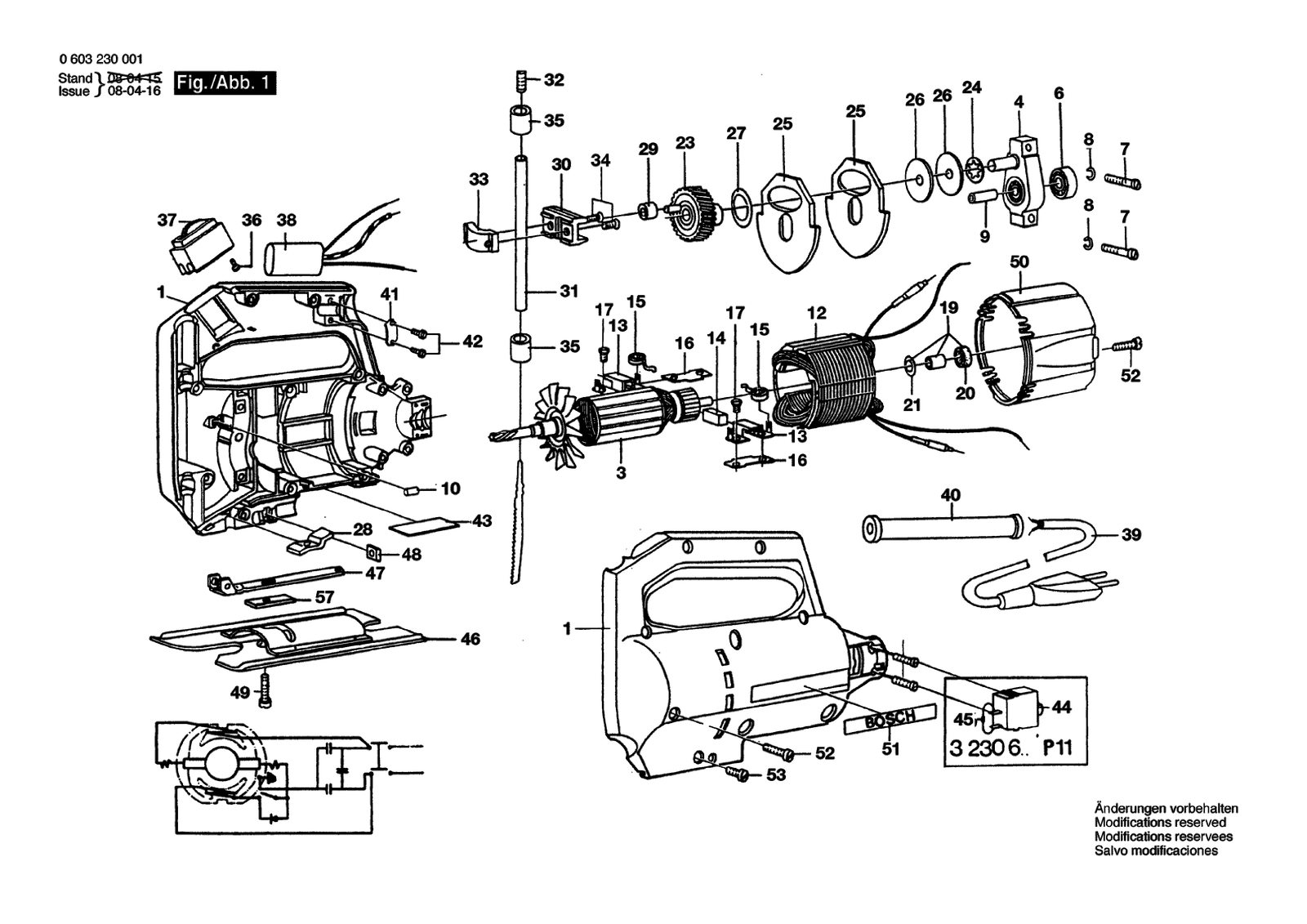

Bosch P 10 jig saw: exploded parts diagram, 1 sheet, 174 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch P 10: 174 positions on 1 sheet
Bosch P 10 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104902 | Motor Housing |
| 1 | 2605104902 | Motor Housing |
| 1 | 2605104932 | Housing Section Blue |
| 1 | 2605104902 | Motor Housing |
| 1 | 2605104932 | Housing Section Blue |
| 10 | 1903201041 | Needle Roller A 3X9,8G2DIN 5402 |
| 10 | 1903201041 | Needle Roller A 3X9,8G2DIN 5402 |
| 10 | 1903201041 | Needle Roller A 3X9,8G2DIN 5402 |
| 12 | 2604220293 | Pole Shoe 220V |
| 12 | 2604220294 | Pole Shoe 240V |
| 12 | 2604220295 | Pole Shoe 110-115V |
| 12 | 2604220271 | Pole Shoe 110V |
| 12 | 2604220272 | Pole Shoe 220V |
| 12 | 2604220275 | Pole Shoe 220V |
| 12 | 2604220294 | Pole Shoe 240V |
| 12 | 2604220295 | Pole Shoe 110-115V |
| 12 | 2604220293 | Pole Shoe 220V |
| 12 | 2604220295 | Pole Shoe 110-115V |
| 13 | 1601323007 | Brush Holder |
| 13 | 1601323007 | Brush Holder |
| 13 | 1601323007 | Brush Holder |
| 15 | 1604652004 | Spiral Spring |
| 15 | 1604652004 | Spiral Spring |
| 15 | 1604652004 | Spiral Spring |
| 16 | 1601034025 | Brush Plate |
| 16 | 1601034025 | Brush Plate |
| 16 | 1601034025 | Brush Plate |
| 17 | 2910601004 | Tapping Screw DIN 7972-BZ2,9X6,5 |
| 17 | 2910601004 | Tapping Screw DIN 7972-BZ2,9X6,5 |
| 17 | 2910601004 | Tapping Screw DIN 7972-BZ2,9X6,5 |
| 19 | 1600301900 | Sintered-Metal Bushing |
| 19 | 1600301900 | Sintered-Metal Bushing |
| 19 | 1600301900 | Sintered-Metal Bushing |
| 20 | 1600205023 | Felt Washer |
| 20 | 1600205023 | Felt Washer |
| 20 | 1600205023 | Felt Washer |
| 21 | 1610210014 | O-Ring 8,0X2,5 MM |
| 21 | 1610210014 | O-Ring 8,0X2,5 MM |
| 21 | 1610210014 | O-Ring 8,0X2,5 MM |
| 23 | 2606319073 | Eccentric Cog Wheel Z=39 |
| 23 | 2606319073 | Eccentric Cog Wheel Z=39 |
| 23 | 2606319073 | Eccentric Cog Wheel Z=39 |
| 24 | 2600150050 | Spring Washer |
| 24 | 2600150050 | Spring Washer |
| 24 | 2600150050 | Spring Washer |
| 25 | 1619P02421 | Counter Weight |
| 25 | 1619P02421 | Counter Weight |
| 25 | 1619P02421 | Counter Weight |
| 26 | 2600102658 | Shim 0,5 MM |
| 26 | 2600102656 | Shim 0,2 MM |
| 26 | 2600102658 | Shim 0,5 MM |
| 26 | 2600102656 | Shim 0,2 MM |
| 26 | 2600102658 | Shim 0,5 MM |
| 27 | 2600101673 | Shim Ø 18,3 MM |
| 27 | 2600101673 | Shim Ø 18,3 MM |
| 27 | 2600101673 | Shim Ø 18,3 MM |
| 28 | 2600102656 | Shim 0,2 MM |
| 28 | 2601030017 | Guide Support |
| 28 | 2601030017 | Guide Support |
| 29 | 2600917904 | Needle bearing |
| 29 | 2600917904 | Needle bearing |
| 29 | 2600917904 | Needle bearing |
| 3 | 2604010370 | Armature 110-115V |
| 3 | 2604010371 | Armature 220-240V |
| 3 | 2604010372 | Armature With Fan 240-250V |
| 3 | 2604010370 | Armature 110-115V |
| 3 | 2604010371 | Armature 220-240V |
| 3 | 2604010372 | Armature With Fan 240-250V |
| 3 | 2604010370 | Armature 110-115V |
| 3 | 2604010371 | Armature 220-240V |
| 30 | 2601321036 | Sliding Piece |
| 30 | 2601321036 | Sliding Piece |
| 30 | 2601321036 | Sliding Piece |
| 31 | 2600780002 | Lifting Rod |
| 31 | 2600780900 | Lifting Rod |
| 31 | 2600780002 | Lifting Rod |
| 31 | 2600780900 | Lifting Rod |
| 31 | 2600780002 | Lifting Rod |
| 31 | 2600780900 | Lifting Rod |
| 32 | 2603400000 | Clamp Screw |
| 32 | 2603400000 | Clamp Screw |
| 32 | 2603400000 | Clamp Screw |
| 33 | 2602329011 | Clamping Saddle |
| 33 | 2602329011 | Clamping Saddle |
| 33 | 2602329011 | Clamping Saddle |
| 34 | 2603421040 | Countersunk-Head Screw DIN 7962-M3,5X8-10.9 |
| 34 | 2603421040 | Countersunk-Head Screw DIN 7962-M3,5X8-10.9 |
| 34 | 2603421040 | Countersunk-Head Screw DIN 7962-M3,5X8-10.9 |
| 35 | 2600301049 | Sintered-Metal Bushing |
| 35 | 2600301049 | Sintered-Metal Bushing |
| 35 | 2600301049 | Sintered-Metal Bushing |
| 36 | 2603410023 | Socket head cap screw M3X10 MM |
| 36 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 36 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 37 | 2607200048 | On-Off Switch |
| 37 | 2607200048 | On-Off Switch |
| 37 | 2607200048 | On-Off Switch |
| 38 | 2607329069 | Suppression Capacitor |
| 38 | 2607329099 | Component |
| 38 | 2607329099 | Component |
| 39 | 1604460427 | Power supply cord CH 2,65M 2 X 1,0MM H05 Vv-F |
| 39 | 1604460427 | Power supply cord CH 2,65M 2 X 1,0MM H05 Vv-F |
| 39 | 2604460205 | Power supply cord GB 110V 2,65M 2 X 1,0MM H05 Vv-F |
| 39 | 1604460427 | Power supply cord CH 2,65M 2 X 1,0MM H05 Vv-F |
| 39 | 2604460205 | Power supply cord GB 110V 2,65M 2 X 1,0MM H05 Vv-F |
| 4 | 2605807000 | Bearing Bracket |
| 4 | 2605807000 | Bearing Bracket |
| 4 | 2605807000 | Bearing Bracket |
| 40 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 40 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 40 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 40 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 40 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 40 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 40 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 40 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 40 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 41 | 1601034026 | Fastening Clamp |
| 41 | 1601034026 | Fastening Clamp |
| 41 | 1601034026 | Fastening Clamp |
| 42 | 2910211004 | Tapping Screw DIN 7971-BZ2,9X6,5 |
| 42 | 2910211004 | Tapping Screw DIN 7971-BZ2,9X6,5 |
| 42 | 2910211005 | Tapping Screw DIN 7971-ST2,9X9,5-F |
| 42 | 2910211004 | Tapping Screw DIN 7971-BZ2,9X6,5 |
| 42 | 2910211005 | Tapping Screw DIN 7971-ST2,9X9,5-F |
| 43 | 2601105052 | Component |
| 44 | 1607200050 | Change-Over Switch |
| 44 | 1607200050 | Change-Over Switch |
| 44 | 1607200050 | Change-Over Switch |
| 45 | 2607320008 | Silicon Diode |
| 45 | 2607320008 | Silicon Diode |
| 45 | 2607320008 | Silicon Diode |
| 46 | 2601016043 | Base Plate |
| 46 | 2601016043 | Base Plate |
| 46 | 2601016043 | Base Plate |
| 47 | 2608135900 | Retaining Bracket |
| 48 | 2601030017 | Guide Support |
| 48 | 2915121005 | Square Nut DIN 562-M5-04 |
| 48 | 2915121005 | Square Nut DIN 562-M5-04 |
| 49 | 2603410028 | Pan head screw |
| 49 | 2603410028 | Pan head screw |
| 49 | 2603410028 | Pan head screw |
| 50 | 2605500029 | Fan Cover |
| 50 | 1605500066 | Sealing cap Green |
| 50 | 2605500037 | Housing Cover Blue |
| 50 | 1605500078 | Sealing cap |
| 50 | 2605500037 | Housing Cover Blue |
| 51 | 2601007003 | Sticker |
| 51 | 1601110481 | Manufacturer's nameplate Shadow Side |
| 51 | 2601007003 | Sticker |
| 51 | 2601110023 | Manufacturer's nameplate |
| 51 | 1601110481 | Manufacturer's nameplate Shadow Side |
| 51 | 2601007003 | Sticker |
| 51 | 2601110043 | Manufacturer's nameplate |
| 52 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 52 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 52 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 53 | 2910211017 | Tapping Screw DIN 7971-BZ3,9X9,5 |
| 53 | 2910211017 | Tapping Screw DIN 7971-BZ3,9X9,5 |
| 53 | 2910211017 | Tapping Screw DIN 7971-BZ3,9X9,5 |
| 57 | 2601000014 | Intermediate Plate |
| 57 | 2601000014 | Intermediate Plate |
| 6 | 2600900001 | Groove ball bearing |
| 6 | 2600900001 | Groove ball bearing |
| 6 | 2600900001 | Groove ball bearing |
| 7 | 2603410027 | Socket head cap screw |
| 7 | 2603410027 | Socket head cap screw |
| 7 | 2603410027 | Socket head cap screw |
| 8 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 8 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 8 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 9 | 2600400024 | Guide Sleeve |
| 9 | 2600400024 | Guide Sleeve |
| 9 | 2600400024 | Guide Sleeve |
