Bosch NO DESCRIPTION

Bosch NO DESCRIPTION rotary hammer: exploded parts diagram, 2 sheets, 125 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch NO DESCRIPTION: 125 positions on 2 sheets

Bosch NO DESCRIPTION parts list (2 sheets)

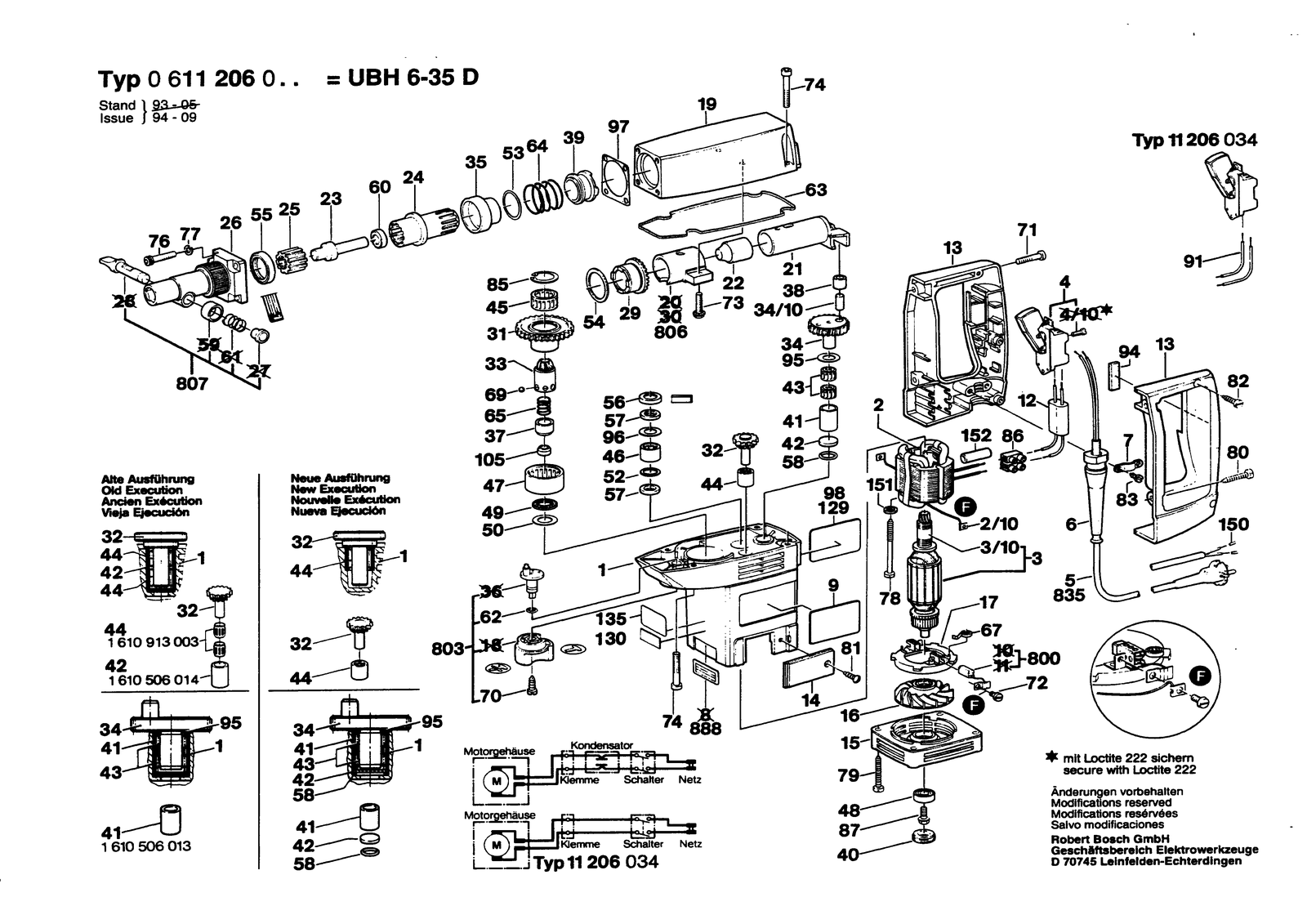

Bosch NO DESCRIPTION parts diagram, sheet 1Bosch NO DESCRIPTION parts diagram, sheet 2
No.Part numberPart name
11615102137Motor Housing
1051610502005Spring retaining ring
121617328002Suppression Filter
1201612025019Auxiliary Handle M8
1211618040077Support clamp
1221613521001Stud bolt M8
1231611316003Clamping Band Ø43 MM
1241613100012Straight Pin
1251613480009Wing Screw M6X25 MM
1261613300006Hex Nut M6
1271611030009Clamping Plate
1291611110476Manufacturer's nameplate
131615132019Handle Black
1303601119137Warning Plate Caution
1351611110387Reference Plate
141615500283Sealing cap Blue
151615808070Bearing cover
1501900452012End Splice DIN 46 228-A1-6
1512916060006Spring Washer DIN 137-A5-FST
1521610703051Grommet
161616610053Fan
171614336000Brush Holder
191615806026Gear Housing
21614220054Field 220-230V
21614220055Field 100V
21614220056Field 110-115V
21614220057Field 240V
2/101901350003Terminal lug 1,5-4X4
211618700041Hammer Piston
221618710038Striker
231613124029Striker Pin
241616490007Guide Bushing
251616490005Carrier
261618597023Toolholder
291616333010Bevel Gear Z=31
31614010013Armature 220-230V
31614010014Armature 100V
31614010015Armature 110-115V
31614010016Armature 240V
3/101610300045Bushing
311616303001Cylindrical Gear Z=51
321616312000Toothed Shaft Z=14/22
331616333011Bevel Gear Z=8
341616110025Eccentric Shaft Z=36
34/101613100011Bearing bolt
351610328011Guide Sleeve
371610506015Guide Sleeve
381610300046Bushing
391616490008Clutch Sleeve
41617200017On-Off Switch
401613344002Threaded Ring
411610400029Bearing Sleeve
421610000002Cover Disc
431610913004Needle-Roller Assembly Ø13 MM
441610910067Needle bearing
451610913002Needle-Roller Assembly
461600910011Needle bearing
471610910058Needle bearing
481900905025Ball Bearing 9X26X8
491610920001Thrust Needle Rim
51604460034Power supply cord AUS 2,65M 2 X 1,0MM Pvc
51604460092Power supply cord Usa/cdn 2,15M 2 X 2,08MM SJ 14/2
51614460006Power supply cord CH 4,15M 2 X 1,0MM H07 Rn-F
51614460022Power supply cord J 5M 2 X 1,25MM Pvc
501610101608Thrust Bearing Disc
521610101607Supporting Disc Thick 1,5 MM
531610102615Supporting Disc Thick 0,5 MM
541610102614Supporting Disc Thick 1,0 MM
551610283013Seal Ring
561610500004Retaining snap ring
571610205002Felt Washer
581610210075O-Ring 20,0X1,5 MM
61600703009Grommet Ø11,5-Ø15,0X150 MM
63600703011Grommet Ø9,2-Ø12X120 MM
601610290003Backup ring
621900210104O-Ring 8X2 MM
631611015018Sealing Frame
641614616003Compression Spring
651614619004Compression Spring
671604652006Spiral Spring
691903230011Ball DIN 5401-6 G28
71601302013Fastening Clamp
71601302014Fastening Clamp
702910021122Socket head cap screw DIN 84-AM4X12-8.8
702910211020Tapping Screw DIN 7971-BZ3,9X19
712910011164Socket head cap screw DIN 84-AM5X25-5.8
7151613001003Depth-Gauge SW 6X330 MM
722910021118Socket head cap screw DIN 84-AM4X8-8.8
7201612025020Auxiliary Handle Ø43 MM
720/12602025075Auxiliary Handle Black M14X1,5 MM
731613454002Hex Screw
742910141168Hex Socket Head Cap Screw DIN 912-M 5X35-8.8
7501615438086Carrying Case
7501615438142Carrying Case
7551610508014Protective Cap
7552600508018Sealing cap
7552600508042Protective Cap
761613414006Hex Socket Head Cap Screw M 6X30
772916690005Spring Lock Washer M6
781603435008Tapping Screw BZ4,8X63 MM
792910211037Tapping Screw DIN 7971-BZ4,8X32
802910211036Tapping Screw DIN 7971-ST4,8X25-F
8001617014108Carbon-Brush Set
8031617000079Parts Set
8051617000057Wear and Tear Part Set
8061615819002Bearing Pedestal
8071617000014Locking Bolt Set
812910601118Tapping Screw DIN 7972-B3,9X13
8141617000038Parts Set
822910211011Tapping Screw DIN 7971-BZ3,5X13
832910021116Socket head cap screw DIN 84-AM4X6-8.8
832910211018Tapping Screw DIN 7971-ST3,9X13-F
8351607000227Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F
852916660012Spring retaining ring 30X1,2MM, DIN 472
861901091110Strip Terminal
871613454001Hex Screw
888160111A3H3Nameplate
91611110475Manufacturer's nameplate
91611110482Manufacturer's nameplate
911614437007Connecting Cable L=230 MM
941602381001Insulating Strip 33X10X6 MM
951610101609Supporting Disc Thick 0,5 MM
961610102017Supporting Disc Thick 1,5 MM
971611015020Sealing Plate
981611110468Manufacturer's nameplate
