All parts on this sheet0
All parts of Makita N5900B: 66 positions on 1 sheet

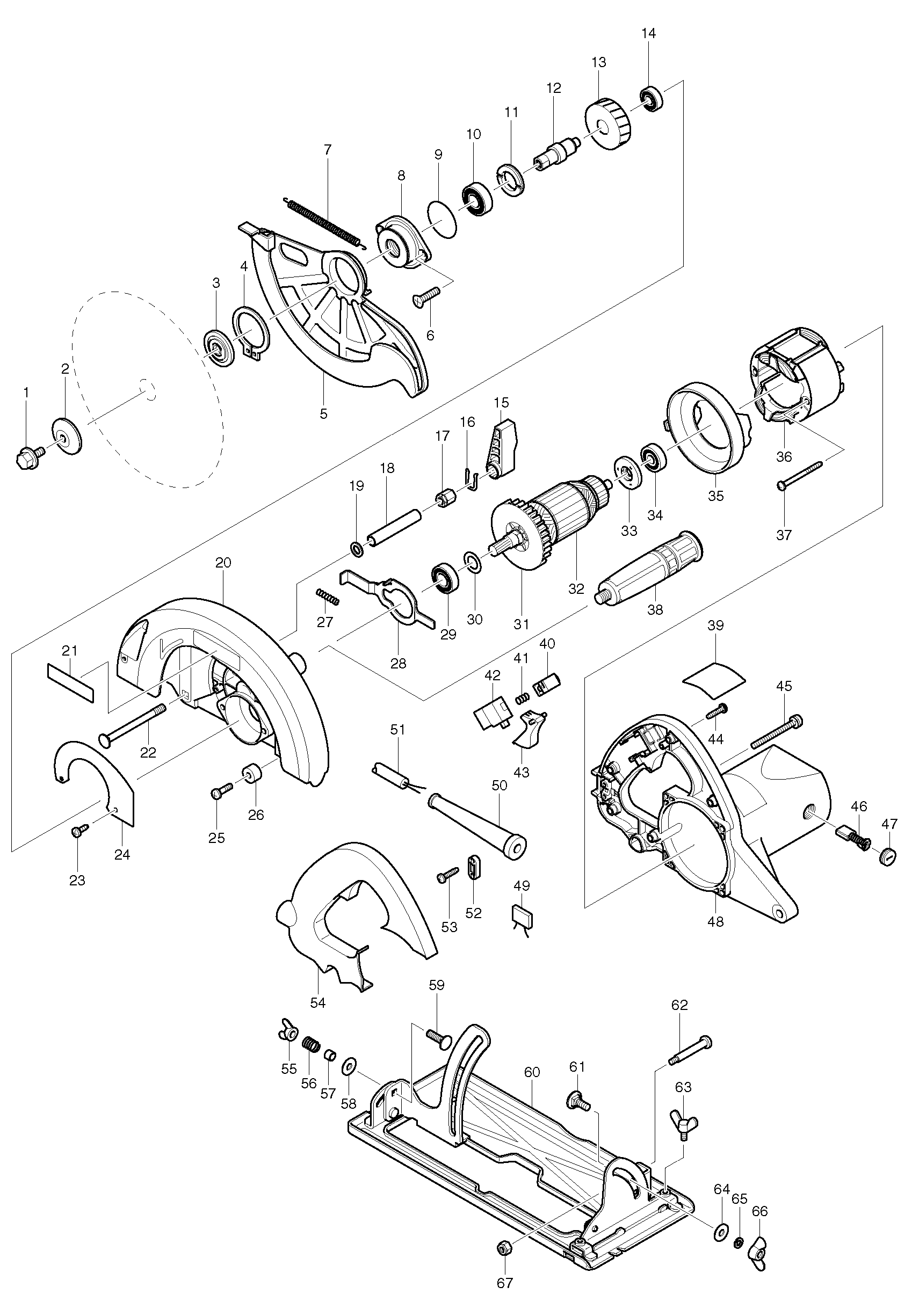

Sheet 1: Makita N5900B parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 251644-1 | Makita 251644-1 Hex Flange Head Bolt M8*20 for 5007NB |
| 2 | 224301-4 | Makita 224301-4 OUTER FLANCE 42, 5903R |
| 3 | 224302-2 | Makita 224302-2 Inner Flange for 42 5903R, N5900B |
| 4 | 961202-2 | Makita 961202-2 RETAINING RING S-42, N5900B |
| 5 | 318091-0 | Makita 318091-0 SAFETY COVER, 5902B |
| 6 | 265031-8 | Makita 265031-8 COUNTERSUNK NECK BOLT M6*20, N5900B |
| 7 | 231846-5 | Makita 231846-5 TENSION SPRING 5, 5902B |
| 8 | 318089-7 | Makita 318089-7 BEARING BOX, 5902B |
| 9 | 213560-5 | Makita 213560-5 O RING 44, N5900B |
| 10 | 211228-7 | Makita 211228-7 BALL BEARING 6202DDW, GA9010 |
| 11 | 285809-3 | Makita 285809-3 BEARING RETAINER 23-36, N5900B |
| 12 | 323955-5 | Makita 323955-5 SPINDLE, N5900B |
| 13 | 226523-2 | Makita 226523-2 Helical Gear 39 for N5900B HS0600 |
| 14 | 211088-7 | Makita 211088-7 BALL BEARING 6000DDW, 9526NB |
| 15 | 272230-5 | Makita 272230-5 Lever 54 for N5900B |
| 16 | 231955-0 | Makita 231955-0 RING SPRING 12, N5900B |
| 17 | 252134-7 | Makita 252134-7 HEX NUT, 5903R |
| 18 | 331568-8 | Makita 331568-8 PIPE 9, N5900B |
| 19 | 941201-0 | Makita 941201-0 FLAT WASHER 8, 5007NB |
| 20 | 188420-9 | Makita 188420-9 BLADE CASE SETN5900B |
| 21 | 819064-1 | Makita 819064-1 MAKITA LOGO LABEL, LS1040 |
| 22 | 266237-1 | Makita 266237-1 F.H. SQUARE NECK BOLT M8*90, 5007MG |
| 23 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 24 | 345760-0 | Makita 345760-0 COVER PLATE, 5902B |
| 25 | 251350-8 | Makita 251350-8 COUNTERSUNK HEAD SCREW M6*28, 5277NB |
| 26 | 262564-4 | Makita 262564-4 RUBBER SLEEVE 6, 5902B |
| 27 | 233264-3 | Makita 233264-3 COMPRESSION SPRING5, N5900B |
| 28 | 344844-1 | Makita 344844-1 SHAFT LOCK, N5900B |
| 29 | 211236-8 | Makita 211236-8 Ball Bearing 6002DDW, BO3700 |
| 30 | 267164-5 | Makita 267164-5 FLAT WASHER 4, N5900B |
| 32 | 516818-4 | Makita 516818-4 Armature Assembly 220V for N5900B |
| 33 | 681630-2 | Makita 681630-2 INSULATION WASHER, GA9020 |
| 34 | 211066-7 | Makita 211066-7 BALL BEARING 6200LLB, BO4510 |
| 35 | 417114-2 | Makita 417114-2 BAFFLE PLATE, N5900B |
| 36 | 596208-7 | Makita 596208-7 FIELD ASSY 220V, 5901B |
| 37 | 266044-2 | Makita 266044-2 TAPPING SCREW PT 5X60, 5806B |
| 38 | 152612-6 | Makita 152612-6 GRIP 36 COMPLETE, N5900B |
| 39 | 850732-7 | |
| 40 | ||
| 41 | 233284-7 | Makita 233284-7 COMPRESSION SPRING 5, N5900B |
| 42 | 651984-1 | Makita 651984-1 SWITCH TG71B-2, N5900B |
| 43 | 417115-0 | Makita 417115-0 SWITCH LEVER, N5900B |
| 44 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 45 | 911273-9 | Makita 911273-9 PAN HEAD SCREW M5X50 WR, 2414NB |
| 46 | 181044-0 | Makita 181044-0 Carbon Brush CB-153 |
| 47 | 643650-4 | Makita 643650-4 Holder Cap for LS1040 |
| 48 | 151848-4 | Makita 151848-4 MOTOR HOUSING COMPLETE N5900B, N5900B |
| 49 | 645200-1 | Makita 645200-1 Capacitor for 9523NB 9227CB 9237CB |
| 50 | 682564-2 | Makita 682564-2 CORD GUARD 10, N5900B |
| 51 | 665865-3 | Makita 665865-3 POWER S.CORD CEE(H07RN-F), JR3060T |
| 52 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 53 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 54 | 417118-4 | Makita 417118-4 HANDLE COVER, N5900B |
| 55 | 934301-3 | Makita 934301-3 WING NUT M6, 5806B |
| 56 | 231139-0 | Makita 231139-0 COMPRESSION SPRING 9, N5900B |
| 57 | 257669-3 | Makita 257669-3 SLEEVE 6, N5900B |
| 58 | 253047-5 | Makita 253047-5 FLAT WASHER 6 |
| 59 | 251919-8 | Makita 251919-8 F.H. SQUARE NECK BOLT M6*20, N5900B |
| 60 | 168389-3 | Makita 168389-3 BASE, N5900B |
| 61 | 266330-1 | Makita 266330-1 F.H. SQUARE NECK BOLT M6*16, N5900B |
| 62 | 251221-9 | Makita 251221-9 PAN HEAD SCREW M6, N5900B |
| 63 | 924306-1 | Makita 924306-1 WING BOLT M6*10, 2414NB |
| 64 | 253047-5 | Makita 253047-5 FLAT WASHER 6 |
| 65 | 942151-2 | Makita 942151-2 SPRING WASHER 6, 5806B |
| 66 | 934301-3 | Makita 934301-3 WING NUT M6, 5806B |
| 67 | 252014-7 | Makita 252014-7 HEX LOCK NUT M6*10, N5900B |
