Bosch MXH180

Bosch MXH180 multipurpose tool: exploded parts diagram, 1 sheet, 18 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch MXH180: 18 positions on 1 sheet

Bosch MXH180 parts list (1 sheet)

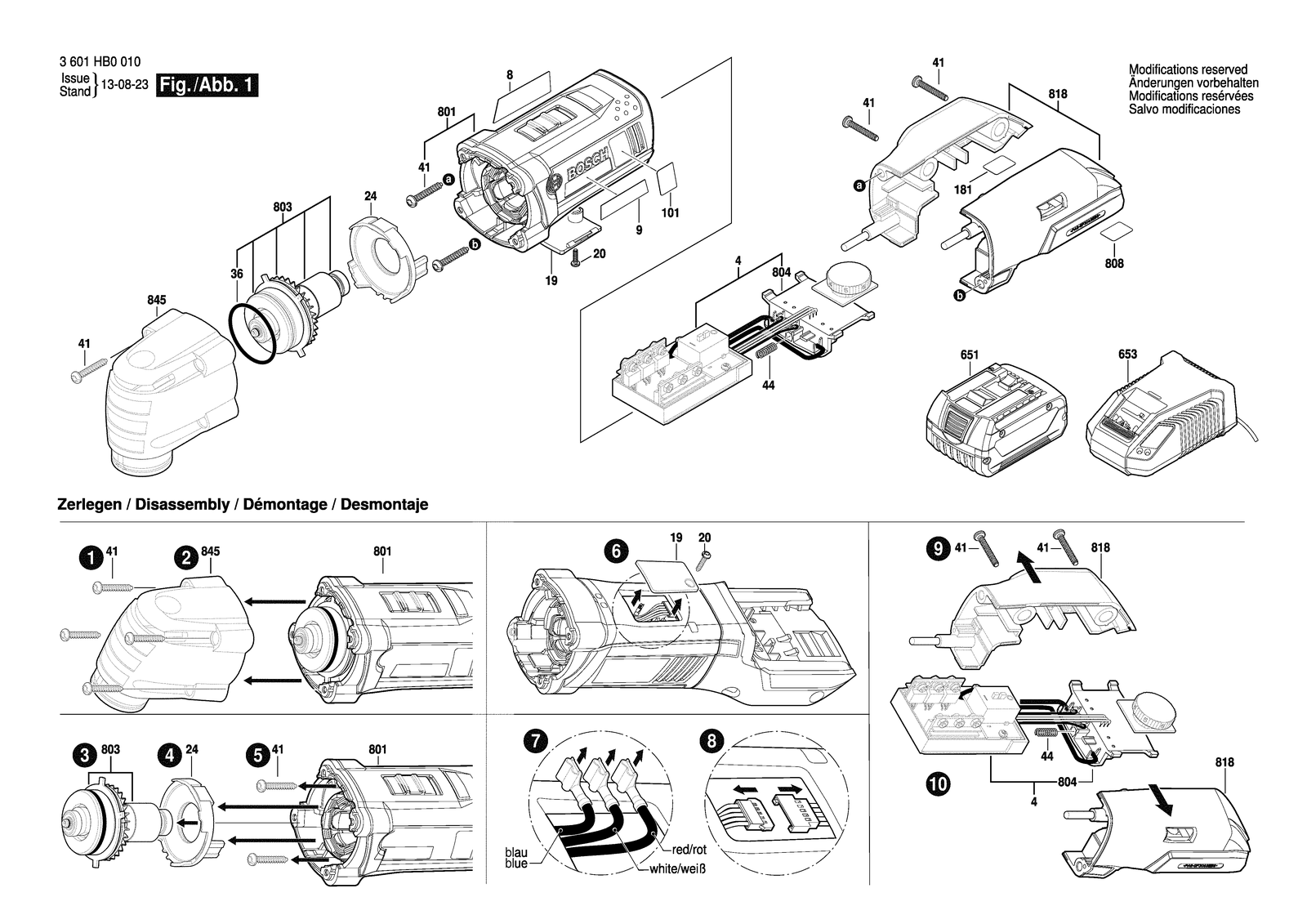

Bosch MXH180 parts diagram, sheet 1
No.Part numberPart name
1012609133977Sticker
181160111C2X6Reference Plate
192609101134Cover
202603490016Torx Oval-Head Screw 3X8
242609101144Air-Deflector Ring
362600210056O-Ring 31,0X2,0 MM
41600A01EC4Electronics Module
412603490024Torx Oval-Head Screw 4X25
441609280477Compression Spring
6512607336819Battery Pack Usa BAT620 18V 4,0AH
82609133913Warning Label
8012609199679Housing Assembly
8032609199680Armature assembly
8041609280478Contact retainer
8082609134177Nameplate
8182609199750Battery Housing
8452605806872Gear Head
92609133915Nameplate Lithium-Ion
