Bosch MX25E

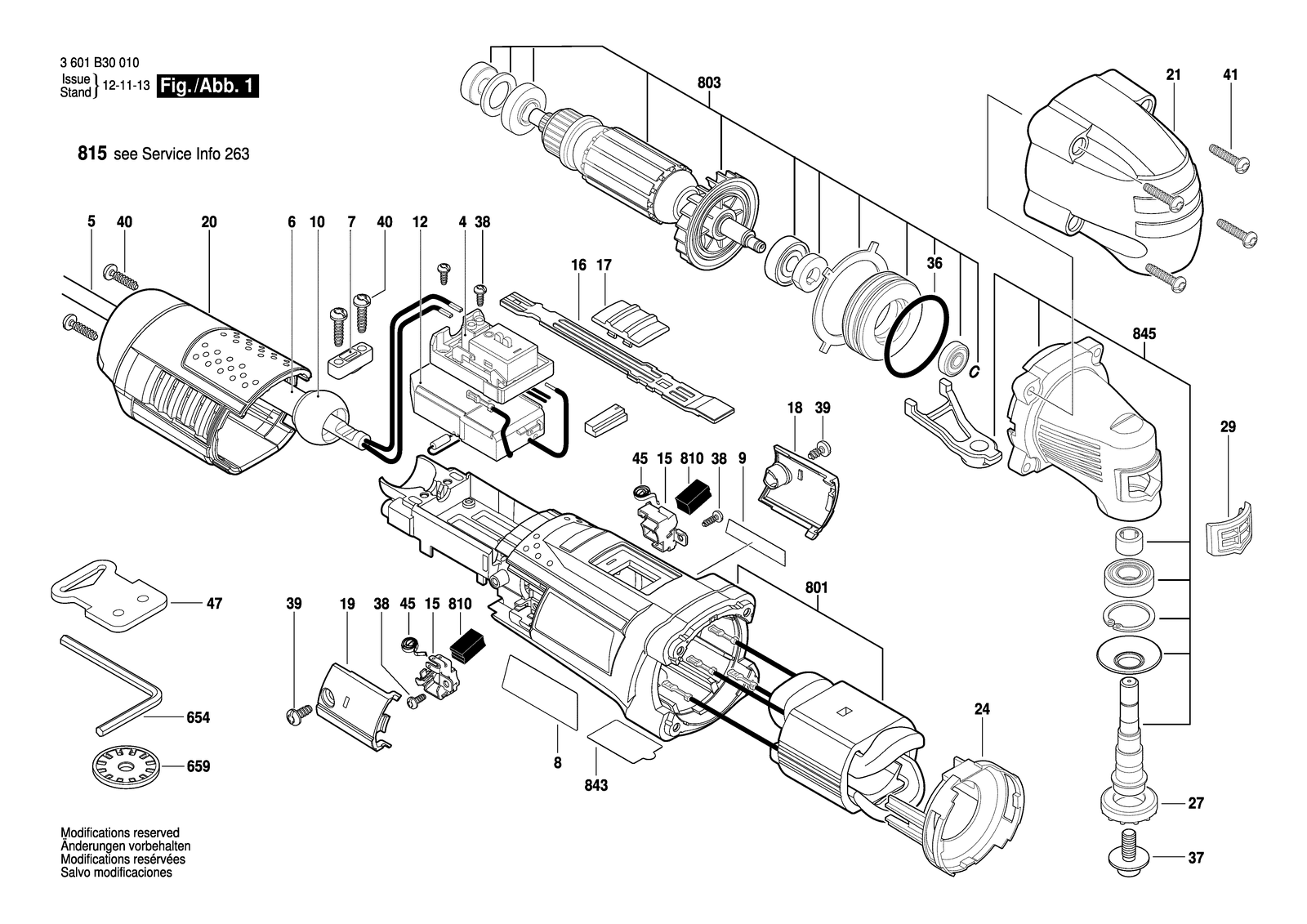

Bosch MX25E multipurpose tool: exploded parts diagram, 1 sheet, 33 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch MX25E: 33 positions on 1 sheet
Bosch MX25E parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 10 | 2609100929 | ball Joint |
| 12 | 1607233453 | Electronics Module |
| 15 | 1619P09249 | Brush Holder |
| 16 | 2609100914 | Switch Slide |
| 17 | 2609100915 | Switch Button |
| 18 | 2609100911 | Brush-Cover |
| 19 | 2609100912 | Brush-Cover |
| 20 | 2609100909 | Housing Cover |
| 21 | 2609100910 | Cap |
| 24 | 2609100928 | Air-Deflector Ring |
| 27 | 2609110769 | Toolholder |
| 29 | 2609170083 | Sealing cap |
| 36 | 2600210026 | O-Ring 35,0X2,0 MM |
| 37 | 2609000295 | Hex Socket Head Cap Screw |
| 38 | 2603490016 | Torx Oval-Head Screw 3X8 |
| 39 | 2603490020 | Torx Oval-Head Screw 4X8 |
| 4 | 2609125028 | Electronics Module |
| 40 | 2603490022 | Screw 4X16 |
| 41 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 45 | 1619P02809 | Spiral Spring |
| 47 | 3602311050 | Key Holder |
| 5 | 2604460186 | Power supply cord Usa/cdn 2,68M 2 X 082MM SJ 18/2 |
| 6 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 654 | 2609110831 | Key |
| 659 | 2609110788 | Adapter |
| 7 | 2601035001 | Cable Clip |
| 8 | 2609132901 | Warning Label |
| 801 | 2609199346 | Housing Assembly |
| 803 | 2609199345 | Armature set |
| 810 | 1619P02870 | Carbon-Brush Set |
| 843 | 2609133017 | Nameplate |
| 845 | 2609199335 | Gear Box |
| 9 | 2609132922 | Manufacturer's nameplate |
