Makita MW001G
Makita MW001G: exploded parts diagram, 2 sheets, 96 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita MW001G: 96 positions on 2 sheets

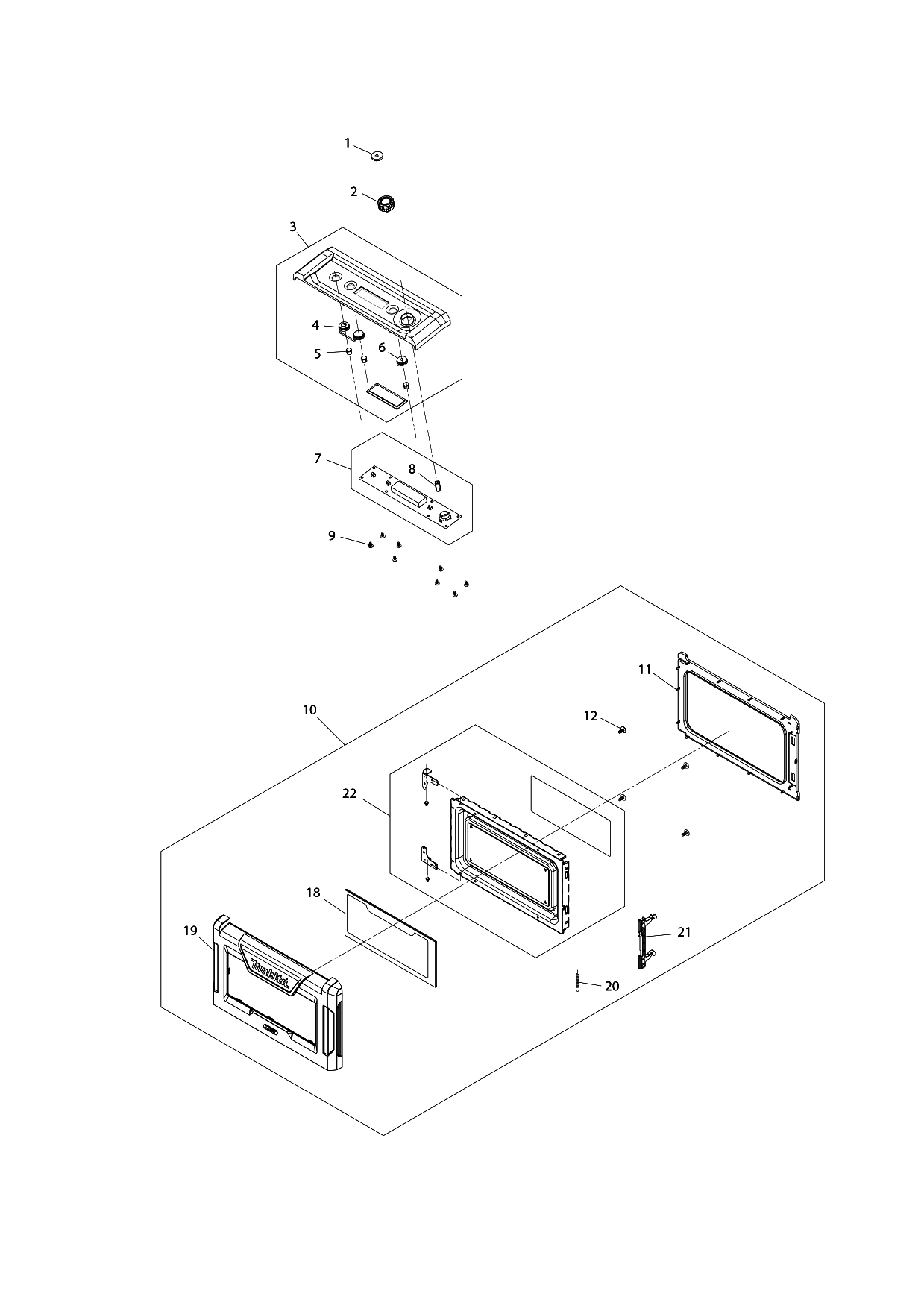

Sheet 1: Makita MW001G parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | WL00000334 | Makita WL00000334 START BUTTON, MW001G |
| 2 | WL00000335 | Makita WL00000335 KNOB, MW001G |
| 4 | WL00000337 | Makita WL00000337 POWER BUTTON, MW001G |
| 5 | WL00000338 | Makita WL00000338 LIGHT GUIDE, MW001G |
| 6 | WL00000339 | Makita WL00000339 STOP BUTTON, MW001G |
| 8 | WL00000341 | Makita WL00000341 INNER BUTTON, MW001G |
| 9 | WL00000342 | Makita WL00000342 SCREW ST3X6, MW001G |
| 11 | WL00000344 | Makita WL00000344 DOOR GASKET, MW001G |
| 12 | WL00000345 | Makita WL00000345 SCREW 4X8, MW001G |
| 18 | WL00000352 | Makita WL00000352 DOOR SCREEN, MW001G |
| 19 | WL00000353 | Makita WL00000353 DOOR PANEL, MW001G |
| 20 | WL00000354 | Makita WL00000354 LATCH SPRING, MW001G |
| 21 | WL00000355 | Makita WL00000355 DOOR HOOK, MW001G |
| 22 | WL00000346 | Makita WL00000346 DOOR FRAME ASS'Y, MW001G |

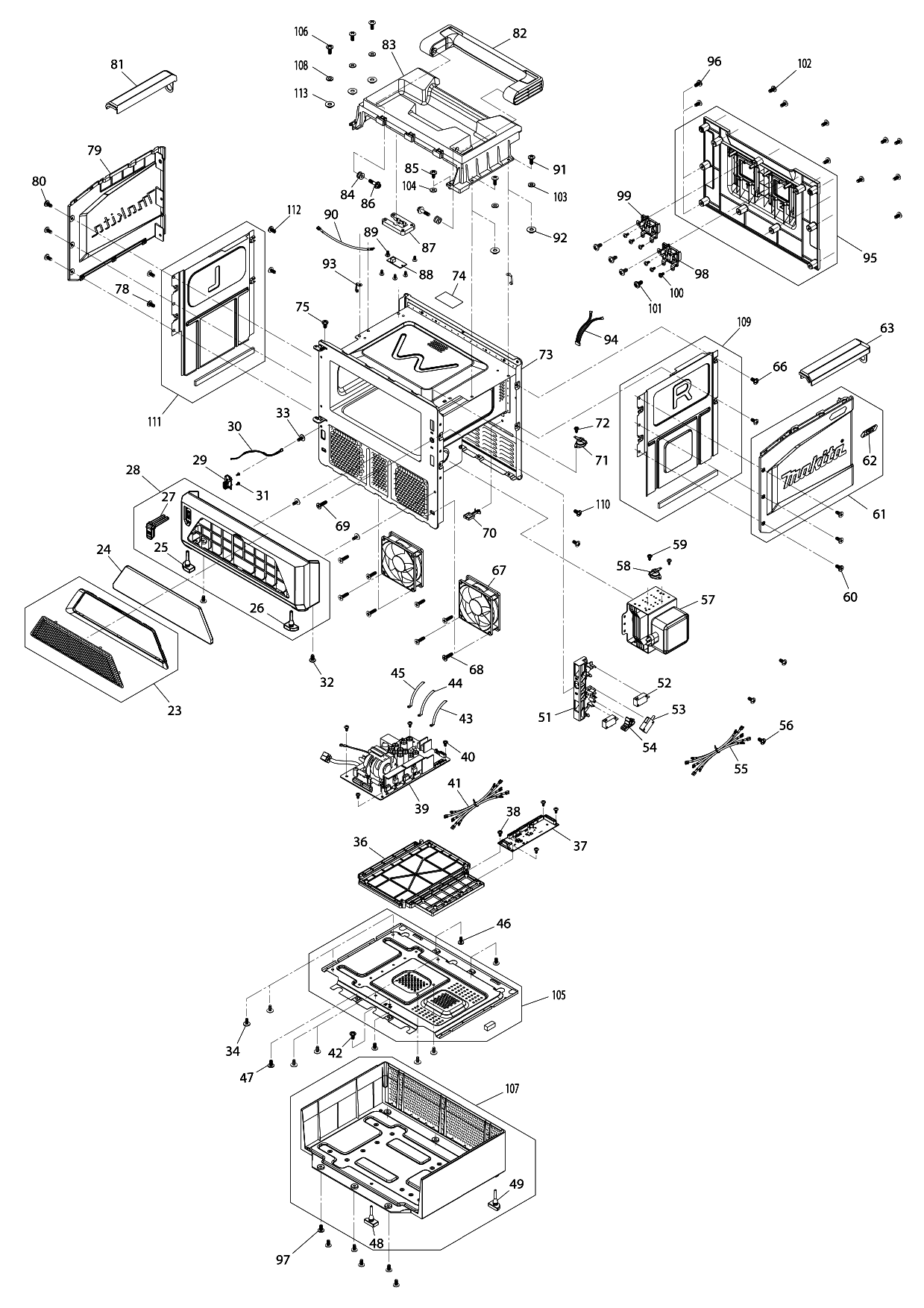

Sheet 2: Makita MW001G parts diagram
| No. | Part number | Part name |
|---|---|---|
| 23 | WL00000356 | Makita WL00000356 FILTER BRACKET ASS'Y, MW001G |
| 24 | WL00000357 | Makita WL00000357 SPONGE, MW001G |
| 25 | WL00000359 | Makita WL00000359 FOOT L, MW001G |
| 26 | WL00000360 | Makita WL00000360 FOOT R, MW001G |
| 27 | WL00000361 | |
| 29 | WL00000362 | Makita WL00000362 USB PCB ASS'Y, MW001G |
| 30 | WL00000363 | |
| 31 | WL00000342 | Makita WL00000342 SCREW ST3X6, MW001G |
| 32 | WL00000364 | Makita WL00000364 SCREW CT4X8, MW001G |
| 33 | WL00000345 | Makita WL00000345 SCREW 4X8, MW001G |
| 34 | WL00000345 | Makita WL00000345 SCREW 4X8, MW001G |
| 36 | WL00000367 | Makita WL00000367 INVERTER BRACKET, MW001G |
| 37 | WL00000368 | Makita WL00000368 PCB BOARD, MW001G |
| 38 | WL00000342 | Makita WL00000342 SCREW ST3X6, MW001G |
| 39 | WL00000369 | Makita WL00000369 POWER BOARD, MW001G |
| 40 | WL00000342 | Makita WL00000342 SCREW ST3X6, MW001G |
| 41 | WL00000370 | Makita WL00000370 MAIN HARNESS, MW001G |
| 42 | WL00000371 | Makita WL00000371 SCREW CT4X5, MW001G |
| 43 | WL00000372 | Makita WL00000372 POWER CORD (WHITE), MW001G |
| 44 | WL00000373 | Makita WL00000373 POWER CORD (BLACK), MW001G |
| 45 | WL00000374 | Makita WL00000374 POWER CORD (RED), MW001G |
| 46 | WL00000364 | Makita WL00000364 SCREW CT4X8, MW001G |
| 47 | WL00000364 | Makita WL00000364 SCREW CT4X8, MW001G |
| 48 | WL00000360 | Makita WL00000360 FOOT R, MW001G |
| 49 | WL00000359 | Makita WL00000359 FOOT L, MW001G |
| 51 | WL00000377 | Makita WL00000377 LATCH BRACKET, MW001G |
| 52 | WL00000378 | Makita WL00000378 MICROSWITCH A, MW001G |
| 53 | WL00000379 | Makita WL00000379 MICROSWITCH B, MW001G |
| 54 | WL00000380 | Makita WL00000380 LATCH LEVER, MW001G |
| 55 | WL00000381 | Makita WL00000381 LEAD UNIT LATCH ASS'Y, MW001G |
| 56 | WL00000364 | Makita WL00000364 SCREW CT4X8, MW001G |
| 57 | WL00000382 | Makita WL00000382 MAGNETRON, MW001G |
| 58 | WL00000383 | Makita WL00000383 THERMOSTAT, MW001G |
| 59 | WL00000342 | Makita WL00000342 SCREW ST3X6, MW001G |
| 60 | WL00000384 | Makita WL00000384 SCREW CB4X8, MW001G |
| 62 | WL00000386 | Makita WL00000386 XGT LOGO LABEL, MW001G |
| 63 | WL00000387 | Makita WL00000387 UPPER COVER R, MW001G |
| 66 | WL00000364 | Makita WL00000364 SCREW CT4X8, MW001G |
| 67 | WL00000391 | Makita WL00000391 FAN MOTOR, MW001G |
| 68 | WL00000392 | Makita WL00000392 SCREW CT5X16, MW001G |
| 69 | WL00000393 | Makita WL00000393 SCREW ST4X12, MW001G |
| 70 | WL00000394 | Makita WL00000394 WIRE HOLDER, MW001G |
| 71 | WL00000395 | Makita WL00000395 THERMOSTAT, MW001G |
| 72 | WL00000342 | Makita WL00000342 SCREW ST3X6, MW001G |
| 73 | WL00000396 | Makita WL00000396 CAVITY ASS'Y, MW001G |
| 74 | WL00000397 | Makita WL00000397 LAMP COVER, MW001G |
| 75 | WL00000364 | Makita WL00000364 SCREW CT4X8, MW001G |
| 78 | WL00000364 | Makita WL00000364 SCREW CT4X8, MW001G |
| 79 | WL00000400 | Makita WL00000400 LEFT COVER, MW001G |
| 80 | WL00000384 | Makita WL00000384 SCREW CB4X8, MW001G |
| 81 | WL00000401 | Makita WL00000401 UPPER COVER L, MW001G |
| 82 | WL00000402 | Makita WL00000402 RAISER HANDLE, MW001G |
| 83 | WL00000403 | Makita WL00000403 HANDLE SUPPORT, MW001G |
| 84 | WL00000404 | Makita WL00000404 HANDLE WASHER, MW001G |
| 85 | WL00000345 | Makita WL00000345 SCREW 4X8, MW001G |
| 86 | WL00000405 | Makita WL00000405 SCREW ST6X22, MW001G |
| 87 | WL00000406 | Makita WL00000406 LAMP BRACKET, MW001G |
| 88 | WL00000407 | Makita WL00000407 LAMP BOARD, MW001G |
| 89 | WL00000342 | Makita WL00000342 SCREW ST3X6, MW001G |
| 90 | WL00000408 | Makita WL00000408 MAIN HARNESS FOR LAMP, MW001G |
| 91 | WL00000409 | Makita WL00000409 SCREW CT4X10, MW001G |
| 92 | WL00000410 | Makita WL00000410 NUT M4, MW001G |
| 93 | WL00000411 | Makita WL00000411 WIRE HOLDER, MW001G |
| 94 | WL00000413 | Makita WL00000413 MAIN HARNESS FOR COMMUNICATION, MW001G |
| 95 | WL00000412 | Makita WL00000412 BACK COVER ASS'Y, MW001G |
| 96 | WL00000364 | Makita WL00000364 SCREW CT4X8, MW001G |
| 97 | WL00000364 | Makita WL00000364 SCREW CT4X8, MW001G |
| 98 | WL00000414 | Makita WL00000414 BATTERY SOCKET ASS'Y (BLACK), MW001G |
| 99 | WL00000415 | Makita WL00000415 BATTERY SOCKET ASS'Y (WHITE), MW001G |
| 100 | WL00000342 | Makita WL00000342 SCREW ST3X6, MW001G |
| 101 | WL00000343 | Makita WL00000343 SCREW CT4X6, MW001G |
| 102 | WL00000364 | Makita WL00000364 SCREW CT4X8, MW001G |
| 103 | WL00000419 | Makita WL00000419 WASHER 4.3X9X1.0, MW001G |
| 104 | WL00000419 | Makita WL00000419 WASHER 4.3X9X1.0, MW001G |
| 105 | WL00000365 | Makita WL00000365 LOWER SHIELD ASS'Y, MW001G |
| 106 | WL00000409 | Makita WL00000409 SCREW CT4X10, MW001G |
| 108 | WL00000419 | Makita WL00000419 WASHER 4.3X9X1.0, MW001G |
| 109 | WL00000388 | Makita WL00000388 RIGHT SHIELD ASS'Y, MW001G |
| 110 | WL00000364 | Makita WL00000364 SCREW CT4X8, MW001G |
| 111 | WL00000398 | Makita WL00000398 LEFT SHIELD ASS'Y, MW001G |
| 112 | WL00000364 | Makita WL00000364 SCREW CT4X8, MW001G |
| 113 | WL00000410 | Makita WL00000410 NUT M4, MW001G |
