Makita MT924
Makita MT924: exploded parts diagram, 1 sheet, 35 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita MT924: 35 positions on 1 sheet

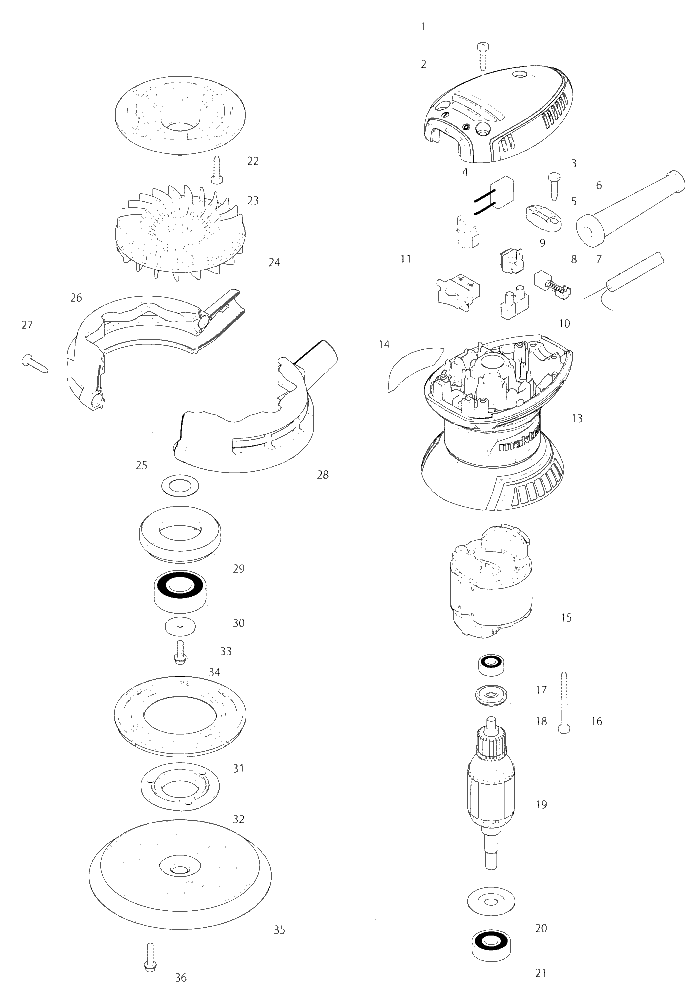

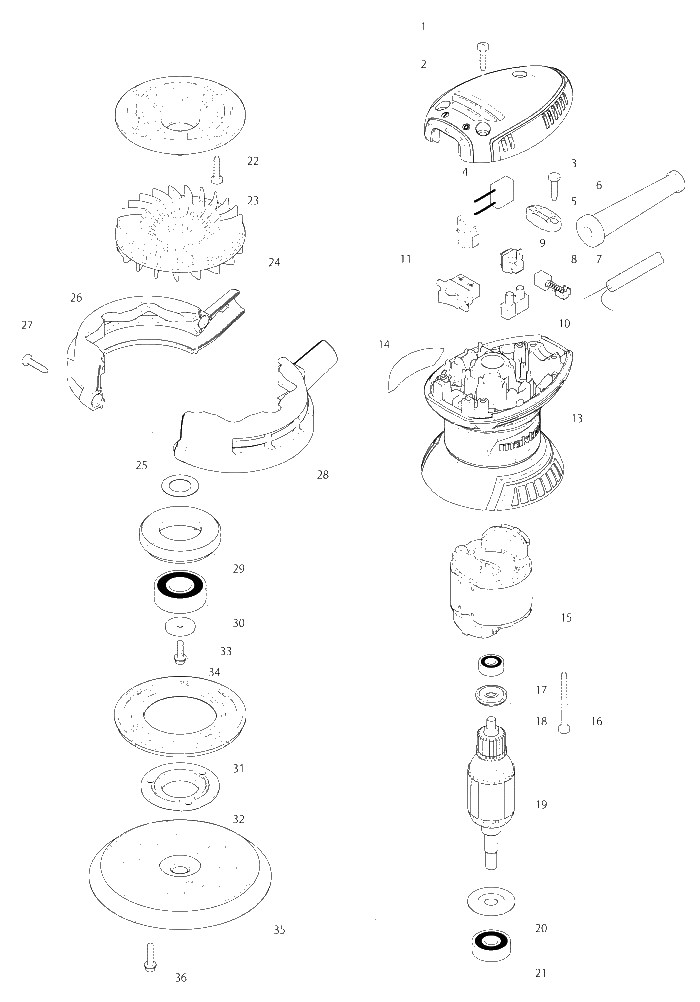

Sheet 1: Makita MT924 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 2 | 452778-5 | Makita 452778-5 TOP COVER, MT924 |
| 3 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 4 | 645228-9 | Makita 645228-9 CAPACITOR, MT955 |
| 5 | 687124-5 | Makita 687124-5 CORD CLAMP, MT951 |
| 6 | 682569-2 | Makita 682569-2 Cord Guard |
| 7 | 665383-1 | Makita 665383-1 POWER S.CORD CEE, 4329 |
| 8 | 191962-4 | Old code CB-419 = CB-407 |
| 9 | 643995-0 | Makita 643995-0 BRUSH HOLDER, HP1040 |
| 10 | 654532-5 | Makita 654532-5 TERMINAL BLOCK, 9523NB |
| 11 | 651527-9 | Makita 651527-9 Switch AR01-13C-BB5B for MT920 BO4553 |
| 13 | 452777-7 | Makita 452777-7 MOTOR HOUSING, MT924 |
| 14 | 869711-4 | |
| 15 | 633688-7 | Makita 633688-7 FIELD 220-240V 330T, MT922 |
| 16 | 266425-0 | Makita 266425-0 TAPPING SCREW 4*45, HP1230 |
| 17 | 210028-2 | Makita 210028-2 BALL BEARING 606ZZ, MT410 |
| 18 | 681675-0 | |
| 19 | 510251-2 | Makita 510251-2 ARMATURE ASS'Y 220-240V |
| 20 | 267806-1 | Makita 267806-1 FLAT WASHER 9, MT920 |
| 21 | 211092-6 | Makita 211092-6 Ball Bearing for 629DDW UB1101 |
| 22 | 450672-5 | Makita 450672-5 BRACKET, BO5030 |
| 23 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 24 | 241673-2 | Makita 241673-2 FAN 88, BO5030 |
| 25 | 267164-5 | Makita 267164-5 FLAT WASHER 4, N5900B |
| 26 | 187059-5 | Makita 187059-5 SKIRT L/R, MT924 |
| 27 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 28 | 187059-5 | Makita 187059-5 SKIRT L/R, MT924 |
| 29 | 318304-9 | Makita 318304-9 BEARING BOX, BO5030 |
| 30 | 211228-7 | Makita 211228-7 BALL BEARING 6202DDW, GA9010 |
| 31 | 424131-5 | Makita 424131-5 BRAKE RING, BO5030 |
| 32 | 318303-1 | Makita 318303-1 BEARING BOX COVER, BO5030 |
| 33 | 253739-6 | Makita 253739-6 FLAT UASHER 4, MT922 |
| 34 | 265099-4 | Makita 265099-4 PAN HEAD SCREW M4X14, MT951 |
| 35 | 743081-8 | Old number 743081-8 |
| 36 | 265112-8 | Makita 265112-8 PAN HEAD SCREW M4*18, MT600 |
