Makita MT815
Makita MT815: exploded parts diagram, 1 sheet, 43 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita MT815: 43 positions on 1 sheet

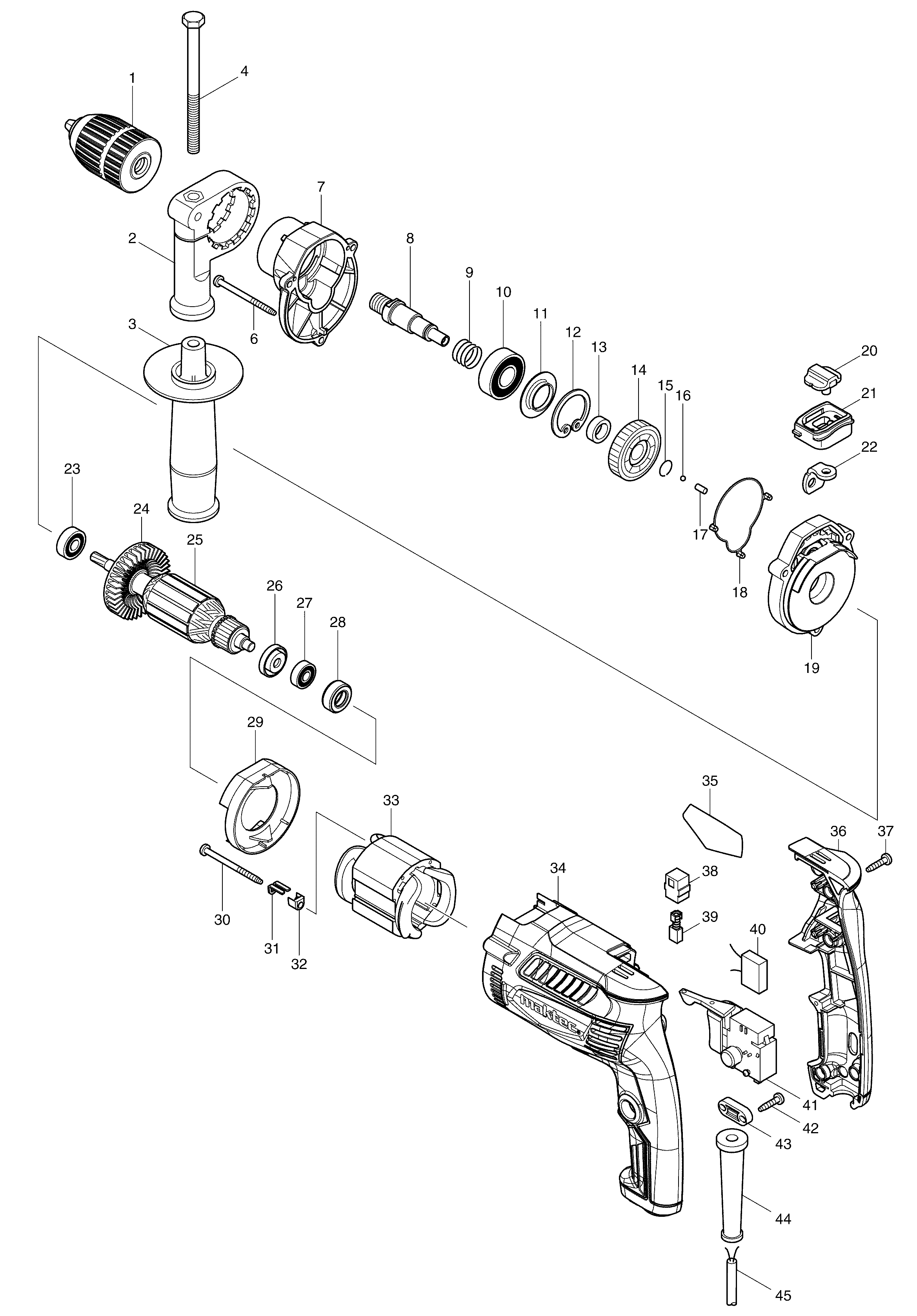

Sheet 1: Makita MT815 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 192692-0 | |
| 2 | 417822-5 | Makita 417822-5 GRIP BASE, MT811 |
| 3 | 153503-4 | Makita 153503-4 Grip 36 Complete MT811 |
| 4 | 265495-6 | Makita 265495-6 HEX BOLT M8*110, MT811 |
| 6 | 266361-0 | Makita 266361-0 TAPPING SCREW 4*30, 9526B |
| 7 | 451907-7 | Makita 451907-7 GEAR HOUSING, MT814 |
| 8 | 324223-9 | Makita 324223-9 SPINDLE, MT811 |
| 9 | 233330-6 | Makita 233330-6 COMPRESSION SPRING 16, MT811 |
| 10 | 211241-5 | Makita 211241-5 BALL BEARING 6202DDW, MT811 |
| 11 | 257246-1 | Makita 257246-1 RING 19, MT811 |
| 12 | 962153-2 | Makita 962153-2 RETAINING RING, 2012NB |
| 13 | 257173-2 | Makita 257173-2 RING 12, 5806B |
| 14 | 226589-2 | Makita 226589-2 Helical Gear 37 for HP1630 HP1631 MT813 MT814 MT815 |
| 15 | 233938-6 | Makita 233938-6 RING SPRING 12, MT813 |
| 16 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 17 | 256251-5 | Makita 256251-5 PIN 4, 6409 |
| 18 | 424112-9 | Makita 424112-9 SEAL RING, HP1630 |
| 19 | 140426-5 | Makita 140426-5 GEAR HOUSING COVER COMPLETE, MT815 |
| 20 | 417819-4 | Makita 417819-4 CHANGE LEVER, MT811 |
| 21 | 451908-5 | Makita 451908-5 LEVER CASE, MT814 |
| 22 | 345944-0 | Makita 345944-0 CHANGE PLATE, HP1630 |
| 23 | 211031-6 | Makita 211031-6 BALL BEARING 608LLB, LS0714 |
| 25 | 510164-7 | Makita 510164-7 Armature Assy 240V, HP1630 HP1630 HP1631 MT815 MT814 |
| 26 | 681636-0 | Makita 681636-0 INSULATION WASHER, MT190 |
| 27 | 210062-2 | Makita 210062-2 BALL BEARING 607ZZ, MT952 |
| 28 | 421808-3 | Makita 421808-3 RUBBER RING 19, MT952 |
| 29 | 450620-4 | Makita 450620-4 BAFFLE PLATE, HP1630 |
| 30 | 266415-3 | Makita 266415-3 TAPPING SCREW 4*55, HR2230 |
| 31 | 344871-8 | Makita 344871-8 RETAINER, HR2230 |
| 32 | 417237-6 | Makita 417237-6 INSULATION COVER, MT814 |
| 33 | 626604-6 | Makita 626604-6 FIELD 240V 160T, HP1630 |
| 34 | 451905-1 | Makita 451905-1 MOTOR HOUSING, MT814 |
| 35 | 868133-5 | |
| 36 | 140427-3 | Makita 140427-3 HANDLE COVER COMPLETE, MT815 |
| 37 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 38 | 643563-9 | Makita 643563-9 BRUSH HOLDER, MT650 |
| 39 | 191998-3 | Makita 191998-3 Carbon Brushes CB-85 for HP1630 HP1631 MT81 |
| 40 | 645200-1 | Makita 645200-1 Capacitor for 9523NB 9227CB 9237CB |
| 41 | 650586-0 | Makita 650586-0 Switch 6411 6413 HP1630 HP1631 MT815 |
| 42 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 43 | 687124-5 | Makita 687124-5 CORD CLAMP, MT951 |
| 44 | 682569-2 | Makita 682569-2 Cord Guard |
| 45 | 665383-1 | Makita 665383-1 POWER S.CORD CEE, 4329 |
