Makita MT065
Makita MT065: exploded parts diagram, 1 sheet, 14 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita MT065: 14 positions on 1 sheet

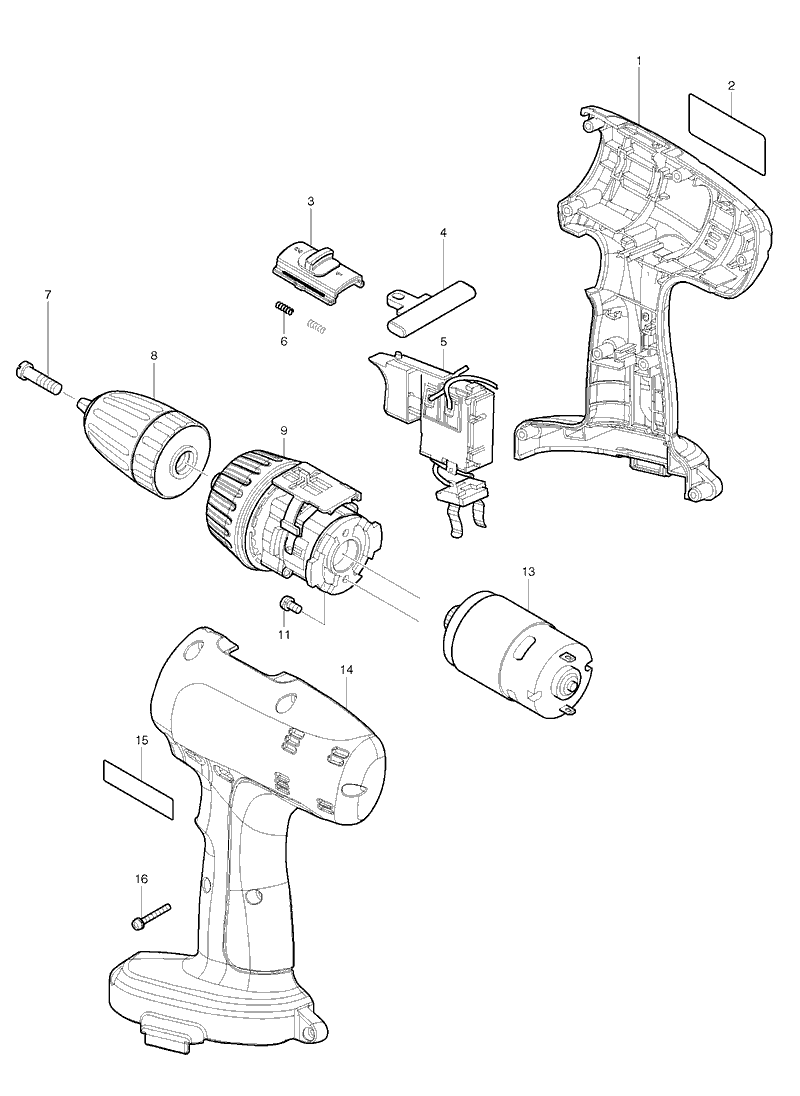

Sheet 1: Makita MT065 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 183611-7 | Makita 183611-7 HOUSING SET, MT065 |
| 2 | 850501-6 | |
| 3 | 418166-6 | |
| 4 | 417980-7 | |
| 5 | 650529-2 | Makita 650529-2 SWITCH, MT065 |
| 6 | 233352-6 | |
| 7 | 251468-5 | Makita 251468-5 Flat Head Screw M6 X 22 6281 8391 BDF456 BHP442 BHP451 |
| 8 | 763182-6 | Makita 763182-6 Keyless Drill Chuck 13 for MT065 |
| 9 | 125208-6 | |
| 11 | 265126-7 | |
| 13 | 629807-1 | Makita 629807-1 Motor 18V Maktec MT065 |
| 14 | 183611-7 | Makita 183611-7 HOUSING SET, MT065 |
| 15 | 819126-5 | |
| 16 | 265109-7 |
