Bosch MT 92

Bosch MT 92 saw table: exploded parts diagram, 1 sheet, 39 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch MT 92: 39 positions on 1 sheet

Bosch MT 92 parts list (1 sheet)

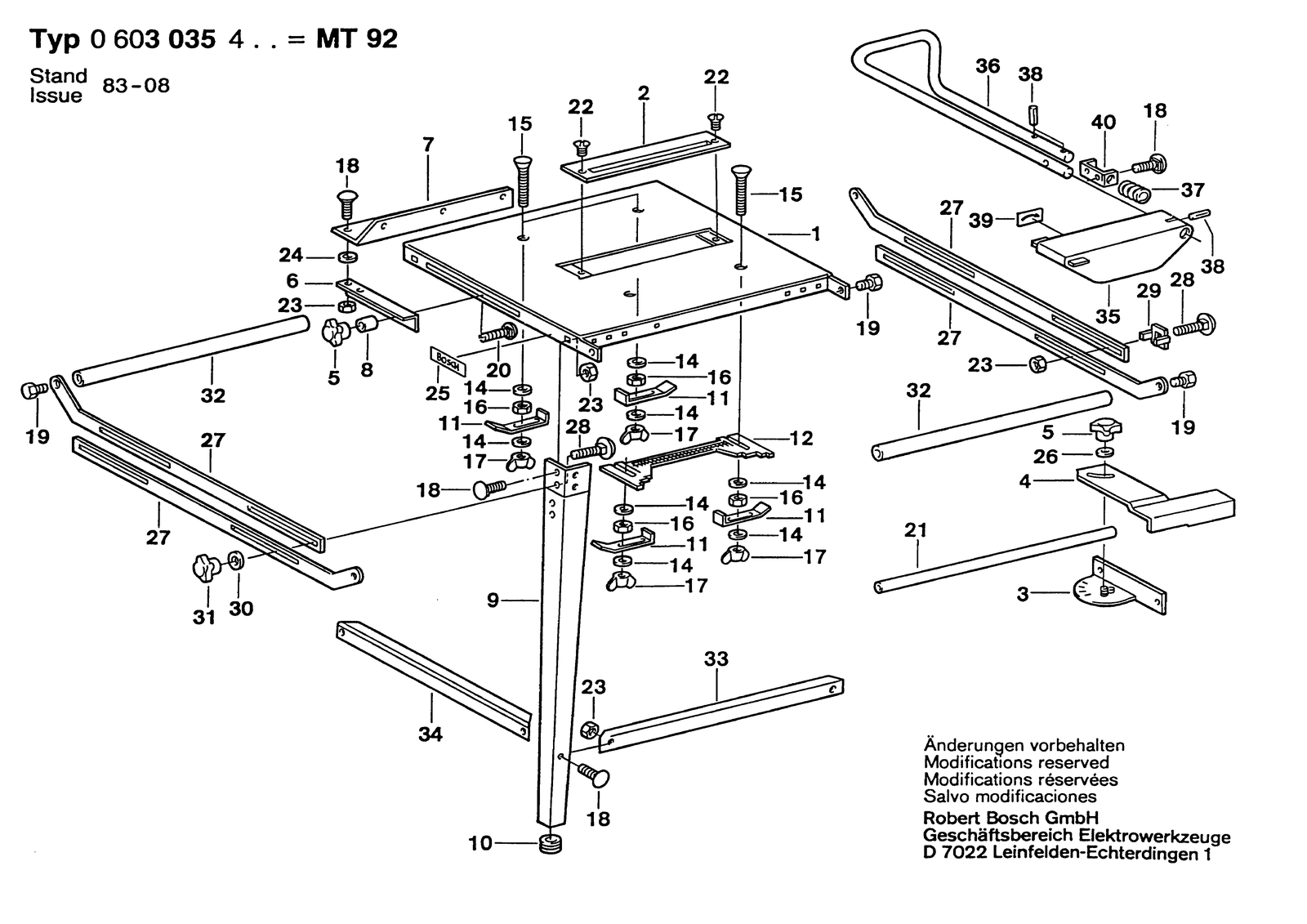

Bosch MT 92 parts diagram, sheet 1
No.Part numberPart name
11608000094Table top 400X500 MM
101602380012Rubber Ring
111601321039Mounting Bracket
121601099012Guide
142916011014Plain Washer DIN 125-A 6,4-ST
151603421001Countersunk-Head Screw
162915011007Hex Nut DIN 934-M6-8-A
172915191006Wing Nut M6 DIN 315-G-GTW-40
181603434004Round-Head Bolt M5X12 MM
192911052193Hex Screw M6X12 DIN 933-5.8
21608000095Cover Plate
202910281207Round-Head Bolt DIN 603-M6X35
211603052011Guide Rod
222910761116Countersunk-Head Screw DIN 963-M4X6-4.8
232915011006Hex Nut DIN 934-M 5-M-8
242916070232Locking washer
252601110601Manufacturer's nameplate
262916011884Plain Washer DIN 9021-A6,4-ST
271601021004Strap
282910281162Round-Head Bolt DIN 603-M5X20
291601329011Spacer
31601334007Stop Bracket
302916011883Plain Washer A 5,3 DIN 9021-ST
311603349016Palm Grip M5
321600795006Guide Tube
331601331038Strap
341601331037Strap
351605510151Protective Cover
361600795007Mounting Bracket
371604618007Compression Spring
382917760100Slotted Spring Pin DIN 1481-4X22
391601110260Sticker
41608000096Stop Bracket
401601321041Mounting Bracket
51603339006Wing Nut M6
61601332019Stop Bracket
71601332020Parallel-Guide
81600300085Spacer Bushing
91601334006Table Leg
