Bosch MT 600

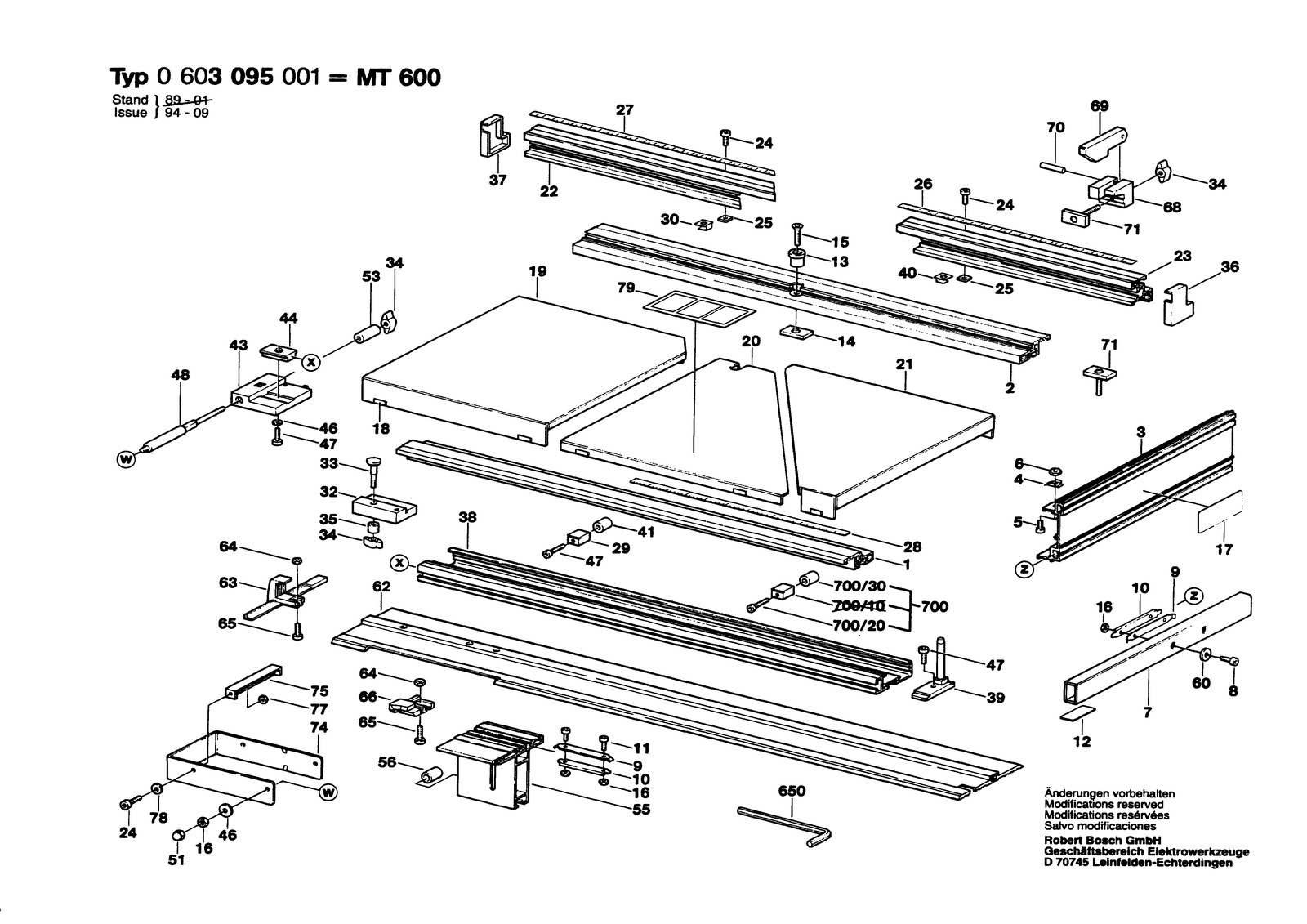

Bosch MT 600 saw and router table: exploded parts diagram, 2 sheets, 89 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch MT 600: 89 positions on 2 sheets
Bosch MT 600 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609200011 | Support Rail |
| 10 | 2609200017 | Tensioning Bracket |
| 11 | 2910131191 | Hex Socket Head Cap Screw DIN 7984-M6X10-8.8 |
| 12 | 2609200018 | Rubber Plate |
| 13 | 2609200019 | Guide Sleeve |
| 14 | 2609200020 | Clamping Plate |
| 15 | 2910541205 | Countersunk-Head Screw DIN 7991-M6X30-8.8 |
| 16 | 2915051106 | Hex Nut DIN 439-AM6-04 |
| 17 | 2601110969 | Manufacturer's nameplate |
| 18 | 2609200021 | Gripping Wedge |
| 19 | 2609200022 | Supporting Plate |
| 2 | 2609200012 | Support Rail |
| 20 | 2609200023 | Supporting Plate |
| 21 | 2609200024 | Supporting Plate |
| 22 | 2609200025 | Striker Bar |
| 23 | 2609200026 | Striker Bar |
| 24 | 2910141154 | Hex Socket Head Cap Screw DIN 912-M5X12-8.8 |
| 25 | 2915121005 | Square Nut DIN 562-M5-04 |
| 26 | 2609200027 | Scale Band |
| 27 | 2609200028 | Scale Band |
| 28 | 2609200029 | Scale Band |
| 29 | 2609200030 | End stop |
| 3 | 2609200013 | Side leg |
| 30 | 2609200031 | Pressure Plate |
| 32 | 2609200032 | Guide Plate |
| 33 | 2609200033 | Adjusting Bolt |
| 34 | 1603339006 | Wing Nut M6 |
| 35 | 2609200034 | Spacer Sleeve |
| 36 | 2609200035 | Protective Cap |
| 37 | 2609200036 | Protective Cap |
| 38 | 2609200037 | Guide Support |
| 39 | 2609200038 | Centering Bolt |
| 4 | 2609200014 | Tab Washer |
| 40 | 2609200062 | Pressure Plate |
| 41 | 2609200063 | Thrust Member |
| 43 | 2609200039 | Swivel Bearing |
| 44 | 2609200040 | Grip-Spring Tensioning E |
| 46 | 2916011884 | Plain Washer DIN 9021-A6,4-ST |
| 47 | 2910131201 | Hex Socket Head Cap Screw DIN 7984 M6X20-8.8 |
| 48 | 2609200041 | Adjusting Shaft |
| 5 | 2910141234 | Hex Socket Head Cap Screw DIN 912-M8X12-8.8 |
| 51 | 2915151001 | Cap Nut DIN 1587-M6-M-6 |
| 53 | 2609200042 | Spacer Sleeve |
| 55 | 2609200043 | Bearing Rail Carrier |
| 56 | 2609200044 | Clamping Sleeve |
| 6 | 2915051107 | Hex Nut DIN 439-BM8-04 |
| 60 | 2916011013 | Plain Washer DIN 433-6,4-ST 50 |
| 62 | 2609200045 | Guide Rail |
| 63 | 2609200046 | End stop |
| 64 | 2915011005 | Hex Nut DIN 934 -M4-M-8 |
| 65 | 2910901122 | Raised counters head scre DIN 966-M4X12-8.8 |
| 650 | 2607950004 | Offset Screwdriver DIN 911-4 |
| 66 | 2609200047 | Deflection Plate |
| 68 | 2609200049 | Stop Holder |
| 69 | 2609200050 | Stop Lever |
| 7 | 2609200015 | Support Pedestal |
| 70 | 2917500129 | Straight Pin DIN 7-5H8X32-ST |
| 700 | 2607001109 | End stop |
| 700/20 | 2910141201 | Hex Socket Head Cap Screw DIN 912-M6X20-8.8 |
| 700/30 | 2609200063 | Thrust Member |
| 701 | 2607001108 | Edge Guide |
| 701/30 | 2917500129 | Straight Pin DIN 7-5H8X32-ST |
| 701/40 | 2609200051 | Clamping Plate |
| 701/50 | 1603339006 | Wing Nut M6 |
| 702 | 2607000125 | Stop-Tube Set |
| 702/30 | 2609200020 | Clamping Plate |
| 702/40 | 2910131195 | Hex Socket Head Cap Screw DIN 7984-M6X14-8.8 |
| 702/90 | 2915051106 | Hex Nut DIN 439-AM6-04 |
| 703 | 2607000126 | Stand |
| 703/30 | 2609200020 | Clamping Plate |
| 703/40 | 2910131195 | Hex Socket Head Cap Screw DIN 7984-M6X14-8.8 |
| 703/60 | 2916011014 | Plain Washer DIN 125-A 6,4-ST |
| 704 | 2608040040 | Appliance Mounting |
| 704/40 | 2910141246 | Hex Socket Head Cap Screw DIN 912-M8X30-8.8 |
| 704/50 | 2910541197 | Countersunk-Head Screw DIN 7991-M6X16-8.8 |
| 704/80 | 1603339006 | Wing Nut M6 |
| 705 | 2607001091 | Tensioning device |
| 705/20 | 2603480003 | Wing Screw M 6X16 MM |
| 705/30 | 2916011014 | Plain Washer DIN 125-A 6,4-ST |
| 705/50 | 1603339006 | Wing Nut M6 |
| 705/70 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 71 | 2609200051 | Clamping Plate |
| 74 | 2609200052 | Carrier Angle |
| 75 | 2609200053 | Depth-Gauge |
| 77 | 2915011006 | Hex Nut DIN 934-M 5-M-8 |
| 78 | 2916011012 | Plain Washer DIN 125-A5,3-ST |
| 79 | 2601110990 | Reference Plate Note |
| 8 | 2910141205 | Hex Socket Head Cap Screw DIN 912-M6X30-8.8 |
| 9 | 2609200016 | Spring Clip |
