Bosch MT 250

Bosch MT 250 saw table: exploded parts diagram, 1 sheet, 6 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch MT 250: 6 positions on 1 sheet

Bosch MT 250 parts list (1 sheet)

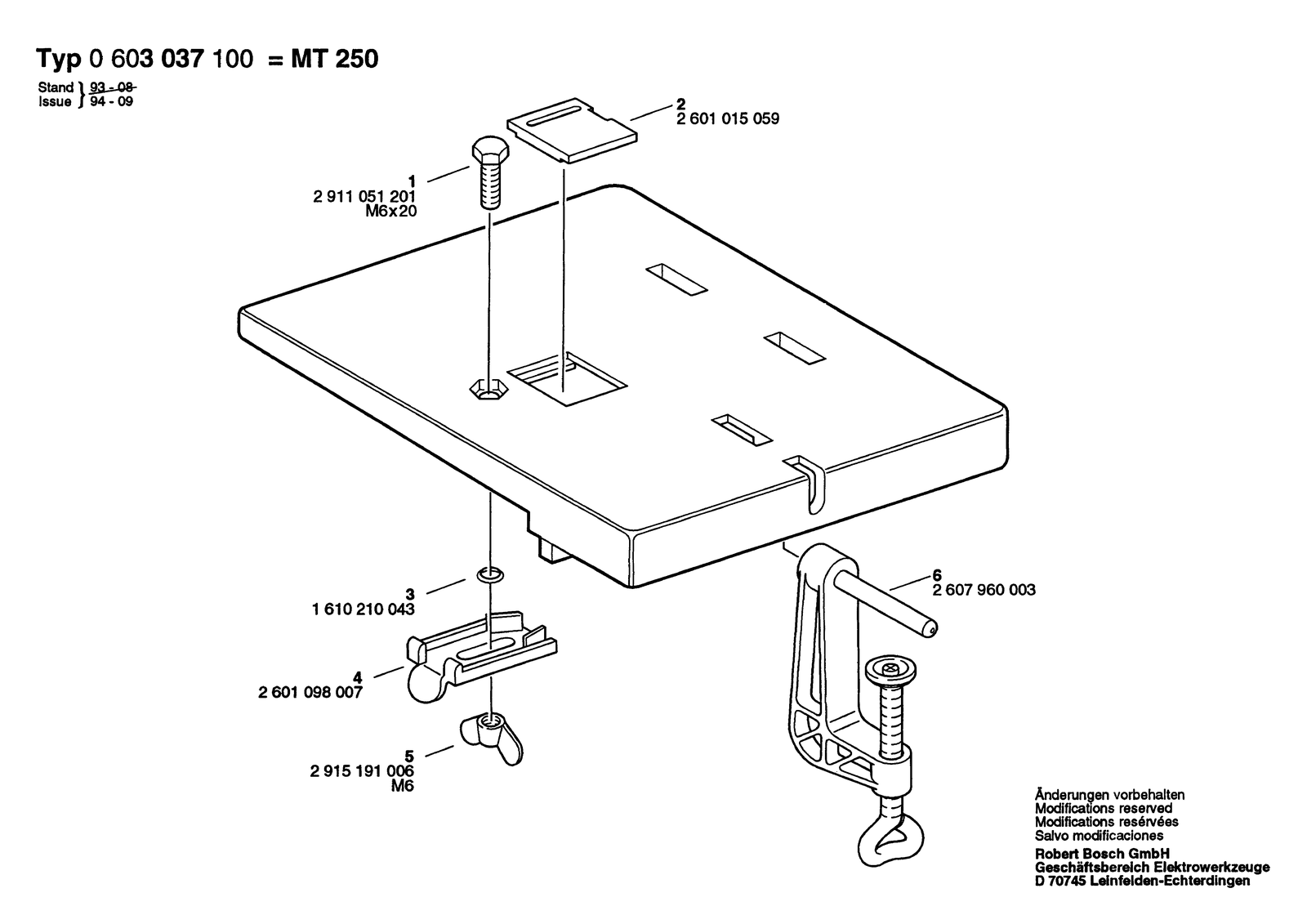

Bosch MT 250 parts diagram, sheet 1
No.Part numberPart name
12911051201Hex Screw DIN 933-M6X20-5.6
22601015059Splintering Protector
31610210043O-Ring 4,0X1,5 MM
42601098007Clamping Plate
52915191006Wing Nut M6 DIN 315-G-GTW-40
62607960004Adjustable screw clamp
