Makita MS3354U
Makita MS3354U: exploded parts diagram, 4 sheets, 205 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita MS3354U: 205 positions on 4 sheets

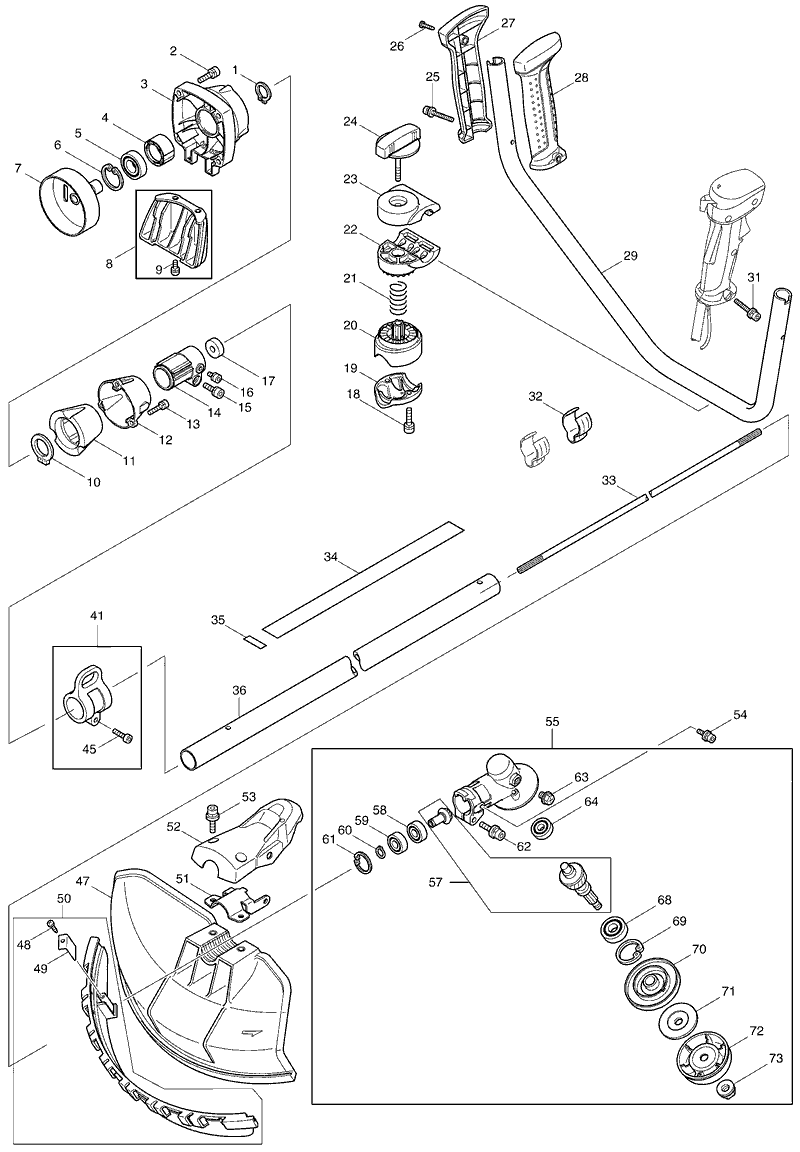

Sheet 1: Makita MS3354U parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 961057-5 | Makita 961057-5 RETAINING RING S-17, LS1016 |
| 2 | 922331-6 | Makita 922331-6 HEX SOCKET HEAD BOLT, LS1016 |
| 3 | 318421-5 | Makita 318421-5 CLUTCH CASE, EBH341L |
| 4 | 451157-4 | Makita 451157-4 SPACER, EBH341U |
| 5 | 211338-0 | Makita 211338-0 Bearing for 6003LLU, EBH341U |
| 6 | 962153-2 | Makita 962153-2 RETAINING RING, 2012NB |
| 7 | 165577-3 | Makita 165577-3 CLUTCH DRUM, EBH341U |
| 9 | 911218-7 | Makita 911218-7 PAN HEAD SCREW M5X14, EBH252U |
| 10 | 961151-3 | Makita 961151-3 RETAINING RING S-32, EBH341U |
| 11 | 424204-4 | Makita 424204-4 DAMPER, EBH341U |
| 12 | 318453-2 | Makita 318453-2 PIPE RETAINER, EBH341L |
| 13 | 922231-0 | Makita 922231-0 HEX. SOCKET HEAD BOLT M5X20, HR2010 |
| 14 | 318454-0 | Makita 318454-0 PIPE BRACKET, EBH341U |
| 15 | 922331-6 | Makita 922331-6 HEX SOCKET HEAD BOLT, LS1016 |
| 16 | 922201-9 | Makita 922201-9 SOCKET HEAD BOLT, LC1210 |
| 17 | 443146-3 | Makita 443146-3 FELT RING 8, EBH341U |
| 18 | 922341-3 | Makita 922341-3 SOCKET HEAD BOLT, 9803 |
| 19 | 318422-3 | Makita 318422-3 PIPE CLAMP, EBH341U |
| 20 | 318423-1 | Makita 318423-1 PIPE HOLDER, EBH341U |
| 21 | 233202-5 | Makita 233202-5 COMPRESSION SPRING 20, EBH250U |
| 22 | 318424-9 | Makita 318424-9 HANDLE HOLDER, EBH341U |
| 23 | 318425-7 | Makita 318425-7 HANDLE CLAMP, EBH341U |
| 24 | 168524-3 | Makita 168524-3 KNOB 57, EBH250U |
| 25 | 922256-4 | Makita 922256-4 HEX SOCKET BOLT M5*35, HR4002 |
| 26 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 27 | 451088-7 | |
| 28 | 451089-5 | |
| 29 | 331863-6 | Makita 331863-6 HANDLE 22, EBH341U |
| 31 | 922256-4 | Makita 922256-4 HEX SOCKET BOLT M5*35, HR4002 |
| 32 | 451525-1 | Makita 451525-1 WIRE CLAMP, EBH341U |
| 33 | 325675-7 | OTHR Genuine Makita 325675-7 SHAFT, EBH341U |
| 34 | 810513-1 | |
| 35 | 816551-1 | Makita 816551-1 SERIAL NO.LABEL, EBH341U |
| 36 | 140042-3 | Makita 140042-3 SHAFT PIPE COMPLETE, EBH341U |
| 45 | 922233-6 | Makita 922233-6 HEX SOCKET HEAD BOLT M5X2 |
| 47 | 451091-8 | |
| 48 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 49 | 346074-0 | Makita 346074-0 CUTTER, EBH250U |
| 51 | 346072-4 | Makita 346072-4 PROTECTOR CLAMP, EBH341U |
| 52 | 451090-0 | Makita 451090-0 PROTECTOR COVER, EBH341U |
| 53 | 922353-6 | Makita 922353-6 HEX.SOCCET HEAD BOLT M6X30 |
| 54 | 922218-2 | Makita 922218-2 HEX SOCKET HEAD BOLT M5*14, MEM427 |
| 57 | 188865-1 | OTHR Makita 188865-1 CUTTER SHAFT SET |
| 58 | 211064-1 | Makita 211064-1 BALL BEARING 6000, 2414NB |
| 59 | 211062-5 | Makita 211062-5 BALL BEARING 6000ZZ, 9524NB |
| 60 | 961006-2 | Makita 961006-2 RETAINING RING S-10, JR300VT |
| 61 | 962105-3 | Makita 962105-3 RETAINING RING R-32, GA4030 |
| 62 | 922353-6 | Makita 922353-6 HEX.SOCCET HEAD BOLT M6X30 |
| 63 | 265590-2 | Makita 265590-2 HEX. BOLT M8X10, EBH250U |
| 64 | 210081-8 | Makita 210081-8 BALL BEARING 629ZZ, MT910 |
| 68 | 210116-5 | Makita 210116-5 BEARING 6201LLU, EBH341U |
| 69 | 962151-6 | Makita 962151-6 RETAINING RING R-32, 9523NB |
| 70 | 331860-2 | Makita 331860-2 RECEIVE WASHER, EBH341U |
| 71 | 346084-7 | Makita 346084-7 CLAMP WASHER, EBH250U |
| 72 | 168526-9 | Makita 168526-9 CUP COMPLETE, EBH250U |
| 73 | 264025-0 | Makita 264025-0 HEX.NUT M10-17, EBH250U |
Sheet 2: Makita MS3354U parts diagram
| No. | Part number | Part name |
|---|---|---|
| 75 | 451086-1 | |
| 76 | 233540-5 | Makita 233540-5 TORSION SPRING 11, EBH250U |
| 77 | 451084-5 | Makita 451084-5 THROTTLE LEVER, EBH250U |
| 78 | 233541-3 | Makita 233541-3 TORSION SPRING 7, EBH2500 |
| 79 | 451083-7 | Makita 451083-7 LOCK OFF LEVER, EBH250U |
| 80 | 451213-0 | Makita 451213-0 CORRUGATE TUBE, EBH250U |
| 81 | 168539-0 | Makita 168539-0 CONTROL CABLE, EBH341U |
| 82 | 451081-1 | Makita 451081-1 CABLE HOLDER, EBH250U |
| 83 | 451082-9 | Makita 451082-9 SWITCH LEVER, EBH250U |
| 84 | 232251-9 | Makita 232251-9 LEAF SPRING, EBH2500 |
| 85 | 451085-3 | Makita 451085-3 SWITCH COVER, EBH250U |
| 86 | 638663-8 | Makita 638663-8 LEAD UNIT, EBH250U |
| 87 | 451087-9 | |
| 88 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 233 | 638671-9 | Makita 638671-9 LEAD UNIT, EBH250U |

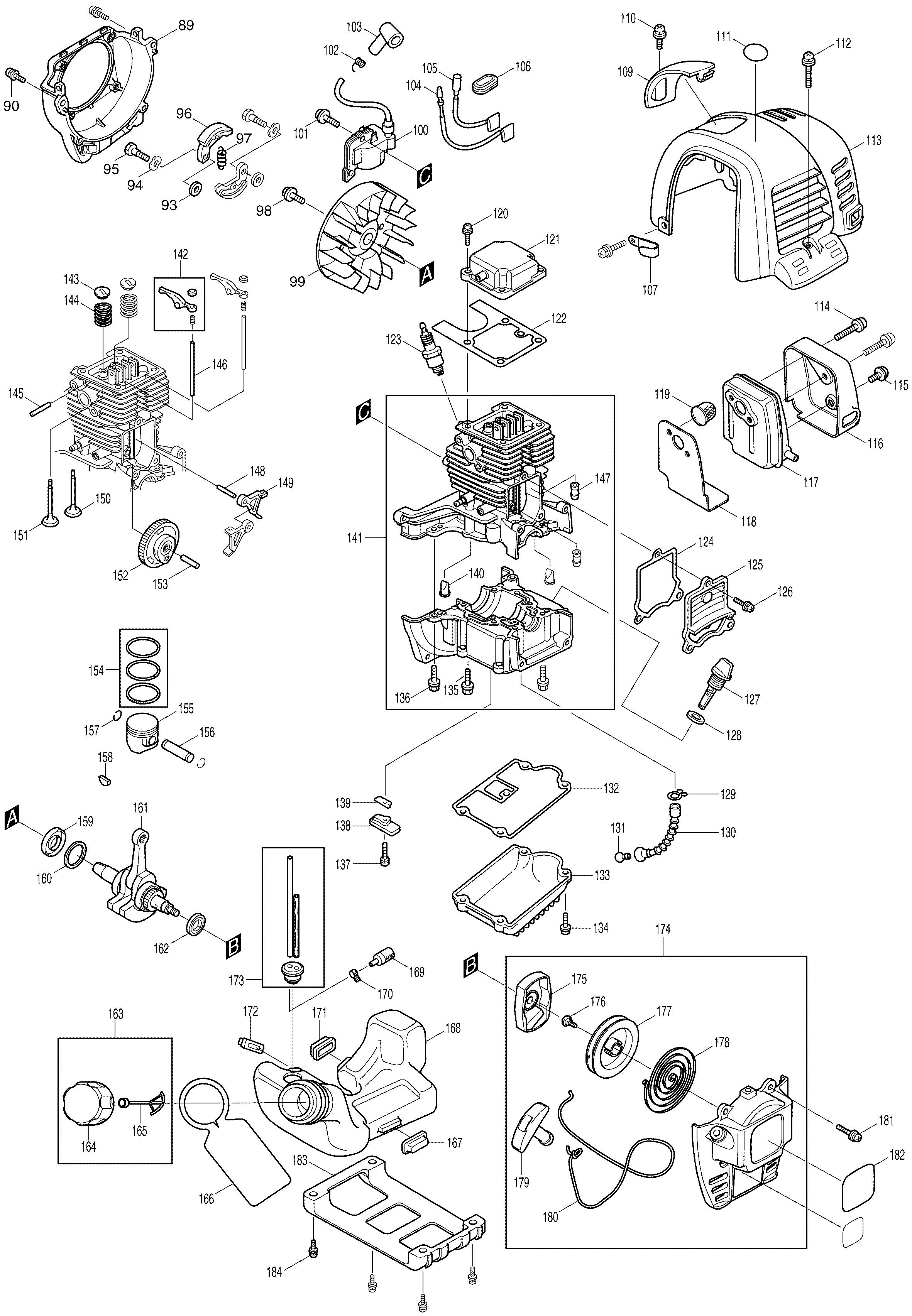

Sheet 3: Makita MS3354U parts diagram
| No. | Part number | Part name |
|---|---|---|
| 89 | 318614-4 | Makita 318614-4 HOUSING BLOWER, EBH340U |
| 90 | 922223-9 | Makita 922223-9 SOCKET HEAD BOLT, MEM427 |
| 93 | 267424-5 | Makita 267424-5 WASHER, EBH340U |
| 94 | 267832-0 | Makita 267832-0 WAVE WASHER, EBH340U |
| 95 | 266571-9 | Makita 266571-9 BOLT CLUTCH, EBH340U |
| 96 | 168563-3 | Makita 168563-3 CLUTCH SHOE |
| 97 | 231863-5 | Makita 231863-5 TENSION SPRING 9 |
| 98 | 265577-4 | Makita 265577-4 HEX HEAD BOLT M6*16, MEM427 |
| 99 | 318611-0 | Makita 318611-0 FLYWHEEL CP, EBH340U |
| 100 | 168501-5 | Makita 168501-5 Ignition Coil |
| 101 | 922138-0 | Makita 922138-0 HEX.SOCKET HEAD BOLT M4*16, MT430 |
| 102 | 324891-8 | Makita 324891-8 PLUG CAP SPRING, MEM427 |
| 103 | 424105-6 | Makita 424105-6 PLUS CAP, PB-7600.4 |
| 104 | 638664-6 | Makita 638664-6 LEAD UNIT, EBH250U |
| 105 | 638665-4 | Makita 638665-4 LEAD UNIT, EBH250U |
| 106 | 424313-9 | Makita 424313-9 GROMMET, EBH340U |
| 107 | 345963-6 | Makita 345963-6 CLAMP, EBH250U |
| 109 | 451876-2 | Makita 451876-2 COVER PLUG, EBH340U |
| 110 | 266572-7 | Makita 266572-7 SCREW, EBH340U |
| 111 | 808633-3 | Makita 808633-3 4 STROKE INDICATION LABEL, EBH251U |
| 112 | 265187-7 | Makita 265187-7 PAN HEAD SCREW M5X12MS-245.4 |
| 113 | 451884-3 | Makita 451884-3 CYLINDER COVER |
| 114 | 266440-4 | Makita 266440-4 HEX.SOCKET HEAD BOLT M5*40, MEM427 |
| 115 | 265184-3 | Makita 265184-3 COUNTERSUNK RAISED HEAD SCREW, MEM427 |
| 116 | 345915-7 | Makita 345915-7 MUFFLER COVER, MEM427 |
| 117 | 168469-5 | Makita 168469-5 EXHAUST MUFFLER |
| 118 | 345916-5 | Makita 345916-5 MUFFLER GASKET, MEM427 |
| 119 | 324980-9 | Makita 324980-9 SPARK ARRESTER |
| 120 | 266495-9 | Makita 266495-9 HEX.SOCKET HEAD BOLTMS-245.4 |
| 121 | 140419-2 | Makita 140419-2 ROCKER COVER CONMPL, EBH340U |
| 122 | 162307-3 | Makita 162307-3 GASKET ROCKER COVER, EBH340U |
| 123 | 168534-0 | Makita 168534-0 Spark Plug NGK CMR4A |
| 124 | 162274-2 | Makita 162274-2 CAM GEAR COVER GASKET, MEM426 |
| 125 | 318443-5 | Makita 318443-5 CAM GEAR COVER, MEM426 |
| 126 | 922212-4 | Makita 922212-4 HEX. SOCKET HEAD BOLT M5X |
| 127 | 450565-6 | Makita 450565-6 OIL GAUGE |
| 128 | 424100-6 | Makita 424100-6 GASKET |
| 129 | 282020-8 | Makita 282020-8 HOSE CLAMP |
| 130 | 424202-8 | Makita 424202-8 OIL TUBE |
| 131 | 325666-8 | Makita 325666-8 OIL WEIGHT |
| 132 | 162308-1 | Makita 162308-1 GASKET CASE, EBH340U |
| 133 | 318612-8 | Makita 318612-8 CASE OIL, EBH340U |
| 134 | 266495-9 | Makita 266495-9 HEX.SOCKET HEAD BOLTMS-245.4 |
| 135 | 266573-5 | Makita 266573-5 SOCKET HEAD BOLT, EBH340U |
| 136 | 266570-1 | Makita 266570-1 SOCKET HEAD BOLT, EBH340U |
| 137 | 266569-6 | Makita 266569-6 HEX. SOCKET HEAD BOLMS-335.4 |
| 138 | 318440-1 | Makita 318440-1 RETAINER PLATE, MEM426 |
| 139 | 346083-9 | Makita 346083-9 LEAD VALVE, MEM426 |
| 140 | 424201-0 | Makita 424201-0 CHECK VALVE, MEM426 |
| 142 | 125554-7 | Makita 125554-7 ROCKER ARM ASSEMBLY, MEM426 |
| 143 | 325912-9 | Makita 325912-9 RETAINER SPRING, EBH340U |
| 144 | 234181-0 | Makita 234181-0 VALVE SPRING, EBH340U |
| 145 | 256200-2 | Makita 256200-2 PIN5, MEM426 |
| 146 | 256866-8 | Makita 256866-8 PUSH ROD, EBH340U |
| 147 | 424200-2 | Makita 424200-2 SPACER, MEM426 |
| 148 | 268239-3 | Makita 268239-3 PIN4, MEM426 |
| 149 | 313169-4 | Makita 313169-4 CAM LIFTER, MEM426 |
| 150 | 325913-7 | Makita 325913-7 EXHAUST VALVE, EBH340U |
| 151 | 325914-5 | Makita 325914-5 INTAKE VALVE, EBH340U |
| 152 | 125552-1 | Makita 125552-1 CAM GEAR ASSEMBLY, MEM426 |
| 153 | 268238-5 | Makita 268238-5 PIN5, MEM426 |
| 154 | 195141-6 | Makita 195141-6 PISTON RING SET |
| 155 | 318613-6 | Makita 318613-6 PISTON, EBH340U |
| 156 | 257796-6 | Makita 257796-6 PIN PISTON, EBH340U |
| 157 | 233983-1 | Makita 233983-1 CLIP, EBH340U |
| 158 | 254040-2 | Makita 254040-2 WOODRUFF KEY, EBH340U |
| 159 | 213537-0 | Makita 213537-0 OIL SEAL, EBH340U |
| 160 | 267425-3 | Makita 267425-3 CLIP, EBH340U |
| 161 | 125756-5 | Makita 125756-5 CRANKSHAFT ASSEMBLY, EH035A |
| 162 | 213148-1 | Makita 213148-1 OIL SEAL 10, MEM426 |
| 164 | 140435-4 | Makita 140435-4 FUEL TANK CAP |
| 165 | 140436-2 | Makita 140436-2 STRAP COMPLETE |
| 166 | 810455-9 | |
| 167 | 424104-8 | Makita 424104-8 DAMPER, MEM427 |
| 168 | 451877-0 | Makita 451877-0 FUEL TANK |
| 169 | 163447-0 | Makita 163447-0 Gasoline Filter |
| 170 | 345920-4 | Makita 345920-4 HOSE CLAMP, EBH340U |
| 171 | 424103-0 | Makita 424103-0 PLATE, MEM427 |
| 172 | 424102-2 | Makita 424102-2 PLATE, MEM427 |
| 173 | 162309-9 | Makita 162309-9 TUBE |
| 175 | 165606-2 | Makita 165606-2 HAMMER, EBH340U |
| 176 | 266580-8 | Makita 266580-8 TAPPING SCREW 5X10 |
| 177 | 451923-9 | Makita 451923-9 REEL |
| 178 | 232257-7 | Makita 232257-7 SPIRAL SPRING |
| 179 | 424317-1 | Makita 424317-1 STARTER KNOB |
| 180 | 444018-5 | Makita 444018-5 STARTER ROPE |
| 181 | 911218-7 | Makita 911218-7 PAN HEAD SCREW M5X14, EBH252U |
| 182 | 816453-1 | |
| 183 | 162310-4 | Makita 162310-4 TANK GUARD, EHB340U |
| 184 | 911218-7 | Makita 911218-7 PAN HEAD SCREW M5X14, EBH252U |

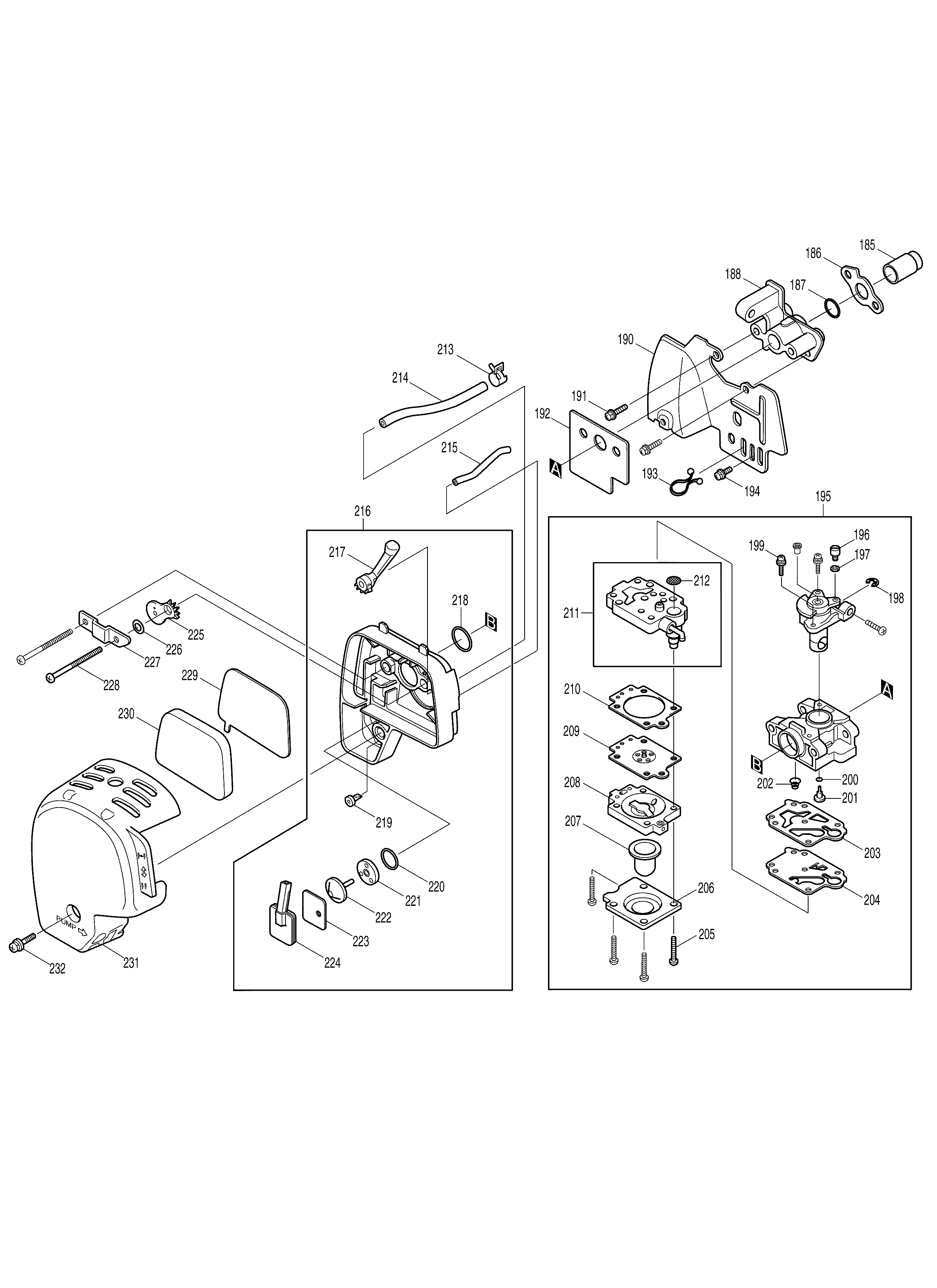

Sheet 4: Makita MS3354U parts diagram
| No. | Part number | Part name |
|---|---|---|
| 185 | 325915-3 | Makita 325915-3 PIPE INTAKE, EBH340U |
| 186 | 413120-5 | Makita 413120-5 INSULATOR GASKET, MEM427 |
| 187 | 213078-6 | Makita 213078-6 O RING 10, MEM427 |
| 188 | 451874-6 | Makita 451874-6 INSULATOR COMPL, EBH340U |
| 190 | 346261-1 | Makita 346261-1 INSULATER CABURETOR, EBH340U |
| 191 | 922228-9 | Makita 922228-9 HEX SOCKET HEAD BOLT M5*18, MEM427 |
| 192 | 413138-6 | Makita 413138-6 Carburetor Gasket for BHX2500 |
| 193 | 450562-2 | Makita 450562-2 CLAMP, MEM427 |
| 194 | 922213-2 | Makita 922213-2 HEX SOCKET HEAD BOLT M5*12, MEM427 |
| 196 | 325922-6 | Makita 325922-6 SWIWEL |
| 197 | 413140-9 | Makita 413140-9 WASHER |
| 198 | 257964-1 | Makita 257964-1 STOP RING E-3 |
| 199 | 266581-6 | Makita 266581-6 PAN HEAD SCREW M3X8 |
| 200 | 213538-8 | Makita 213538-8 O-RING 2 |
| 201 | 325921-8 | Makita 325921-8 JET |
| 202 | 234183-6 | Makita 234183-6 CONICAL COMRESSION SPRING |
| 203 | 442155-9 | Makita 442155-9 PUMP GASKET |
| 204 | 168575-6 | Makita 168575-6 PUMP DIAPHRAGM, EBH341U |
| 205 | 266582-4 | Makita 266582-4 TAPPING SCREW 3X24 |
| 206 | 346270-0 | Makita 346270-0 PRIMER PUMP COVER |
| 207 | 424314-7 | Makita 424314-7 PRIMER PUMP |
| 208 | 140438-8 | Makita 140438-8 AIR PURGE BODY |
| 209 | 168574-8 | Makita 168574-8 METERING DIAPHARGM, EBH341U |
| 210 | 442154-1 | Makita 442154-1 METERING DIAPHRAGM GASKET |
| 212 | 352010-6 | Makita 352010-6 INLET SCREEN |
| 213 | 345918-1 | Makita 345918-1 HOSE CLAMP, MEM427 |
| 214 | 422055-9 | Makita 422055-9 PIPE BRESTHER, EBH340U |
| 215 | 422042-8 | Makita 422042-8 PIPE, MEM427 |
| 217 | 451925-5 | Makita 451925-5 Choke Lever Em4251 |
| 218 | 213540-1 | Makita 213540-1 O-RING 15 |
| 219 | 424316-3 | Makita 424316-3 CHECK VALVE |
| 220 | 213539-6 | Makita 213539-6 O-RING 14 |
| 221 | 451924-7 | Makita 451924-7 CHECK VALVE PLATE |
| 222 | 424315-5 | Makita 424315-5 CHECK VALVE |
| 223 | 168577-2 | Makita 168577-2 SEPARATOR GASKET |
| 224 | 168576-4 | Makita 168576-4 SEPARATOR PLATE |
| 225 | 450560-6 | Makita 450560-6 CHOKE PLATE, MEM427 |
| 226 | 423376-2 | Makita 423376-2 GASKET, MEM427 |
| 227 | 345919-9 | Makita 345919-9 PLATE, MEM427 |
| 228 | 265188-5 | Makita 265188-5 PAN HEAD SCREW M5*68, MEM427 |
| 229 | 443140-5 | Makita 443140-5 Air Cleaner Element |
| 230 | 443141-3 | Makita 443141-3 Air Cleaner Filter Element |
| 231 | 450561-4 | Makita 450561-4 AIR CLEANER COVER, MEM427 |
| 232 | 911218-7 | Makita 911218-7 PAN HEAD SCREW M5X14, EBH252U |
Selected parts0
