Makita MS-245.4U
Makita MS-245.4U: exploded parts diagram, 3 sheets, 201 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita MS-245.4U: 201 positions on 3 sheets

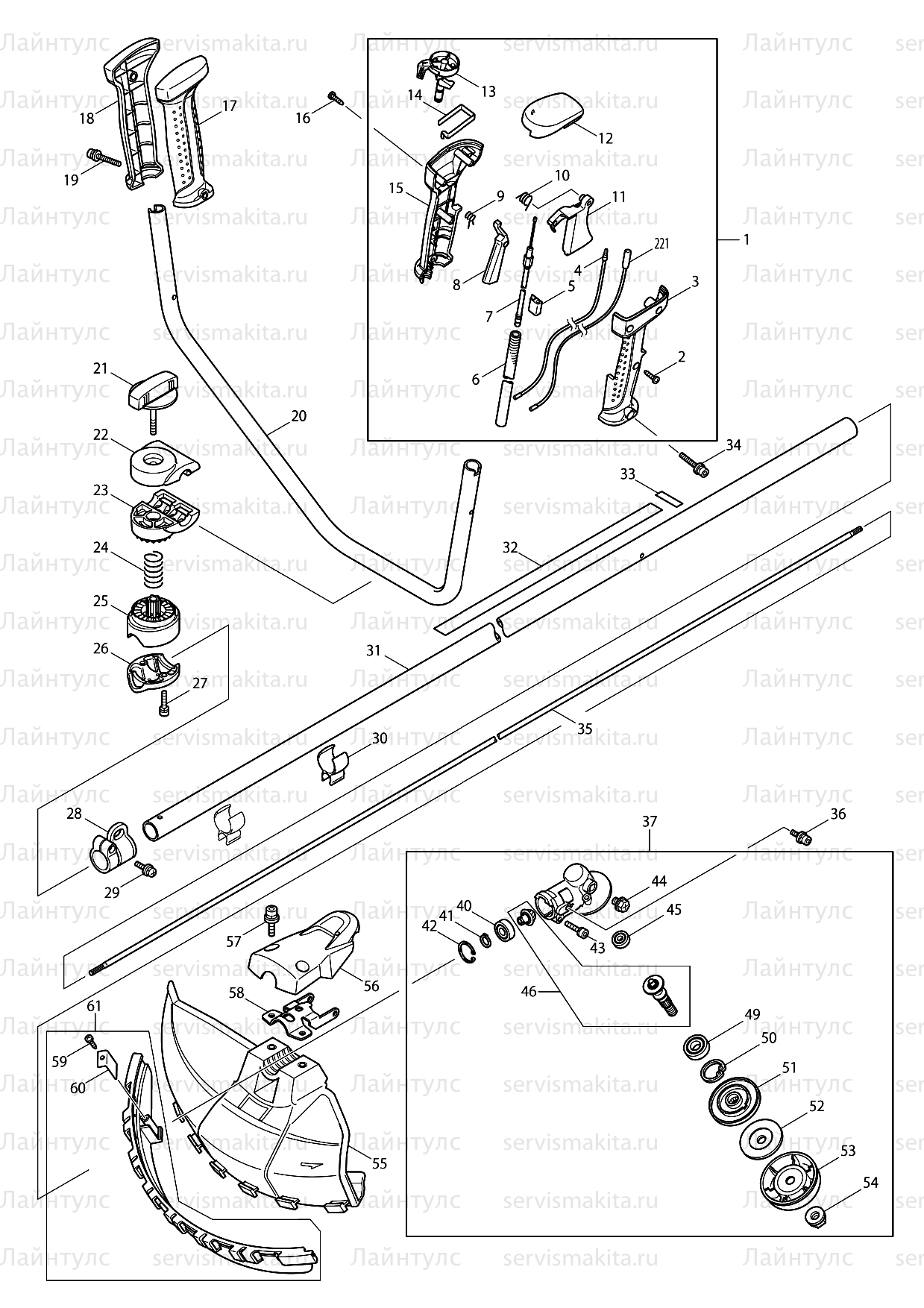

Sheet 1: Makita MS-245.4U parts diagram
| No. | Part number | Part name |
|---|---|---|
| 2 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 3 | 451094-2 | |
| 4 | 638663-8 | Makita 638663-8 LEAD UNIT, EBH250U |
| 5 | 451081-1 | Makita 451081-1 CABLE HOLDER, EBH250U |
| 6 | 451213-0 | Makita 451213-0 CORRUGATE TUBE, EBH250U |
| 7 | 168527-7 | Makita 168527-7 CONTROL CABLE, EBH252U |
| 8 | 451083-7 | Makita 451083-7 LOCK OFF LEVER, EBH250U |
| 9 | 233541-3 | Makita 233541-3 TORSION SPRING 7, EBH2500 |
| 10 | 233540-5 | Makita 233540-5 TORSION SPRING 11, EBH250U |
| 11 | 451084-5 | Makita 451084-5 THROTTLE LEVER, EBH250U |
| 12 | 451085-3 | Makita 451085-3 SWITCH COVER, EBH250U |
| 13 | 451082-9 | Makita 451082-9 SWITCH LEVER, EBH250U |
| 14 | 232251-9 | Makita 232251-9 LEAF SPRING, EBH2500 |
| 15 | 451093-4 | |
| 16 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 17 | 451096-8 | |
| 18 | 451095-0 | |
| 19 | 922256-4 | Makita 922256-4 HEX SOCKET BOLT M5*35, HR4002 |
| 20 | 331862-8 | Makita 331862-8 HANDLE 19, EBH250U |
| 21 | 168524-3 | Makita 168524-3 KNOB 57, EBH250U |
| 22 | 318429-9 | Makita 318429-9 HANDLE CLAMP, EBH250U |
| 23 | 318428-1 | Makita 318428-1 HANDLE HOLDER, EBH250U |
| 24 | 233202-5 | Makita 233202-5 COMPRESSION SPRING 20, EBH250U |
| 25 | 318427-3 | Makita 318427-3 PIPE HOLDER, EBH250U |
| 26 | 318426-5 | Makita 318426-5 PIPE CLAMP, EBH250U |
| 27 | 922241-7 | Makita 922241-7 Bolt M5X25 for JR300VT |
| 28 | 195143-2 | Makita 195143-2 HANGER SET |
| 29 | 911233-1 | Makita 911233-1 PAN HEAD SCREW M5X20, EBH251 |
| 30 | 451526-9 | |
| 31 | 140041-5 | Makita 140041-5 SHAFT PIPE COMPLETE, EBH250U |
| 32 | 810515-7 | |
| 33 | 806904-2 | Makita 806904-2 SERIAL LABEL, EBH252U |
| 34 | 922256-4 | Makita 922256-4 HEX SOCKET BOLT M5*35, HR4002 |
| 35 | 324893-4 | Makita 324893-4 SHAFT, MEM427 |
| 36 | 922218-2 | Makita 922218-2 HEX SOCKET HEAD BOLT M5*14, MEM427 |
| 40 | 210049-4 | Makita 210049-4 BALL BEARING 609ZZ, EBH251U |
| 41 | 961005-4 | Makita 961005-4 Retaining Ring S-9 BGA450 BGA452 9047 9047S 9049 9049S 9057S |
| 42 | 962103-7 | Makita 962103-7 RETAINING RING R-24, AN611 |
| 43 | 922241-7 | Makita 922241-7 Bolt M5X25 for JR300VT |
| 44 | 265590-2 | Makita 265590-2 HEX. BOLT M8X10, EBH250U |
| 45 | 211019-6 | Makita 211019-6 BALL BEARING 626, EBH250U |
| 46 | 188866-9 | |
| 49 | 210115-7 | Makita 210115-7 BEARING 6001LLU, EBH250U |
| 50 | 962106-1 | Makita 962106-1 RETAINING RING R-28, GD0800C |
| 51 | 331861-0 | Makita 331861-0 Receive Washer for EBH250U |
| 52 | 346084-7 | Makita 346084-7 CLAMP WASHER, EBH250U |
| 53 | 168526-9 | Makita 168526-9 CUP COMPLETE, EBH250U |
| 54 | 264025-0 | Makita 264025-0 HEX.NUT M10-17, EBH250U |
| 55 | 451098-4 | Makita 451098-4 PROTECTORMS-245.4 |
| 56 | 451097-6 | Makita 451097-6 PROTECTOR COVER, EBH250U |
| 57 | 922353-6 | Makita 922353-6 HEX.SOCCET HEAD BOLT M6X30 |
| 58 | 346073-2 | Makita 346073-2 PROTECTOR CLAMP, EBH250U |
| 59 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 60 | 346074-0 | Makita 346074-0 CUTTER, EBH250U |
| 221 | 638671-9 | Makita 638671-9 LEAD UNIT, EBH250U |
Sheet 2: Makita MS-245.4U parts diagram
| No. | Part number | Part name |
|---|---|---|
| 62 | 922226-3 | Makita 922226-3 HEX.SOCKET HEAD BOLT M5X18, LS1016L |
| 63 | 922211-6 | Makita 922211-6 HEX SOCKET HEAD BOLT M5*12, MEM427 |
| 64 | 424191-7 | Makita 424191-7 PIPE DAMPER 1, MEM427 |
| 65 | 318270-0 | Makita 318270-0 PIPE BRACKET 1, MEM427 |
| 66 | 318271-8 | Makita 318271-8 PIPE BRACKET 2, MEM427 |
| 67 | 424107-2 | Makita 424107-2 PIPE DAMPER 2, MEM427 |
| 68 | 265191-6 | |
| 69 | 318329-3 | Makita 318329-3 CLUTCH CASE, MEM427 |
| 70 | 450569-8 | Makita 450569-8 SPACER, MEM426 |
| 71 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 72 | 168475-0 | Makita 168475-0 CLUTCH DRUM, MEM427 |
| 73 | 210111-5 | Makita 210111-5 BALL BEARING 62, MEM427 |
| 74 | 962151-6 | Makita 962151-6 RETAINING RING R-32, 9523NB |
| 76 | 911218-7 | Makita 911218-7 PAN HEAD SCREW M5X14, EBH252U |
| 77 | 265187-7 | Makita 265187-7 PAN HEAD SCREW M5X12MS-245.4 |
| 78 | 451261-9 | |
| 80 | 450568-0 | Makita 450568-0 PLUG COVER, MEM427 |
| 83 | 265189-3 | Makita 265189-3 PAN HEAD SCREW M4X16MS-245.4 |
| 84 | 266440-4 | Makita 266440-4 HEX.SOCKET HEAD BOLT M5*40, MEM427 |
| 85 | 265184-3 | Makita 265184-3 COUNTERSUNK RAISED HEAD SCREW, MEM427 |
| 86 | 345915-7 | Makita 345915-7 MUFFLER COVER, MEM427 |
| 87 | 168469-5 | Makita 168469-5 EXHAUST MUFFLER |
| 88 | 345916-5 | Makita 345916-5 MUFFLER GASKET, MEM427 |
| 89 | 140023-7 | Makita 140023-7 ROCKER COVER COMPLETE, MEM426 |
| 90 | 162275-0 | Makita 162275-0 ROCKER COVER GASKET, MEM426 |
| 91 | 266494-1 | |
| 92 | 168534-0 | Makita 168534-0 Spark Plug NGK CMR4A |
| 93 | 162274-2 | Makita 162274-2 CAM GEAR COVER GASKET, MEM426 |
| 94 | 318443-5 | Makita 318443-5 CAM GEAR COVER, MEM426 |
| 95 | 911218-7 | Makita 911218-7 PAN HEAD SCREW M5X14, EBH252U |
| 96 | 450565-6 | Makita 450565-6 OIL GAUGE |
| 97 | 424100-6 | Makita 424100-6 GASKET |
| 98 | 162276-8 | Makita 162276-8 CASE GASKET, MEM426 |
| 99 | 318442-7 | Makita 318442-7 OIL CASE, MEM426 |
| 100 | 265186-9 | |
| 101 | 325666-8 | Makita 325666-8 OIL WEIGHT |
| 102 | 424202-8 | Makita 424202-8 OIL TUBE |
| 103 | 282020-8 | Makita 282020-8 HOSE CLAMP |
| 104 | 266493-3 | Makita 266493-3 HEX.SOCKET HEAD BOLTMS-245.4 |
| 105 | 318440-1 | Makita 318440-1 RETAINER PLATE, MEM426 |
| 106 | 346083-9 | Makita 346083-9 LEAD VALVE, MEM426 |
| 108 | 424201-0 | Makita 424201-0 CHECK VALVE, MEM426 |
| 109 | 266495-9 | Makita 266495-9 HEX.SOCKET HEAD BOLTMS-245.4 |
| 110 | 424200-2 | Makita 424200-2 SPACER, MEM426 |
| 111 | 125554-7 | Makita 125554-7 ROCKER ARM ASSEMBLY, MEM426 |
| 112 | 325668-4 | Makita 325668-4 SPRING RETAINER, MEM426 |
| 113 | 234108-0 | Makita 234108-0 COMPRESSION SPRING 9, MEM426 |
| 114 | 256200-2 | Makita 256200-2 PIN5, MEM426 |
| 115 | 325670-7 | Makita 325670-7 INTAKE VALVE, MEM426 |
| 116 | 325669-2 | Makita 325669-2 EXHAUST VALVE, MEM426 |
| 117 | 125552-1 | Makita 125552-1 CAM GEAR ASSEMBLY, MEM426 |
| 118 | 268238-5 | Makita 268238-5 PIN5, MEM426 |
| 119 | 313169-4 | Makita 313169-4 CAM LIFTER, MEM426 |
| 120 | 268239-3 | Makita 268239-3 PIN4, MEM426 |
| 121 | 256865-0 | Makita 256865-0 ROD2.5, MEM426 |
| 122 | 195145-8 | Makita 195145-8 PISTON RING SET |
| 123 | 233976-8 | Makita 233976-8 CLIP, MEM426 |
| 124 | 318441-9 | Makita 318441-9 PISTON, MEM426 |
| 125 | 257781-9 | Makita 257781-9 PISTON PIN, MEM426 |
| 126 | 213147-3 | Makita 213147-3 OIL SEAL 12, MEM426 |
| 127 | 267400-9 | Makita 267400-9 CLIP, MEM426 |
| 128 | 135374-1 | Makita 135374-1 CRANK SHAFT ASSEMBLY |
| 129 | 213148-1 | Makita 213148-1 OIL SEAL 10, MEM426 |
| 130 | 424105-6 | Makita 424105-6 PLUS CAP, PB-7600.4 |
| 131 | 324891-8 | Makita 324891-8 PLUG CAP SPRING, MEM427 |
| 132 | 168501-5 | Makita 168501-5 Ignition Coil |
| 133 | 911139-3 | Makita 911139-3 P.H.SCREW M4*20, EBH251U |
| 134 | 318343-9 | Makita 318343-9 FLY WHEEL, MEM426 |
| 135 | 267812-6 | Makita 267812-6 WASHER 6, MEM427 |
| 136 | 168498-8 | Makita 168498-8 CLUTCH SHOE |
| 137 | 267817-6 | Makita 267817-6 WASHER 8, MEM427 |
| 138 | 266457-7 | Makita 266457-7 SHOULDER HEX. BOLT M6*25, MEM427 |
| 139 | 265577-4 | Makita 265577-4 HEX HEAD BOLT M6*16, MEM427 |
| 140 | 231858-8 | Makita 231858-8 TENSION SPRING |
| 142 | 140435-4 | Makita 140435-4 FUEL TANK CAP |
| 143 | 140436-2 | Makita 140436-2 STRAP COMPLETE |
| 144 | 810455-9 | |
| 145 | 424102-2 | Makita 424102-2 PLATE, MEM427 |
| 146 | 424103-0 | Makita 424103-0 PLATE, MEM427 |
| 147 | 424104-8 | Makita 424104-8 DAMPER, MEM427 |
| 148 | 450566-4 | Makita 450566-4 FUEL TANK |
| 149 | 163447-0 | Makita 163447-0 Gasoline Filter |
| 150 | 345920-4 | Makita 345920-4 HOSE CLAMP, EBH340U |
| 151 | 168472-6 | Makita 168472-6 TUBE COMPLETE |
| 153 | 168483-1 | Makita 168483-1 PULLEY |
| 154 | 266585-8 | Makita 266585-8 TAPPING SCREW M5X12 |
| 155 | 451938-6 | Makita 451938-6 COLLAR |
| 156 | 451937-8 | Makita 451937-8 REEL |
| 157 | 232258-5 | Makita 232258-5 SPIRAL SPRING |
| 158 | 325923-4 | Makita 325923-4 SWING ARM |
| 159 | 424319-7 | Makita 424319-7 STARTER KNOB |
| 160 | 444019-3 | Makita 444019-3 STARTER ROPE |
| 161 | 808737-1 | |
| 211 | 806902-6 | Makita 806902-6 LABEL ENGINE, EBH250U |
| 212 | 345964-4 | Makita 345964-4 TANK GUARD, EBH250U |
| 213 | 806903-4 | |
| 214 | 911148-2 | Makita 911148-2 PAN H.SCREW M4*25 WITH WR, AN611 |
| 215 | 265187-7 | Makita 265187-7 PAN HEAD SCREW M5X12MS-245.4 |
| 216 | 331835-1 | Makita 331835-1 SPACER, EBH250U |
| 217 | 345963-6 | Makita 345963-6 CLAMP, EBH250U |
| 218 | 638664-6 | Makita 638664-6 LEAD UNIT, EBH250U |
| 219 | 638665-4 | Makita 638665-4 LEAD UNIT, EBH250U |
| 220 | 324980-9 | Makita 324980-9 SPARK ARRESTER |

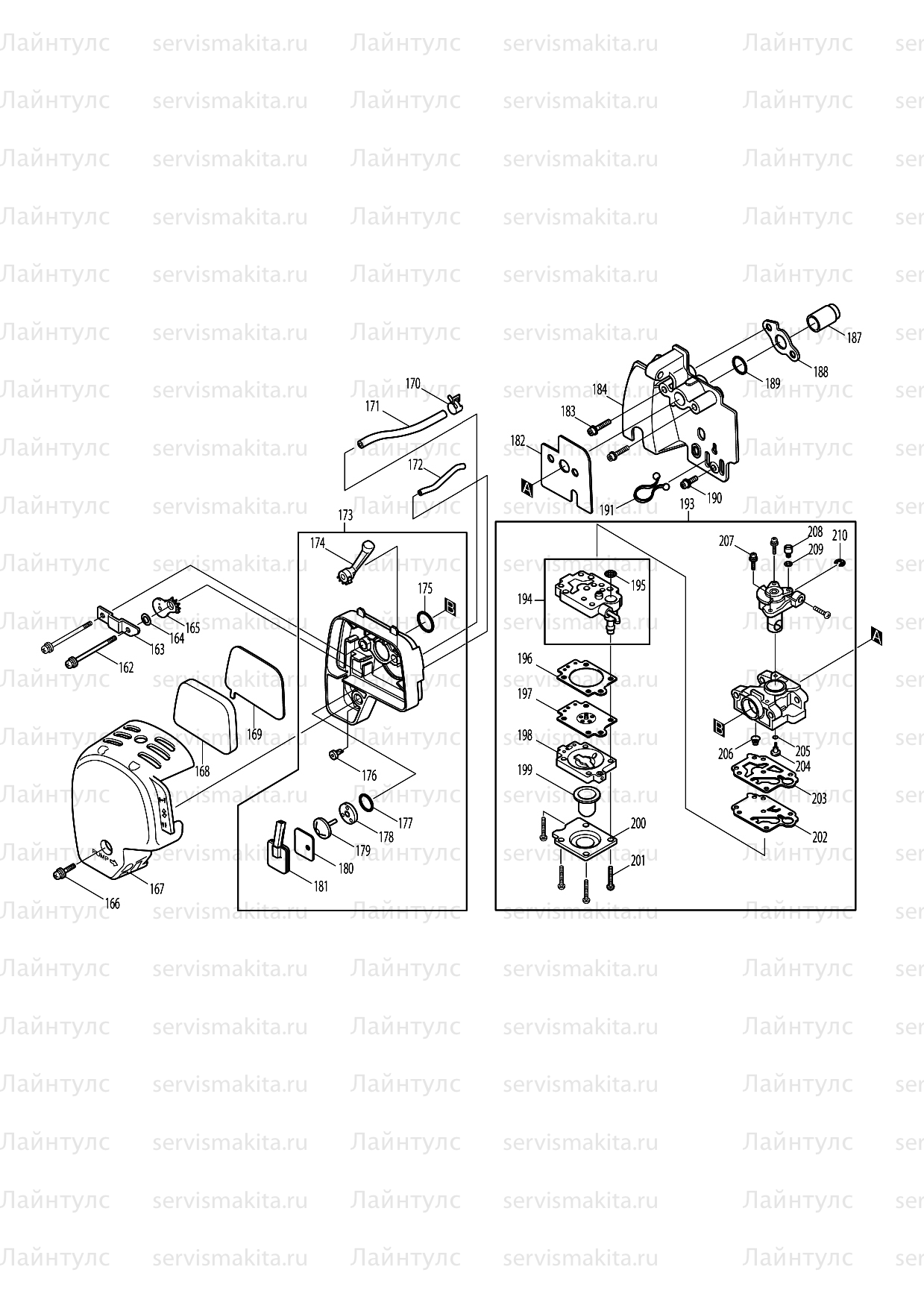

Sheet 3: Makita MS-245.4U parts diagram
| No. | Part number | Part name |
|---|---|---|
| 162 | 265188-5 | Makita 265188-5 PAN HEAD SCREW M5*68, MEM427 |
| 163 | 345919-9 | Makita 345919-9 PLATE, MEM427 |
| 164 | 423376-2 | Makita 423376-2 GASKET, MEM427 |
| 165 | 450560-6 | Makita 450560-6 CHOKE PLATE, MEM427 |
| 166 | 911218-7 | Makita 911218-7 PAN HEAD SCREW M5X14, EBH252U |
| 167 | 450561-4 | Makita 450561-4 AIR CLEANER COVER, MEM427 |
| 168 | 443141-3 | Makita 443141-3 Air Cleaner Filter Element |
| 169 | 443140-5 | Makita 443140-5 Air Cleaner Element |
| 170 | 345918-1 | Makita 345918-1 HOSE CLAMP, MEM427 |
| 171 | 422041-0 | Makita 422041-0 BREATHER PIPE, MEM427 |
| 172 | 422042-8 | Makita 422042-8 PIPE, MEM427 |
| 174 | 451925-5 | Makita 451925-5 Choke Lever Em4251 |
| 175 | 213540-1 | Makita 213540-1 O-RING 15 |
| 176 | 424316-3 | Makita 424316-3 CHECK VALVE |
| 177 | 213539-6 | Makita 213539-6 O-RING 14 |
| 178 | 451924-7 | Makita 451924-7 CHECK VALVE PLATE |
| 179 | 424315-5 | Makita 424315-5 CHECK VALVE |
| 180 | 168577-2 | Makita 168577-2 SEPARATOR GASKET |
| 181 | 168576-4 | Makita 168576-4 SEPARATOR PLATE |
| 182 | 413121-3 | Makita 413121-3 CARBURETOR GASKET, MEM427 |
| 183 | 922228-9 | Makita 922228-9 HEX SOCKET HEAD BOLT M5*18, MEM427 |
| 184 | 450559-1 | Makita 450559-1 INSULATOR, MEM427 |
| 187 | 324961-3 | Makita 324961-3 INTAKE PIPE, MEM427 |
| 188 | 413120-5 | Makita 413120-5 INSULATOR GASKET, MEM427 |
| 189 | 213078-6 | Makita 213078-6 O RING 10, MEM427 |
| 190 | 922213-2 | Makita 922213-2 HEX SOCKET HEAD BOLT M5*12, MEM427 |
| 191 | 450562-2 | Makita 450562-2 CLAMP, MEM427 |
| 195 | 352010-6 | Makita 352010-6 INLET SCREEN |
| 196 | 442154-1 | Makita 442154-1 METERING DIAPHRAGM GASKET |
| 197 | 168574-8 | Makita 168574-8 METERING DIAPHARGM, EBH341U |
| 198 | 140438-8 | Makita 140438-8 AIR PURGE BODY |
| 199 | 424314-7 | Makita 424314-7 PRIMER PUMP |
| 200 | 346270-0 | Makita 346270-0 PRIMER PUMP COVER |
| 201 | 266582-4 | Makita 266582-4 TAPPING SCREW 3X24 |
| 202 | 168575-6 | Makita 168575-6 PUMP DIAPHRAGM, EBH341U |
| 203 | 442155-9 | Makita 442155-9 PUMP GASKET |
| 204 | 325924-2 | Makita 325924-2 JET |
| 205 | 213538-8 | Makita 213538-8 O-RING 2 |
| 206 | 234183-6 | Makita 234183-6 CONICAL COMRESSION SPRING |
| 207 | 266581-6 | Makita 266581-6 PAN HEAD SCREW M3X8 |
| 208 | 325922-6 | Makita 325922-6 SWIWEL |
| 209 | 413140-9 | Makita 413140-9 WASHER |
| 210 | 257964-1 | Makita 257964-1 STOP RING E-3 |
Selected parts0
