Makita MR052
Makita MR052: exploded parts diagram, 1 sheet, 19 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita MR052: 19 positions on 1 sheet

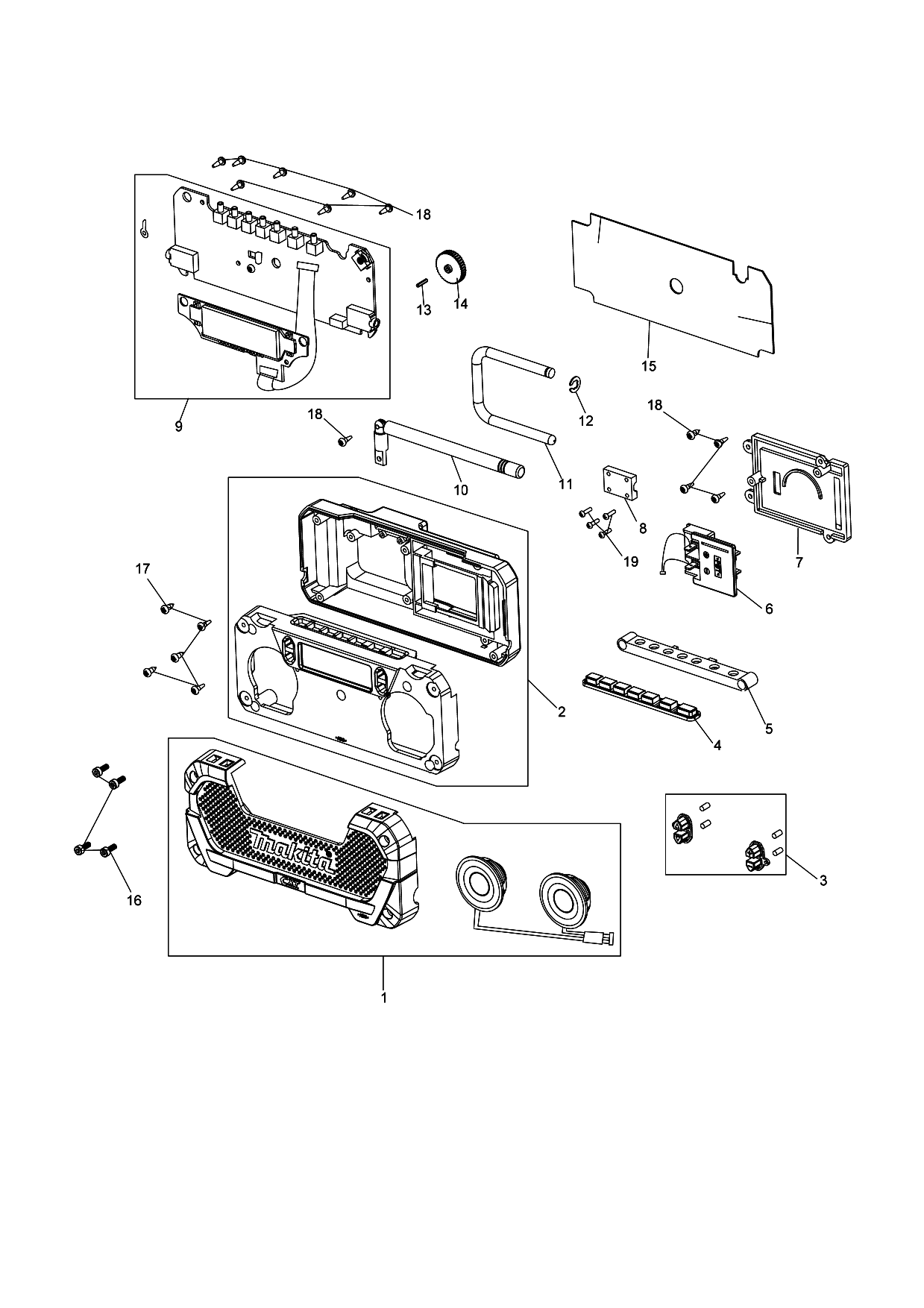

Sheet 1: Makita MR052 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | GM00001608 | Makita GM00001608 FRONT COVER ASS'Y |
| 2 | GM00001609 | Makita GM00001609 FRONT+BACK HOUSING ASSY |
| 3 | GM00001610 | Makita GM00001610 FUNCTION BUTTON ASS'Y |
| 4 | GM00001611 | Makita GM00001611 UPPER FUNCTION BUTTON |
| 5 | GM00001612 | Makita GM00001612 SWITCH HOLDER |
| 6 | GM00001613 | Makita GM00001613 BATTERY TERMINAL ASSY |
| 7 | GM00001614 | Makita GM00001614 TERMINAL FIX PLATE |
| 8 | GM00001615 | Makita GM00001615 HOOK HOLDER |
| 9 | GM00001628 | Makita GM00001628 Main LCD PCBA Ass'y (EU) MR052 |
| 10 | GM00001617 | Makita GM00001617 Rubber FM Antenna for MR052 RM02 MR051 |
| 11 | GM00001618 | Makita GM00001618 METAL HOOK |
| 12 | GM00001619 | Makita GM00001619 E-RING |
| 13 | GM00001620 | Makita GM00001620 TUNING KNOB SHAFT |
| 14 | GM00001621 | Makita GM00001621 TUNING KNOB |
| 15 | GM00001622 | Makita GM00001622 SOUND SPONGE |
| 16 | GM00001623 | Makita GM00001623 SCREW 3X8 |
| 17 | GM00001024 | Makita GM00001024 SCREW 3X12BML184 |
| 18 | GM00001395 | Makita GM00001395 SCREW 2,6X8 |
| 19 | GM00001624 | Makita GM00001624 SCREW 2X8 |
