Bosch 3617031024

Bosch 3617031024 chisel attachment: exploded parts diagram, 1 sheet, 25 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 3617031024: 25 positions on 1 sheet

Bosch 3617031024 parts list (1 sheet)

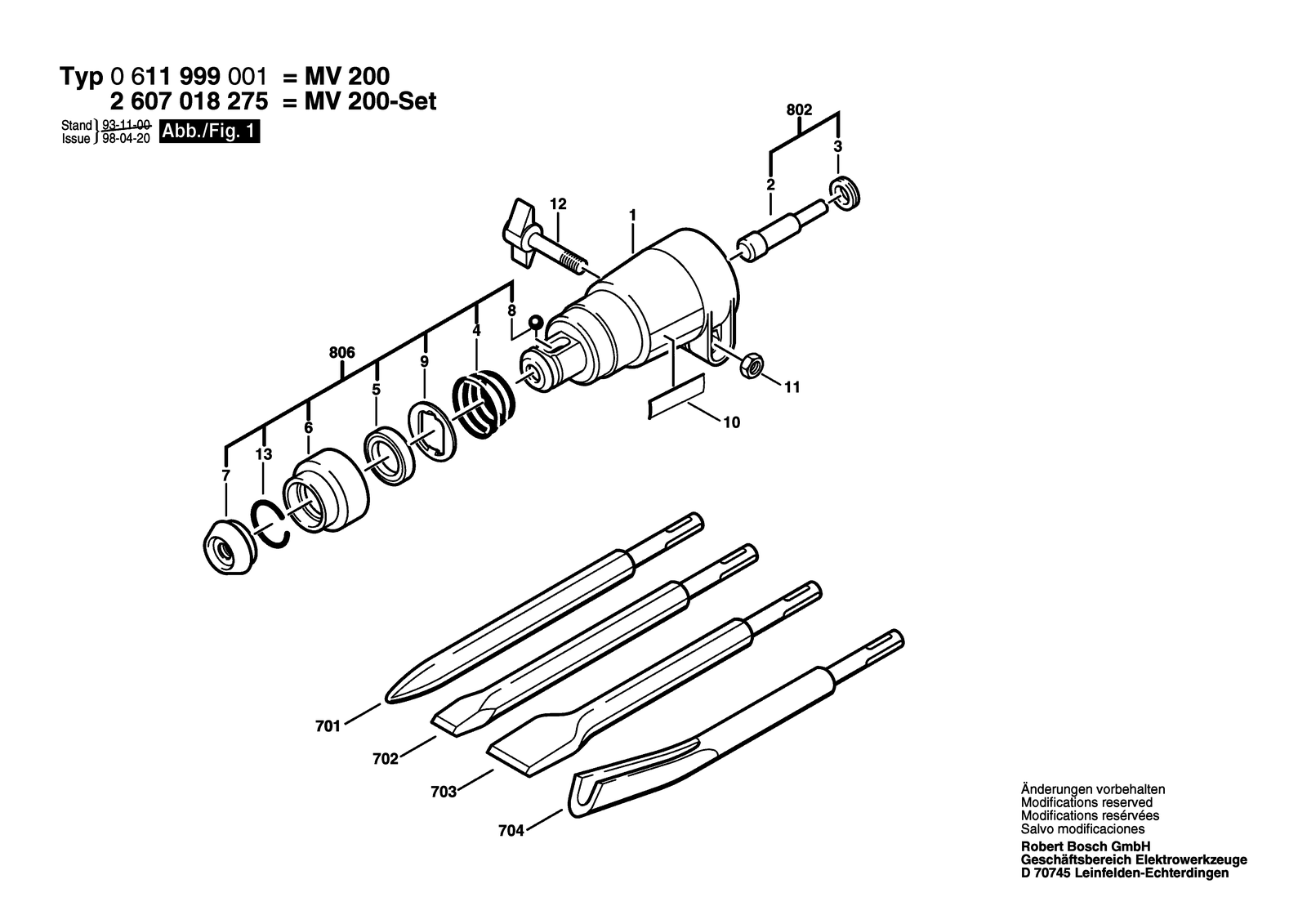

Bosch 3617031024 parts diagram, sheet 1
No.Part numberPart name
13615102007Housing
13615102007Housing
101611110250Manufacturer's nameplate
101611110250Manufacturer's nameplate
112915011007Hex Nut DIN 934-M6-8-A
112915011007Hex Nut DIN 934-M6-8-A
123613480001Wing Screw
123613480001Wing Screw
132916540012Retaining ring DIN 7993-A22
71610508008Protective Cap L=17 Mm, Sds-Plus
71610508008Protective Cap L=17 Mm, Sds-Plus
7011618600009Pointed Chisel Sds-Plus L=200
7011618600009Pointed Chisel Sds-Plus L=200
7021618600010Cold Chisel Sds-Plus L=200, B=20 MM
7021618600010Cold Chisel Sds-Plus L=200, B=20 MM
7031618601002Spade-Shaped Chisel Sds-Plus L=200, B=40 MM
7031618601002Spade-Shaped Chisel Sds-Plus L=200, B=40 MM
7041618601004Gouge Sds-Plus L=200, B=22 MM
7041618601004Gouge Sds-Plus L=200, B=22 MM
81903230013Ball DIN 5401-Ø7MM-III-ST
81903230013Ball DIN 5401-Ø7MM-III-ST
8023617031025Parts Set
8023617031025Parts Set
8061617000163Protection Sleeve Sds-Plus
8061617000163Protection Sleeve Sds-Plus
