Bosch 2610996059

Bosch 2610996059 guide: exploded parts diagram, 1 sheet, 8 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 2610996059: 8 positions on 1 sheet

Bosch 2610996059 parts list (1 sheet)

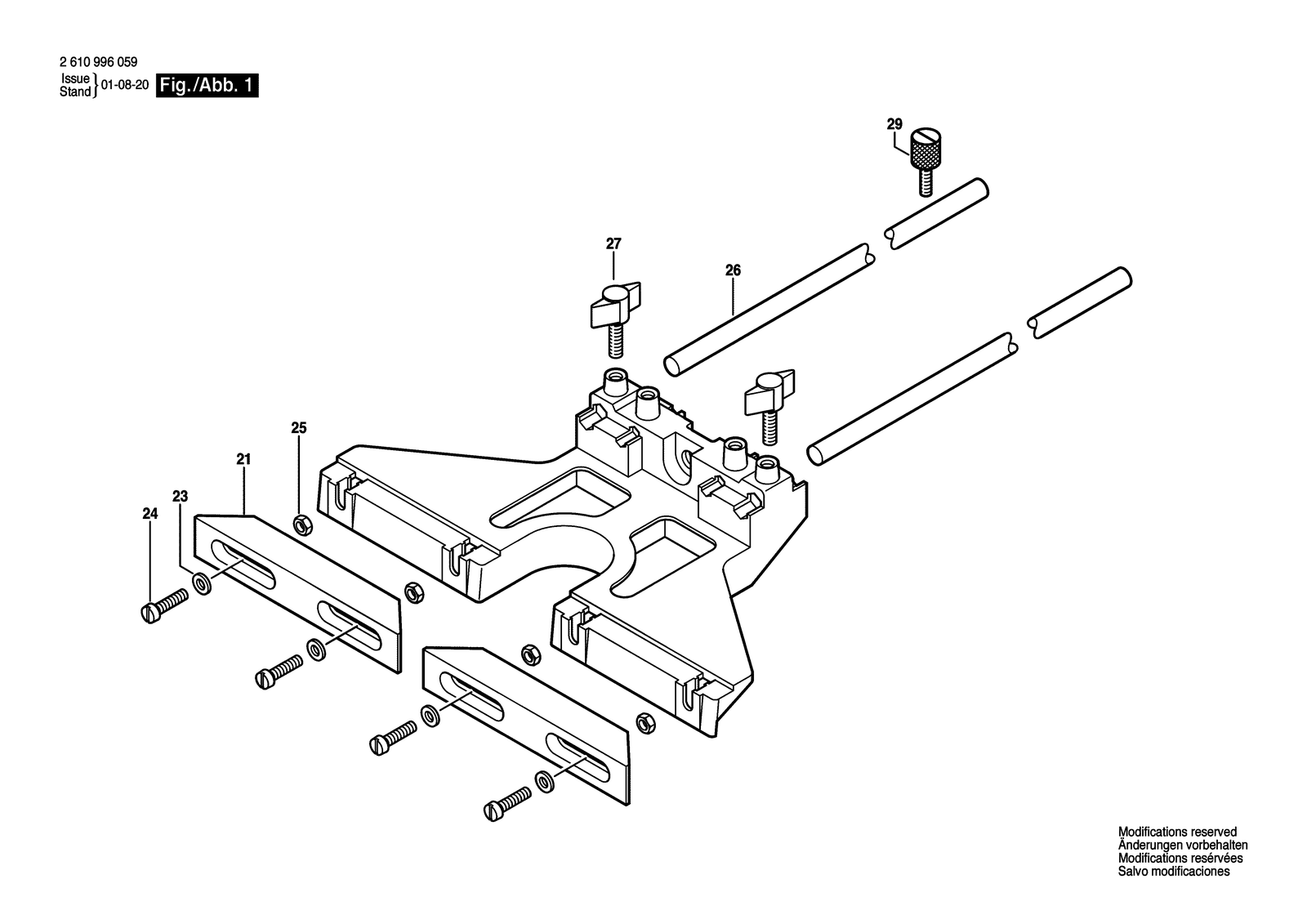

Bosch 2610996059 parts diagram, sheet 1
No.Part numberPart name
213602386501Guide Plate
232916011012Plain Washer DIN 125-A5,3-ST
242910011154Socket head cap screw DIN 84-AM5X12-5.8
252915011006Hex Nut DIN 934-M 5-M-8
263603001518Guide Rod 10 MM
263603001519Guide Rod
271613480008Wing Screw M6X20 MM
292610996091Knurled Thumbscrew
Selected parts0
