Bosch 2609390313

Bosch 2609390313 pilot drilling guide: exploded parts diagram, 1 sheet, 23 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 2609390313: 23 positions on 1 sheet

Bosch 2609390313 parts list (1 sheet)

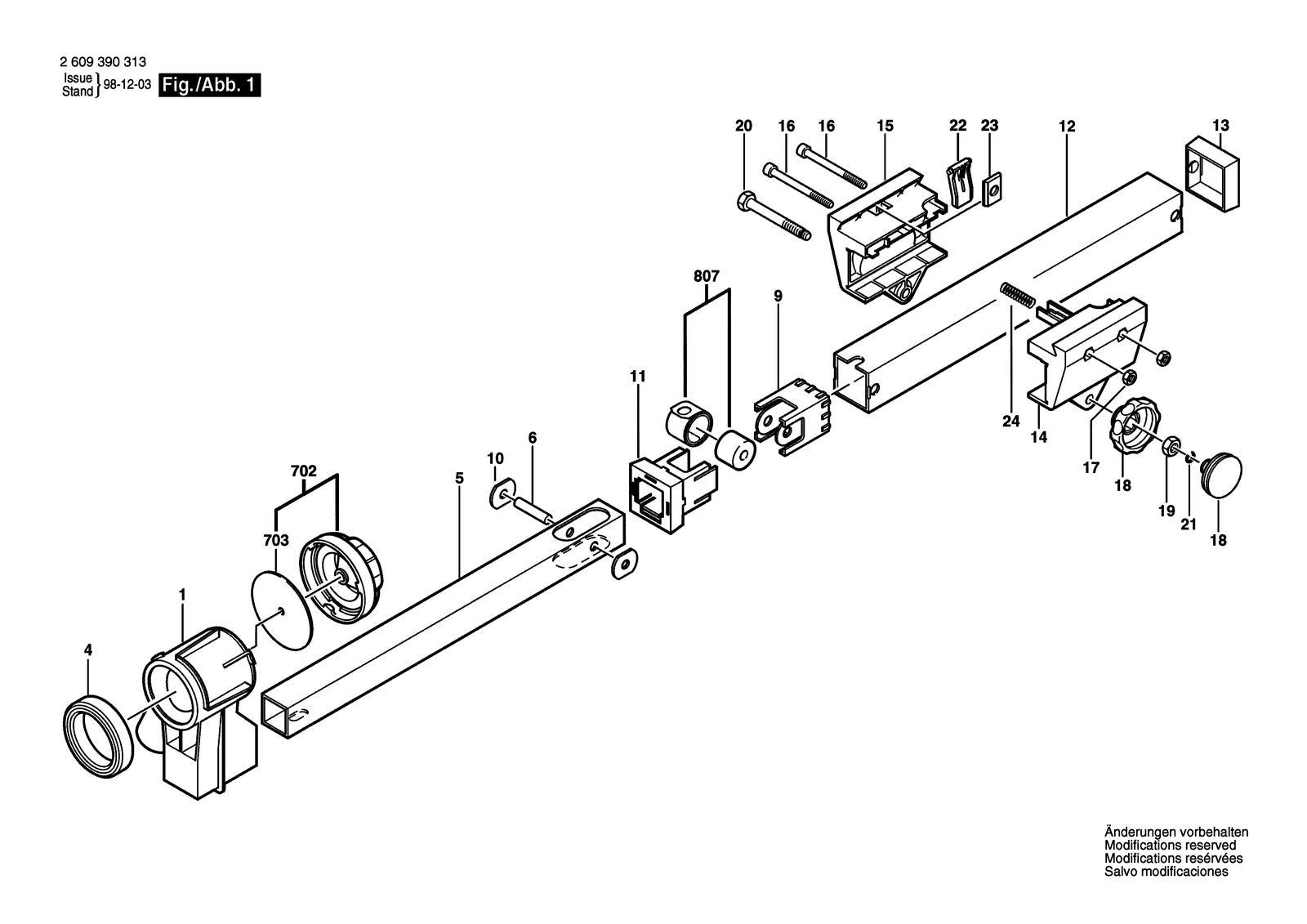

Bosch 2609390313 parts diagram, sheet 1
No.Part numberPart name
12609390338Suction Piece
102609390346Buffer
112609390347Guide Component
122609390348Guide Tube
132609390349Cover
142609390350Drive-Machine Holder
152609390351Drive-Machine Holder
162910141219Hex Socket Head Cap Screw DIN 912-M6X70
172915011007Hex Nut DIN 934-M6-8-A
181613349015Star Knob
192915011009Hex Nut DIN 934-M8-8-A
202609390352Hex Screw
212916540004Retaining ring DIN 7993-A7
222609390353Locking Lever
232609390354Notch Cam
242609390355Compression Spring
42609390340Seal Ring
52609390341Guide Tube
62609390342Bolt
7022609390465Centering Sleeve
7032609390319Sealing disk
8073607032009Assembly Of Service Parts
92609390345Inner Guide
