Bosch 2607335374

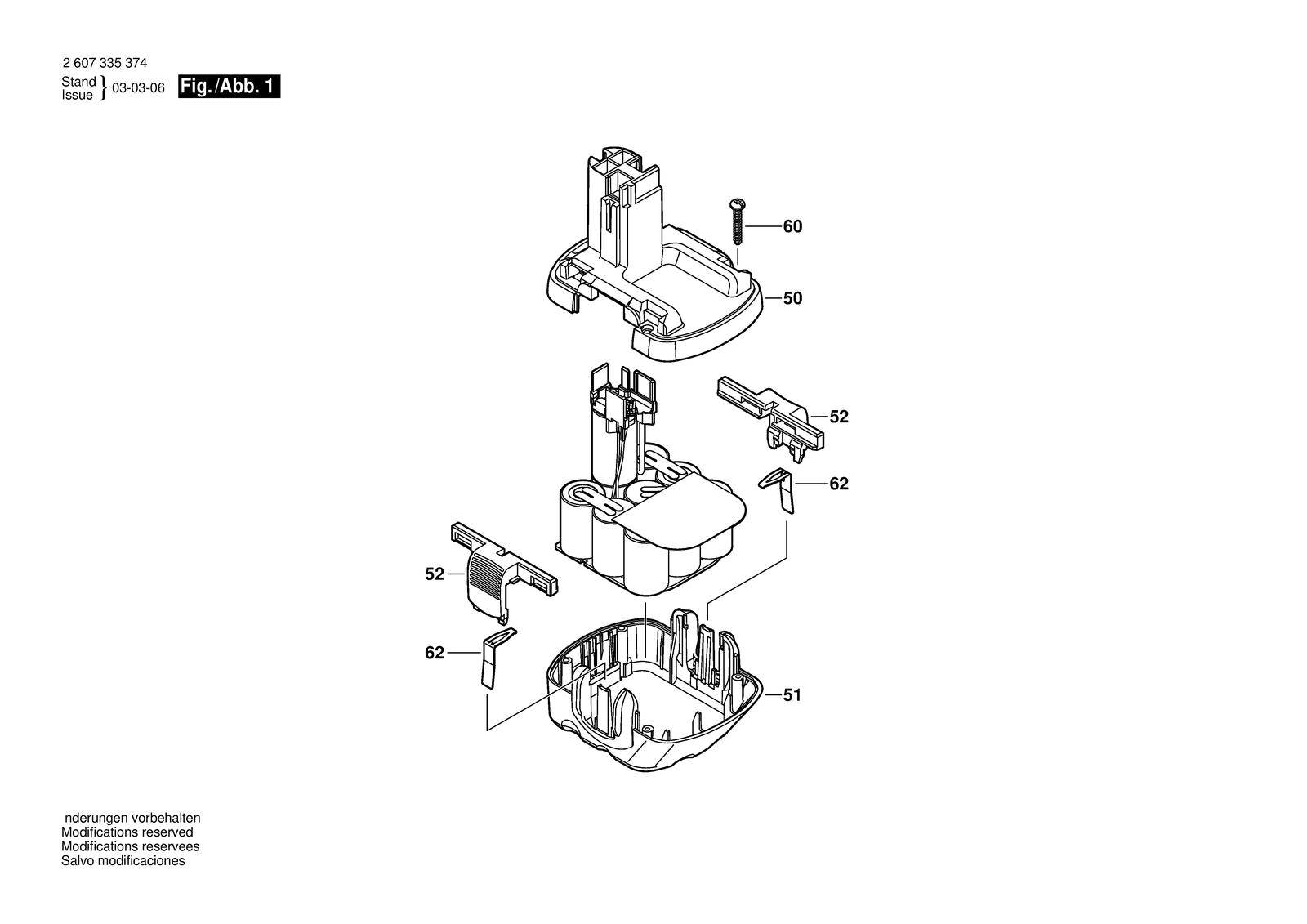

Bosch 2607335374 accumulator package: exploded parts diagram, 1 sheet, 5 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 2607335374: 5 positions on 1 sheet
Bosch 2607335374 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 50 | 2605190197 | Battery Housing |
| 51 | 2605190210 | Battery Housing |
| 52 | 2605190395 | Push-Button |
| 60 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 62 | 2604690029 | Leaf Spring |
